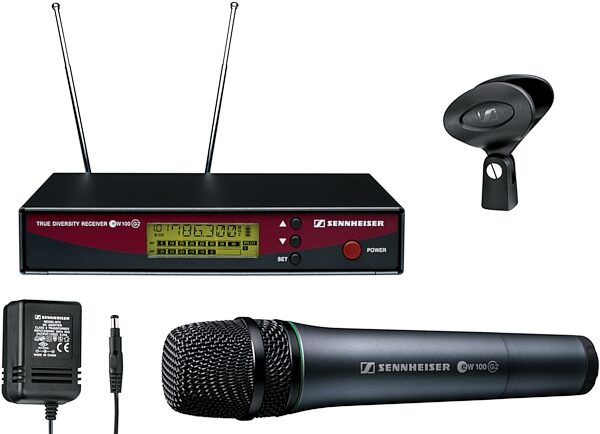

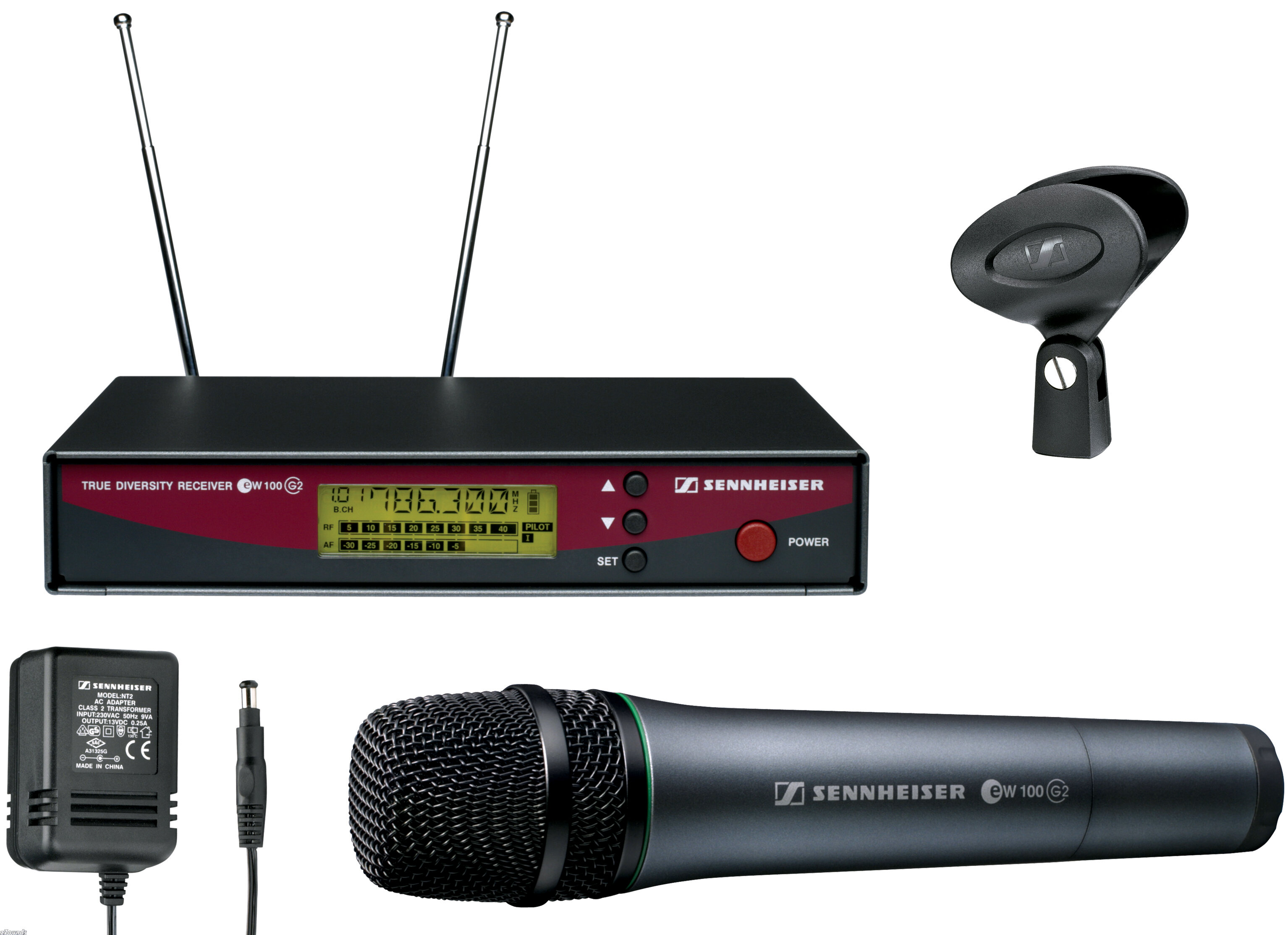

Sennheiser ew135G2 Evolution G2 100 Series UHF Handheld Wireless

Simply the best, most affordable way to get professional caliber UHF wireless! Sennheiser's original evolution series introduced startling new technology and innovative design. Now, they're again pushing the limits of performance, audio quality, ruggedness and ease of use. With redesigned features such as much smaller body packs, larger backlit LCD displays, AutoScan function on all receivers, 36MHz switching bandwidth, and more, evolution G2 is today's most advanced, best sounding, easy-to-use, road-worthy wireless system. The amazing 100 Series offers 4 switchable presets (reprogrammable to any of 1,440 available frequencies), a true diversity, and - unlike other wireless systems at this price - metal construction that will stand up to the rigors of life on the road. The system features variable-level 1/4" TRS and XLR balanced connectors.

Features
Autoscan on all receivers for simple and secure frequency selection

1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility

Robust metal construction for durability

Pilot tone squelch(defeatable for backwards compatibility with original EW systems)

New battery concept(AA cells and rechargeable battery accessories)

Transmitter battery status telemetry on all models

Audio signal metering on transmitter LCD display

External charging contacts on 300 and 500 series bodypacks

XLR jacks on all rack-mountable units

Technical Info

Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)

General Specs
Frequency Range: 518-554, 626-662, 740-776, 786-822, 830-866MHz

Switchable Frequencies: 1440

Af Freq Response: 40-18000Hz

Signal To Noise Ratio: >110dB

Compander System: HDX HDX

Pilot Tone: 32768kHz, deafeatable

Receiver
Weight: approx.1100g

Dimensions: 212 x 145 x 38mm

Squelch: Low: 5dB?V Mid: 15dB?V Hi: 25dB?V

Nominal Peak Deviation: XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)

Current Consumption: approx.200mA

Power Supply: 10.5-16V DC, 12V nom.

Adjacent Channel Rejection: >65dB

Image Rejection: >70dB

Sensitivity: <2.5?V

Intermodulation Spacing: >65dB

Receiver Principle: True Diversity

Booster Dc Supply: None(only via antenna splitter ASP2)

Transmitter
Weight: approx. 450g

Power Supply: 2.4V DC

Nominal Peak Deviation:
Mic: 1.8V eff.
Line: approx. 2,4Veff

Operating Voltage: >8h

Current Consumption: <170mA <250?A

Rf Outputs: typ. 30mW

Input Impedance:
Mic: 10kOhm
Line: 1MOhm

Max Sound Pressure Level: approx. 154dB

An MD835 cardioid dynamic mic comes with this handheld system.
