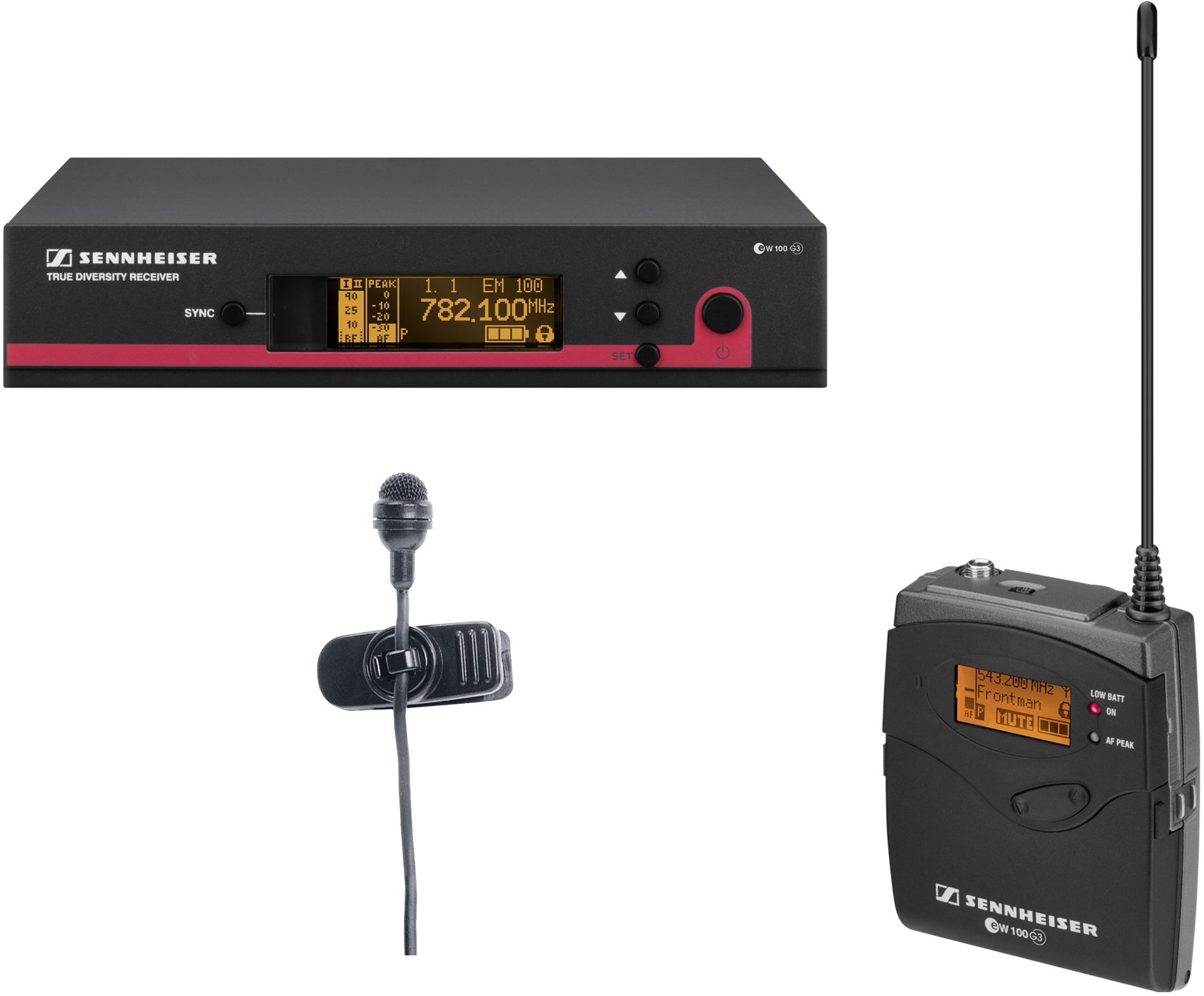

Sennheiser ew114G3 Evolution G3 100 Series UHF Lavalier Wireless

Bring your presentations to life With the Evolution G3 LE lapel wireless system. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation, not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.

Features
# Sturdy metal housing (transmitter and receiver)

# 36 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

# Enhanced frequency bank system with up to 12 compatible frequencies

# High-quality true diversity reception

# Pilot tone squelch for eliminating RF interference when transmitter is turned off

# Automatic frequency scan feature searches for available frequencies

# Enhanced AF frequency range

# Increased range for audio sensitivity

# Wireless synchronization of transmitters via infrared interface

# User-friendly menu operation with more control options

# Illuminated graphic display (transmitter and receiver)

# Auto-Lock function avoids accidental changing of settings

# HDX compander for crystal-clear sound

# Transmitter feature battery indicatation in 4 steps, also shown on receiver display

# Programmable Mute function

# Integrated Equalizer and Soundcheck mode

# Contacts for recharging BA 2015 accupack directly in the transmitter

# Includes bodypack transmitter, ME 4 cardioid lavalier and rack mountable receiver, LE Version

Technical Info

Specifications
Modulation: Broadband FM

Frequency Ranges (MHz):
- 518 - 554 (A2)
- 626 - 662 (B2) Switching bandwidth: 36 MHz

Frequency Banks: 20 (fixed)

1 (rewritable) Maximum # or presets per bank: 6

Pilot tone squelch: as ew G2, switchable

Compander: HDX, compatible with ew G2 and ew G1

Sennheiser Evolution G3 100 LE Receiver
Principle: True Diversity

Sensitivity (52dBA eff S/N): < 2.5 uV

Adjacent channel rejection: greater than or equal to 65 dB

Intermodulation rejection: greater than or equal to 65 dB

Blocking: greater than or equal to 70 dB

Squelch:
- Lo: 5 dBuV
- MID: 15 dBuV
- Hi: 25 dBuV Antenna inputs: 2 x BNC / 50 ohms

S/N: greater than or equal to 110 dB

AF Frequency response: 80-18,000 Hz

AF outputs:
- 1/4 inch jack: +12 dBu (unbal.)
- XLR: +18 dBu + 6 dB gain (bal.) AF gain range: 48 dB (3 dB steps)

EQ presets:
- Flat
- LoCut (-3 dB / 180 Hz)
- HiBoost (+6 dB / 10 kHz)

LoCut/HiBoost Temperature Range: -10*C - +55*C

Power Supply: NT 2-3

Nominal voltage: 12 V DC

Current comsumption: 300 mA

Operation time (batteries, BA2015 accupack): typically 8 hrs

Dimensions (BxHxT): 212 x 43 x 190mm

Weight: approximately 900 grams

Sennheiser Evolution G3 LE 100 Bodypack Transmitter
RF Output power: 30 mW

Antenna output: whip antenna (SK)

AF frequency response: 25 - 18,000 Hz

AF Sensitivity range: 60 dB / 3 dB steps

THD: less than or equal to 0.9 per cent

Maximum input voltage: +12 dBu

Input impedance: 1 M ohms

Input capacity: 4 steps, switchable

Temperature range: -10C - +55C

Power Supply: 2 x AA batteries, 1.5V

Nominal Voltage: 2.4 V DC

Current Consumption: typically 180 mA (30 mW)

Operation time (batteries/BA2015): typically 8 hours

Dimensions: 82 x 64 x 24 mm

Weight (including batteries): approximately 160 grams
