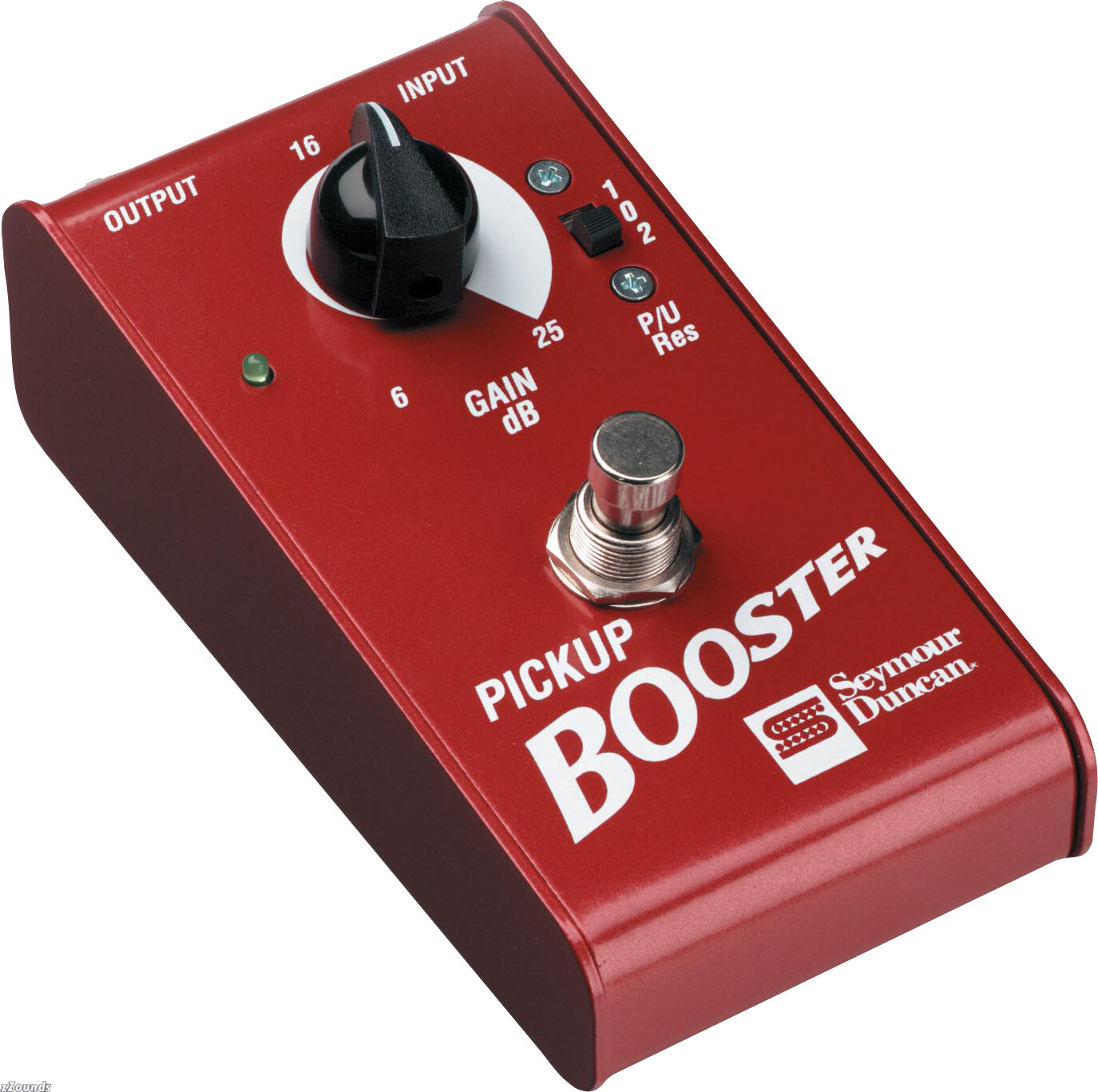

The first effects pedal designed specifically to work together with the pickups in your instrument to achieve optimum gain and resonance for all your tonal applications.
Turn the knob to dial in pure, flat-EQ gain, ranging from 6dB, all the way to an astonishing 25dB! In addition, the Pickup Booster can add thickness to a single coil pickup. By engaging the Resonance Switch, the resonant peak of a single coil pickup can be lowered, making a Strat® pickup sound similar to a vintage humbucker or even a high-output humbucker.
Technical Info
Specifications
Gain range: 6 to 25 dB
Pickup Resonance Switch: Makes a single coil sound like a vintage humbucker ("1") or high output humbucker ("2").
"1" - Resonance shift down 2-3kHz
"0" - Resonance is not affected
"2" - Resonance shifts down 3-5kHz
Bypass: True bypass
Noise: -120 dBV (referred to input with gain set at 25dB)
Type of circuitry: Fully discrete, class A
Distortion: < 0.1%
Power: DC 9-12 V battery, or regulated DC adapter
Current consumption: 3.5mA @ 9V (when LED is "on"), 1.5mA @ 9V (when LED is "off")
Input impedance: 500K (when effect is "on"), Open (when effect is "off")
Output impedance: 5K ohms
Dimensions (W x L x H): 2.5 x 5 x 2 in. (6.35 x 12.7 x 5.08 cm)
Weight: 0.8 lb. Without battery, 0.9 lb. With battery
Chassis material: Heavy duty 1.6 mm steel
