Product Description
Featuring groundbreaking wireless technology, Samson's new UHF Synth 32 system provides 32 selectable UHF frequencies in both the receiver and transmitter. The system's compact half-rack receiver features a large front-panel LCD display on the front panel and a comprehensive feature set. The system includes patent-pending PLL synthesized VCO circuitry in the transmitters along with SAW (Surface Acoustic Wave) filters in the receiver. The system also includes built-in Noise Squelch circuitry.

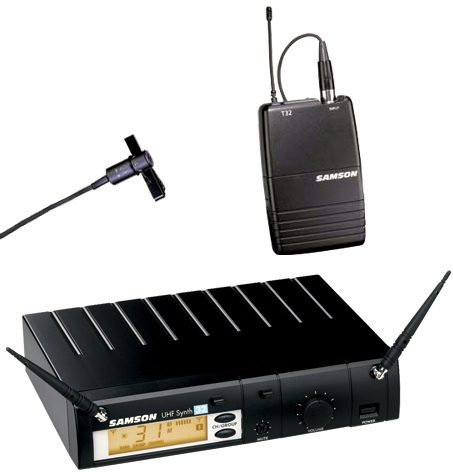

System Includes: R32 Receiver, T32 Beltpack Transmitter, and Audio Technica AT-831 Lavalier Microphone.
Features
Synthesized UHF wireless system with 32 selectable frequencies in both receiver and transmitter.
LCD display indicates Channel, Group, Audio Level/RF Level, Diversity A/B antenna, and Mute.
SAW (Surface Acoustic Wave) filters for discriminating wireless reception.
Built-in Noise Squelch circuitry mutes system wide-band noise.
Balanced XLR output and Õ in. output. Compact half-rack receiver design with optional rack-mount kit.
Transmitters feature PLL synthesized VCO technology to eliminate spurious emissions in multi-user venues.
Transmitter features battery life indicator and full complement of controls.
Tuned molded antennas for enhanced reception.
9V battery operation.
3-pin mini-XLR connector.
About Samson Audio
Samson's mission is to create precision audio tools for professionals, all with exceptional sound, a wealth of practical features, and rugged construction to ensure consistent performance and long life in all kinds of applications. Their power amplifiers, equalizers, powered mixers, mixers, specialized products, racklight/power distribution systems, microphones, and other unique products to come, are all dedicated to one idea: the art of high technology is best served by making excellence more accessible to everyone.
zZounds is an authorized dealer of
Samson products.
System Includes: R32 Receiver, T32 Beltpack Transmitter, and Audio Technica AT-831 Lavalier Microphone.
System
Channels: 32 per Band (3 Bands)
Modulation Type: FM
Noise Reduction Type: Compander
Distance: 100 m
System Transmitters (T32 and H32)
Oscillation Type: PLL Synthesized Control OSC
Pre-Emphasis: 50 µSec
Antenna Type:
T32: Wire (permanently attached)
H32: Integral Dipole
Input (T32): TB3M QG (Mini-XLR) Connector
Maximum Input Level:
T32: 0 dBv
H32: -20 dBv
Battery: MN1604 9-volt alkaline
Controls:
T32: Power On/Off, Mute On/Off, Level Control (Trimpot), Group, Channel
H32: Power On/Off, Audio On/Off, Level Control (Trimpot), Group, Channel
LED Indicator: Battery status, Frequency availability
Operating Voltage: 9 Volts
Frequency Range:
Low Band: 778.125 MHz - 782.000 MHz
Middle Band: 801.125 MHz - 805.000 MHz
High Band: 854.900 MHz - 858.850 MHz
Current Consumption: 32 mA (typical)
RF Power: 10 mW
Frequency Stability: ± 15 kHz
Spurious Ratio: 1 uW
Deviation: 15 kHz
T.H.D.: 2% max. @ 1 kHz
Signal to Noise Ratio: > 100 dB
Audio Frequency Response: 50 Hz to 15 kHz ± 3.5 dB
Battery Life: 14 hours (typical)
Approvals: Complies with ETS 300 422, ETS 300 445 and FCC Part 74
Dimensions (W x H x D):
T32 - without antenna: 102 x 66 x 24mm (4 x 2.6 x .9 in.)
H32 - without mic element: 37 (diameter) x 151mm (1.4 x 5.9 in.)
Weight (without battery, mic element)
T32: 80 g (2.8 oz.)
H32: 65 g (2.3 oz.)
Receiver (R32)
Oscillation Type: PLL Synthesized Control OSC
De-emphasis: 50 µsec
IF Frequency: 10.7 MHz
Antennas: Dual 1/4 Wavelength
In/Out: 5.5mm DC Inlet, Unbalanced Output (1/4" phone jack), Balanced Output (female XLR connector)
Display: LCD Display (with backlit amber color)
Display Contents: Frequency Group/Channel (7 segments, 2 digits), Frequency Band (High, Mid, Low), Antenna A/B, MUTE display, RF Level Meter (6 points), AF Level Meter (6 points)
Controls: Power On/Off Switch (Front), Frequency Up/Down Switch (Front), Audio Level Volume (Front), Squelch Level Volume (Front), Balanced Output Level Switch (Rear)
Operating Voltage: 9 VDC, 65 mA (min.) - 140 mA (max.) @ 9 V Battery or supplied AC adapter
Frequency Range:
Low Band: 778.125 MHz - 782.000 MHz
Middle Band: 801.125 MHz - 805.000 MHz
High Band: 854.900 MHz - 858.850 MHz
Squelch Sensitivity: 10 dBuV to 40 dBuV adjustable
Sensitivity: (AF = 1 kHz, dF = 20 kHz) = < 6 dBuV @ 20 dB S/N
Selectivity: ± 150 kHz (AF Out Ratio -60 dB)
T.H.D.: < 1% @ 1 kHz
Signal to Noise Ratio: > 95 dB (overall)
Audio Frequency Response: 50 Hz - 15 kHz (± 3.5 dB)
AF output level: -10/-20/-40 dBv
Audio Output Impedance: Unbalanced (1/4 in. Jack): 10 k ü
Balanced (XLR Jack): 600 ü
Dimensions - without antennas (W x H x D): 198 x 42 x 140mm Ý 7.8 x 1.7 x 5.5 in.
Weight: 13.6 oz. (385 g)
