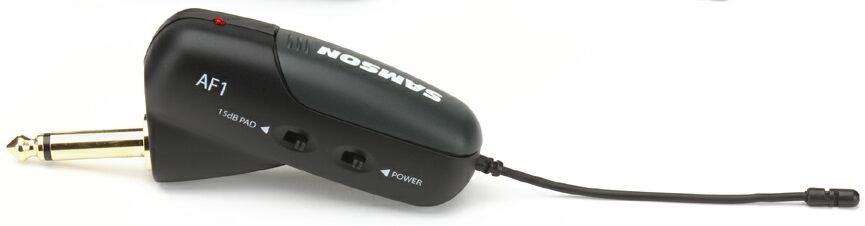

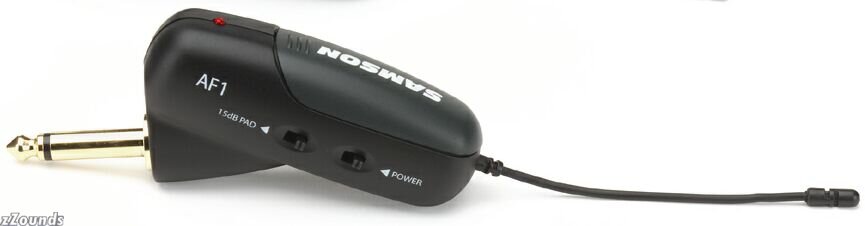

Samson Airline AF1 Guitar/Bass Wireless Transmitter Only with Straight Plug

Looking for an extra Airline guitar transmitter so you can change guitars easier? Get an extra so you can stick them on all the guitars you use at your gigs. Make sure to match the frequency of the new transmitter to your current receiver.

AirLine Guitar System
The whole point of wireless microphone and instrument systems is to eliminate cables for complete freedom of movement. AirLine takes this idea to the next level with miniaturized transmitters that eliminate conventional body pack transmitters and connecting cables so vocalists, musicians, fitness trainers, public speakers, on air talent, and more can cut ALL the cables for the first time!

The revolutionary AirLine "plug-in" guitar transmitters come in 2 versions: the AF1 for Strat(R)-style inputs and the AG1 for traditional Gibson(R)-style end-mount inputs and all others. Less than half the size of conventional body packs, these miniaturized transmitters run on a tiny triple-A battery with 14-hour battery life. Both feature an array of onboard controls: A Power On/Off and Mute switch, red/green LED for Power On/Off, a Peak LED and an Input Level control for different pickups. And UHF (Ultra High Frequency) means clearer frequencies with less interference.

Technical Info

Channel Frequencies
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz

RF Output Power (5mW): -4dB Minimum, +3dB Maximum

Frequency Stability: -40kHz Minimum, 40kHz Maximum

Spurious: 1uW

Modulation Factor: 13kHz Minimum, 15kHz Typical, 17kHz Maximum, Input 1kHz-10dBv

Pre-emphasis: 50 usec

Maximum Input Level: +2 dBv

Input Impedance: 2K ohms

THD: < 2% (1 kHz deviation 15kHz)

Audio Frequency Response: 50Hz - 15kHz (+/-3.5 dB)

Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum

Current Consumption: 60mA Typical

Battery Life: 14 hours (AAA size battery)

Output: 6.3mm, 1/4 in. mono Jack

Antenna: Permanently attached 1/4 wave length wire

Controls: Power Switch, 15 dB Pad Switch

Indicators: Power On (LED Flash), Low Battery (LED On when battery less than 1.1V)
