The Concert 77 UHF Wireless systems feature half rack space/dual antenna receivers with 6 segment audio and RF metering, volume and squelch controls, 1/4-inch unbalanced and XLR balanced outputs (switchable mic/line level), a rugged beltpacks transmitter with On/Off and Audio Mute switches, a battery meter, and audio level controls.
- True Diversity UHF Wireless System with PLL Frequency Control
- Multi-segment Audio level, RF level and A/B Antenna Operation LED meters
- Squelch control eliminates carrier signal noise and RF interference
- Tuned molded antennas for accurate reception
- XLR and unbalanced 1/4-inch outputs with mic/line level output switch

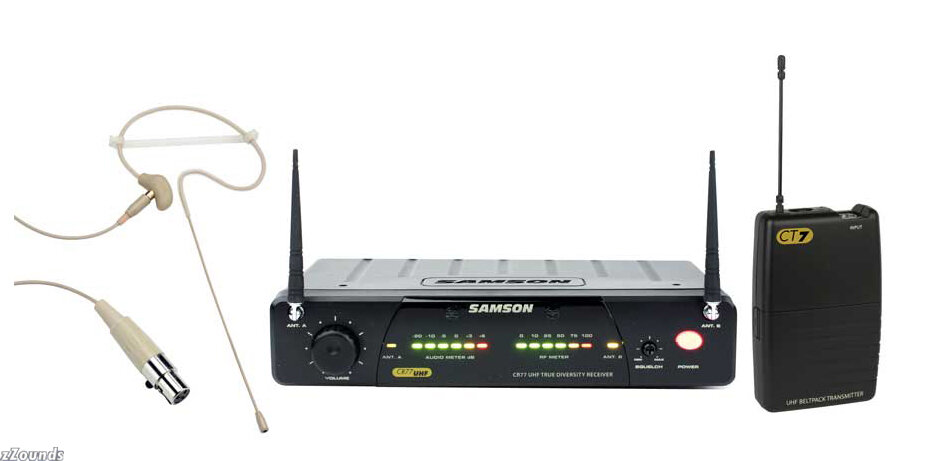

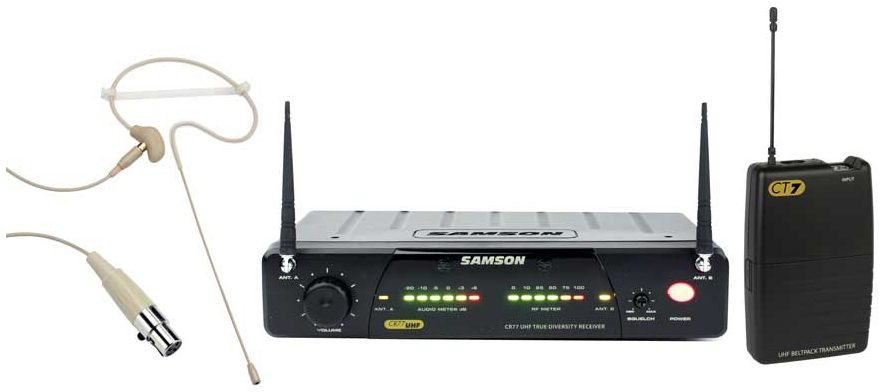

- Includes CR77 receiver, SE10 bendable earset and CT7 beltpack transmitter
The Samson Concert77 Wireless system is a UHF wireless solution ideal for any professional application. UHF means Ultra High Frequency, which translates to crystal clear operation with no interference, traditionally available on only the most expensive systems. Now UHF performance and reliability is affordable thanks to Concert77.
The CT7 beltpack transmitter is configured as a headset system thanks to the popular locking P3 input connection. The CT7 also features a three-segment battery indicator, separate power and audio on/off switches, adjustable AF level (audio gain), and 12-hours of battery life on a single 9-volt battery.
The CR77 true-diversity half-rack UHF receiver is the core of the Concert77 system. The synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The CR77 features a front panel display with large multi-segment Audio level and RF level LED meters, and a large rotary volume knob allows easy adjustment of audio output. The rear panel features balanced XLR and un-balanced 1/4-inch outputs allowing flexible connection options. Two CR77 receivers can be rack mounted together in a single space rack adapter available as an added accessory.
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
