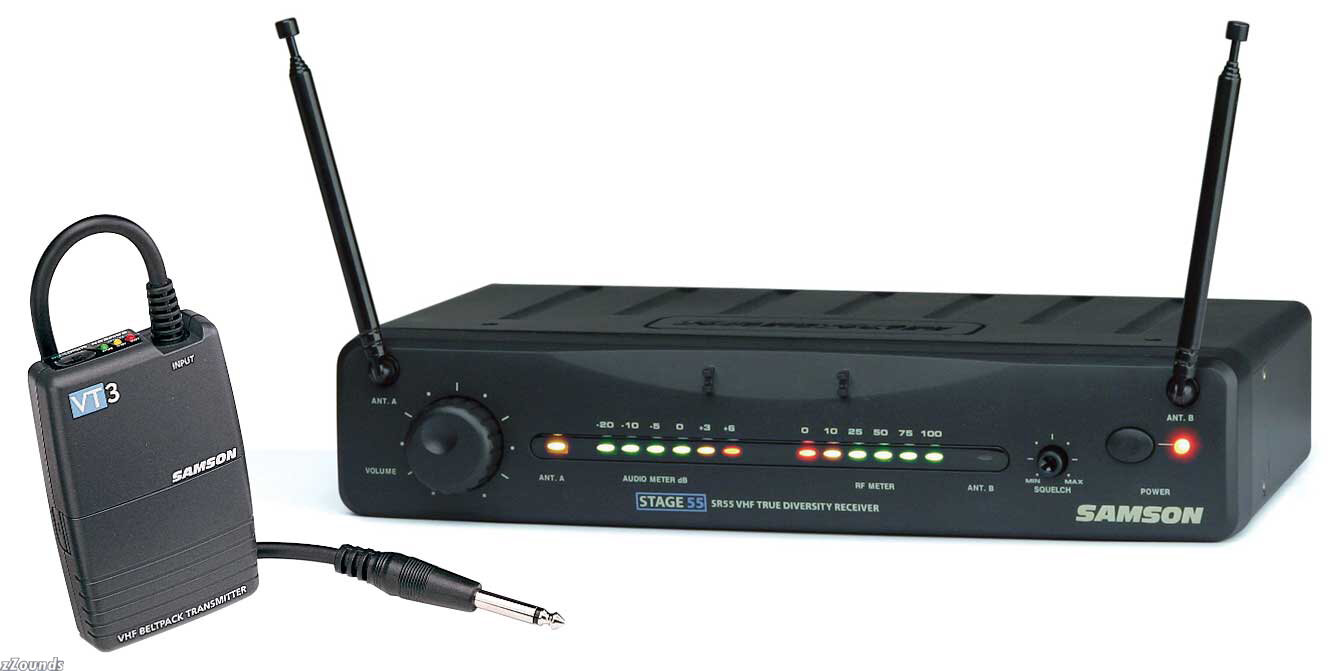

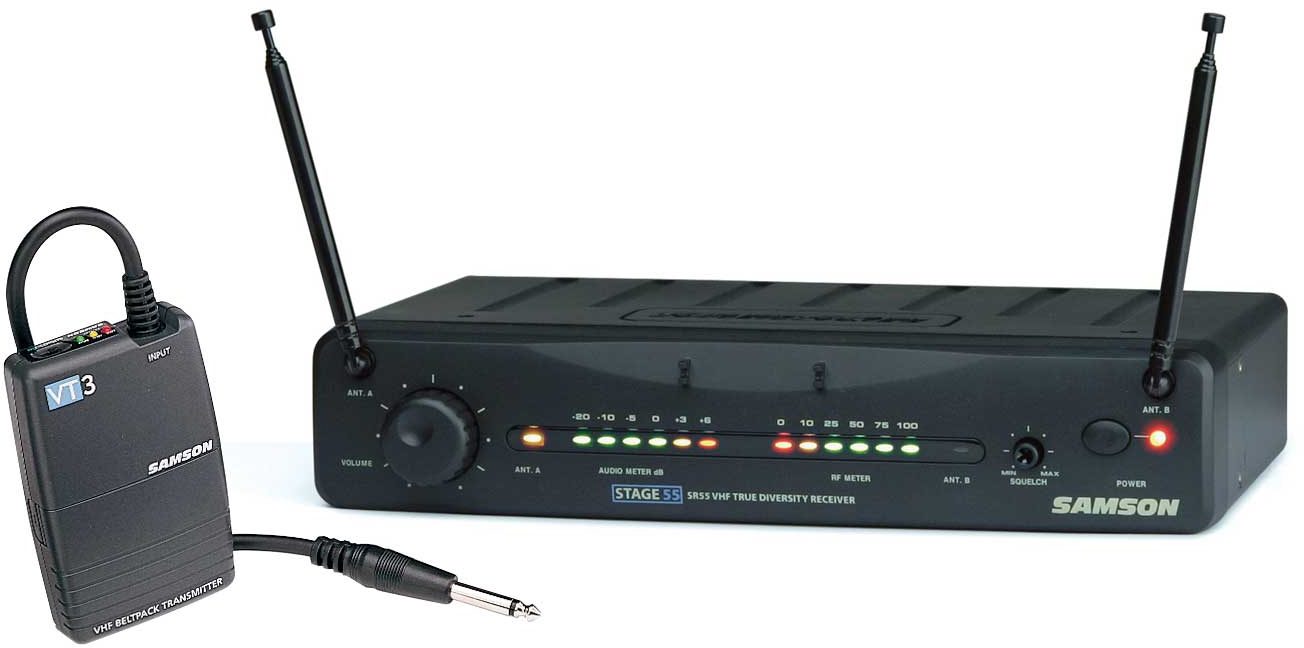

The Samson Stage 55 guitar wireless system features a SR55 VHF receiver with the Samson VT3 transmitter at a low price rivaling higher priced competitors. The SR55 receiver operates with true diversity wireless technology which uses two antennas to work in tandem to provide you the best reception quality. This system features variable squelch, six segment LED RF level and audio level metering, dual front mounted antennas and XLR and 1/4 inch outputs.
The Samson VT3 transmitter includes a three-segment LED meter that displays your battery level so you are not left without a signal on stage. With a 300-foot range and and up to 18-hour battery life, the quality of this unit shines through.
Technical Info
SR55 Receiver
Frequency Range: 173.80 MHz to 213.20 MHz
Local Oscillator System: Crystal controlled
Noise Reduction System: NE571 based compandor
Signal To Noise Ratio: > 100 dB (IHF-A) line out, > 90 dB (IHF-A), mic out
Audio Frequency Response: 40 Hz to 15 kHz ±3 dB
Audio Output Levels:
-10dB unbalanced (1/4 inch phone connector)
-20 dBm / -40 dBm balanced (XLR connector)
Audio Output Impedance: 5 kOhms unbalanced, 600 Ohms balanced
Operating Temperature: -10 to +55 degrees C
Controls: Volume, Squelch, Power
LED Indicators: Antenna A or B (2 LEDs) /AF Level (6 LEDs) / RF Level (6 LEDs)
Power Requirement: 12 Volts DC, 100 mA typical (110 mA max.), AC adapter supplied
Dimensions (W x H x D, without antennas): 216 x 44 x 116 mm (8.5 x 1.75 x 4.6 inches)
Weight (including antennas): 20 g (0.75 lb)
VT3 Transmitter
Frequency Range: 173.80 MHz to 213.20 MHz
Local Oscillator System: Crystal controlled
Operating Range: 300 feet
Frequency Stability: +/- 50 ppm
Antenna Type: Internal
Audio Frequency Response: 40 Hz to 16 kHz ±3 dB
Noise Reduction System: NE571 based compandor
Signal To Noise Ratio: > 100 dB (IHF-A)
Battery Life: 14 hours (typical), 18 hours (extended)
Operating Temperature: -10 to +45 degrees C
Controls: Power on/off, mute on/off, level control (trimpot)
Dimensions (W x H x D): 65 x 22 x 100 mm, 2.6 x 0.87 x 4 in.
Weight (including battery and guitar cable): 217.27g, .48 lb
