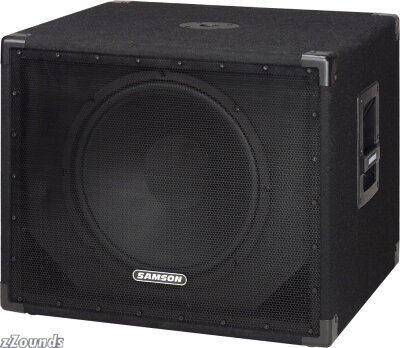

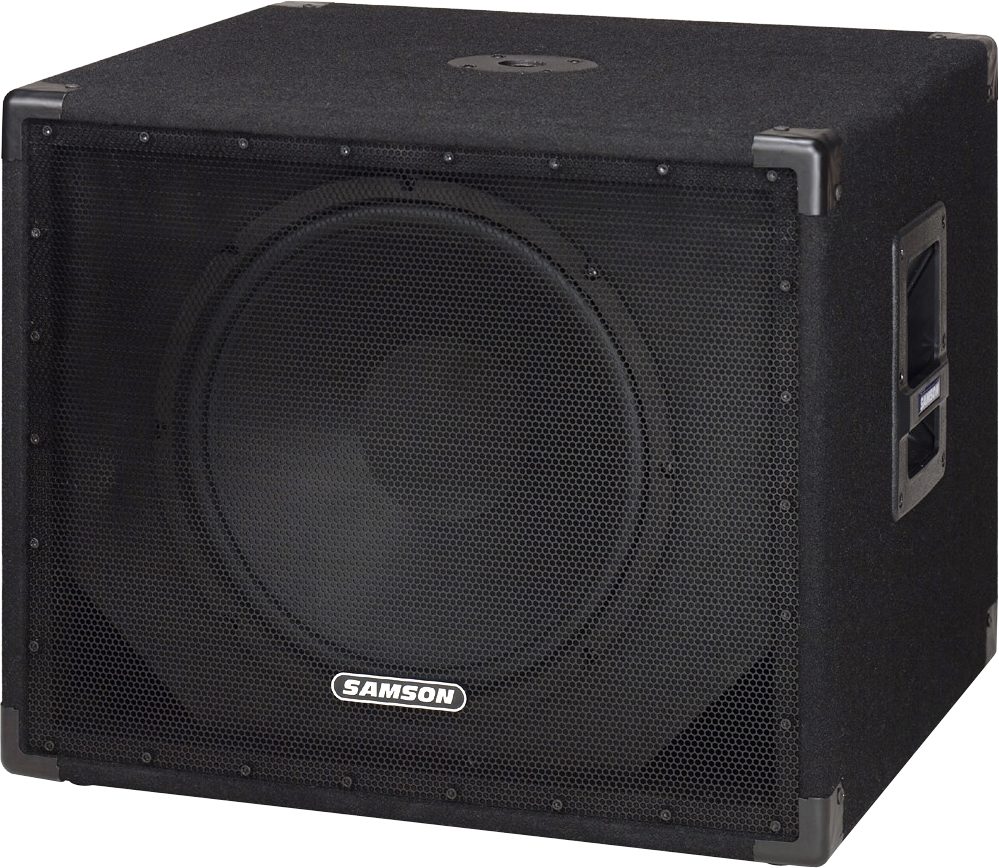

The EX500 active subwoofer can produce 500 Watts of power in tandem with a custom, heavy-duty 15 in. low frequency driver. It functions as an ideal complement to Expedition Series cabinets, or any loudspeaker system, when the application requires a focused yet deep bass response.
The built-in stereo crossover lets you use the EX500 in mono or as a common subwoofer in a stereo system. It also features a steel grill and rigid corners for durability, as well as an integral pole mount for conveniently mounting Expedition Series cabinets.
Expedition Series: 3 Enclosures, Unlimited Possibilities
Expedition is a versatile 2-way loudspeaker enclosure available in 3 different versions: passive (EX10), powered (EX20), and powered with a built-in 4-channel mixer and digital signal processing (EX30). These loudspeakers represent smart solutions for clubs and performance halls, mobile DJ use, houses of worship, corporate A/V, and any institutional application where portable audio is required. A range of available Expedition options includes a rechargeable battery kit, a cassette recorder/player with pitch control, and plug-in Samson micro wireless modules. A 500 Watt powered subwoofer (EX500) rounds out the line.
Technical Info
Transducer: 15 in., heavy-duty driver, 3 in. voice coil, aluminum former
Amplifier: High-efficiency tracking converter
Power Rating: 500 Watts RMS
Frequency response: 30Hz- 300Hz+/-3 dB
Sensitivity: 94dB SPL @ 1 W/1m
Input Balanced
Connector: XLR - FEMALE
Output Balanced, high-passed tracking low frequency crossover point
Connector: XLR - MALE
Crossover Frequency: Variable 30Hz - 200Hz
Switch Functions Stereo/Mono: Selects stereo or mono low frequency operation
Enclosure
Construction: 3/4" plywood, carpet covered
Finish: Black carpet
Corners: Steel
Casters: 3 in. heavy-duty
Mounting: Integral 1-3/8" (35mm) Pole Mount Receptacle
Dimensions (H x W x D): 20 x 24 x 22.75 in. (508 x 610 x 578mm)
Weight: 71 lbs. (32.25 kg)
