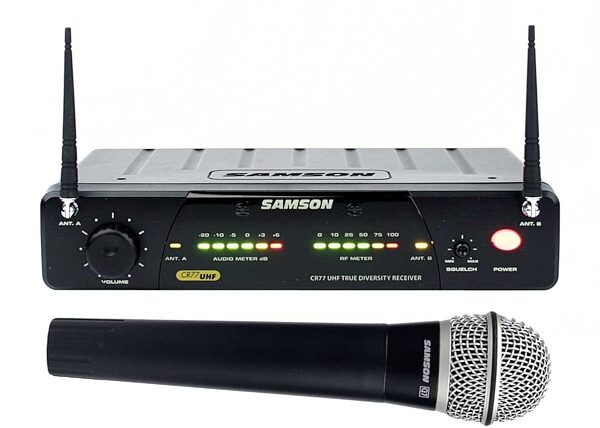

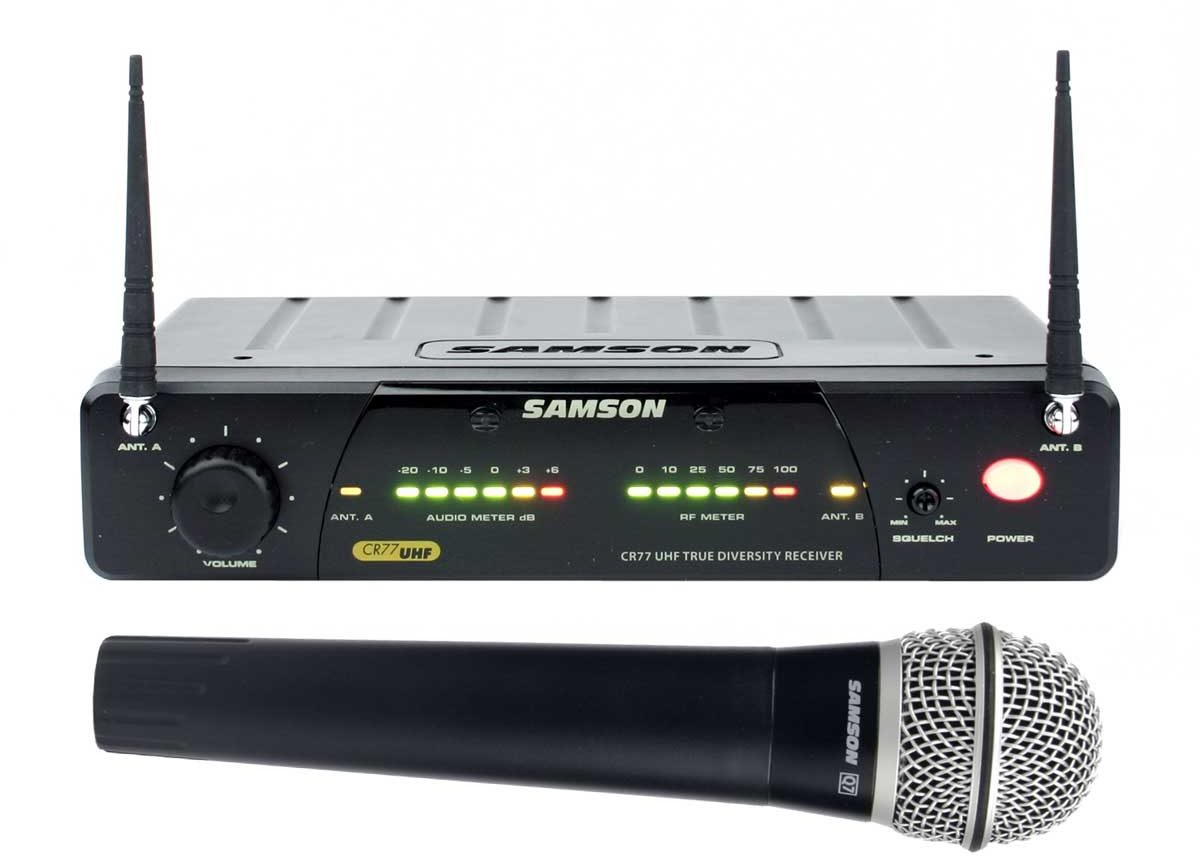

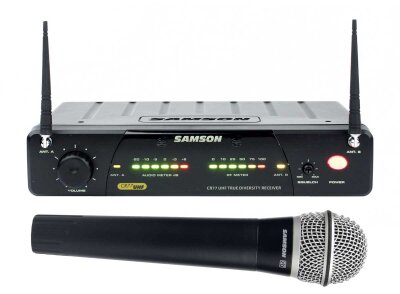

Samson Concert 77 UHF TD Wireless with Q7 Microphone

Manufacturer's Description for Samson Concert 77 UHF TD Wireless with Q7 Microphone

Samson Technologies was founded 20 years ago when they introduced some of the first affordable wireless technology ever. The latest line of wireless gear in that tradition: Concert 77. UHF quality diversity wireless that anyone can afford.

CR77 Wireless Receiver

This true-diversity half-rack unit with PLL frequency control works with all Concert 77 wireless systems. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference. Diversity reception means no dropouts. Concert 77 represents sophisticated wireless technology at great prices.

Handheld System

This HT7 handheld transmitter features Samson's finest microphone elements: the Q7 Dynamic, for all-purpose professional use.

Q7 Microphone

- The finest Neodymium hand-held dynamic microphone Samson makes. The ultimate all-around microphone.
- Outstanding vocal mic for stage and studio
- High output, low impedance design
- Neodymium dynamic mic element
- Cardioid pickup pattern
- Multi-axis shock-mounted element

Features

- True Diversity UHF Wireless System with PLL Frequency Control
- Multi-segment Audio level, RF level and A/B Antenna Operation LED meters
- Squelch control eliminates carrier signal noise and RF interference
- Tuned molded antennas for accurate reception
- XLR and unbalanced 1/4 in. outputs with mic/line level output switch

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Samson products.

Channel Frequencies
- Channel N1: 642.375 MHz
- Channel N2: 642.875 MHz
- Channel N3: 644.125 MHz
- Channel N4: 644.750 MHz
- Channel N5: 645.500 MHz
- Channel N6: 645.750 MHz

Receiver (CR77)
- Type of Reception: Single Superheterodyne, True Diversity
- Oscillation Type: Synthesized PLL Frequency Control
- D-emphasis: 50 'sec
- IF Frequency: 10.7 MHz
- Antenna: 1/4 Wavelength Rod
- In/Out: DC Inlet, Balanced Output, Unbalanced Output
- Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)
- Level Controls: Volume, Squelch
- Operating Voltage: 12 Volts + 10 %
- Current Consumption: 160 mA (at all LED lights)
- Receiving Frequency Range: 801 - 805 MHz
- Sensitivity: 18 dB @ THD 2%
- Squelch Sensitivity: 0 - 40 dB (Adjustable)

Dimensions and Weight in Packaging

Frequency 642.375

Shipping Weight: 5 lbs

Frequency 645.500

Shipping Weight: 5 lbs

Frequency 642.875

Shipping Weight: 5 lbs

Frequency 645.750

Shipping Weight: 5 lbs

Frequency 644.125

Shipping Weight: 5 lbs

Frequency 644.750

Shipping Weight: 5 lbs
