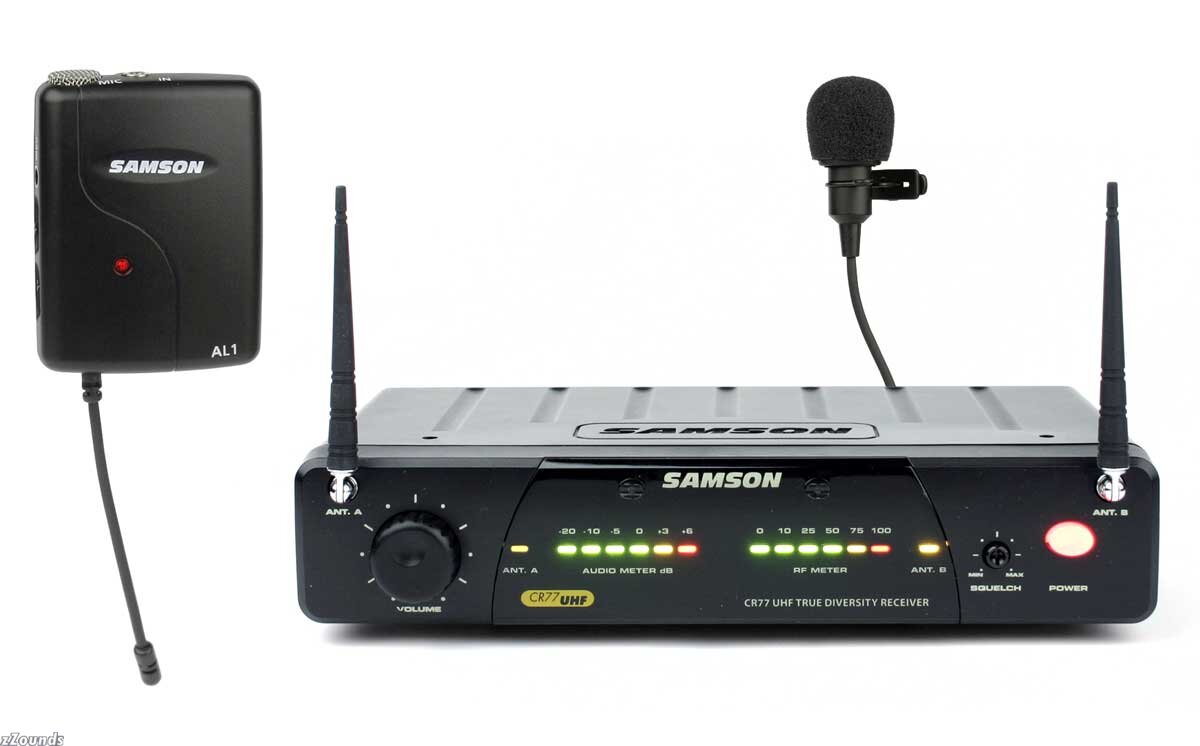

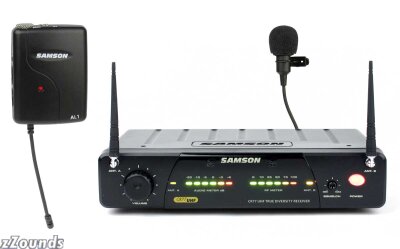

Samson Airline 77 UHF TD Wireless with AL1 Guitar and QL1 Unidirectional Lavalier Transmitters

Samson Airline 77 UHF Wireless systems are an unbeatable combination. Samson Concert 77 UHF True Diversity Half-Rack Receivers matched up with Samson's incredible Airline Series mini transmitters give you 'belt-pack-free' mobility at new low prices. Ultra-light, ultra-compact, and incredibly efficient, Airline Series transmitters provide flawless wireless performance for 12 hours on a single AAA battery.

For 2 decades Samson has led the world in wireless technology for musicians. Their philosophy: Make cutting-edge technology available to everyone. No system has ever done it like this before: the revolutionary Airline Wireless Systems -- with no belt packs -- at prices everyone can afford.

CR77 Receiver
The heart of Airline 77 is the new CR77 Receiver. This true-diversity half-rack unit with PLL frequency control works with all of the Airline transmitters. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference.

AL1 Presentation Transmitter & QL1 Lavalier
Maybe the coolest lavalier mic system ever. The AL1 is a clip-on high fidelity mic on it's own. But it also features a mini-jack input connection for our QL1 micro lav for even more invisible closemicing. AL1 Incredibly compact, the AL1 is a 2-stage lav system with incredible flexibility. The clip-on AL1 itself is a fully functioning mic, with a unidirectional condenser mic built-in. It also has power, mute, level controls. QL1 Or you can plug in a low profile Samson QL1 micro lapel mic for a other level of invisibility. Perfect for any presentation.

Technical Info

Receiver (CR77)
Type of Reception: Single Superheterodyne, True Diversity

Oscillation Type: Synthesized PLL Frequency Control

D-emphasis: 50 μsec

IF Frequency: 10.7 MHz

Antenna: 1/4 Wavelength Rod

In/Out: DC Inlet, Balanced Output, Unbalanced Output

Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)

Level Controls: Volume, Squelch

Operating Voltage: 12 Volts + 10 %

Current Consumption: 160 mA (at all LED lights)

Receiving Frequency Range: 801 - 805 MHz

Sensitivity: 18 dBμ @ THD 2%

Squelch Sensitivity: 0 - 40 dBμ (Adjustable)

Selectivity: ± 150 kHz (AF Out Ratio -60 dB)

S/N Ratio (Overall): 90 dB (w/ IHF-A fi lter)

Residual Noise: 90 dBv (w/ IHF-A fi lter)

Band Mute: ± 50 kHz / ± 100 kHz (RF IN: 46 dBu EMF)

AF Frequency Response: 50 Hz - 15 kHz (± 3 dB overall)

Audio Output Level - Unbalanced: 0 dBv

Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch
Selectable

Audio Output Impedance/Unbalanced: 5 k Ohms

Audio Output Impedance/Balanced: 600 Ohms

Dimensions: 8.5 in. (w) x 1.75 in. (h) x 4.6 in.(d) 216 mm (w) x 44 mm (h) x 116 mm (d)

Weight: .75 lb / 340 g
