RapcoHorizon AVI-1 Audio Video Passive Interface

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

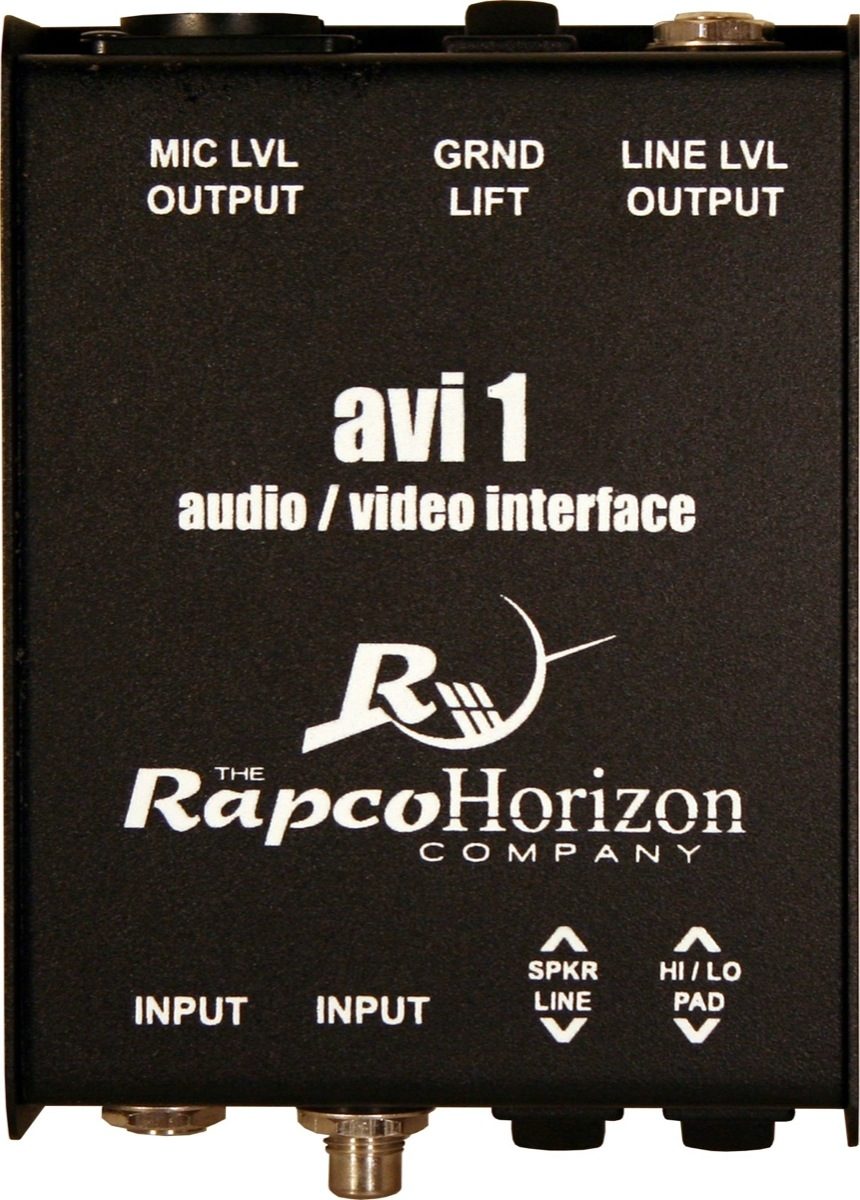

RapcoHorizon AVI-1 Audio Video Passive Interface, Main
RapcoHorizon AVI-1 Audio Video Passive Interface, Main
Stop carrying around that bag of adapters. With 1/4", 1/8" and RCA inputs, and XLR mic-level and 1/4" line-level outputs, the AVI-1 has everything you need.

The RapcoHorizon AVI-1 is a great way to get the best sound possible from your audio/video products in public venues, such as school assemblies, business meetings, or civic gatherings. Use with audio or video recorders, projectors, portable public address systems, phonographs, etc. The unit has 1/4 inch, RCA, and 3.5mm jack inputs. Outputs consist of XLR male mic level and 1/4 inch line level jack. Switches include a high/low pad (-20 to +4dbv ), a speaker/line attenuator, and a ground lift switch for noise reductions. Wired with 6:1 ratio impedance-matching transformer.

Features:

- The AVI-100 is a great way to get the best sound possible from your audio/video products in public venues, such as school assemblies, business meetings, or civic gatherings
- Use with audio or video recorders, projectors, portable public address systems, phonographs, etc.
- The unit has 1/4 inch, RCA, and 3.5mm jack inputs
- Outputs consist of XLR male mic level and 1/4 inch line level jack
- Switches include a high/low pad (-20 to +4dbv ), a speaker/line attenuator, and a ground lift switch for noise reductions
- Wired with 6:1 ratio impedance-matching transformer
- Heavy duty steel box
- Superior quality connectors
- Individually tested for performance and quality

- Dimensions (W x H x D): 3 3/4 x 5 1/4 x 1 3/4 in.

Includes:
- (1) XLR male mic level output
- (1) 1/4"" line level output jack
- (1) 1/4"" input jack
- (1) 3.5mm input jack
- (1) RCA input jack
- (1) Ground lift switch
- (1) High/low pad switch
- (1) Speaker level attenuation switch
