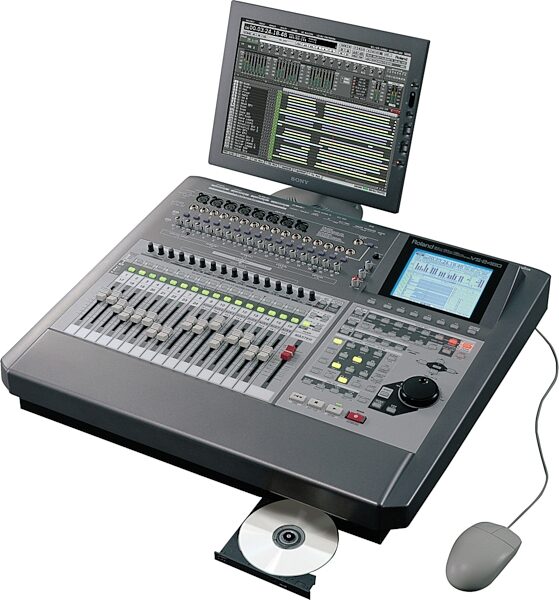

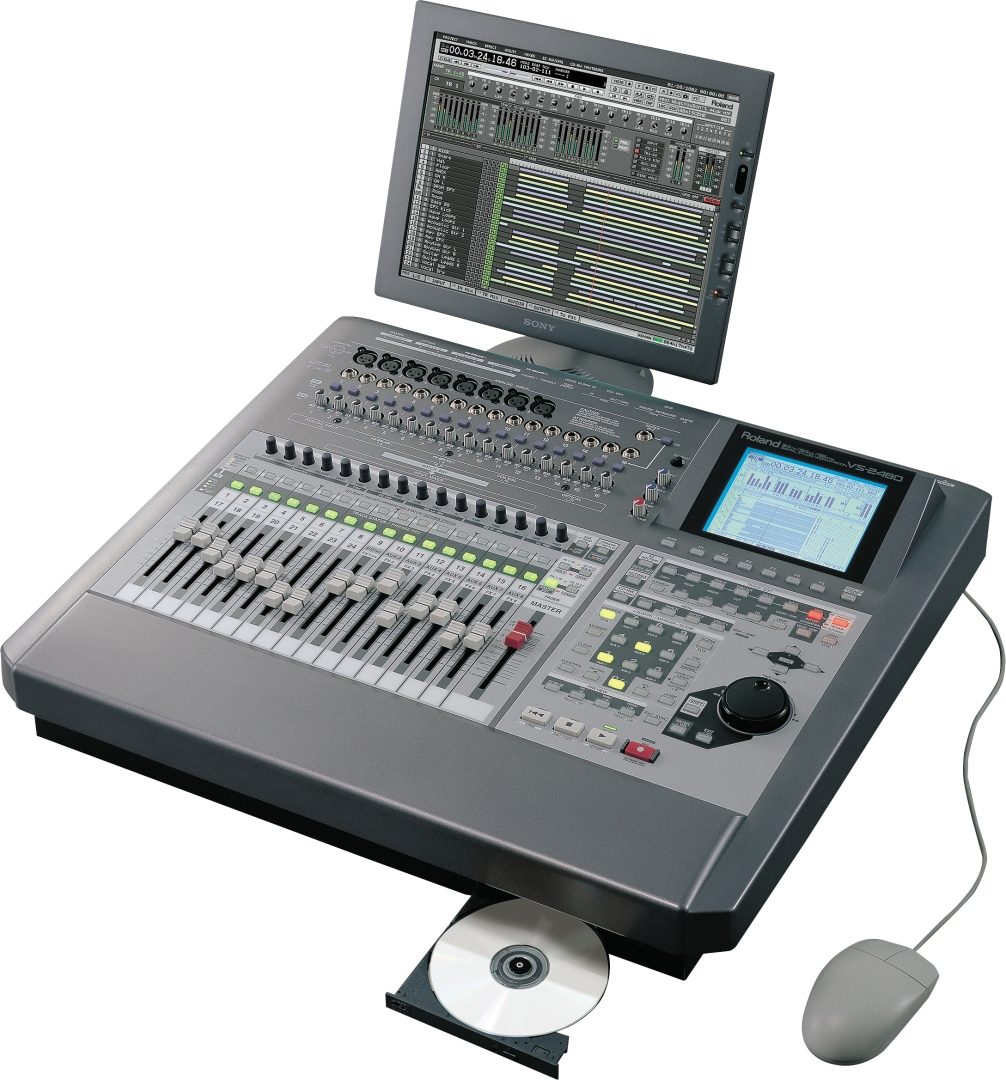

The VS-2480DVD takes Roland's best-selling 24-track workstation and makes it even better with the addition of a DVD multi-drive for storing up to 4.7GB of data. Naturally, the VS-2480DVD has all the great features of the original-including 64-track digital mixing, motorized faders and VGA monitor support. It's also compatible with the new VS8F-3 Plug-In Effect Expansion Board, opening up a world of plug-in effects.
Flagship 24-track/24-bit/96kHz digital recording workstation with internal DVD multi-drive
Store up to 4.7GB of project data on a single DVD-R or DVD-RW disc!
New 3rd party plug-in support via optional VS8F-3 Plug-In Effect Expansion Board
80GB hard drive* for unprecedented recording time
24-track playback; 16-track simultaneous recording with 384 V-Tracks
"Drag-and-drop" control using included mouse; also accepts ASCII keyboard (optional)
64-channel, fully automated digital mixer with 17 motorized faders
Professional-quality connections including 8 XLR/16 balanced TRS inputs
2 stereo effects processors (expandable to 8 stereo, 16 mono) including COSM
Technical Info
Tracks: 24, V-tracks: 384 (16 V-Tracks per each Track)
Sample Rate: 96.0/88.2/64.0/48.0/44.1/32kHz *Adjustable range with vari-pitch function, 22.00kHz to 98.00kHz (at 96kHz), 22.00kHz to 50.00kHz (at 48kHz)
Max. Simultaneous Recording/Playback Tracks:
Sample Rate 48/44.1/32kHz: [16tr.Rec/16tr.Play(M24, M16, CDR), 16tr.Rec/24tr.Play(MTP,MT1/2, LIV, LV2)
Sample Rate 96/88.2/64kHz: [8tr.Rec/8tr.Play(M24, M16, CDR), 8tr.Rec/12tr.Play(MTP,MT1/2, LIV, LV2)
*Depending on the organization of the song data or the disk drive performance etc., the number of tracks which can be simultaneoulsly recorded or played back may be limited.
Slim DVD MULTI Drive Built-in Type
Read speed: DVD-ROM: Max 8X CAV, CD-ROM: Max 24X CAV
Maximum Write speed: CD-R: Max16X Zone CLV, CD-RW: 4X CLV, High Speed CD-RW: 8XCLV, DVD-R: 2XCLV, DVD-RW: 1XCLV
Support Buffer Underrun Free Recording (SmoothLink)
Frequency Response:
96.0kHz:20Hz to 40kHz (+0dB/-2dB),
88.2kHz:20Hz to 40kHz (+0dB/-2dB),
48.0kHz:20Hz to 22kHz (+0dB/-2dB),
44.1kHz:20Hz to 20kHz (+0dB/-2dB),
32.0kHz:20Hz to 14kHz (+0dB/-2dB)
Projects: 200 projects in each partition
Marker: 1000 per project
Locator: 100 (10 x 10 banks) per project
Scene: 100 (10 x 10 banks) per project
Undo/Redo: 999 Undo/1 Redo
EQ: 4-band (2 schelving + 2 peaking) * Useful simultaneously at up to 48ch in both Input Mixer and Track Mixer
Dynamic Processor:
Compressor, Expander *Useful simultaneously at up to 48ch in both Input Mixer and Track Mixer. Compressor+Expander *Useful simultaneously at up to 24ch in Input Mixer or Track Mixer.
*If this type is used at Mixer section, Dynamics cannot be used in the other Mixer.
Effects: Max. 8 stereo (One pre-installed + 3 more optional VS8F-2)
Display: 320 x 240 dots Graphic LCD (with backlit)
Power Consumption: 80W (AC 117/230/240V)
Accessories: Demo CD, PS/2 Mouse, Short Cut Seal, AC Cord
Dimensions (W x D x H): 620 x 520 x 138 mm (24 - 7/16 x 20 - 1/2 x 5 - 7/16 in.)
Weight: 13.4 kg (29 lbs. 9 oz.)
Same as the VS-2480CD, but with a DVD-R drive for massive data storage.
