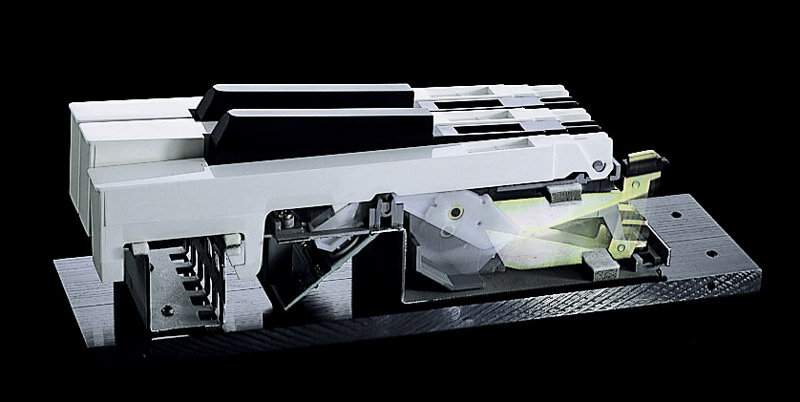

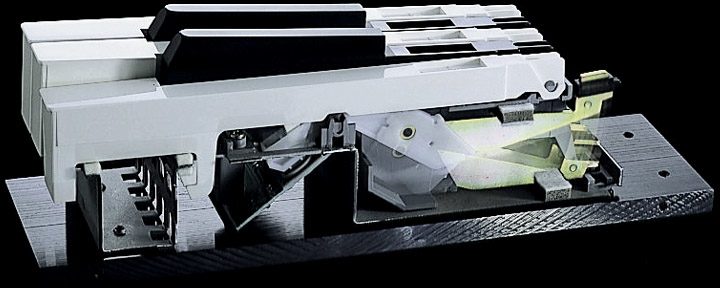

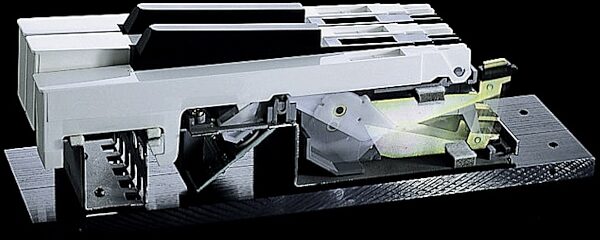

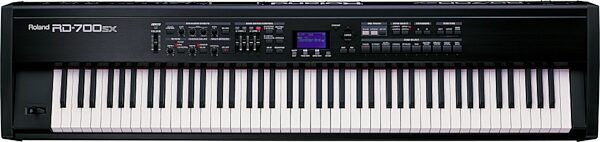

Keyboard: 88 keys (Progressive Hammer-Action keyboard)
Part: 16 parts
Maximum polyphony: 128 voices
Wave memory: 128 M bytes (16-bit linear equivalent)
Expansion slots: Wave Expansion Board SRX series: 2 slots
Tones:
-- Normal tones: 208
-- Tonewheel organ: 10
-- General MIDI 2 tones: 256
-- Rhythm sets: 5
-- General MIDI 2 rhythm sets: 9
Setups: 100
Flash Memory: approximately 1 M bytes (1000 K bytes)
Effects:
-- Multi-effects: 2 systems, 125 types
-- Reverb: 6 types
-- Chorus: 3 types
-- Sound Control(3-band compressor)

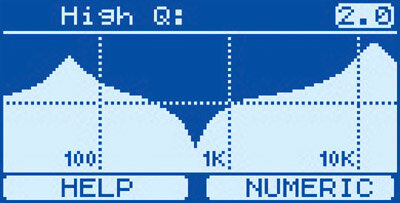

-- 3-band digital equalizer
Arpeggiator: 128 styles
Rhythm pattern: 185 patterns
Controllers: Zone level slider x 4 (assignable), equalizer knobs, reverb knob, chorus knob, multi-effects control knob, pitch bend/modulation lever

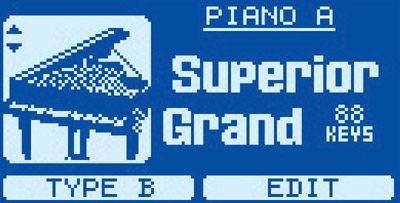

Display: 128 x 64 dots graphic LCD (with backlit)

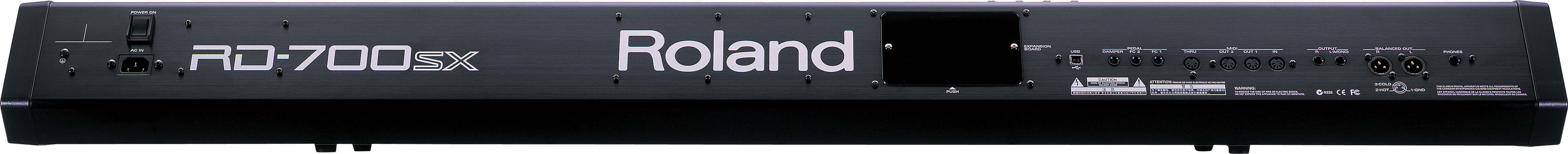

Connectors:
-- Headphones jack: Stereo 1/4 inch phone type
-- Output jacks (L/MONO, R): 1/4 inch phone type

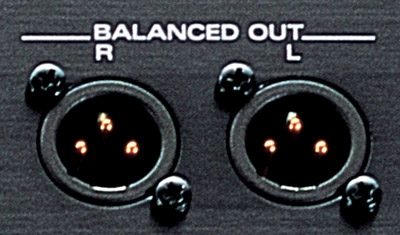

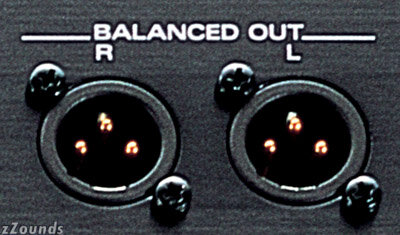

-- Output jacks(L, R): XLR type
-- Pedal jacks (DAMPER, FC1, FC2): 1/4 inch TRS phone type
-- MIDI connectors (IN, OUT1, OUT2, THRU)
-- USB connector (supports file transfer and MIDI)
-- AC inlet
Power supply: AC 117 V (50/60 Hz)
Power consumption: 12 W
Accessories: owner's manual, CD-ROM (RD USB driver), damper pedal (DP-8), power cord
Options: Wave Expansion Board: SRX Series, Pedal Switch: DP-2,
Damper Pedal: DP-8, DP-10, Foot Switch: BOSS FS-5U, FS-6 (TRS phone jacks cannot be used.), Expression Pedal: EV-5, EV-7
Dimensions (W x D x H): 55 11/16 x 14 3/4 x 5 11/16 in.
Weight: 54 lbs. 1 oz.
