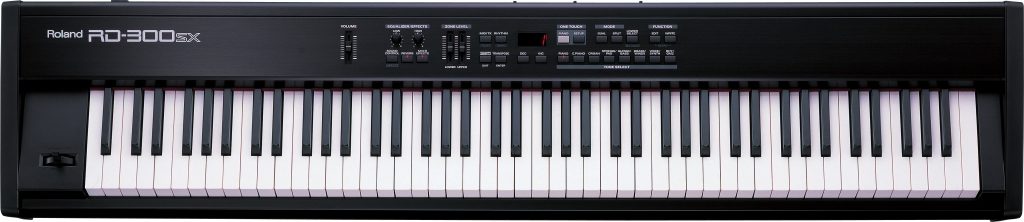

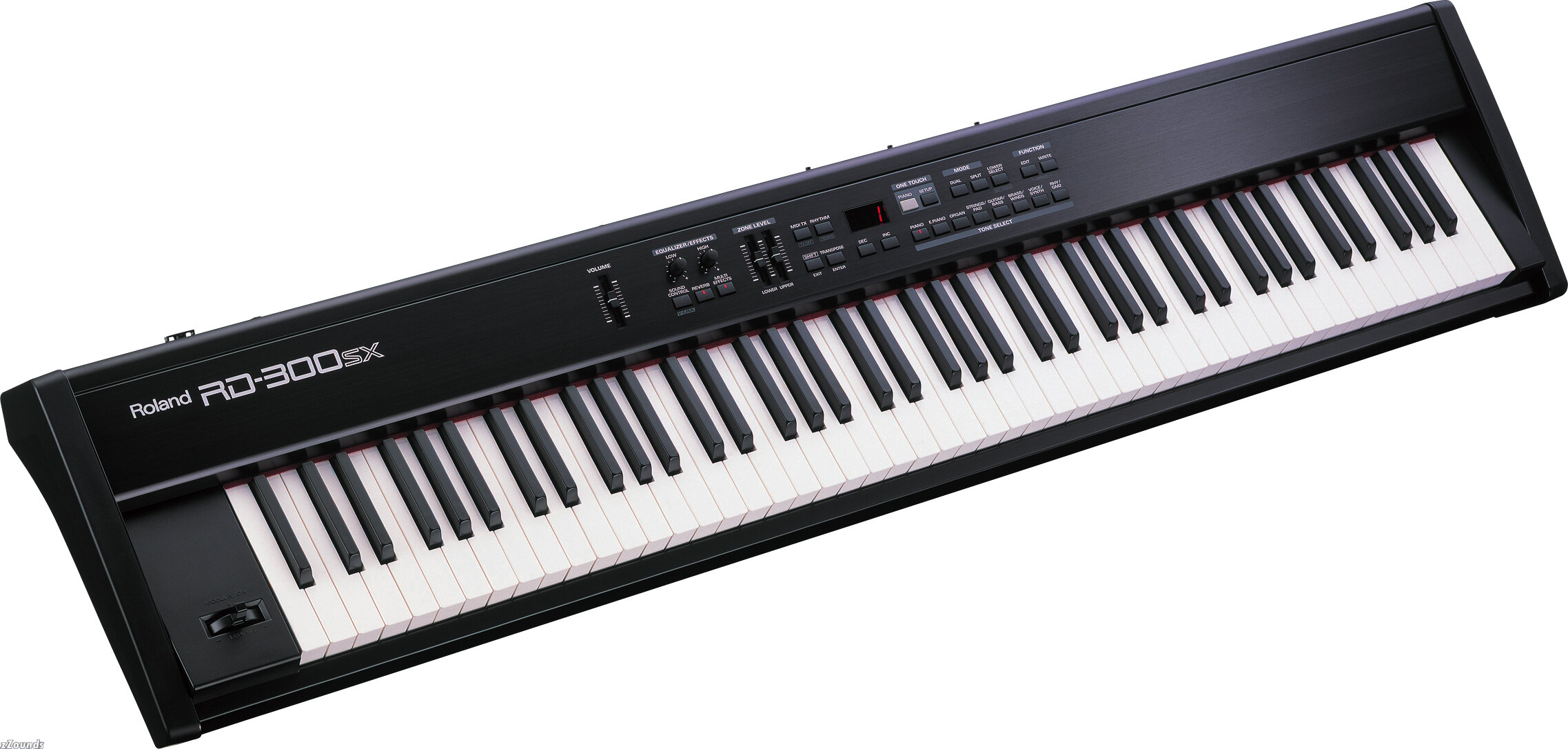

Developed simultaneously with the flagship RD-700SX, the RD-300SX provides the same stunning 88-note multi-sampled piano found in the flagship, plus 128 voice polyphonic performance, and expanded soundsets. Its feature set is pure heavyweight, but physically the RD-300SX is one of the lightest 88-note pianos in its class -- a comfort to transport from gig to gig.
Features
New stage piano with 88-key grand piano multisamples
Compact Progressive Hammer-Action keyboard
Lightweight and portable
128-voice polyphony
Onboard multi-effects with 78 algorithms and 2-band EQ with dedicated knobs
32 programable setups allow instant recall of custom settings
USB MIDI for easy connection to a PC or Mac
Easy splits and dual; master keyboard control
GM2-compatible sound engine onboard
No-compromise sound & feel
With Roland's most powerful sound engine at its core, the RD-300SX delivers heavyweight specs in a lightweight body. Sharing much in common with its high-end sibling, the RD-700SX, the RD-300SX offers 128-voice polyphony, 88-note individually sampled grand piano waveforms, and hundreds of additional sounds and rhythms -- from jazz to techno.
Compact Progressive Hammer-Action
The RD-300SX features Roland's Compact Progressive Hammer-Action keyboard, which simulates a real grand piano by providing a heavier touch in the lower octaves that gets increasingly lighter in the upper range. This keyboard has many of the same design elements as Roland's acclaimed Progressive Hammer-Action keyboard, but its keyboard-action mechanism is much more compact and lightweight.
Simple Navigation
Players will appreciate the RD-300SX's ease of operation and convenient hands-on controls. Dedicated buttons and knobs are provided for instant access to the piano sound, EQ settings, and dual/split keyboard setups. No searching through menus or submenus to find the most common functions; everything you need is within quick reach. Thanks to the handy Setup mode, you can quickly store and recall parameter changes with the touch of a button. A pitch bend/modulation lever has been added for expressive control. Operation is clean and streamlined so you can focus on playing, not programming.

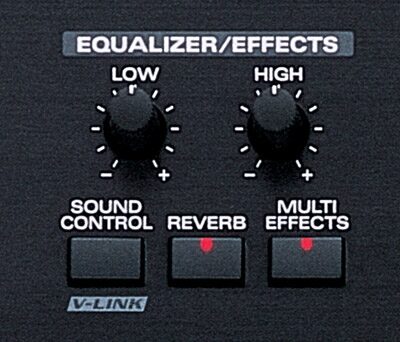

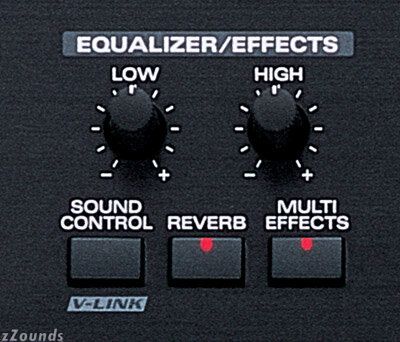

High-quality effects
For subtle sweetening or complete transformation, the RD-300SX offers a wide lineup of 78 multi-effect types to choose from, plus independent effects such as reverb, 2-band digital EQ, and Sound Control. Add sparkle to your grand piano sound, deep-fry an electric piano, add depth and spatial movement to strings -- the choices are vast.
Lightweight, compact
It has an impressive, heavy-duty body (with sophisticated black brushed metal finish) but the RD-300SX is actually one of the lightest 88-note piano in its class. At less than 35 pounds (15.5kg), it's ultra easy to transport -- yet built tough enough for the rigors of the road.
USB MIDI
Connect the RD-300SX to computers via USB port for one-cable MIDI communication. Standard MIDI in/out ports connectors are provided as well. Master, slave, or solo -- the RD-300SX can be played as a standalone instrument, driven from other MIDI gear, or used as the master controller for an entire MIDI setup.
Technical Info
Keyboard: 88 keys (Compact Progressive Hammer-Action keyboard)
Part: 16 parts
Maximum polyphony: 128 voices
Wave memory: 64 M bytes (16-bit linear equivalent)
Tones:
-- Normal tones: 70
-- General MIDI 2 tones: 256
-- Rhythm sets: 5
-- General MIDI 2 rhythm sets: 9
Setups: 32
Effects:
-- Multi-effects: 78 types
-- Reverb: 4 types
-- Sound control
-- 2-band digital equalizer
Rhythm pattern: 185 styles
Controllers: zone level slider x 2, equalizer knobs,
pitch bend/modulation lever
Display: 7 segments, 3 characters (LED)

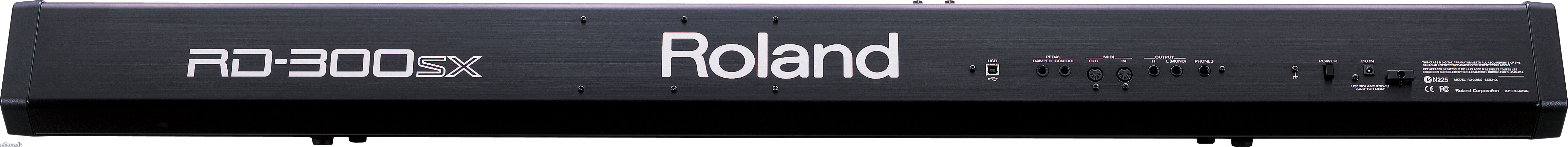

Connectors:
-- Headphones jack: stereo 1/4 inch phone type
-- Output jacks (L/MONO, R): 1/4 inch phone type
-- Pedal jacks (damper, control): 1/4 inch TRS phone type
-- MIDI connectors (in, out), USB connector (MIDI), DC in jack
Power supply: DC 9 V (AC adapter)
Power consumption: 11 W
Accessories: owner's manual, CD-ROM (Roland Digital Piano USB Driver), damper pedal (DP-8), AC adapter (PSB-1U), power cord
Options: Keyboard Stand: KS-12, Pedal Switch: DP-2, Damper Pedal: DP-8, DP-10, Foot Switch: BOSS FS-5U, FS-6 (TRS phone jacks cannot be used.), Expression Pedal: EV-5, EV-7
Dimensions (W x D x H): 55 7/16 x 13 1/4 x 5 5/16 in.
Weight: 34 lbs. 3 oz.
Fantastic sound, plus the Compact Progressive Hammer Action keyboard for a lightweight, easily-portable instrument.
