Product Description
Hand-held field recorders have been hot commodities for musicians, recording engineers, and sound designers for years. Today, the mercury rises in this dynamic market with the debut of the game-changing Roland R-26. This innovative recorder is portable yet loaded with first-class, professional features, the likes of which the industry has not seen before.
There are two types of stereo microphones built into the Roland R-26, plus a pair of XLR/TRS combo inputs for external mics, and an input for a stereo plug-in powered mic. Choose simultaneous combinations of the built-in mics (directional and omnidirectional), as well as the external inputs. Capture live performances with simultaneous line and ambient signal paths, record important speeches, lectures, and presentations, or take the R-26 into the inner city or deep forest for pristine field capture. The sky's the limit with this powerful, portable, and incredibly flexible recorder.
New-Tech Advantage
The Roland R-26 features Roland's latest DSP engine, which allows simultaneous recording of up to six channels (three stereo channels). A large LCD touchscreen display lets you directly navigate menus for customizing the microphone settings, editing waveforms, and so on. It also features large input-level knobs for making precise adjustments.

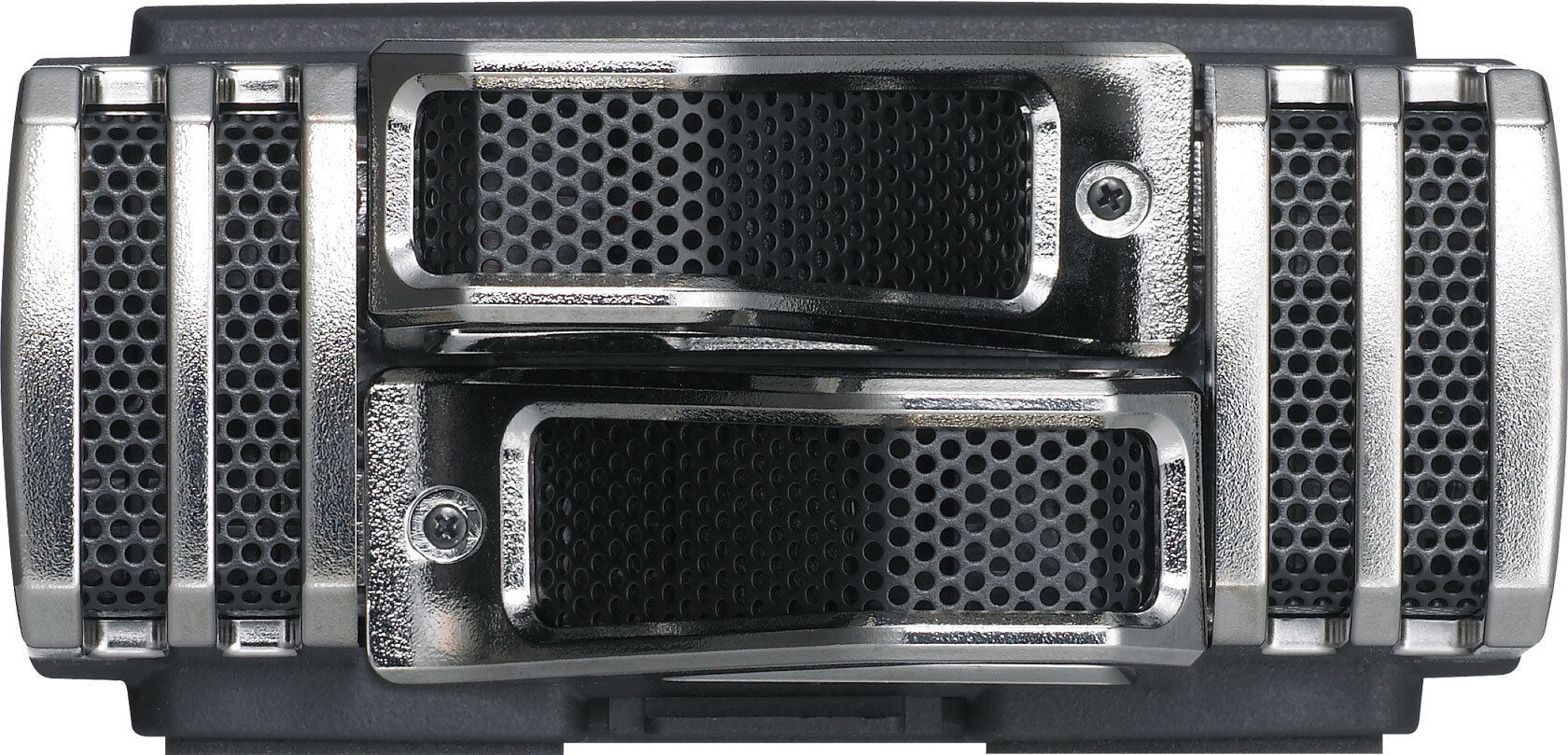

Built-In Stereo Mics
Directional and omnidirectional stereo microphones are built into the R-26, and can be used simultaneously. This unique multi-stereo mic recording system lets you capture a wide stereo soundfield without spoiling the vibrant low frequencies and ambience of the venue.
External Inputs
Two XLR/TRS combo mic inputs are built into the R-26, plus an input for a stereo plug-in powered mic, which can be combined simultaneously with the internal mics. At a live concert, for example, the R-26 can capture a stereo mix from the FOH mixer via its XLR inputs, as well as the ambient audience noise via its built-in stereo mics.
Six-Channel Simultaneous Recording
The R-26 allows up to six channels of simultaneous recording (three stereo pairs). Capture the same sound source with three different types of microphones, both internal and external. This provides a new level of flexibility after the fact, as you can choose from the individual tracks or composite mixes.
USB Connectivity
You can connect the R-26 to your computer for use as an audio interface or for external storage. Use the R-26 in combination with the bundled Sonar LE software app to perform recording and detailed editing on your PC.
Features
- Two types of built-in stereo microphones (omnidirectional and directional) that can be used in various combinations
- Two XLR/TRS combo inputs with 48 V phantom power, plus an input for a stereo plug-in powered mic
- Supports up to six channels (three stereo channels) of simultaneous recording
- Large LCD touchscreen display for intuitive navigation
- Large input-level knobs for fine adjustment
- Built-in Hi-Speed USB interface for use as an audio interface or external storage
- Loop-Back function; combine this with the built-in or external mics for the optimum live video streaming setup (only with Audio Interface function)
- Bundled with Sonar LE software (PC)
zZounds is an authorized dealer of
Roland products.
-
Tracks: 6 (3 stereo)
-
Signal Processing: AD/DA conversion: 24 bits, 96/88.2/48/44.1 kHz
-
Data Type: For Recording
WAVE/BWF: Sampling Rate: 96/88.2/48/44.1 kHz, Bit Depth: 24/16 bits
MP3 (MPEG-1 Audio Layer 3): Sampling Rate: 48/44.1 kHz, Bit Rates: 320/160/128 kbps
WAVE + MP3: Sampling Rate: 48/44.1 kHz, Bit Depth: 16 bits, Bit Rates: 128 kbps
For Playback
WAVE: Sampling Rate: 96/88.2/48/44.1 kHz, Bit Depth: 24/16 bits
MP3 (MPEG-1 Audio Layer 3): Sampling Rate: 48/44.1 kHz, Bit Rates: 32-320 kbps or VBR (Variable Bit Rate)
-
Memory Card: SD Card (SDHC format compatible)
-
Audio Inputs: Internal Stereo Microphones: Omnidirectional (Omni) mic, Directional (XY) mic

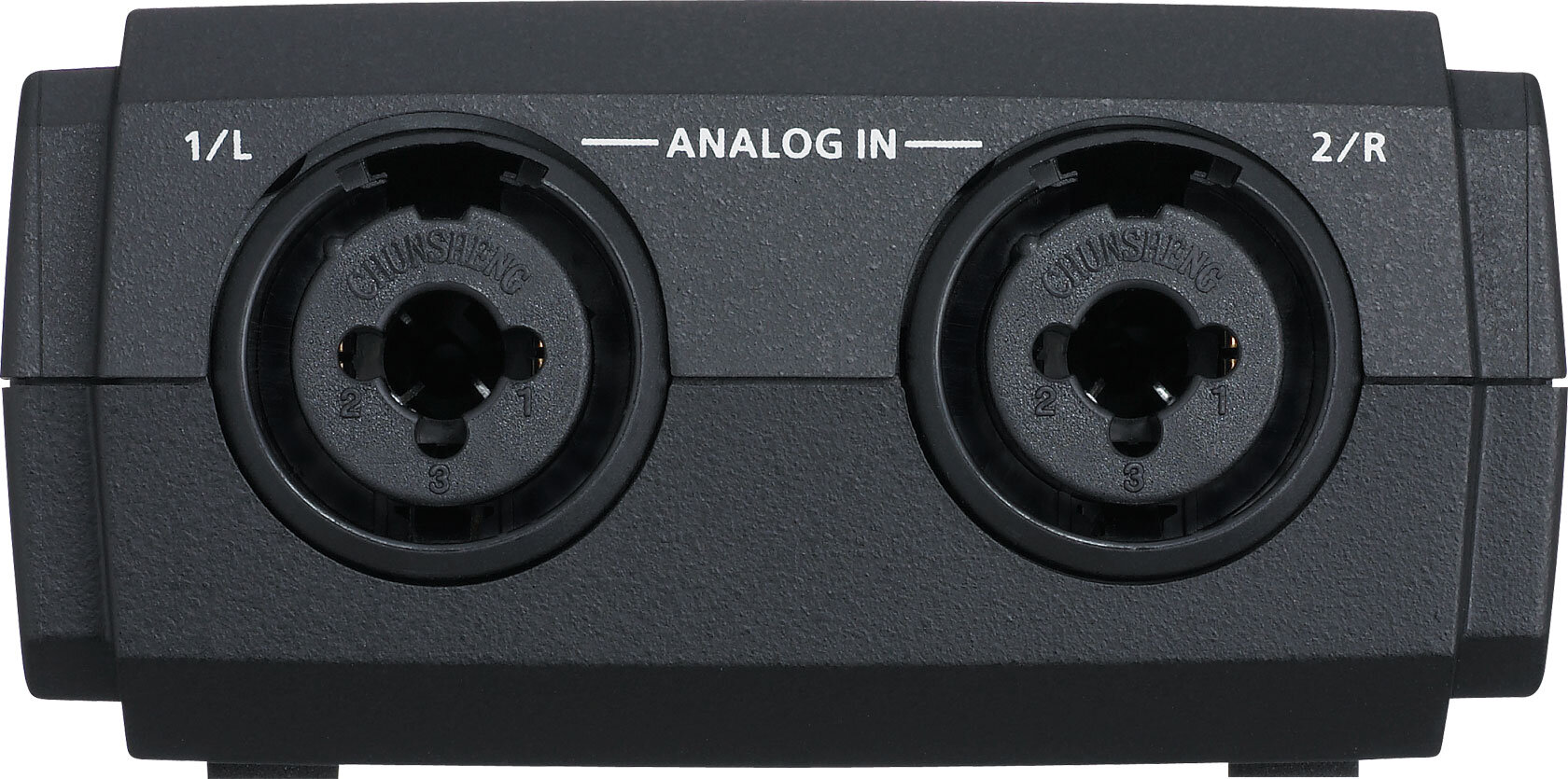

Analog inputs 1/L, 2/R (XLR/TRS Combo type): XLR type (phantom powered), 1/4-inch TRS phone type (balanced/unbalanced)

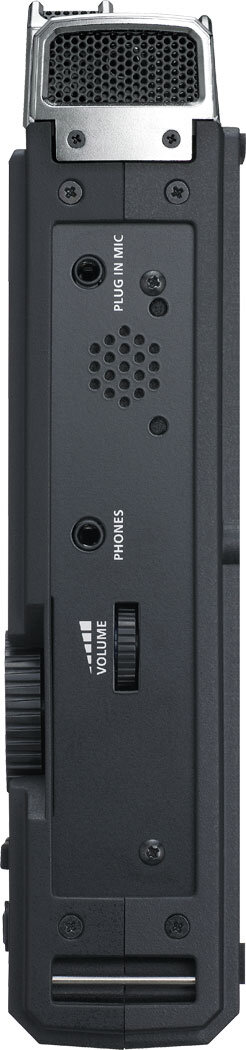

Plug-in powered mic input (Stereo miniature phone type)
-
Audio Output: Headphone jack (Stereo miniature phone type)
Nominal Input Level
-
(Variable): Analog inputs 1/L, 2/R:+4, -2, -8, -14, -20, -26, -32, -38, -44, -50, -56, -62 dBu
Plug-in powered mic input: LOW -7.5 dBu, MID -21 dBu, HIGH -26 dBu
* Input Level Knob : Center
-
Input Impedance: Analog inputs 1/L, 2/R : 5k ohms
Plug-in powered mic input : 3k ohms (SENS = MID/HIGH), 2k ohms (SENS = LOW)
-
Maximum Input: Analog inputs 1/L, 2/R : +24 dBu (SENS = +4 dBu)
Plug-in powered mic input : +4 dBu (SENS = LOW)
-
Output Level: 35 mW + 35 mW (In case 16 ohms load)
-
Recommended Load Impedance: 16 ohms or greater
-
Frequency Response: 20 Hz to 40 kHz
-
Phantom Power: 48 V + or - 4 V
10 mA or less in all channels
-
USB Interface: Mini-B type connector
USB mass storage device class
USB audio (Hi-Speed USB)
-
Display: 160 x 160 dots graphic display (touch screen)
-
Power Supply: AC adaptor
Alkaline battery (AA, LR6) x 4
or Rechargeable Ni-MH battery (AA, HR6) X 4
-
Current Draw: 500 mA (MAX)
-
Accessories: Owner's manual
SD Card
AC Adaptor
Power Cord
Cakewalk Sonar LE DVD-ROM (for Windows)
USB Cable (mini-B type)
Windscreen
-
Options (sold separately): Cover/Windscreen Set: OP-R26CW
Binaural Microphones/Earphones: CS-10EM
Stereo Shotgun Microphone: CS-50
Stereo Microphone: CS-15S
Stereo Headphones: RH-300
Microphone Stand Adaptor: OP-MSA1
Microphone Stand: ST-100MB
- Dimensions and Weight in Packaging
- Shipping Weight: 3 lbs
-
Shipping Dimensions:
7 x
3 x
2 in
