The FC-300 sets a new standard of power, versatility and innovation for MIDI foot control. With features such as bi-directional MIDI data flow to the Roland VG-99 via newly adopted RRC2, patch memory recall, twin expression and control pedals and more, this advanced control station is a perfect companion for Roland's new VG-99 V-Guitar System or any other performance-based MIDI instrument or device.
Advanced MIDI foot controller with 2 assignable expression pedals, 2 control pedals, 9 footswitches and expandability
New Patch Mode stores up to 100 MIDI setups
In addition to standard MIDI connection, newly developed RRC2 protocol adapted for bidirectional data flow between FC-300 and Roland RRC2-equipped products
3-way power supply and rock-solid metal construction for stage use
2 Amp Control switches for controlling amp channels or effects
Perfect companion for the new VG-99
Control & Expression
The FC-300 is outfitted with nine industrial-grade footswitches and 2 programmable expression pedals for fast, easy control and expanded performance capabilities. The backlit LCD offers a high contrast view of patch names (when used with VG-99) and other important data, even in the darkest stage environments.
Up to 100 sets of MIDI messages/parameters can be stored simultaneously in the FC-300 as patches. Complex MIDI transmission is made simple thanks to the FC-300's ability to package chunks of data together in a single patch, and then transmit each data-burst via footswitch.
Using commercially available LAN (Ethernet, CAT5) cable and the newly-adapted RRC2 protocol, the FC-300 provides both bidirectional MIDI transmission and electrical power supply with one simple connection between VG-99 and FC-300.
Two multi-purpose switch-jacks are built into the FC-300. These programmable outputs are an ideal feature for guitarists, as they allow amp channels to be switched from clean to lead, for example, in sync with patch changes on the FC-300
zZounds is an authorized dealer of
Number Pedal x 5 (1/6, 2/7, 3/8, 4/9, 5/10)
Control Pedal x 2 (1, 2)
Expression Pedal x 2 (1, 2)
PARAMTER Button x 2
VALUE Button x 2
7 segments, 3 characters (LED)
16 characters, 2 lines (backlit LCD)
MODE Indicator (STANDARD/CONTROL/SYS EX/PATCH)
Number Indicator x 10 (1--10)
Control Indicator x 2 (1, 2)
Expression Pedal ON/OFF Indicator x 2 (1, 2)

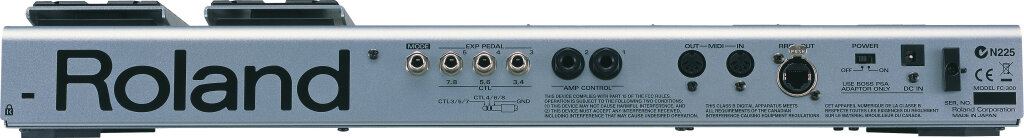

DC IN Jack
MIDI Connectors (IN, OUT)
RRC2 OUT Connector
AMP CONTROL 1 Jack
AMP CONTROL 2 Jack
EXP PEDAL 3 / CTL 3, 4 Jack
EXP PEDAL 4 / CTL 5, 6 Jack
EXP PEDAL 5 / CTL 7, 8 Jack
Number of PATCH (PATCH Mode): 100
Power Supply: DC 9 V: AC Adapter, Dry Batteries AA type x 6 RRC2
94 mA (ECONOMY MODE OFF)
61 mA (ECONOMY MODE ON)
Expected batery life under continuous use:
6.5 hours or longer (ECONOMY MODE OFF)
12 hours or longer (ECONOMY MODE ON)
* These figures will vary depending on the actual conditions of use.
Dry Batteries R6 (AA) type (carbon) x 6
AC Adaptor PSA serise (BOSS)
Foot Switch: FS-5U (BOSS) , FS-6 (BOSS)
Expression Pedal: EV-5, FV-500H/500L (BOSS)SIZE AND WEIGHT (DIMENSIONS)
11 lbs. 11 oz.
- Dimensions and Weight in Packaging
- Shipping Weight: 14 lbs
