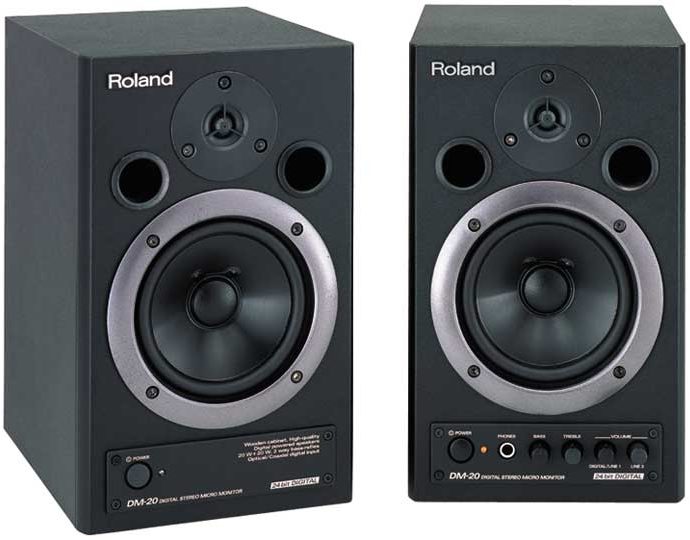

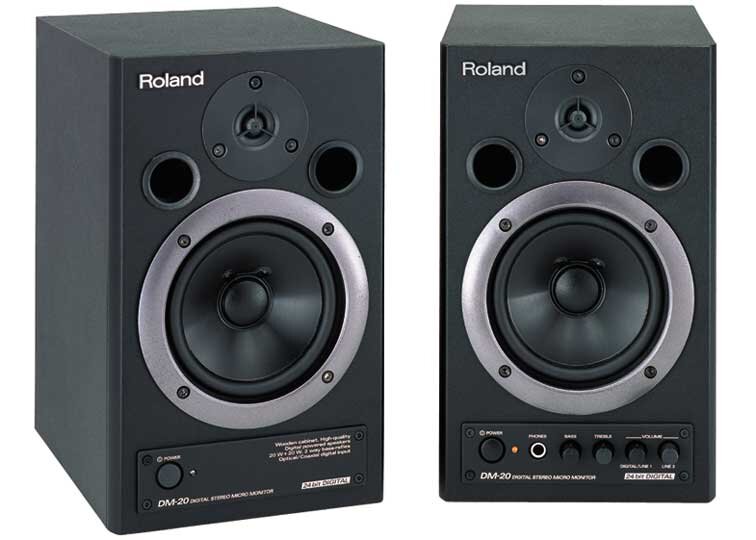

Roland DM20 Digital Stereo Micro Monitor

The DM-20 speakers each feature 20 watts per channel. Perfect for use with Roland/BOSS digital studios and instruments, computer-based setups and more. Magnetically shielded black, real wood cabinets. Eliminate the line-loss and hum that can occur when using analog cabling - resulting in a more accurate reflection of your mix.

No one likes to reach around to the back of a speaker. Now you can adjust each input's volume - along with the Treble and Bass - right from the front of the speaker. The power is also located on the front, along with a stereo headphones jack for silent monitoring. The DM-20 also offers independent transformers and power amps for each speaker cabinet.

Connections include 2 separate line inputs for mixing 2 sources with separate volume controls and a choice of digital or analog (stereo miniature and RCA) inputs.

Roland DM20 Features
Stereo micro monitors with 24-bit/96kHz digital inputs (coaxial and optical)

Powered 2-way bass reflex enclosure with 20 watts of power per side

Magnetically shielded black wooden cabinet

Independent transformers and power amps for each speaker cabinet

Controls located on front of speaker for easy adjustment

Choice of digital or analog (1/4-inch and RCA) inputs

Compact Monitors with Sleek Cabinet Design
Whether placed in a studio or computer-based setup, the DM-Series new black finish and real wooden cabinets give these speakers a look befitting of monitors costing much more. But it's not just about looks; the cabinet is also designed to perfectly compliment the amp and speakers, resulting in the best possible sound.

24-bit/96kHz Digital Inputs
Thanks to their coaxial and optical digital inputs, the DM-10 and '20 eliminate the line-loss and hum that can occur when using analog cabling'resulting in a more accurate reflection of your mix. These 24-bit/96kHz digital inputs are ideal for use with Roland and BOSS digital studios, or for connecting a variety of digital gear including a computer sound card.

Convenient Front-Mounted Controls
No one likes to reach around to the back of a speaker. That's why Roland placed all the essential controls on the front panel. Now you can adjust each input's volume, along with the Treble and Bass right from the front of the speaker. The power is also located on the front, along with a stereo headphones jack for silent monitoring.

Technical Info

Specifications

Rated Power Output: 40 W (20 W + 20 W)

Speaker Unit:
- Woofer: 4-3/4 in. (12 cm); Magnetically-Shielded
- Tweeter: 1-5/8 in. (4 cm); Magnetically-Shielded

Frequency Range: 50 Hz to 22kHz

Nominal Input Level:
- Line: -10 dBu
- Stereo: -10 dBu

Input Impedance: 18 kOhms

Controls (R Channel): BASS Control Knob, TREBLE Control Knob, VOLUME 1 (digital inputs + stereo mini), VOLUME 2 (RCA pin), POWER Switch, Digital Input Select Switch

Connectors:
- R Channel Front: PHONES Jack (stereo miniature phone type), Optical Input Connector
- Rear: LINE 1 Jack (stereo miniature phone type), LINE 2 Jacks (L, R) (RCA pin type), L Channel Output Jack (RCA pin type), Optical Input Connector, Coaxial Input Connector
- L Channel
- Rear: L Channel Input Jack (RCA pin type)

Digital Input Section Sampling Rate: 32/44.1/48/96 kHz, 24-bit

D/A Converter: 24-bit

Other Enclosure: 2 way Bass-reflex type (Wooden Cabinet)

Power Supply AC 117 V, 230 V or AC 240 V

Power Consumption: 230 mA (AC 117 V), 120 mA (AC 230 V), 110 mA (AC 240 V)

Dimensions:
- R Channel: 6-3/4 x 10-5/16 x 11-1/16 in. (170 x 261 x 280 mm)
- L Channel: 6-3/4 x 10-1/8 x 11-1/16 in. (170 x 256 x 280 mm)

Weight:
- R Channel: 4.5 kg / 9 lbs 15 oz
- L Channel: 4.2 kg / 9 lbs 5 oz

Accessories: Speaker Cable (RCA pin type), Power Cord, Rubber Foot x 4

Tiny 10-watt monitors with pristine clarity. Coaxial and optical 24-bit, 96kHz digital inputs, plus minijack and RCA analog inputs.
