This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

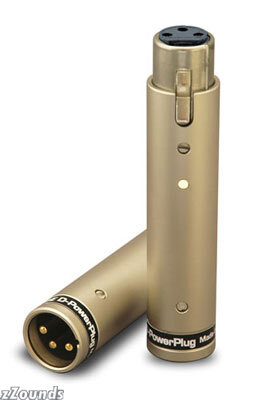

Rode D-PowerPlug Inline Cable Mounted Amplifier
Phantom powered. Boosts level for longer cable runs.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
The D-PowerPlug is effectively a 'Turbo Charger' for Dynamic microphones!
Features an instrumentation grade pre-amplifier circuit, D-PowerPlug will turn any standard dynamic microphone into a high level electronically balanced output device. Using conventional microphones with long multi-core cables results in a dramatic loss of signal strength, and of course sound quality due to cable resistance and capacitance. Powered by standard P48 V, D-PowerPlug can drive cables in excess of 100 meters with negligible loss of signal quality or power.
Compatible with standard XLR connectors.
Input level (nominal): 1 mV.
Output level (nominal): 10 mV.
Frequency response: 20 Hz ~ 20 kHz (-3 dB).
Input impedance: 100 kilohms balanced per arm.
Output Impedence: 100 ohms balanced.
Noise: -116 dB A-Wt RTI.
Maximum input: 0.8 Vp-p.
Maximum output: + 11.4 dBu @ 1% THD (8 Vp-p).
Input connector: XLR 3 PIN female.
Output connector: XLR 3 PIN male.
Pin assignment: pin 1 GND, pin 2 signal(+), pin 3 signal(-).
Current consumption: 3 mA @ 48V.
Weight approx.: 73.8 grm
Dimensions: 94 mm
Features an instrumentation grade pre-amplifier circuit, D-PowerPlug will turn any standard dynamic microphone into a high level electronically balanced output device. Using conventional microphones with long multi-core cables results in a dramatic loss of signal strength, and of course sound quality due to cable resistance and capacitance. Powered by standard P48 V, D-PowerPlug can drive cables in excess of 100 meters with negligible loss of signal quality or power.
Compatible with standard XLR connectors.
Technical Info
Gain: +20 dB.Input level (nominal): 1 mV.
Output level (nominal): 10 mV.
Frequency response: 20 Hz ~ 20 kHz (-3 dB).
Input impedance: 100 kilohms balanced per arm.
Output Impedence: 100 ohms balanced.
Noise: -116 dB A-Wt RTI.
Maximum input: 0.8 Vp-p.
Maximum output: + 11.4 dBu @ 1% THD (8 Vp-p).
Input connector: XLR 3 PIN female.
Output connector: XLR 3 PIN male.
Pin assignment: pin 1 GND, pin 2 signal(+), pin 3 signal(-).
Current consumption: 3 mA @ 48V.
Weight approx.: 73.8 grm
Dimensions: 94 mm
What Our Customers Say About zZounds
"My item was here within 2 days of me ordering it. That was wonderful, and it was wonderfully packed!" - customer on October 31, 2009
Rode D-PowerPlug Inline Cable Mounted Amplifier Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
"Excellent design and execution"
Feature:
Simple and effective
Quality:
Nicely build - metal - solid and well built
Value:
None necessary
Desirability:
I am ordering another one so I will have a pair
Sound:
It is very quiet and sounds fine. It does not change the sound of the microphone except to boost the level by 20 db.
Ease of Use:
Just plug it in between the mic and the cord.
Overall:
excellent and intelligent design - well executed.
Simple and effective
Quality:
Nicely build - metal - solid and well built
Value:
None necessary
Desirability:
I am ordering another one so I will have a pair
Sound:
It is very quiet and sounds fine. It does not change the sound of the microphone except to boost the level by 20 db.
Ease of Use:
Just plug it in between the mic and the cord.
Overall:
excellent and intelligent design - well executed.
Submitted: 02/05/2008
Style of Music: wide variety
