Product Description

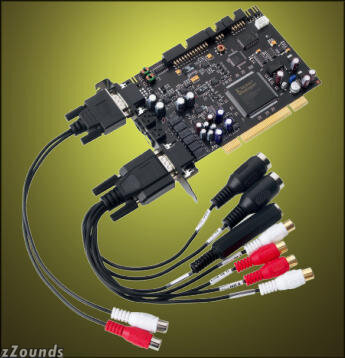

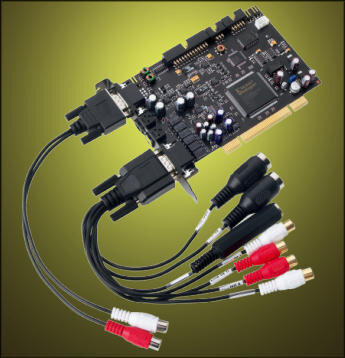

RME presents the world's most versatile PCI Audio Interface -- the Hammerfall DSP 9632. This card makes the dream of an All-In-One solution for every possible application come true. As usual, RME has not made any compromises: Latest 192 kHz AD- and DA-converters with more than 110 dB signal to noise ratio, all inputs and outputs simultaneously operational, easy-to-install optional hi-quality analog expansion boards, the famous TotalMix, a newly developed sensational clock section with maximum jitter suppression of external clock signals - all this combines into a 'soundcard' that the world has been waiting for so long.
An easy to handle ribbon cable connects the newly developed optional AI4S-192 and AO4S-192. These analog expansion boards having one bracket with 4 stereo TRS jacks offer the same performance as the on-board stereo analog I/O of the HDSP 9632: up to 192 Khz, balanced and 3 different reference levels. With this a maximum of 6 inputs and/or outputs can be achieved.
HDSP 9632 also supports the existing Expansion Boards (EXB). An internal ADAT input and an internal ADAT output allow for up to 14 analog inputs, 14 analog outputs, or the usage of a TDIF interface, directly inside the computer.
If you can THINK it, you can DO it with the HDSP9632!
Features:
Balanced* stereo analog in- and output, 192 kHz/24 bit, > 110 dB SNR
Optional analog expansion boards with 4 balanced in- or outputs
All analog I/Os capable of 192 kHz, constant number of available channels
1 ADAT digital I/O, supporting 96 kHz S/MUX operation
1 SPDIF digital I/O, 192 kHz-capable
1 Breakout cable for coaxial SPDIF*
Up to 16 I/Os can be used simultaneously!
1 Stereo headphone output, parallel to the analog out, additional level settings
1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
TotalMix: 512-channel mixer with 40 bit internal resolution
* The HDSP 9632 ships in a basic version including two RCA/phono breakout cables (headphone: TRS jack). Therefore all analog I/Os and the SPDIF I/O are unbalanced. XLR breakout cables are available as an option (headphone: Neutrik TRS locking jack), turning analog and AES/EBU into balanced mode.
Included Software:
HDSP Meter Bridge: Scalable level meter with Peak- and RMS calculation in hardware
DIGICheck 3.0 for Windows: Spectral Analyser, professional level meter for 2, 8, or 16 channels, Vector Audio Scope, various other audio analysis tools.
Drivers: Windows 2000/XP (full multi-client operation of MME, GSIF and ASIO 2.0). Mac OS X drivers expected at the end of September 2003.
HDSP 9632 debuts SteadyClock, a newly developed clock technology, combining professional features like maximum jitter suppression at full varipitch capabilities and software controlled sample rates.
Settings Dialog
Just click on the hammer symbol in the systray of the taskbar and the settings dialog of the HDSP 9632 comes up. The clear structured, easy to understand window plus the unique informative status windows for input signal, clock mode and sample rate make your work with Hammerfall DSP to a real pleasure.
When working with several digital sources it is not only necessary to know if these are properly locked, but also if they are totally synchronized. RME's exclusive SyncCheck checks all input signals and displays their actual state, and thanks to their new Intelligent Clock Control concept you have all clocks and states under control - with ease.
The optional 9632 Word Clock Module provides a galvanically isolated word clock input and 2 word clock outputs via BNC jacks. Compared to the well-known DIGI96/8 series, the HDSP 9632 not only offers a further improved analog interface, but also all the features of the award-winning Hammerfall DSP series: All inputs and outputs simultaneously available, MIDI I/O and TotalMix, the DSP-based realtime mixer/router. Hardware updates through software and driver updates are risk-free thanks to the Secure BIOS Technology.
In short: The HDSP 9632 is the ultimate audio interface for PC or Mac, digital or analog.
Unique Technologies in HDSP 9632
AutoSync: Intelligent clock control according to operational mode and present/desired sample rate.
Bitclock PLL: The most reliable receiver circuit for ADAT optical signal
Dynamic Bus Utilization: Scalable computer load according to the current usage
Enhanced ZLM(R): Monitoring of the input signal, independent from clock mode and sample rate
DIGICheck DSP: Professional status and level display at lowest CPU load
Intelligent Clock Control: Measurement and display of all incoming and used clocks
Latency Fast Change: Change latency on-the-fly under ASIO, without manual reset or re-boot
Secure BIOS Technology: Automatic BIOS replacement when flash process fails
SyncAlign(R): Surveillance and sample accurate synchronization of all channels
SyncCheck(R): Comparison and display of all input clock status
TotalMix: Mixes all inputs and all outputs on all outputs. Several independent submixes possible
Zero Latency Monitoring - ZLM(R): Automatic monitoring of the input signal with zero latency
About Hammerfall DSP
Using the Hammerfall DSP System RME's world famous Hammerfall technology is available not only on desktop computers, but also on notebooks! It doesn't matter if Mac or PC: each portable computer having a CardBus interface can now be upgraded to a mobile High-End and high-speed audio system -- with up to 26 tracks and latencies down to 1.5 ms!
The new Hammerfall DSP System offers all its features both when used stationary or mobile: support for 96 kHz/24 bit, S/PDIF and ADAT optical, integrated mixer in TotalMix technology for complete ASIO 2.0 Direct Monitoring, independently to operate mixer desktop providing several submixes, DIGICheck in hardware for professional level metering with peak- and RMS values in broadcast quality, MIDI I/O and much more.
The Hammerfall DSP System includes fully developed and powerful drivers: Windows 98/ME/2000/XP (MME with multi-client operation, ASIO 2.0, GSIF) and MacOS (ASIO 2.0). The new hardware concept includes the possibility for hardware updates via software. Improvements and extensions of the hardware are thus possible without any problem, safety for the future (WDM, ASIO 3.0) included. Besides, the whole system supports hot-plugging. Card and I/O box can be connected or disconnected at any time without having to re-boot the computer.
RME's Hammerfall series is famous for its reliability, tremendous performance, high compatibility and the user-friendly design of hardware and drivers. The Hammerfall DSP System breaks into a new dimension of computer-based hard disk Recording, unsurpassed because of its numerous exciting functions and unique features.
zZounds is an authorized dealer of
RME products.
Supported sample frequencies: 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms
ASIO zero CPU load technology: 0 (zero!)% CPU load when using ALL 32 channels!
All settings changeable in realtime
Automatic and intelligent master/slave clock control
Enhanced Mixed mode: All inputs and outputs simultaneously operational
TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
Unique status windows for record and playback, showing mode and sample rate
Analog input and output level configurable LoGain/+4 dBu/-10 dBV via software
Balanced analog input and output, 24 bit/192 kHz converter. Dynamic range >110 dBA
Low impedance output (75 ohm) for headphones, stepless output level through software faders
Speaker Protection minimizes noise during power on/off
Digital inputs and outputs ground-free transformer coupled
Super low jitter design: < 1 ns in PLL mode (44.1 kHz, optical in)
