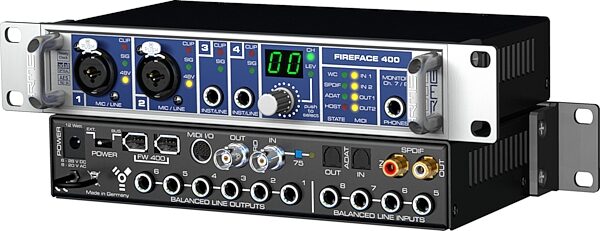

RME Fireface 400 FireWire Audio Interface

RMEs Fireface 800 revolutionized the world of FireWire audio interfaces. Now the revolution continues: The Fireface 400 is not just the little brother of the Fireface 800 -- it is a completely newly designed device. It is the only device in its class with active jitter suppression, stand-alone functionality, complete controllability from the front panel, highly flexible I/Os in professional quality, and an unsurpassed 648-channel matrix router -- at sample rates up to 192 kHz.

As usual, RME offer a host of sophisticated features and characteristics with the fastest Firewire technology.

Features:
2 digitally controlled Mic Preamps in high-end quality

2 balanced universal inputs for line and instrument signals

SteadyClock for maximum jitter suppression and clock refresh

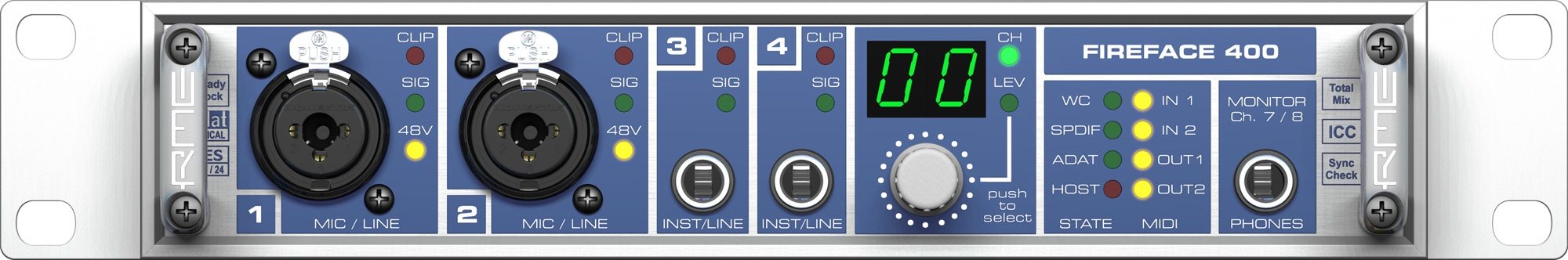

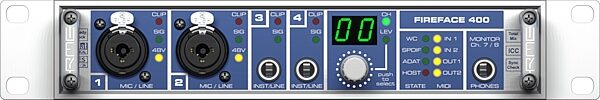

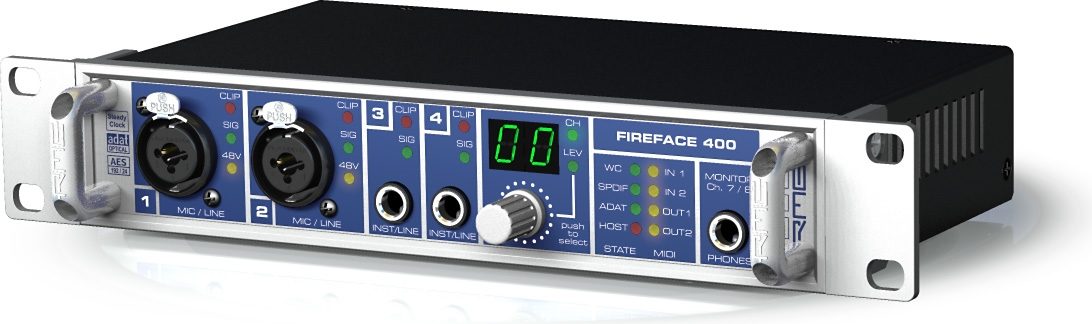

Simple stand-alone operation with rotary encoder and front panel display

54 Level Meter Peak/RMS, hardware-calculated

Full mobility by Bus Power support

DIGICheck, RME's unique meter and analysis tool

TotalMix: 648-channel mixer with 42-bit internal resolution

The DSP-based TotalMix mixer allows fully independent routing and mixing of all 18 input and output channels to all 18 physical outputs. Up to 9 totally independent stereo sub-mixes simply mean unrivalled monitoring facilities. Copy/paste of routings, ganging and group-based operation of faders, and the extraordinary Matrix window are just some of the mixer's unique features. The mixer can be completely MIDI controlled, even in stand-alone operation. Furthermore the DSP hardware calculates RMS and Peak levels for all 54 audio channels, without causing any significant CPU load.

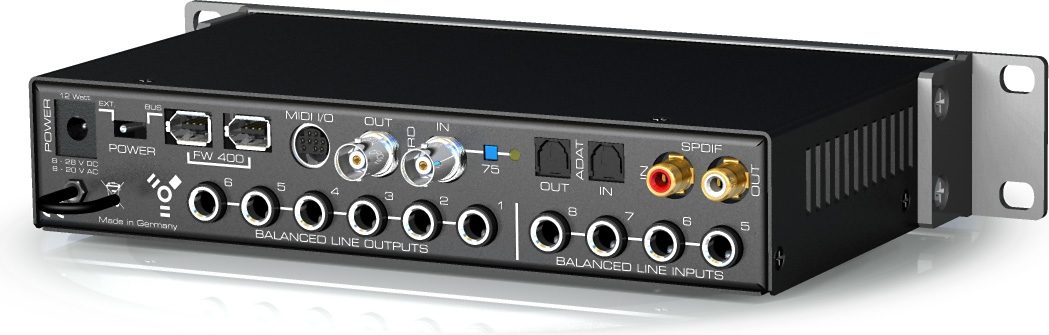

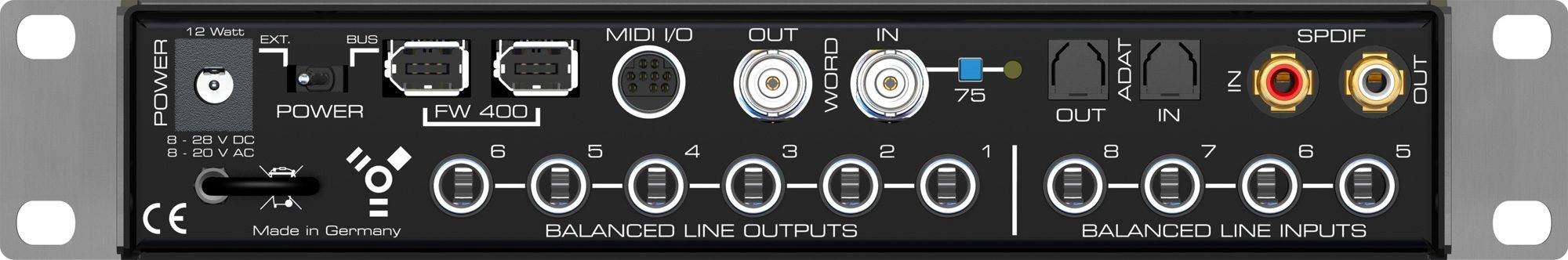

A word clock input and output (BNC) plus two MIDI I/Os (breakout cable, 5-pin DIN) complete the analog/digital feature list and turn the Fireface 400 into a complete audio system of the highest quality.

The Fireface 400 excells as portable all-in-one solution when it comes to power supply. The included switching power supply accepts voltages from 100 to 240 V, thus can be operated all over the world. A rear panel switch enables Bus Powered operation, taking the power directly from the FireWire connector. To avoid potential problems, both the unit's internal power supply and the protective circuits at the FireWire port were specially designed and thoroughly tested.

Thanks to an internal flash memory, all settings including TotalMix are recalled during boot. The device can thus be configured and used as a stand-alone device, without being connected to a computer, e.g. as a submixer, A/D and D/A-converter, headphone mixer, format converter, instrument or microphone pre-amplifier, monitoring mixer and much more.

The Fireface 400 is equipped with SteadyClock(TM), RME's unique sync and clock technology. With this, the device becomes a sync reference for the whole studio. SteadyClock refreshes clock signals, removes jitter, and takes care of optimal AD/DA conversion quality, thus guarantees a sensational sound quality, completely independent from the reference clock's quality. SteadyClock allows the unit to control the sample rate freely on its own. The Settings dialog includes a direct choice of the video and audio world's most often used sample rates. Additionally, 2 faders can be used to set the sample rate freely and in real-time, within the range of +/- 4% and +/- 0.4%.

Of course the Fireface 400 offers a second FireWire port for hub functionality. Up to three devices can be connected to one FireWire interface and operated in parallel. The renowned Fireface 800 shares the same driver, allowing mixed setups.

Technical Info

Input AD: 6 x 1/4 in. TRS (4 x Line, 2 x Line/Instrument), 2 x XLR/TRS Combo connector (2 x Mic/Line), all servo-balanced.

Output DA: 6 x 1/4 in. TRS, servo-balanced, DC-coupled signal path. 1 x 1/4 in. TRS unbalanced

Input Digital: 1 x ADAT optical or SPDIF optical, SPDIF coaxial (AES/EBU compatible)

Output Digital: 1 x ADAT optical or SPDIF optical, SPDIF coaxial (AES/EBU compatible)

MIDI: 2 x MIDI I/O via breakout cable (4 x 5-pin DIN jacks), for 32 channels low jitter hi-speed MIDI

Dynamic range AD: 110 dB RMS unweighted, 113 dBA

THD AD: < -100 dB (< 0.001 %)

THD+N AD: < -98 dB (< 0.0012 %)

Crosstalk AD: > 110 dB

Dynamic range DA: 110 dB RMS unweighted, 113 dBA (unmuted)

THD DA: -100 dB (0.001 %)

THD+N DA: -96 dB (0.0015 %)

Crosstalk DA: > 110 dB

Input/Output level for 0 dBFS @ Hi Gain: +19 dBu

Input/Output level for 0 dBFS @ +4 dBu: +13 dBu

Input/Output level for 0 dBFS @ -10 dBV: +2 dBV

Sample rate internally: 32, 44.1, 48, 64, 88.2 kHz, 96 kHz, 128, 176.4, 192 kHz

Sample rate externally: 28 kHz - 200 kHz

Frequency response AD/DA, -0.1 dB: 5 Hz - 20.4 kHz (sf 44.1 kHz)

Frequency response AD/DA, -0.5 dB: 1 Hz - 43.3 kHz (sf 96 kHz)

Frequency response AD/DA, -1 dB: 1 Hz - 80 kHz (sf 192 kHz)

Driver Support
Windows 2000 SP4, Windows XP, Vista, Vista 64: Full ASIO multi-client operation of WDM, MME (not XP64), GSIF 2.0 and ASIO 2.0. WDM (DirectSound) with stereo and multi-channel support. Full hot-plugging. Up to 3 units operational. Mac OS X (10.3 or higher) PPC and Intel: Core Audio, Core MIDI. Full hot-plugging. Up to 3 units operational.

* In Quad Speed mode (176.4 and 192 kHz), the ADAT I/O is deactivated

** Firewire is a registered trademark of Apple Inc.

Big power in a little box! With bus-powered FireWire, 8 analog input channels, and stand-alone operation, you can record anywhere. Combo XLR/TRS mic preamps handle Hi-Z inputs or condenser mics with onboard phantom power, at rates up to 192kHz. Onboard 648-channel, 42-bit mixer for independent routing, plus up to 9 stereo sub-mixes!
