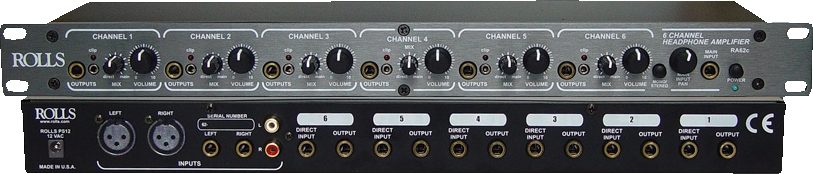

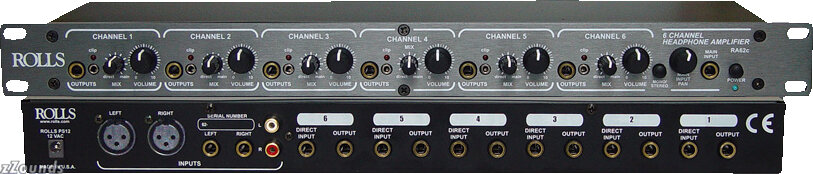

Rolls RA62C Headphone Amplifier

The Rolls RA62c is a 6-channel headphone/earphone amplifier for professional audio monitoring. A variety of input options are available including 1/4 in., RCA, and balanced XLR. Since the Mono/Stereo switch is after the pan control, it will mix 2 Mono signals and their balance can be adjusted with the Pan control. With the addition of rear panel Direct Input connectors, each channel may mix a second stereo signal.

Features:
6 channels of clean, quiet headphone/earphone amplification

Individual Direct Inputs to mix separate stereo signal with Main Input signals

1/4 in. and 3.5mm Headphone/Earphone Outputs

LED Clip indication

Technical Info

Input Impedance: 10K Ohms unbalanced

Max Input Level: +18 dBV

Input Connectors:
1/4 in. TRS stereo, R & L bal. / unbal. 1/4 in.
RCA, R & L balanced XLR
6: 1/4 in. TRS Direct Input jacks

Output Connectors:
12: 1/4 in. TRS Stereo jacks
6: 1/8 in. (3.5 mm) TRS Stereo jacks

Max Gain: 20 dB/Channel

Max Output Power: up to 300 mW/side, 600 mW/Channel ( @ 16 Ohms )

Frequency Response: DC - 30 kHz

S/N Ratio: 90 dB

THD: <.008%

IMD: <.008%

Phase Shift (In to Out): 0 deg.

Slew Rate: 25 V per microsecond Second

Crosstalk: - 65 dB

Power: 12 VAC (Rolls Model PS12)

Weight: 7 lbs (3KG)

Size: 19 in. x 1.75 in. x 6.5 in. (48cm x 4.5cm x 17cm)
