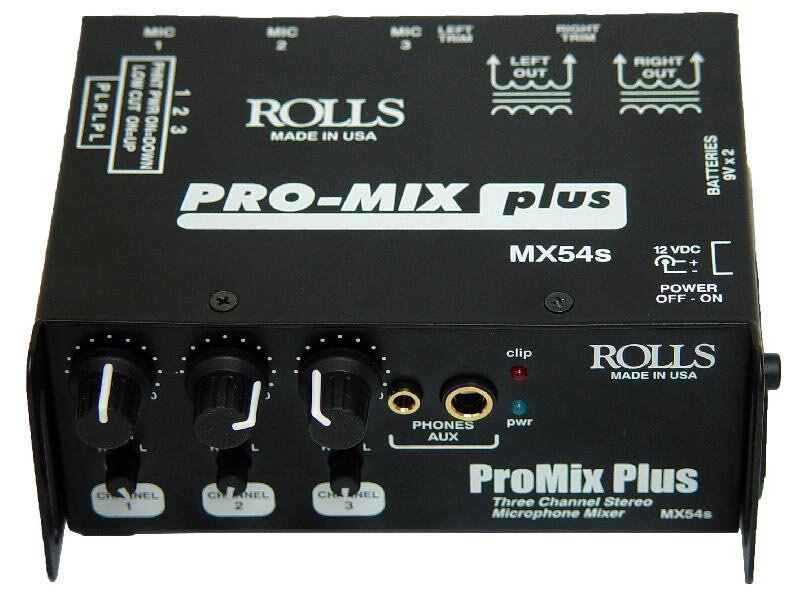

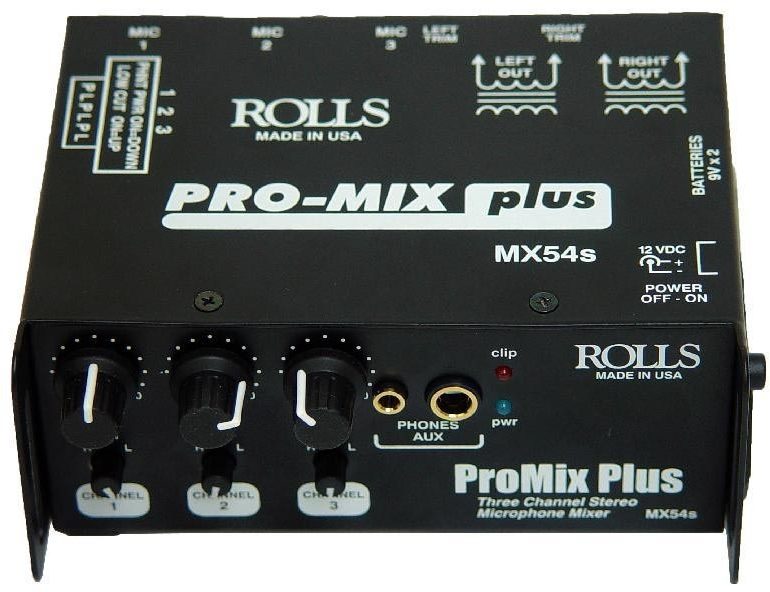

Rolls MX54S Promix Plus Stereo Microphone Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Rolls MX54S Promix Plus Stereo Microphone Mixer, Main
Rolls MX54S Promix Plus Stereo Microphone Mixer, Main
Rolls MX54S Promix Plus Stereo Microphone Mixer, Main
Rolls MX54S Promix Plus Stereo Microphone Mixer, Main Rolls MX54S Promix Plus Stereo Microphone Mixer, Main Rolls MX54S Promix Plus Stereo Microphone Mixer, Main
Mix three microphones to stereo XLR outputs, with the smallest possible footprint.

The MX54S Promix Plus mixes three microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut switches, a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries.

Features
Mixes three microphones to stereo XLR outputs

Output level controls for mic or line-level output

Transformer isolated outputs

Phantom Power and Low-Cut switches for each Mic input

Battery and AC powered

Handy shoulder strap mounts

Input Impedance: 600 Ohms

Output Impedance: XLR 600 Ohms

THD + Noise: .02%

S/N Ratio: 84 dB

Frequency Response: 25 Hz - 16 kHz (+0 / -3 dB)

Max Output Level: + 14 dB

Max Input Level: -14 dB

Max Gain: +60 dB

Low Cut: -3 dB @ 100 Hz

Current Draw: 20 mA

Phantom Power: +18 VDC

Connectors: 3: Female XLR, 2: Male XLR, 1: 1/4 in. TRS, DC Power Jack

Size (WxDxH): 5.3 x 3.7 x 2 in.

Weight: 1 lbs.
