Rolls DB25 Matchbox Direct Box

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

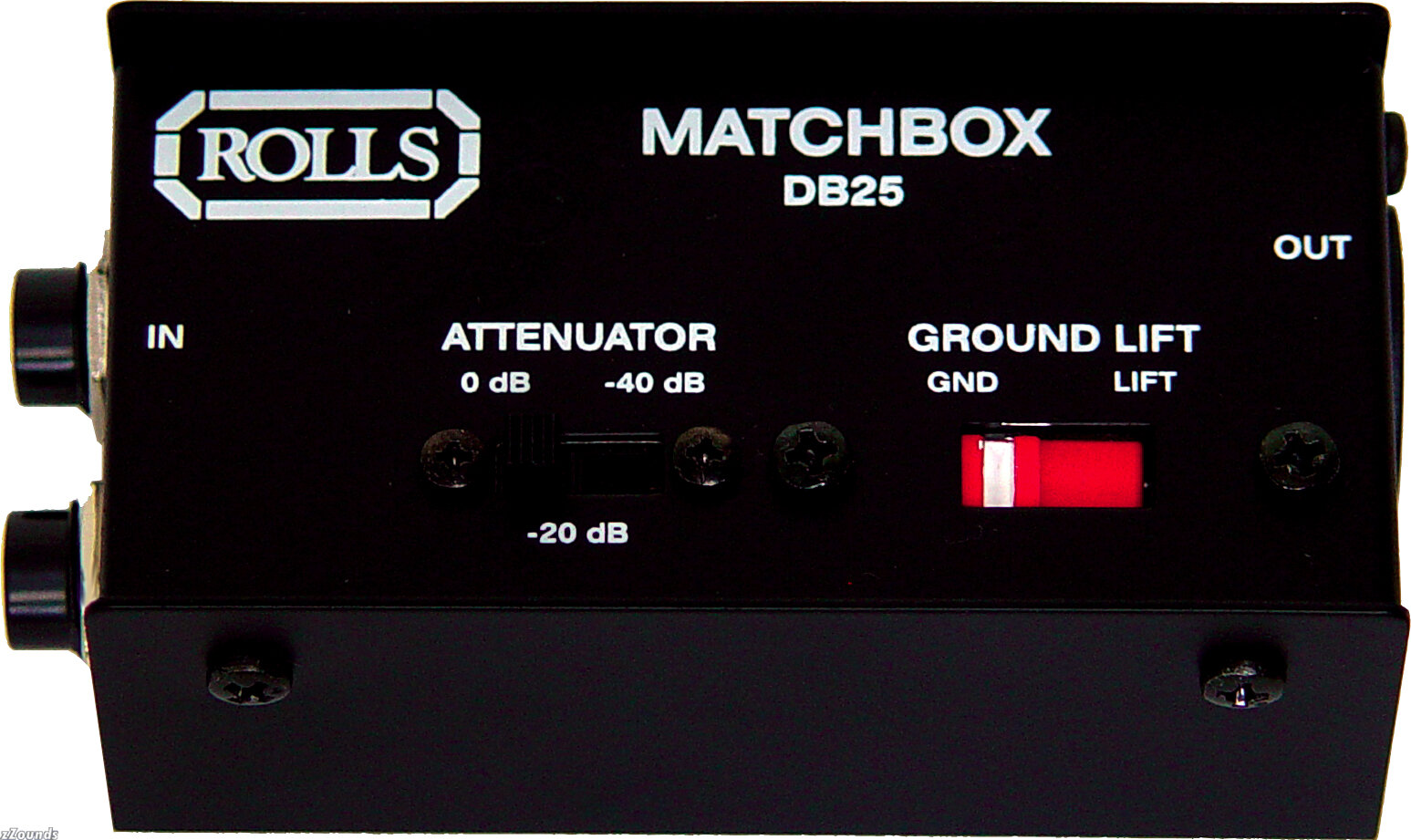

Rolls DB25 Matchbox Direct Box, Main
Rolls DB25 Matchbox Direct Box, Main
Takes high impedance signal to low impedance via shielded transformer balancing.

The DB25 is a transformer-balanced, passive direct box. The Attenuator cuts the signal from speaker outputs, or hot line outputs so the audio mixer input does not distort. The 1/4 in. Input jacks are paralleled so either one may be used.

This direct box converts high-impedance to low-impedance and vice cersa. It has a ground lift for hum reduction, and an attenuator switch for connection to line level or speaker level signals.

Frequency Response: 50 - 15K Hz + -3 dB

Output Impedance: 600 ohms

Imput Impedance: 50K ohms

Max output level: 10 dBm

Polarity: + Pin 2 (XLR)

For support or warranty questions, please contact the manufacturer:
Phone: 801-263-9053
Owner's Manual
