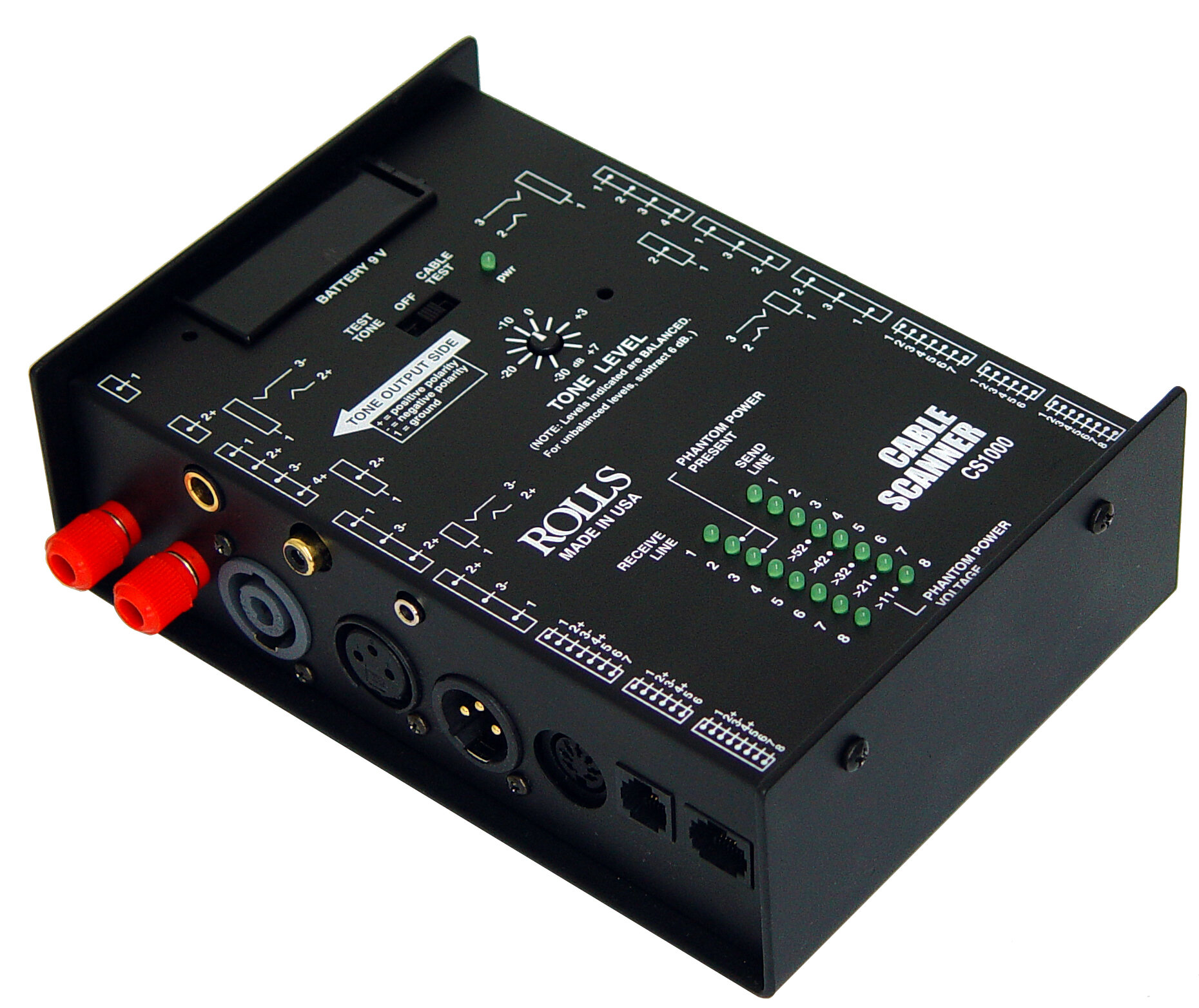

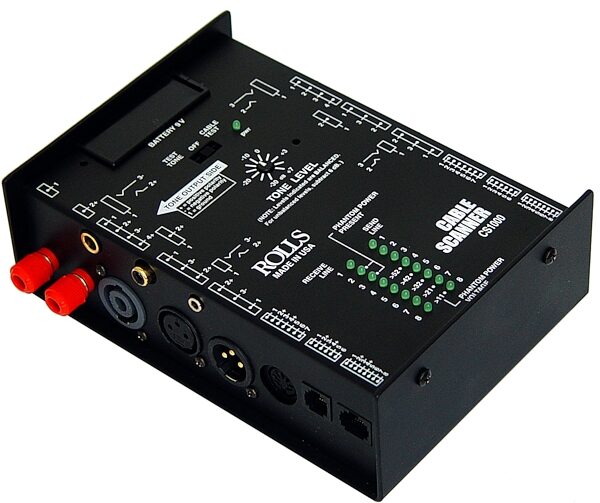

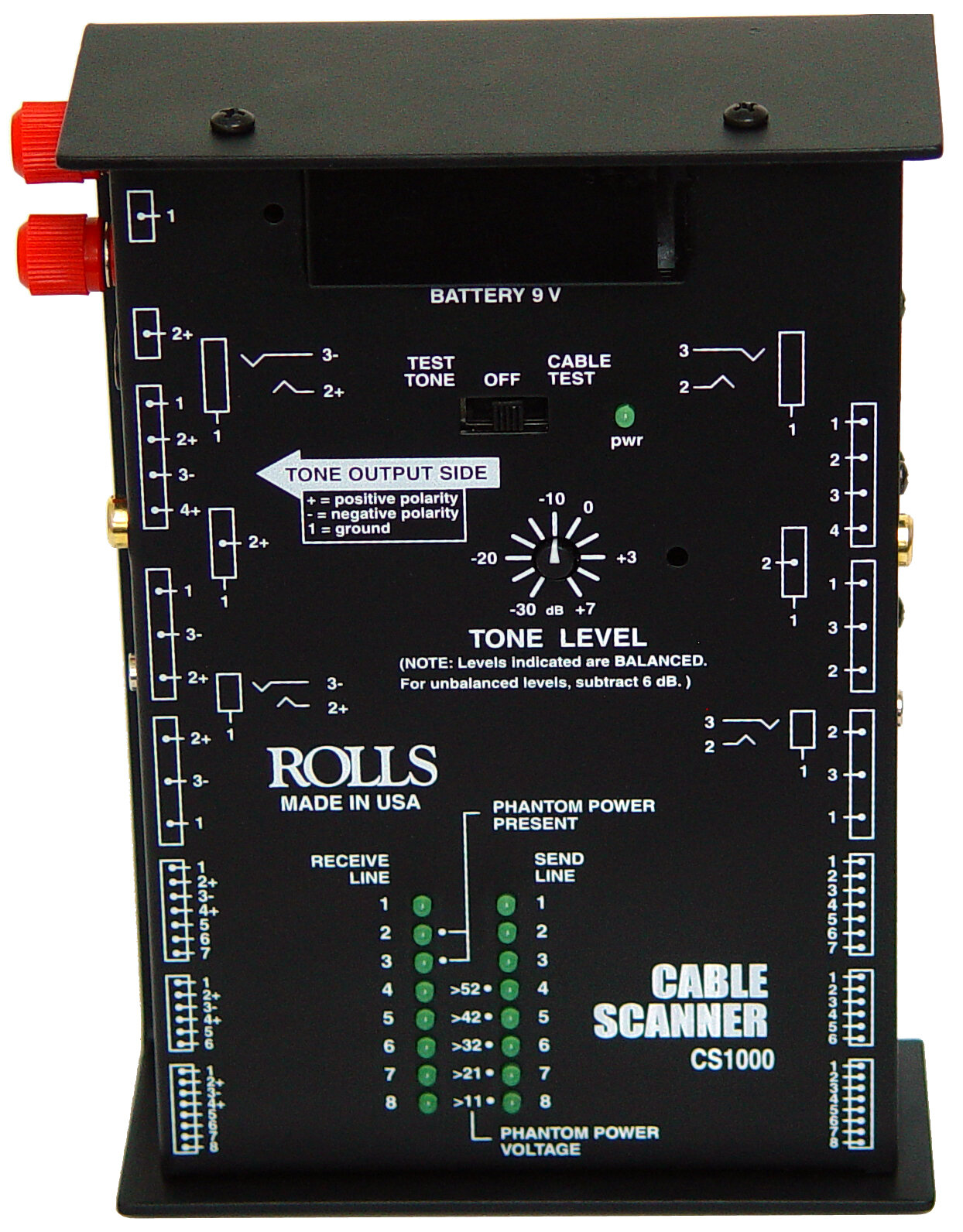

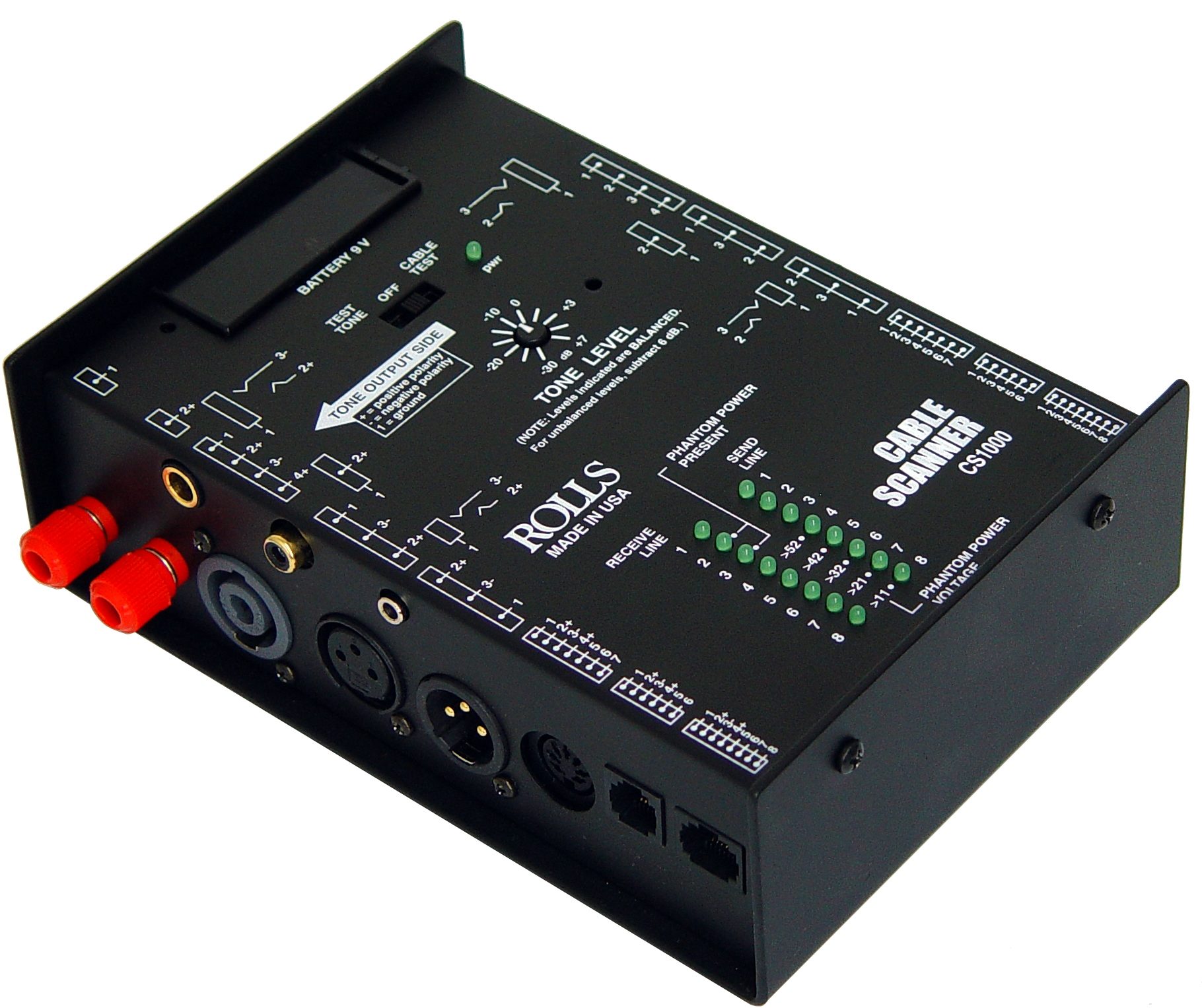

Rolls CS1000 Cable Scanner and Speaker Tester

The CS1000 is a price/performance breakthrough in the cable maintenance, signal testing market. It tests ten different types of cable ends. Each cable being tested has its pinout scanned for continuity as well as proper polarity.

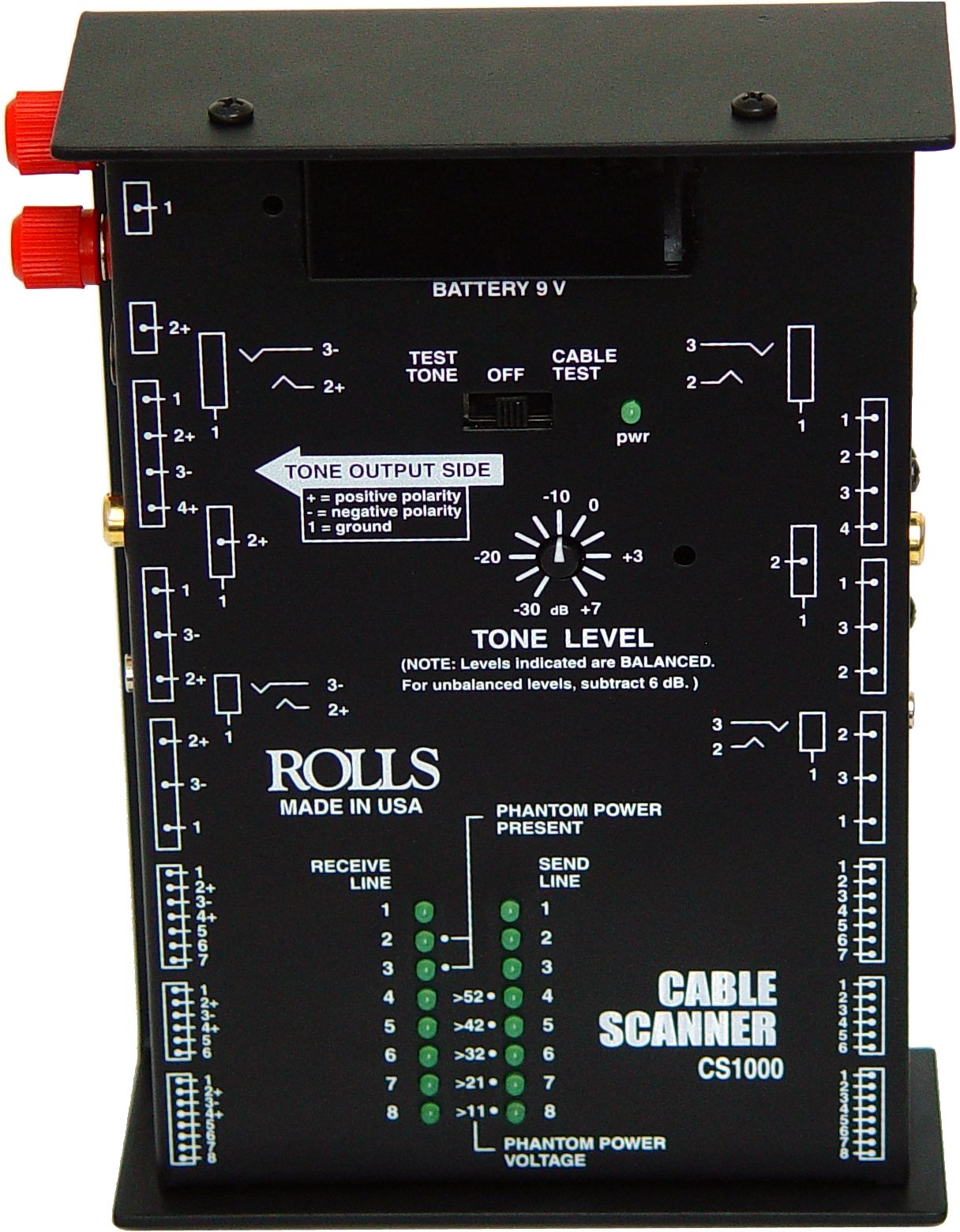

Plus, the unit features a 1 kHz Test Tone oscillator with a calibrated variable level control. The balanced test signal is sent out each of the jacks on one side of the unit providing a convenient way to verify proper operation of audio equipment. It can be heard through headphones and has enough level to hear through a speaker. The RJ jacks allow ringing out phone lines and other installed wiring.

The CS1000 also features Phantom Power Voltage and polarity (both signals present) testing as well.

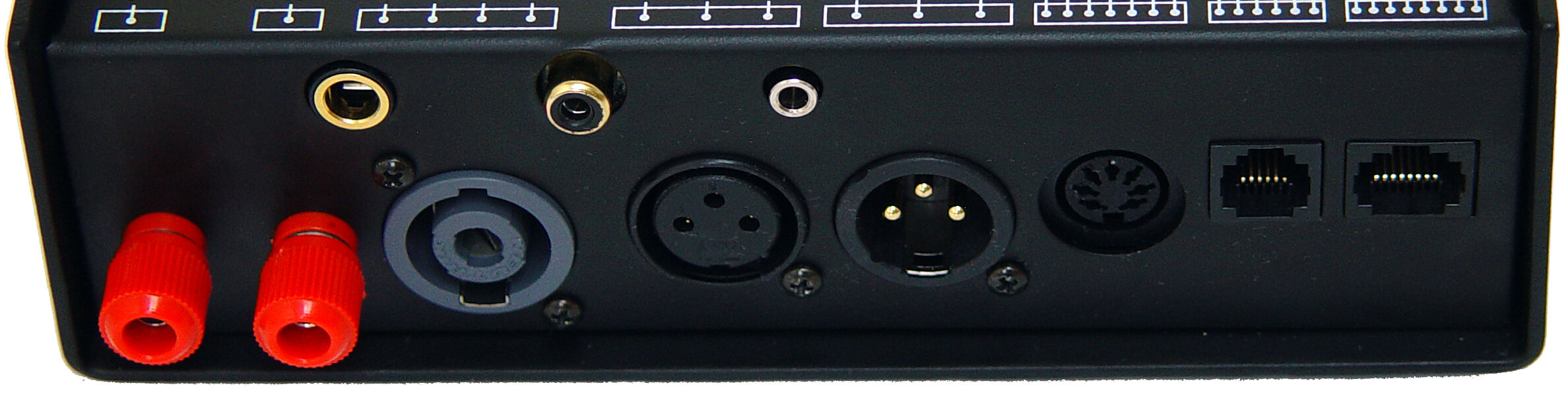

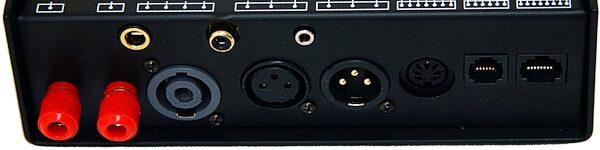

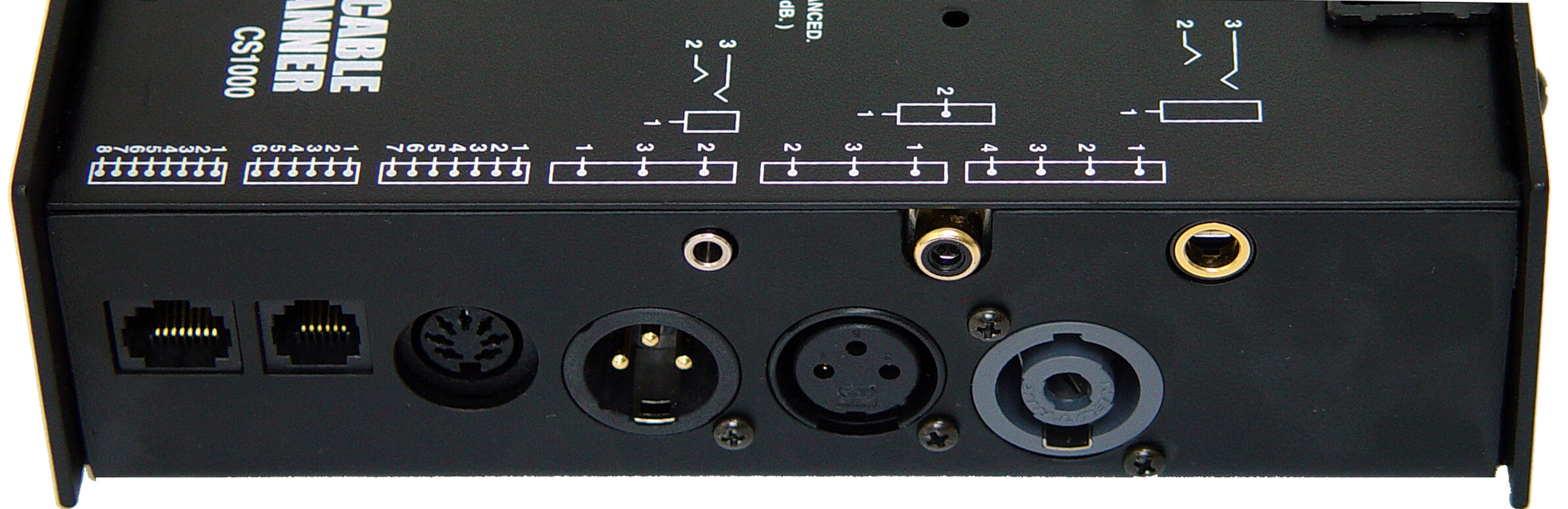

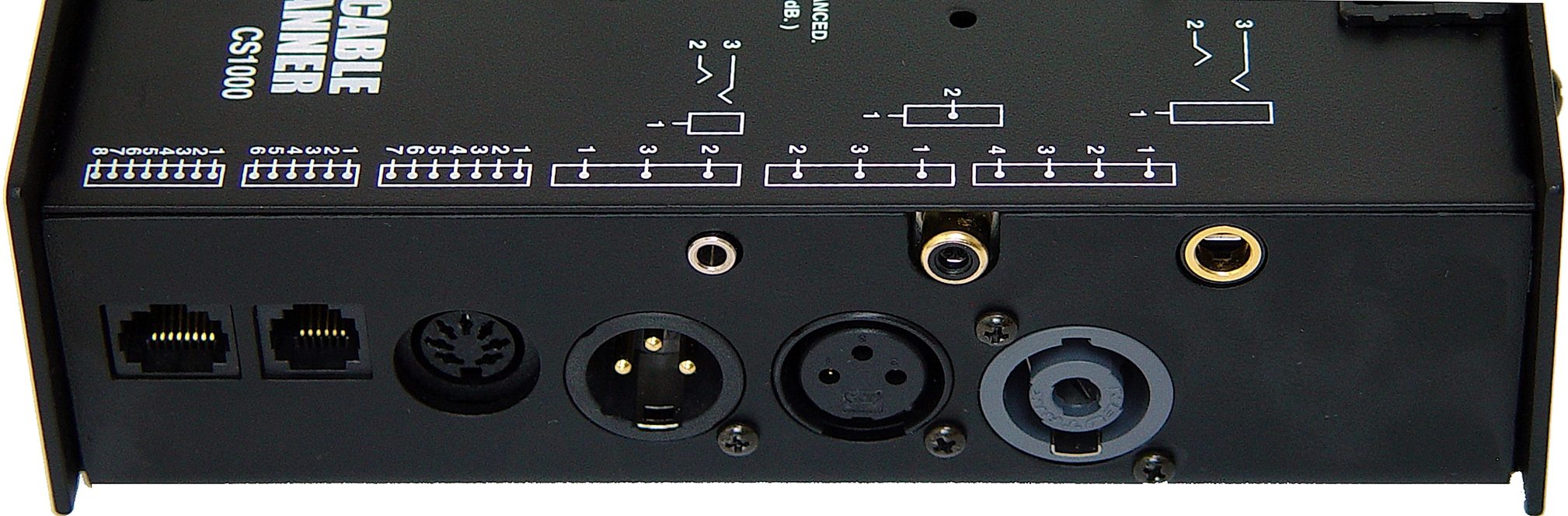

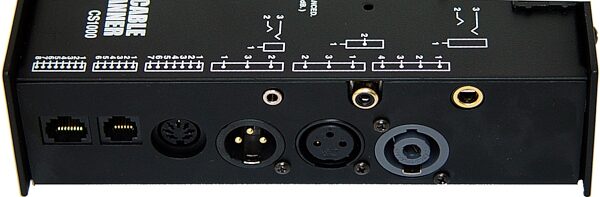

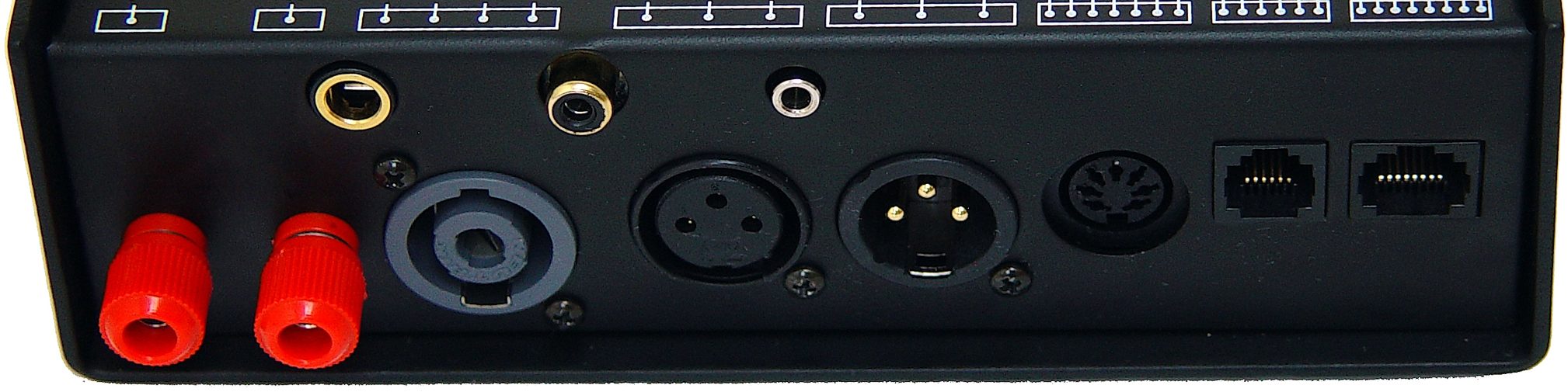

Tests ten different cable ends including:
Banana

Speak-on (Neutrik)

RCA

1/4 in.

1/8 in.

XLR female

XLR male

MIDI

RJ11 (Telephone)

RJ45 (Ethernet and CAT5)

Test cables terminated in banana, Speakon, RCA, 1/4", 1/8", XLR female, XLR male, MIDI--even telephone and ethernet connectors with this wonder box! It even has a 1kHz test tone oscillator with level control!
