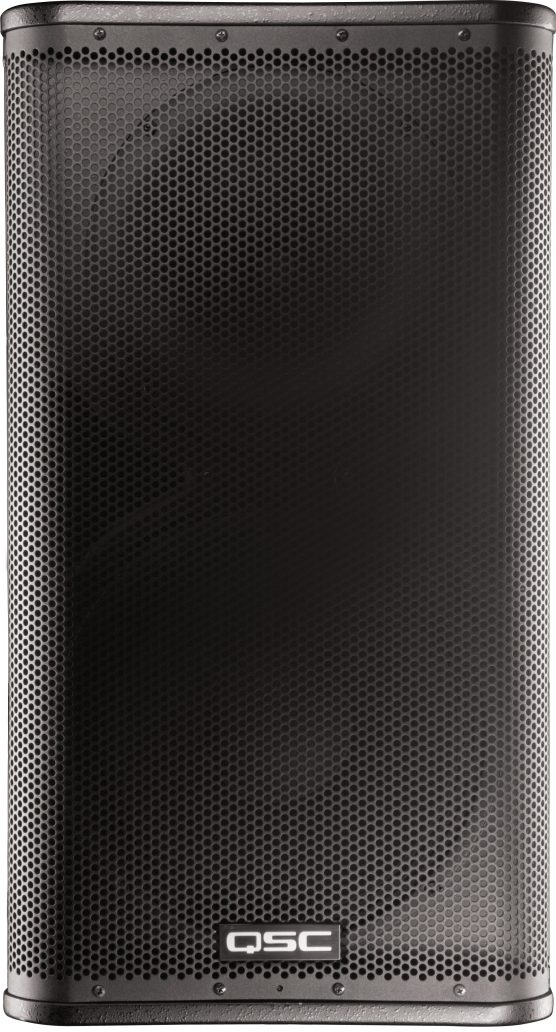

The HPR122i offers performers and audio professionals the power, technology and legendary reliability of QSC amplification combined with the simplicity and convenience of a multipurpose powered loudspeaker system. Whether your application is vocal reinforcement, dance music, or full tilt rock and roll and whether your need is main PA, or stage monitor, suspended or pole mounted, the HPR122i is your solution. With 131 dB of maximum output the HPR122i outperforms molded plastic box systems without significant additional weight or cost.
A 12 in. low-frequency woofer with 3 in. voice coil is powered by 400 watts of class H power. A neodymium magnet design provides ample motor strength for low end performance without adding unnecessary weight. The 1.4 in. diaphragm neodymium compression driver is powered by a 100 watt, class AB+B amplifier and is loaded on a 75 degrees conical horn. It's the same high-frequency driver you'll find on the HPR153F 3-way loudspeaker system.
Features:

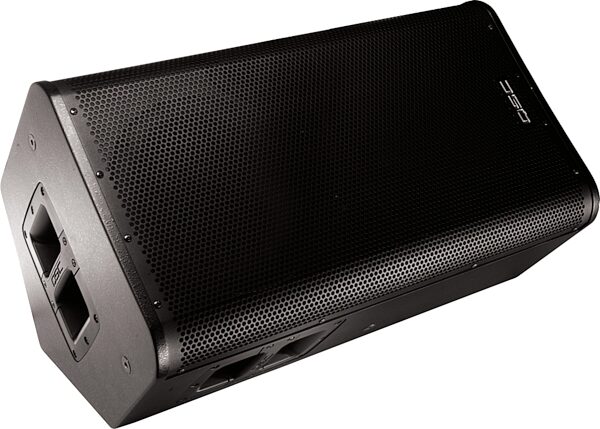

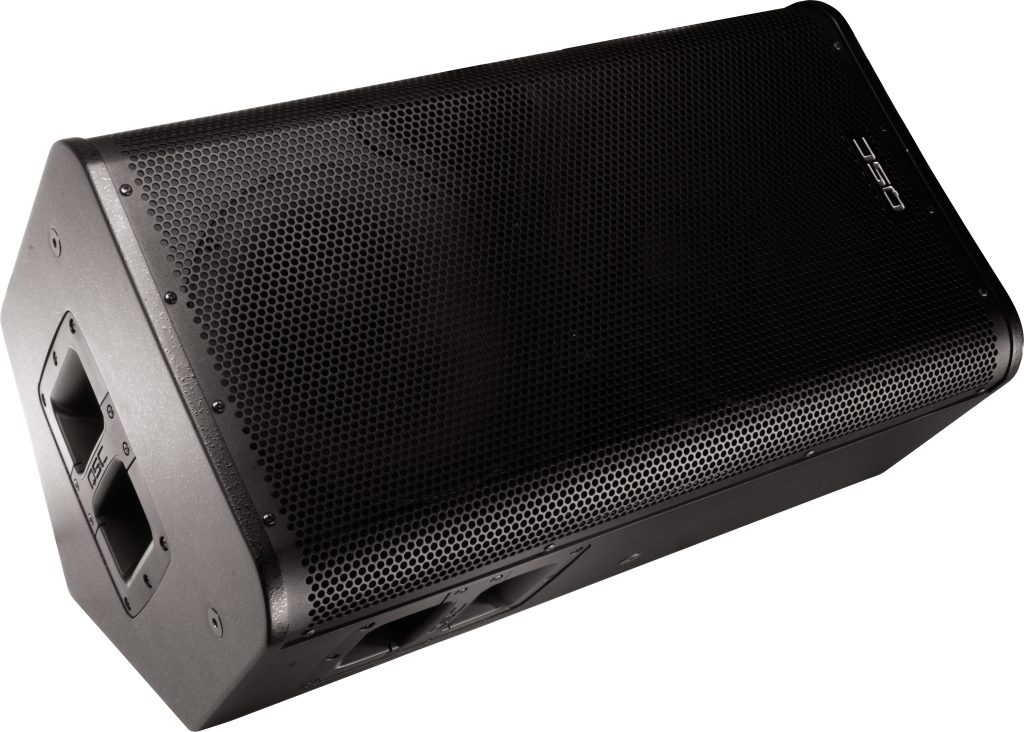

Ideally suited for use as main PA or monitor
High continuous power: 500 watts total amplifier power
75 degrees conical horn provides predictable coverage regardless of cabinet orientation

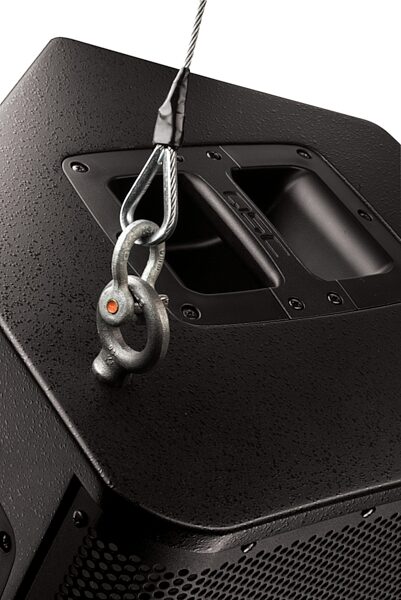

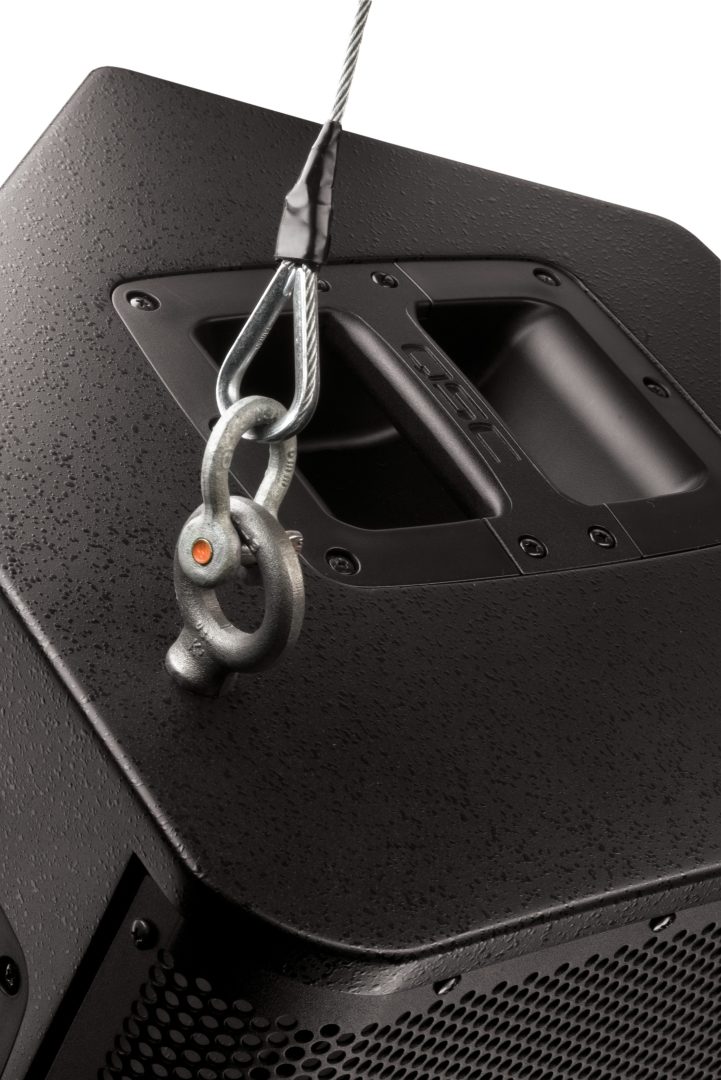

Nine (9) M10 suspension points allow for multiple suspended applications
Technical Info
Configuration: 12 in. 2-way multipurpose powered loudspeaker
Transducers
Low Frequency: 12 in. neodymium transducer with 3 in. voice coil
High Frequency: 1.4 in. diaphragm compression driver
Frequency Response (-3 dB)*: 62 Hz - 18 kHz
Frequency Range (-10 dB)*: 53 Hz - 22 kHz
Nominal coverage (-6 dB): 75 degrees conical
Maximum SPL (1 meter): 131 dB peak
Power Output: 400W LF Class H, 100W HF Class AB+B
Input Impedance: 22k balanced, 11k unbalanced

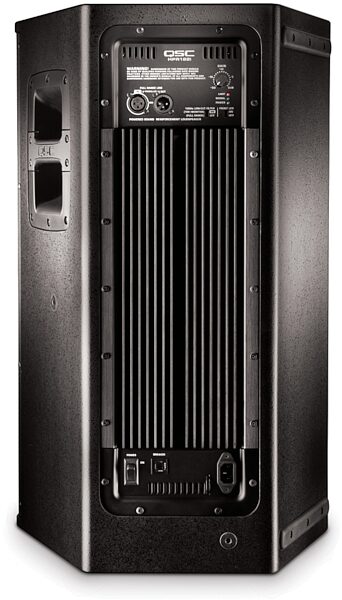

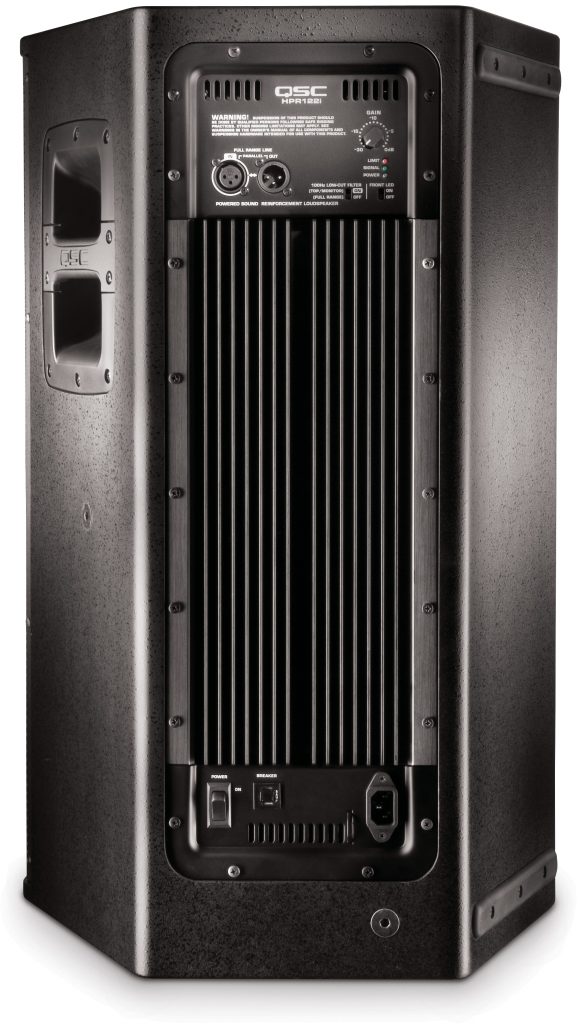

Controls: Gain, Low-cut filter (Main / Monitor), Front LED On/Off, Power, Circuit breaker
Indicators: Power, Signal, Limit
Cooling: Convection
Amplifier Protection: Thermal and output power limiting, output short circuit, overtemperature muting, driver DC protection
Current Consumption at 120 VAC (1/8 power EIA noise): 1.5A
Enclosure: Painted Birch plywood
Finish: Black textured paint
Grille: Powder coated 16 gauge steel
Suspension/Attachment Points: 9 M10 rigging locations
Connectors:
Balanced female XLR line level input
Balanced male XLR full range line level out
Dimensions: 26.9 in. H x 14.7 in. W x 14.9 in. D (683 mm x 373 mm x 379 mm)
Net Weight: 60 lbs / 27.2 kg
Optional Accessories:
HPR COVER 122

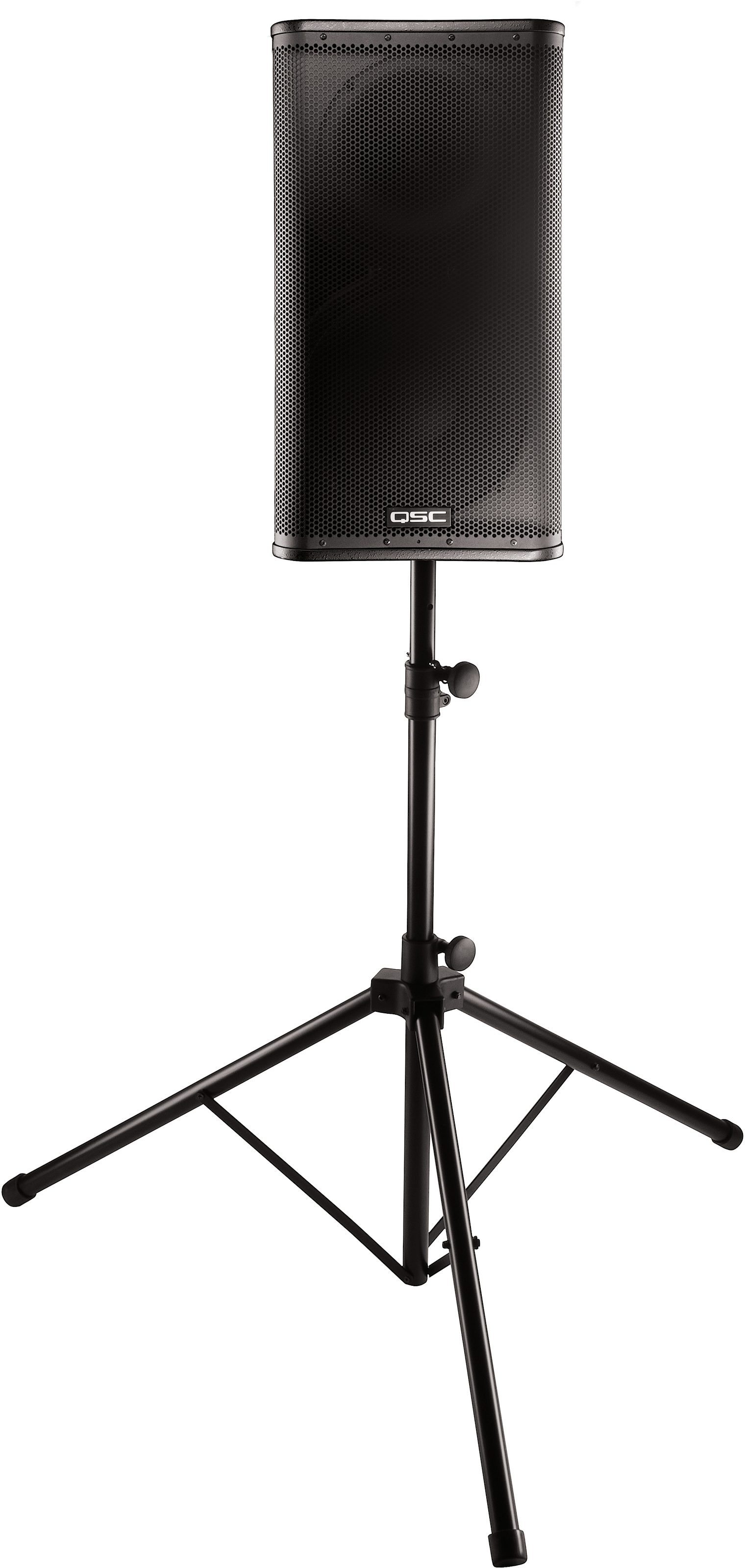

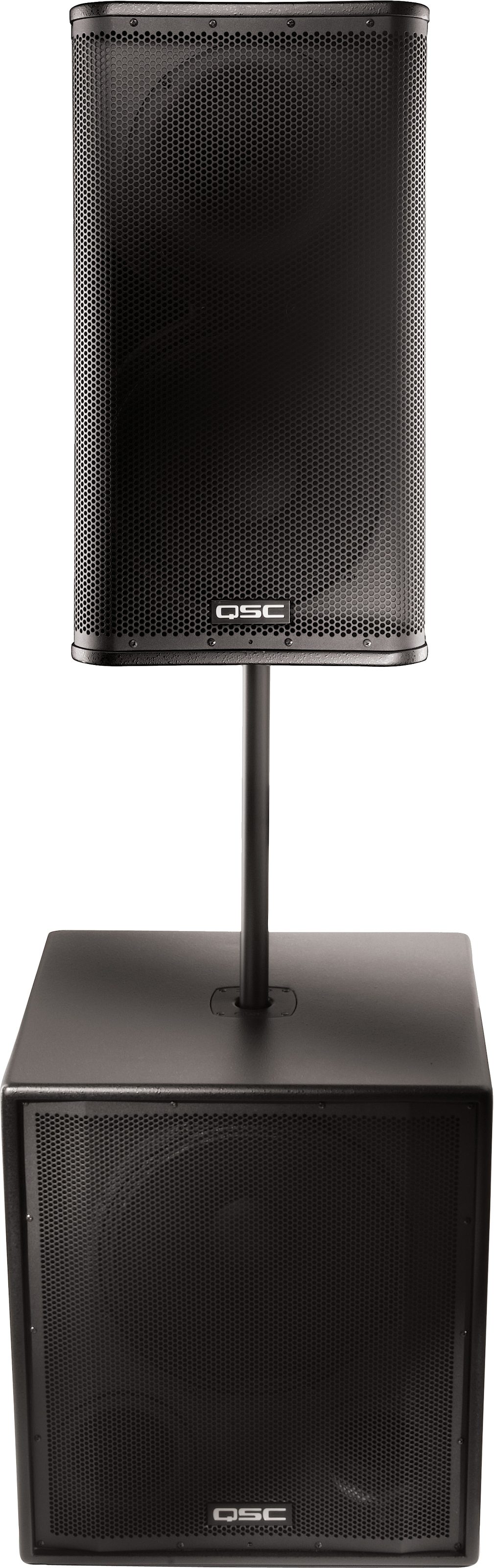

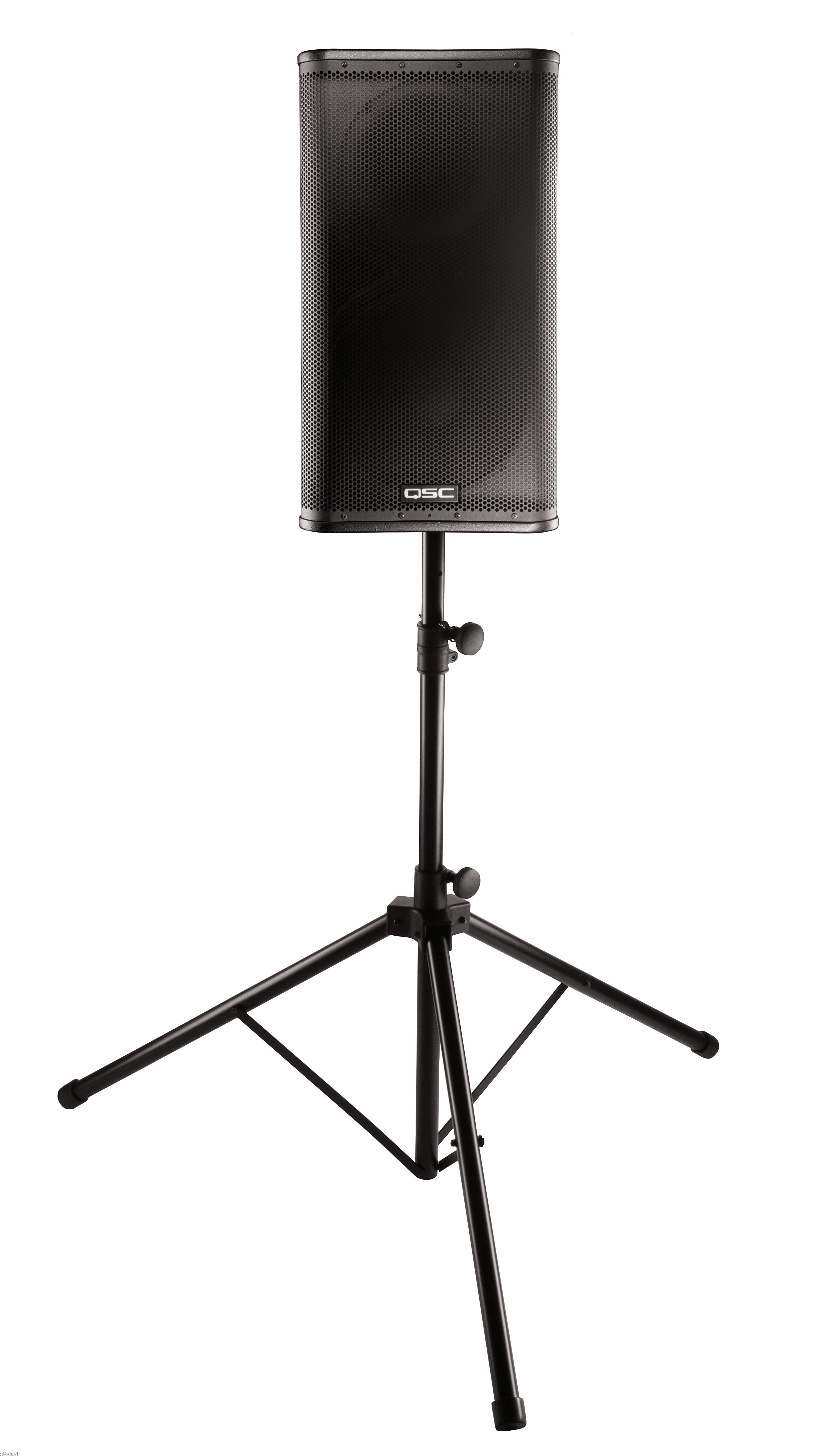

HPR POLE 31
HPR YOKE 122
HPR M10 KIT
HPR SUS KIT 122
*Measured in half-space.
Specifications subject to change without notice.
Note: Register your new product online with QSC and receive a Free 6-Year Extended Warranty upgrade (a $99 value).
