PreSonus FireStudio Lightpipe FireWire Recording Interface
No longer available at zZounds
Up to 32 inputs and outputs via optical lightpipe to your computer. Presonus Studio One Artist software included.
Overview

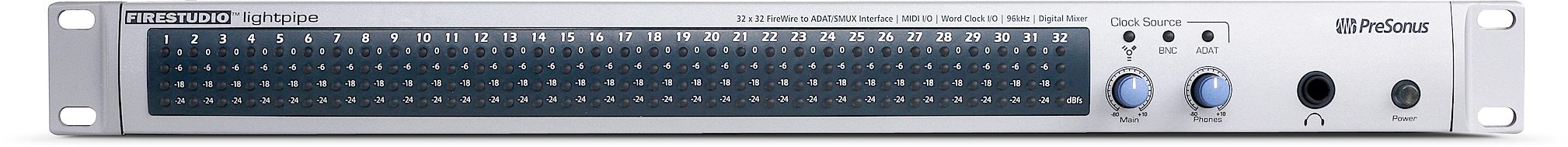

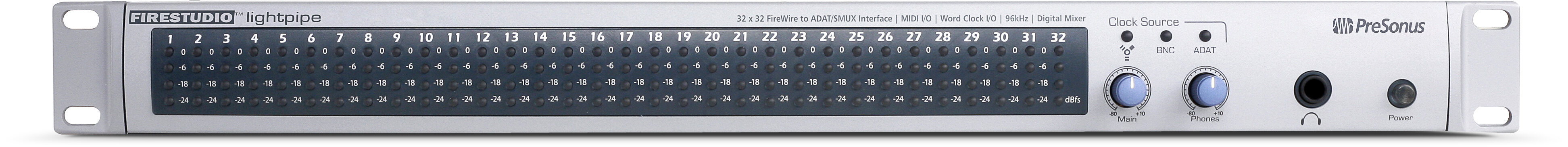

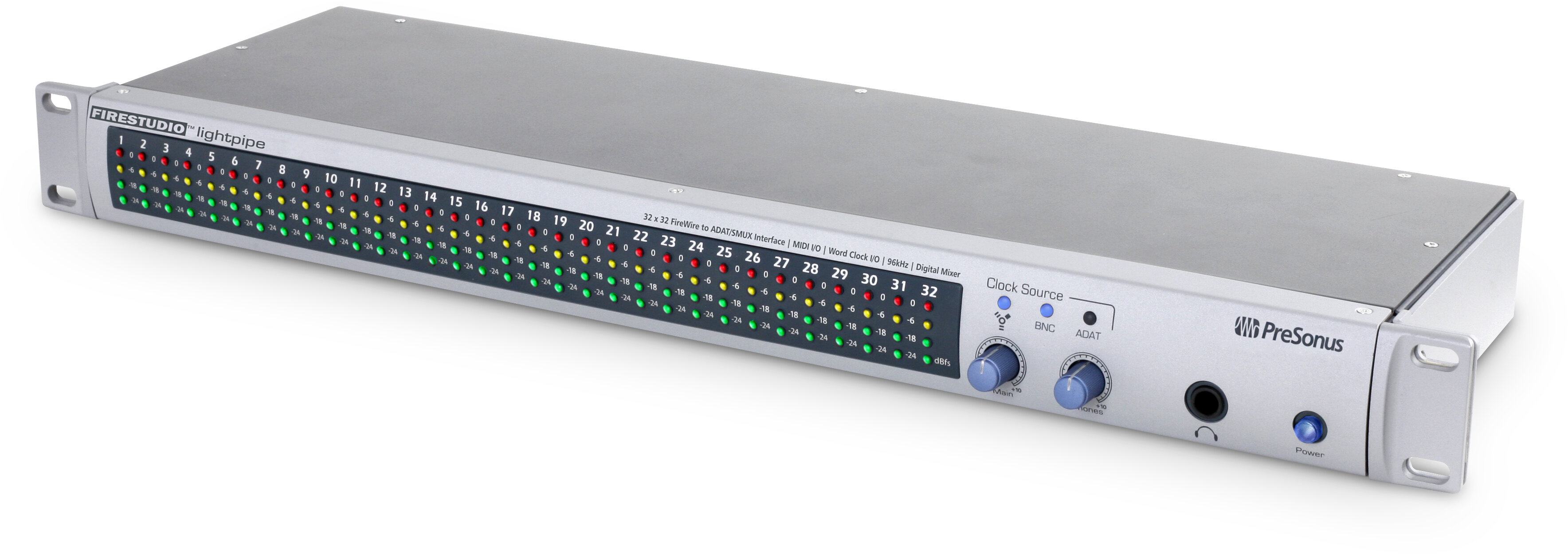

The PreSonus FireStudio LightPipe is a 24-bit/96k ADAT light pipe to FireWire computer recording system for both PC and Macintosh computers. The FireStudio LightPipe allows you to convert up to 32 channels of ADAT optical light pipe input/output to FireWire providing a multi-channel computer interface for digital mixers, AD/DA converters or ADAT recorders. FireStudio Lightpipe features JetPLL jitter elimination technology for ultra-tight synchronization and improved imaging and clarity along with a 34x4 DSP matrix mixer allowing you to create dual stereo latency monitor mixes. Fast-acting input/output LED meters are located on the front panel for quick and easy visual monitoring of all signals.
Features
24-bit/96k FireWire (IEEE 1394) interface
Word Clock I/O -MIDI I/O
JetPLL Jitter Elimination Technology
Balanced TRS stereo main outputs with volume control
Headphone amplifier with volume control -Dual SMUX for 16 channels at 96k over ADAT
Fast-acting LED input metering
34 x 4 mixer matrix
Mac OSX, Windows XP compatible
Works with Cubase, Logic, Nuendo, Sonar and many others.
34x4 DSP mixer/router included
Presonus Studio One Artist software included
Features
24-bit/96k FireWire (IEEE 1394) interface
Word Clock I/O -MIDI I/O
JetPLL Jitter Elimination Technology
Balanced TRS stereo main outputs with volume control
Headphone amplifier with volume control -Dual SMUX for 16 channels at 96k over ADAT
Fast-acting LED input metering
34 x 4 mixer matrix
Mac OSX, Windows XP compatible
Works with Cubase, Logic, Nuendo, Sonar and many others.
34x4 DSP mixer/router included
Presonus Studio One Artist software included
Specs
Digital audio transfer: Optical ADAT to FireWire (IEEE 1394)
Maximum inputs/outputs: 32 inputs/ 32 outputs
Supported sample rates: 44.1, 48, 88.2, 96kHz
Optical 1 I/O: Ch. 1-8 (44.1, 48k); Ch. 1-4 (88.2, 96k)
Optical 2 I/O: Ch. 9-16 (44.1, 48k); Ch. 5-8 (88.2, 96k)
Optical 3 I/O: Ch. 17-24 (44.1, 48k); Ch. 9-12 (88.2, 96k)
Optical 4 I/O: Ch. 25-32 (44.1, 48k); Ch. 13-16 (88.2, 96k)
Main analog outputs: Balanced TRS Headphone amplifier
200 mA Power supply
IEC Internal switching 100V-240V
New Universal Control version 1.11 software. Compatible with 64-bit Windows XP and Vista and will support 64-bit operation in Mac OS X 10.5 and later.
Maximum inputs/outputs: 32 inputs/ 32 outputs
Supported sample rates: 44.1, 48, 88.2, 96kHz
Optical 1 I/O: Ch. 1-8 (44.1, 48k); Ch. 1-4 (88.2, 96k)
Optical 2 I/O: Ch. 9-16 (44.1, 48k); Ch. 5-8 (88.2, 96k)
Optical 3 I/O: Ch. 17-24 (44.1, 48k); Ch. 9-12 (88.2, 96k)
Optical 4 I/O: Ch. 25-32 (44.1, 48k); Ch. 13-16 (88.2, 96k)
Main analog outputs: Balanced TRS Headphone amplifier
200 mA Power supply
IEC Internal switching 100V-240V
New Universal Control version 1.11 software. Compatible with 64-bit Windows XP and Vista and will support 64-bit operation in Mac OS X 10.5 and later.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 225-216-7887
Web: https://support.presonus.com
Phone: 225-216-7887
Web: https://support.presonus.com
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
