This product is no longer available at zZounds.

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

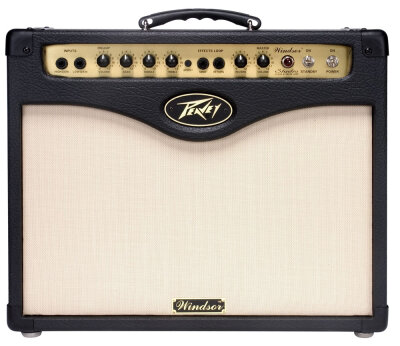

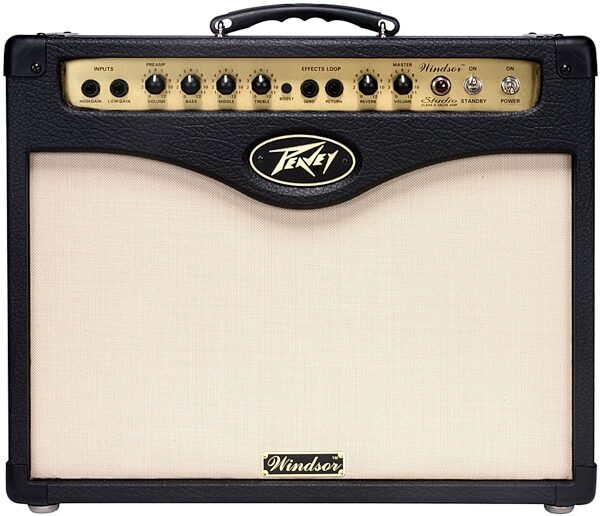

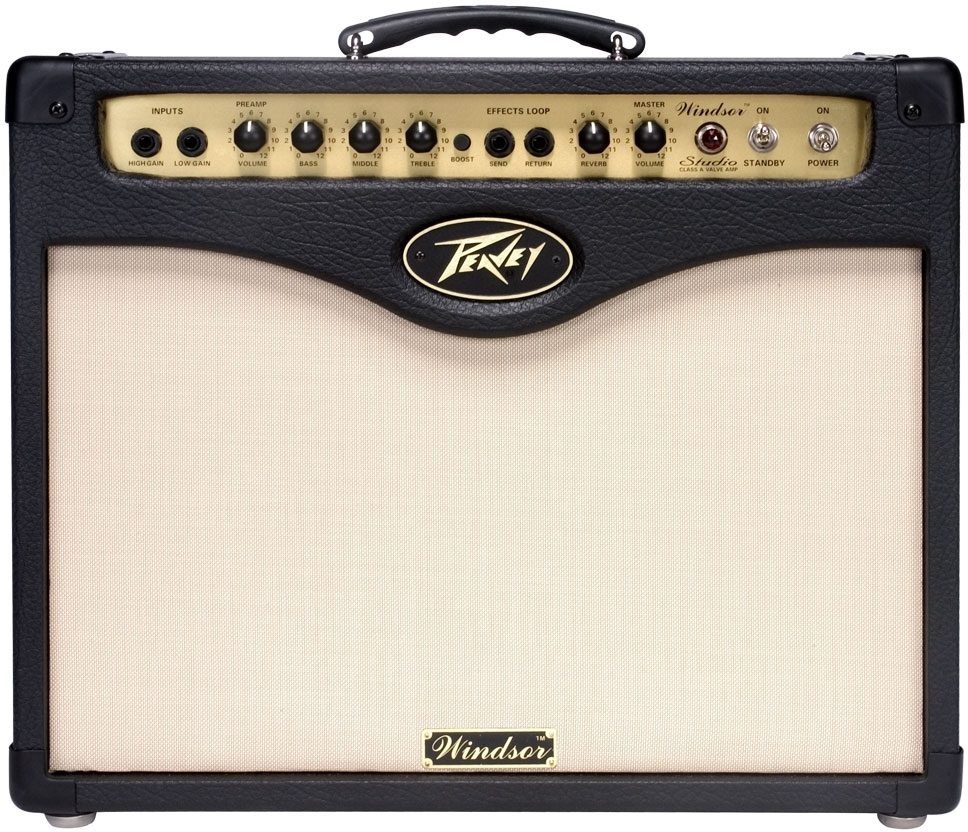

Peavey Windsor Studio Guitar Combo Amplifier (20 Watts, 1x12")

Use this amp's footswitchable Boost for overdrive or added volume with solos. The Power Sponge provides full distortion characteristics at any volume level.

(13) Read 7 reviews for this product | Rate and Review This Product

Click to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized Peavey dealer

The single-channel Windsor Studio features a footswitchable Boost button, which increases the preamp level to allow the flexibility of a dual-channel amp plus control over the dynamic response and rich distortion characteristics of its class-A tube power topology. The Boost function can be used as an overdrive feature for the power section or simply as a volume boost for soloing. This 15-watt amplifier uses two 12AX7 preamp tubes and one EL34 power-amp tube in a single-ended configuration with no negative feedback. The power section is designed to accommodate 6L6GC, 6550, 6CA7, KT88 and KT66 octal power tubes, as well as variations on those types.

Peavey's exclusive new Power Sponge output attenuator incrementally adjusts the power output of the amplifier while maintaining the distortion characteristics of the power amp at any chosen volume level. Also onboard is a transformer-balanced XLR direct output with a unique microphone simulator that allows players to send the amplifier signal to a recording device or front-of-house mix without the use of a microphone. Additional features include true spring reverb, preamp volume, master volume, three-band tone equalization, footswitchable effects loop and a single 12-inch loudspeaker. zZounds is an authorized dealer of Peavey products.

Class A Power Amp can use various octal power tubes including EL34 (stock), 6L6GC, 6550, 6CA7, KT88, KT66, or any variation on these types

Two 12AX7/ECC83 Preamp tubes

15-20W (RMS) into 4, 8, or 16 Ohms with "Power Sponge" output power attenuator

No negative feedback in Power Amp

High & Low Gain Inputs

Preamp Volume

Low, Mid, and High EQ

Footswitchable Boost function

Footswitchable Effects Loop

Spring Reverb

Transformer balanced XLR Recording Output w/passive mic simulator

XLR Ground Lift switch

Dual Speaker Outputs

Impedance Selector

1/4 in. TRS footswitch jack for Boost and Loop defeat

12 in. Blue Marvel Speaker

Weight Unpacked: 37

Width Unpacked: 21.125

Depth Unpacked: 10.25

Height Unpacked: 18.375

Weight Packed: 41.3

Width Packed: 25

Depth Packed: 14.125

Height Packed: 21.375

Manual

Peavey Warranty

Peavey Warranty

If you have additional warranty questions, please call the manufacturer at 877-732-8391

zZounds is an
authorized Peavey dealer

Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "Shopping with zZounds is quick and easy. Their Play as you Pay installment plan is great, and allows me to split my order total into easy monthly payments. Their selection of products is second to none and their service is the best in the industry." - customer on May 12, 2013

Customer Reviews

4 out of 5 (13 ratings) Rate and Review This Product

Read all 7 Peavey Windsor Studio Guitar Combo Amplifier (20 Watts, 1x12") Reviews

This review has been selected by our experts as particularly helpful. "SWEET!"

Sound: Great Marshall-like tone, especially the overdrive. Feature: The "Power Sponge" attenuator is awesome! It lets you crank the amp to satisfying break-ups, then dial down the actual speaker output without changing the tone. If you do a lot of home recording, this amp is perfect for it. Not only can you get that full-throated tone at bedroom levels, but the balanced D.I. output is something you usually only find on much more costly amps. Plus, it's built so you can swap out the tubes without doing a full re-bias. Nice! Ease of Use: Takes a bit of knob-fiddling to "dial in" a good tone, but once you're there, you're golden. Quality: It's a Peavey. Not a glamorous brand, but one with a long history of being rock-solid. This amp looks and feels like it will outlive me. Value: You can NOT find this tone with these feature for less. Anywhere. Manufacturer Support: Never had a complaint about Peavey support The Wow Factor: Good looking, classic colors, well built, excellent sound, powerful features. What more could you ask? Overall: This is a relatively new amp, so I've only had it so long. However, I'm happy enough that I'm selling my other amps off!

Style of Music: Rock

12 of 12 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

This review has been selected by our experts as particularly helpful. "ONe trick pony that rides like a dream."

Sound: This amp does the light to medium blues gain perfectly. Does other sounds but this is why you would buy this amp. Late sixties rock and SRV come to mind. The clean is never clean like a Fender but clean enough to call it clean but not a strong point at all!! You can mess with it and if you use an amp modeler you can do more with it and the amp does a good job of warming up effects processors. If you want a living room quiet SRV tone then this is great! If you want a low powered tube amp to warm up your multi effects/amp modeler than this amp is great. If you want a lot of loud clean headroom dont even look at it! Feature: If you want what I described before than being able to change power tubes and having the power soak is great. Ease of Use: I give it an 8 only becuase it takes some time to tweak the knobs to your guitar. There are sweet spots but you have to find them. usually requires alot of bass a little more than mid for the mids and half or less on the highs. The highs can get brittle quickly. Quality: No problems with it. I am running it through a 2x12 cabinet as well as with the built in speaker and nothing has happened thus far. Value: THis amp is priced right and dont see any thing else like it even close. Manufacturer Support: No experience as I have not needed any. The Wow Factor: It is what it is. Overall: I like it for home playing but if playing out would use something else. Though I have thought about getting a tube power amp and running both amps or just running straight into the power amp with my RP1000.

Style of Music: rock

10 of 10 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

Read all 7 Peavey Windsor Studio Guitar Combo Amplifier (20 Watts, 1x12") Reviews
