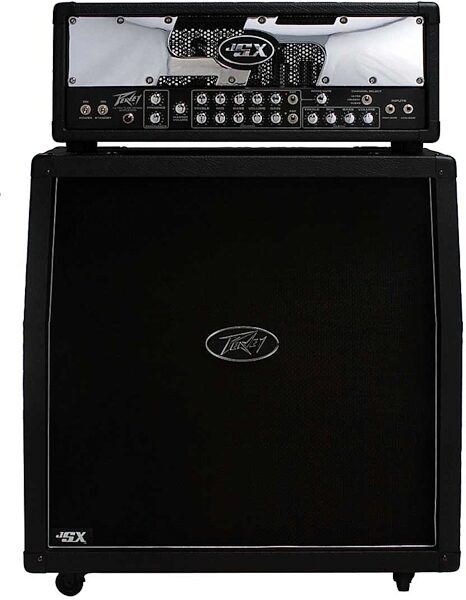

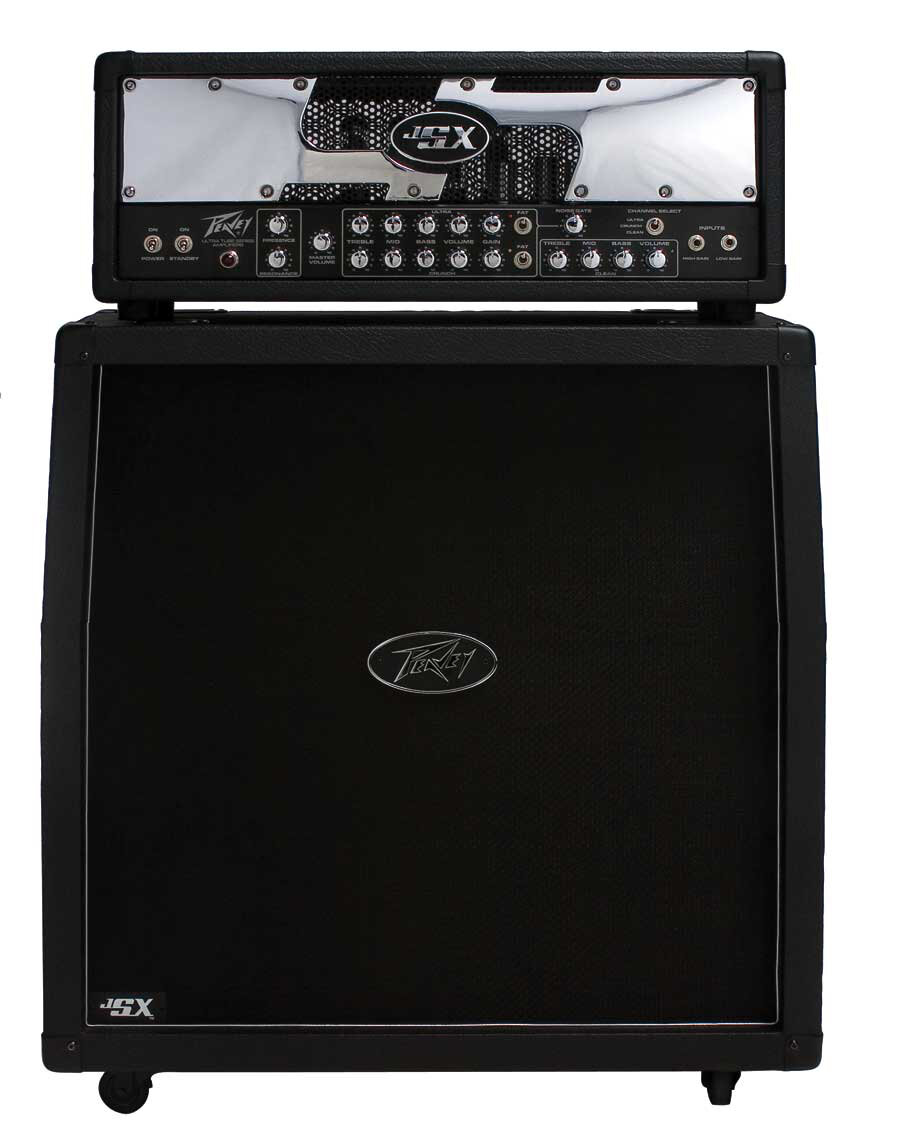

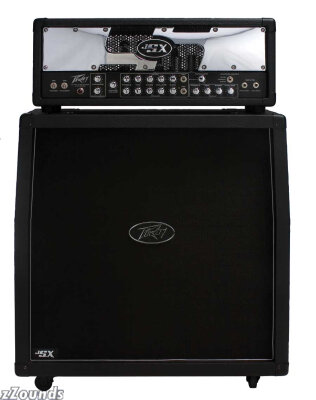

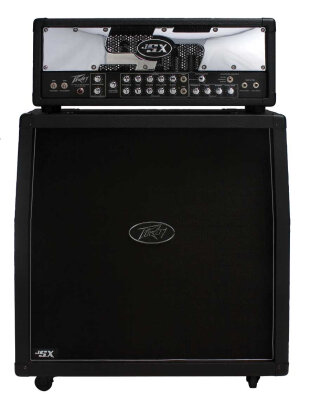

Peavey JSX Guitar Amplifier Half Stack

JSX Head
Peavey and Joe Satriani set out to create an amplifier that would give the widest range of EQ options and gain structures possible.

This amp delivers sounds ranging from the Classic 50 to vintage British to the modern Triple XXX and all tones in-between. The versatile and comprehensive control section supplies a master volume pot and independent volume knobs for each of the 3 channels (ultra, crunch and clean). Tone shaping is accomplished through passive controls for bass, mid and treble on the clean channel, while the ultra and crunch channels utilize active low, mid and high controls. The clean channel is pristine yet warm and is specifically voiced to work well with effects pedals. The ultra and crunch channels have gain controls and fat switches to further assist in taming this thunderous tube-powered beast while achieving killer sound. Global resonance and presence knobs increase control of high-end tones, while a noise gate on the crunch and ultra channels cuts down on the excess noise generated by running the gain and EQ controls on high settings. Since the gate is fully adjustable, you can really clamp down, leave it slightly open or just turn it off.

JSX Head Features
120 watts into 16, 8, or 4 ohms (switchable)

4 EL34s and 4 12AX7s

Power amp switchable to use EL34s or 6L6GSs

3 footswitchable channels

Clean channel: volume, bass, mid, treble

Crunch channel: gain and volume, bass, mid, treble EQ and FAT switch

Ultra channel: gain and volume, bass, mid, treble EQ and FAT switch

Noise gate control for both distortion channels

Master volume

Footswitchable effects loop with send and return controls

Resonance and Presence controls

Line out with level control

Footswitch included

JSX 412
With 400 watts of continuous power handling and four 12 in. custom JSX speakers, this cab is the perfect compliment to the JSX amplifier.

JSX 412 Features:
400 watts continuous power handling

16 ohms mono

4 x 12 in. custom JSX speakers (rear-mounted)

11-ply birch baffle

Microphone-simulated XLR direct output so the user gets Joe's live, onstage tone (speakers remain active when direct output is used) without using a separate mic and stand

Black weave grille cloth with JSX logo
