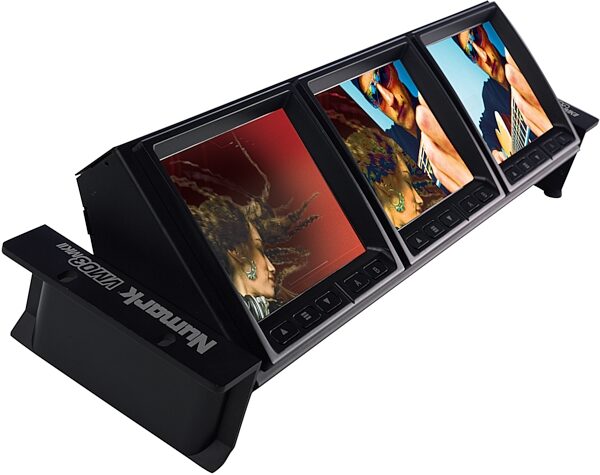

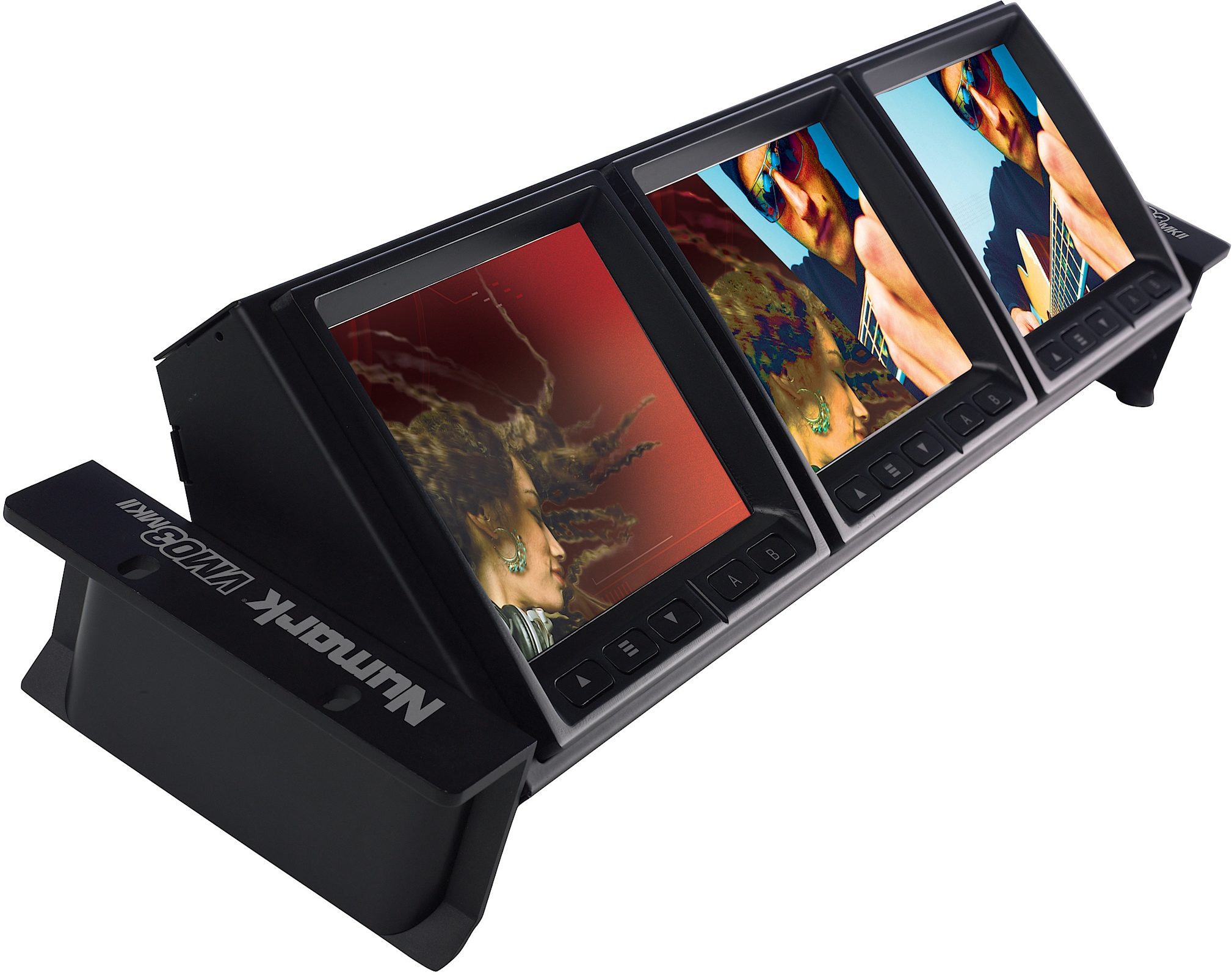

Numark VM03MKII Tabletop/Rackmount Triple LCD Video Display

The Numark VM03–MKII is a 3–screen/6–input LCD video display monitor designed for any video monitoring application. The advanced design of the VM03–MKII allows the user to monitor video sources in either a rack–mount (3 rack spaces required) or tabletop setting.

What separates the VM03–MKII from other video monitors on the market is the adjustable viewing angle. This unique design allows the video producer or engineer to customize the VM03–MKII viewing angle up to 96 degrees. This flexibility is ideal for DJ and broadcast applications, where limited space may prohibit easy viewing angles.

Features
Three 5.6 in. (142.24 mm) (diagonal) color TFT–LCD screens

Ideal for video monitoring applications

Two composite video inputs with built–in video switch per screen

Pass–through output for daisy–chaining to another video input device

Tilt adjustment for optimum viewing angle

Rugged rack–mountable design

PAL and NTSC compatible

Universal power supply

Individual brightness / contrast / tint control for each screen

Technical Info

4:3 screen ratio

113.28(W) x 84.708(H) mm Active Area

320x3 (RGB)x 234 pixel Resolution

0.118 (H) mm x 0.362 mm (V) mm dot pitch
