Nobels AB1 Active A/B Selector Pedal

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

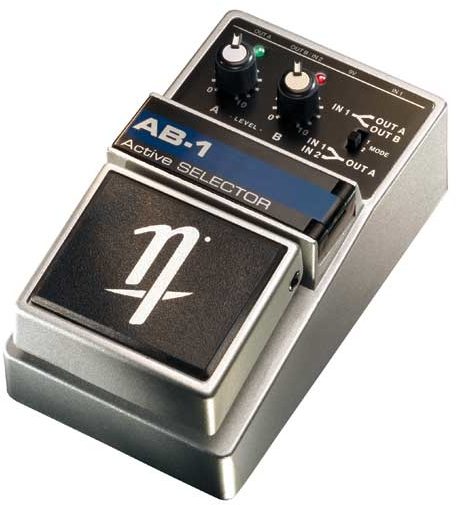

Nobels AB1 Active A/B Selector Pedal, Main
Nobels AB1 Active A/B Selector Pedal, Main
The AB-1 can switch two input signals to one output or one input signal to two outputs.

The AB-1 can switch two input signals to one output or one input signal to two outputs. Both outputs can be adjusted in volume. LEDs show which output is active.

Features

Controls:
- Level 1
- Level 2
- Mode

Input for remote switch

Heavy Metalhousing

Low Battery Consumption

Fast/Easy Battery Exchange

Power: 9 Volt Battery or Electr. Stabilized Power Supply 9V..12V DC, minimum 100 mA, 2.1mm plug, tip neg (not inlcuded)

Specifications

Input Impedance: 1M ohm

Output Impedance: 2k ohm

Maximum Input: +6 dBm

Battery: 9v Blockbattery

Power Supply: 9..12v min 100mA electronically stabilized

Power Consumption: max. 11mA

Weight: 430g (Without Battery)

Dimensions: 74 x 126 x 58 (mm)

Controls:
- Controls Level A, Level B (only in MODE 1)

Switch:
- Mode 1
- Mode 2
- Bypass momentary switch

Jacks:
- In 1
- Out B/In 2
- Out A
- Remote
- DC 2.1mm

Display: Green LED (A), Red LED (B)

For support or warranty questions, please contact the manufacturer:
Phone: 800-845-1922
