Nady URR10 Lavalier (Lapel) Omni-Directional Wireless System

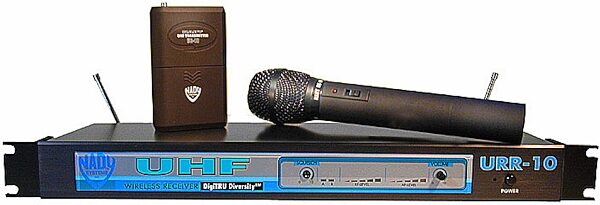

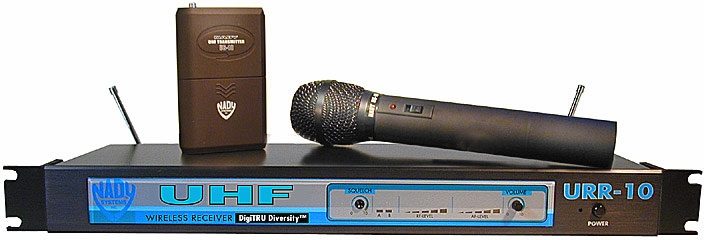

System Includes: URR-10 Diversity Receiver, UB-10 Bodypack Transmitter, Omni-Directional Lavalier Microphone. Picture features handheld mic. Item ships with lavalier mic instead. 2 People rated this product: Rate and Review This Product
Roll Over to Enlarge Main

Manufacturer's Description for Nady URR10 Lavalier (Lapel) Omni-Directional Wireless System

System Includes: URR-10 Diversity Receiver, UB-10 Bodypack Transmitter, Omni-Directional Lavalier Microphone.

The latest breakthrough in affordable UHF wireless, the Nady UHF-10 Series is the perfect choice for the demanding professional with a limited budget. The UHF-10 and URR-10 offer all the advantages of clear channel operation on the wide-open, uncluttered UHF band at the price of a VHF system - and a fraction of the cost of competing UHF systems! Featuring Nady's unmatched full 120 dB dynamic range, the UHF-10 and URR-10 are the quietest and best sounding UHF wireless systems available, even when compared to systems costing several times more.

Features
Rear fold-down antennas for UHF-10 and detachable antennas for URR-10

Rackmount convenience (URR-10 only), with standard rack ears included (for added ease of operation, optional FR-2 frontmount antennas rack kit available

120 dB dynamic range

Up to 250 ft. operating range (depending on site conditions); up to 500+ ft. optimum line-of-sight

UB-10 Bodypack Transmitter
Maximum versatility - same transmitter can be used for many applications. Unique, easily accessible 3-way switch allows selection of inputs: instrument (guitar, bass, etc.), headworn mic, or lavalier/lapel mic

OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"

Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert

Locking 3.5mm mini-jack provides secure connection for audio inputs

Easily accessible input level adjust control for optimum sound

Rear clip can be rotated 90 degrees for attaching transmitter either vertically or horizontally to clothes zZounds is an authorized dealer of Nady products.
System Includes: URR-10 Diversity Receiver, UB-10 Bodypack Transmitter, Omni-Directional Lavalier Microphone.

Frequency Response: 50 Hz - 15 KHz, +/- 3dB

Dynamic Range: 120 dB

Total Harmonic Distortion: < 0.6%

RF Carrier Frequency Range: UHF, choice of single frequencies from 726-863 MHz, country dependent

Frequency Stability: +/- 0.005% crystal controlled

Modulation: FM (F3E), +/- 20 KHz

Operating Range: up to 250 feet typical (depending on site conditions); up to 500+ feet line-of-sight

Reception Mode: DigiTRU Diversity(Dual Antenna)

Squelch: Tone Key (32.768 KHz)

External Controls: Power ON/OFF, Volume Control, Level Low/Hi Switch (URR-10), Squelch (Mute) Adjust

Connectors: DC in, Õ in. (6.3mm) unbalanced phone jack (750 mV/5K Ohm), XLR balanced output (60mV/600 Ohm), A&B BNC antenna jacks and fuse (URR-10)

LED Indicators: 5-segment RF& AF displays (URR-10)

Unwanted Signal Rejection: 60 dB image and spurious

Power Requirements: DC 12-15V @ 300 mA, AC/DC adapter included

LED Indicator: Unit "ON" (single flash), Low Battery Alert (steady)

RF Power Out: 50 mW nominal (maximum allowed by FCC)

Harmonic & Spurious Emissions: < -50dB

Battery: 9V Alkaline

Battery Life 8-10 Hours (35mA draw typical)

Audio Inputs
UB-10 Bodypack: 3.5 mm locking mini-jack with 3-way select switch for inputs: instrument, headworn mic, or lavalier mic

Controls
UB-10 Bodypack: OFF/STANDBY/ON, INSTRUMENT/HEADWORN MIC/LAV MIC, Input level adjust

Dimensions
URR-10: 16 x 6.5 x 1.73 in. (40.6 x 16.5 x 4.4 cm)
UB-10 Bodypack: 4.2 x 2.5 x .88 in. (10.7 x 6.4 x 2.2 cm)

Weight
URR-10: 3.9 lbs. (1.8 kg)
UB-10 Bodypack: 3 oz. (84g)
Nady Warranty
Nady Warranty
If you have additional warranty questions, please call the manufacturer at 510-652-2411
Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!
What Our Customers Are Saying About zZounds "zZounds has been my favorite musical equipment retailer for years and I couldn't be more satisfied." - customer on January 16th, 2012
Customer Reviews
4.5 out of 5 (2 ratings) Rate and Review This Product
zZounds has verified that this customer bought this product from us. "excellent quality for a little price"
Sound: This Unit is very clear with no drop outs or static. the range is very good. where I use this there are alot of flourescent lights and we know how bad that is for wireless systems. But this has no trouble at all. Excellent product for the price. Feature: This unit has transmitter pack gain control, and the reciever has Squelch adjustment. Quality: Very well made Value: I would rate this item with units costing hundreds more
