Product Description

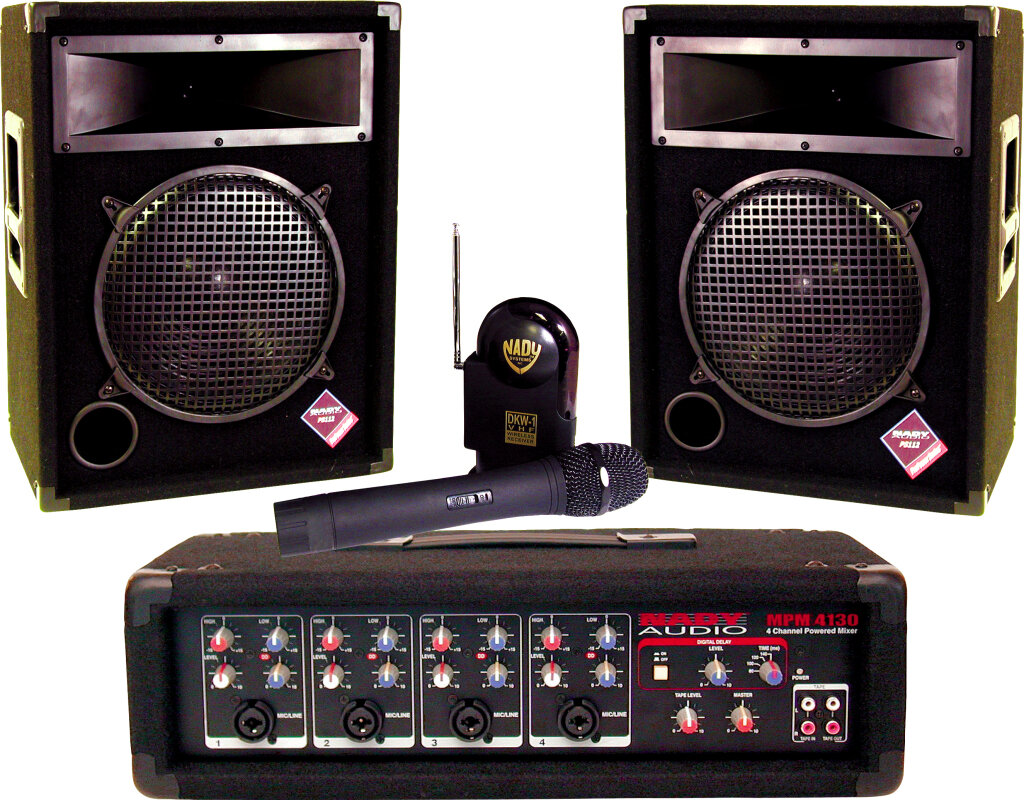

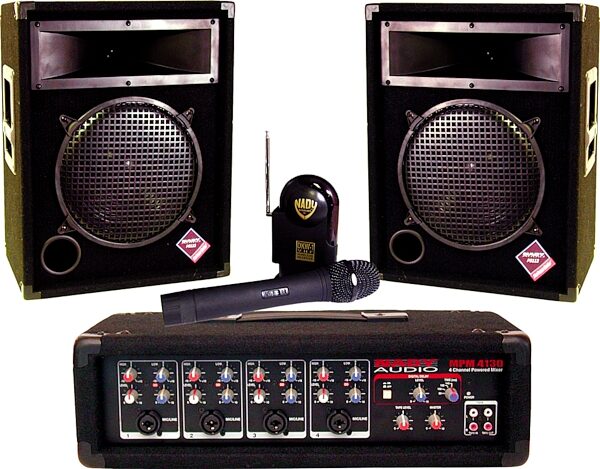

This complete PA system is an incredible value and includes Nady's MPM 4130 4-channel 130-watt powered mixer with built-in digital delay, a DKW HT handheld wireless system, and a pair of the 300-watt Nady PS112 2-way speakers featuring a 12 in. woofer and a 5 x15 in. horn. Cables are also included. This is the perfect system for band rehearsal rooms, aerobics studios, many worship and theater applications, as well as solo and small ensemble music acts.

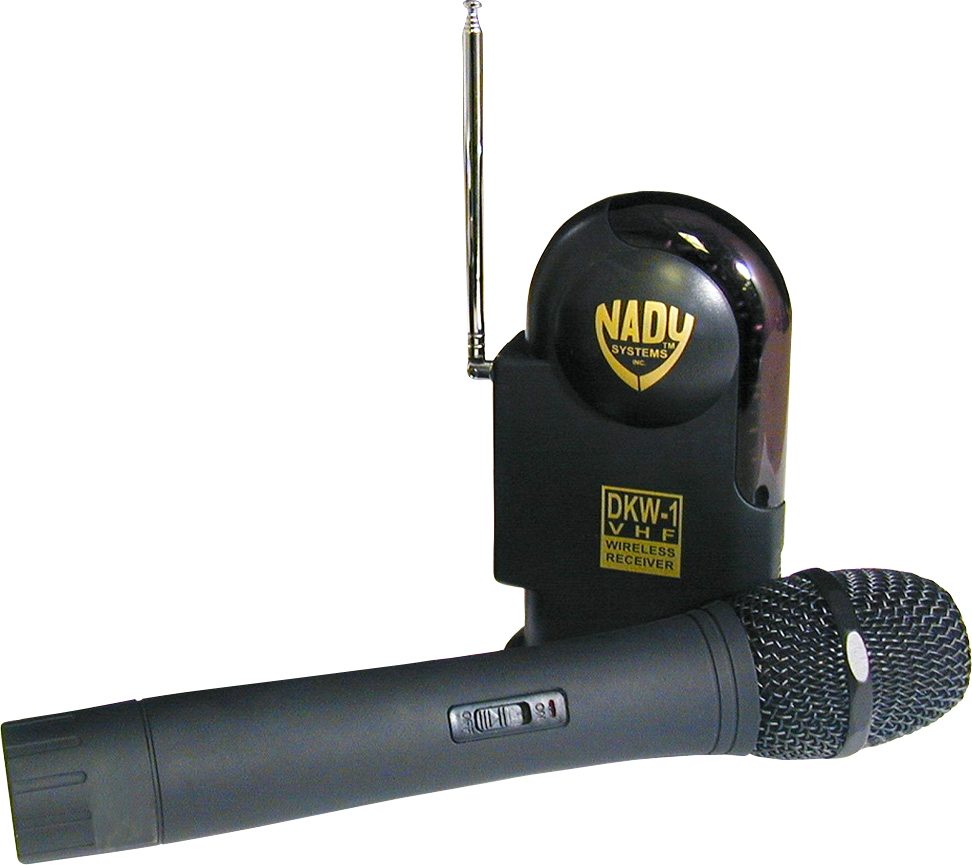

Nady DKW HT Wireless

DKW HT is the perfect entry-level pro wireless, delivering clear, transparent, high fidelity audio. It's ideal for a broad range of singing and speaking applications - karaoke and recreational singers, DJs, auctioneers, teachers, aerobics instructors, clergy, and more. Although offered at a breakthrough new low price for a pro wireless, the DKW HT is loaded with features such as interference-free, high-band VHF operation, a neodymium mic capsule, special circuitry to eliminate transmitter on/off "pop" noises, and a 250-foot typical operating range (up to 500 feet in line-of-site). Other features include up to 15-hour battery life, 1/4 in. output from the receiver, and an extremely compact receiver. Power supply included.

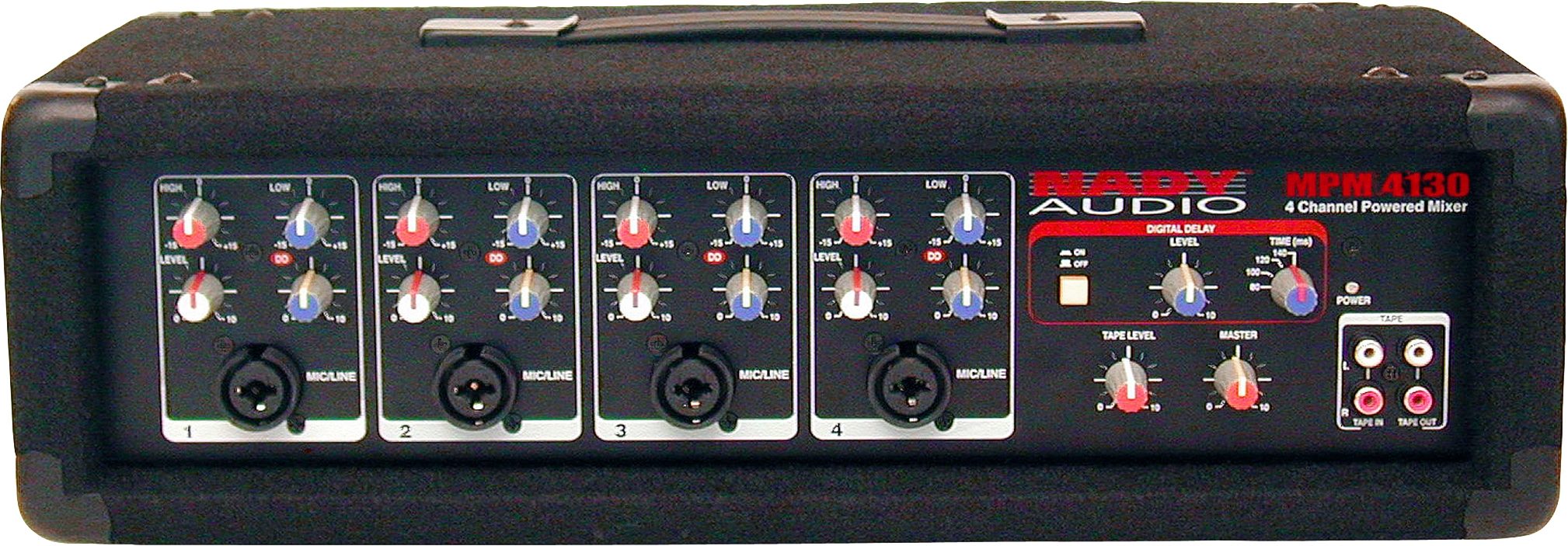

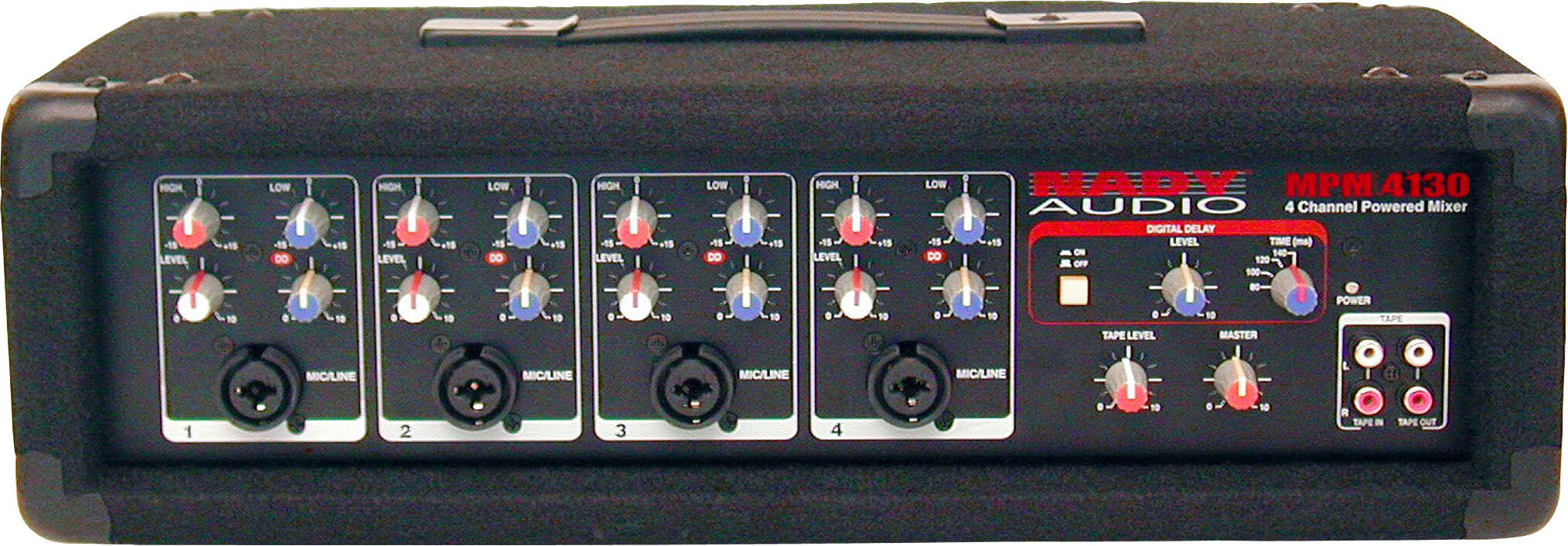

MPM4130 Mixer Features

- 4-channel mono powered mixer with digital delay
- Rugged and easy to operate, the MPM 4130 offers great features and performance at an extremely affordable price and is ideal for many small venue applications.
- 4 mono Mic/Line inputs with combo XLR-1/4 in. TRS jacks
- Amplifier delivers 130W@ 4 ohms total into 2 parallel speaker output 1/4 in. jacks
- Built-in Digital Delay produces choice of 4 great overall sound enhancing delays ranging from small room to spacious
- Each channel offers Level and individual Digital Delay controls and a Low/High 2-band EQ
- Master section includes CD/Tape Level, Master Level, and Digital Delay Level and Delay Time select controls; Digital Delay Select switch; and L,R Tape In and Tape Record Out RCA jacks
- Rear panel Main Out/Amp In 1/4 in. TRS jack unbalanced insert point provides a break between the Main Out and the built-in amplifier, allowing the output to be sent to an external signal processor or additional power amplifier
- Shielded internal power supply with ~115V(60Hz)/~230V(50Hz) select switch and fused IEC power cord connector
- Rugged case with handles and light weight (only 18.454 lbs./8.4 kg) for roadworthy reliability and easy portability

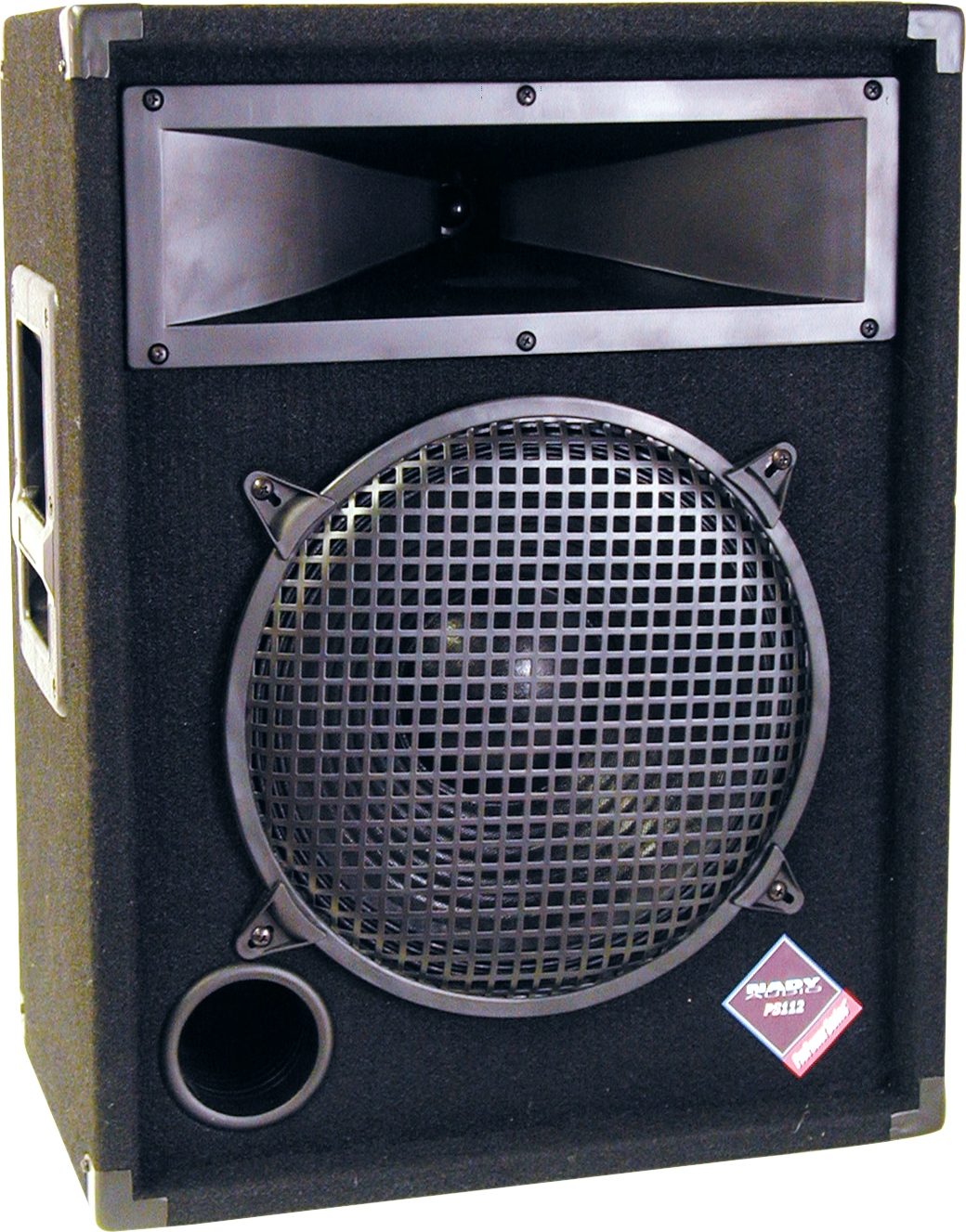

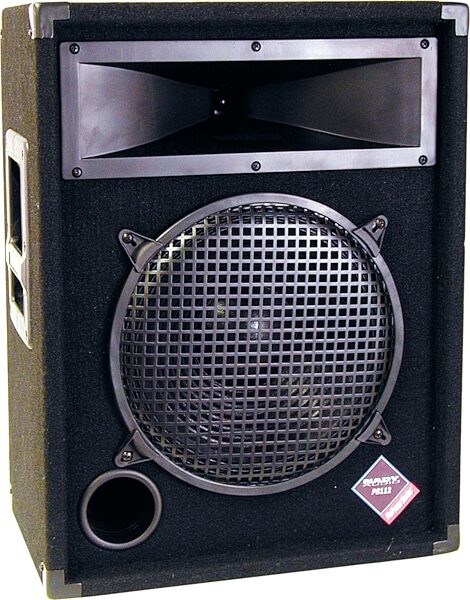

PS112 Features

- High compression horn piezo drivers
- Durable black carpet cover
- Heavy-duty plastic protective corners
- Integrated recessed carrying handles
- Base mount inserts for mounting on speaker stands

Includes:
- Nady MPM 4130 4-Channel Powered Mixer with Digital Delay
- Nady DKW HT Handheld Wireless Microphone System
- 2 x Nady PS112 PA Speakers
- 2 x Speaker Cables (20 Foot) zZounds is an authorized dealer of Nady products.

PS112
- Weight: 35 lbs., 15.9 kg
- Dimensions: 17 x 11.75 x 22.75 in.
- Sensitivity (1W/1M): 91.5dB
- Inputs: Binding post (banana jack) and two 1/4 in. (6.3 mm) jack inputs

MPM4130
- Power Amp, Max. Output Power in Watts (RMS):
- Number of Power channels: 1
- Power at 8 Ohms: 100W
- Power at 4 Ohms: 130W

Inputs:
- Balanced mono Mic/Line channels: 4
- 2 Track input: 1

- Outputs: TRS, unbalanced Main out
- Channel Strips: Rotary Volume controls: Rotary
- Master Section: Rotary Master Fader
- Built-in Digital Effect: Digital Delay (80ms, 120ms, 160ms, 200ms)

Noise (20Hz to 20KHz bandwidth, line Master output):
- Master output, all faders down: -82dB
- Power amp output, all faders down: -55dB
- THD Power output, 20Hz to 20KHz: <0.1% @100W/4 Ohms

- Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz Bandwith, channel in to master output), Channel fader down: <-65dB

Frequency Response (Mic input to output):
- 20Hz ~ 20KHz, line level o/p @ +4dBu into 600 Ohms: +/-2dB
- 20Hz ~ 20KHz, power amp o/p 1 watt into 8 Ohms: +/-2dB

Sensitivity @ Mixer Output +4dBu:
- Mic/Line: -42dB/-22dB
- Tape in: -10dB

Channel Equalization:
- Low EQ: 80Hz (+/-15dB)
- Hi EQ: 12KHz (+/-15dB)

- Microphone Preamp E.I.N. (150 Ohms Terminated, max. Gain): <-102dBm
- Power Consumption: 130 watts
- Power Requirements: 100-120, 220-240 VAC, 50-60 Hz
- Fusing: 5x20mm glass type, 4A/250V for 115VAC, and 2A/250V for 230VAC operation, fast-blow fuse
- Dimensions (W x H x D): 17.52 x 8.62 x 5.87 in. (445 x 219 x 149 mm)
- Weight: 18.45 lbs. (8.4 kg)

DKW HT Wireless
- Frequency Response: 40-20,000 Hz, +/-3dB
- Dynamic Range: 100dB
- Total Harmonic Distortion: <0.65%
- RF Carrier Frequency Range: 170-216 MHz
- Frequency Stability: +/- 0.005%, crystal controlled
- Modulation: FM (F3E), +/-20KHz max.
- Operating Range: 250 ft. typical; up to 500+ ft. line-of-sight

Transmitter
- Controls: Off/Standby/On switch
- LED Indicator: Unit "On" (single flash), Low Battery Alert (steady)
- RF Power Out: 50mW (Max. allowed by FCC)
- Harmonic & Spurious Emissions: >-40dB
- Battery: 9V Alkaline
- Battery Life: Up to 15 hours
- Dimensions: 9.5 x 1.4 in. Diameter
- Weight: 6.9 oz. (193 g), without battery

Receiver
- Controls: Power On/Off
- Connectors: 1/4 in. unbalanced audio out jack, 2.1mm barrel-type DC input jack
- LED Indicator: Power On, Transmitter RF, Audio Peak
- Dimensions (Max.): 5.2 x 3.0 x 1.7 in., 3.3 in. Diameter Base
- Weight: 5.9 oz. (165 g)
- Power Requirements: 12V @ 70mA, nominal, AC/DC adapter supplied
- Antenna: Single 12.1 in., collapsible

Note: For improvement purposes, all specifications for this unit, including design and appearance, are subject to change without prior notice.

Dimensions and Weight in Packaging

Shipping Weight: 119 lbs
