Nady Encore Duet Dual Handheld Wireless System

The Encore Duet is a VHF wireless system with dual-channel receiver for use with 2 transmitters simultaneously.

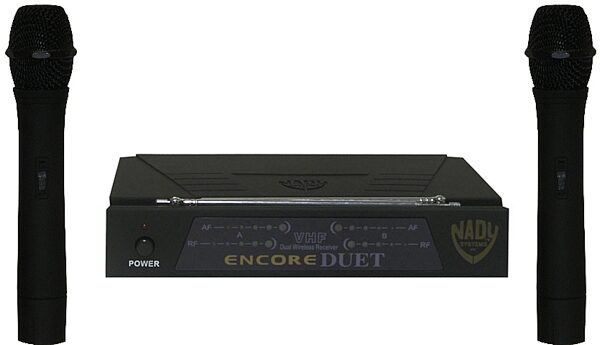

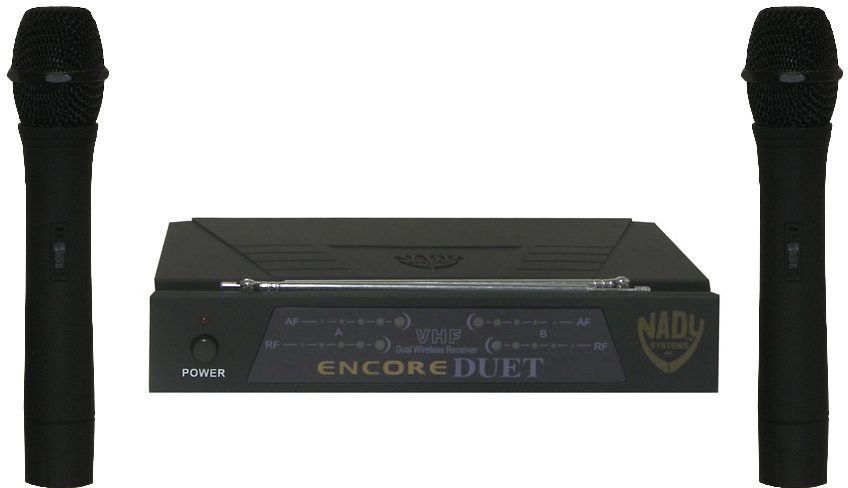

System Includes: Encore Duet Receiver, 2 - WHT-15 Handheld Mic Transmitters.

Features
Loaded with top professional operating features

Available on selected frequencies in the VHF high-band (171-216 MHz) for interference-free, long-range performance

Half-rack receiver design with retractable front panel antenna(s)

RF and AF 5-LED displays for monitoring incoming signal strength and audio level

Balanced XLR and unbalanced adjustable 1/4 in. jack outputs (Encore Duet: Dual XLR and single mixed 1/4 in. outputs) Includes 1/4 in. cables

Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting

Nady's proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range (Encore II)

Noiseless transmitter ON/OFF switching

Receiver

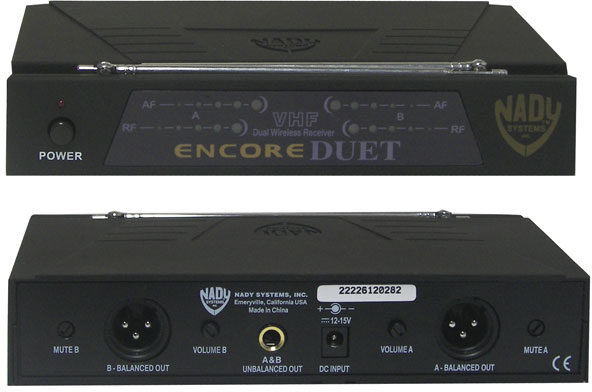

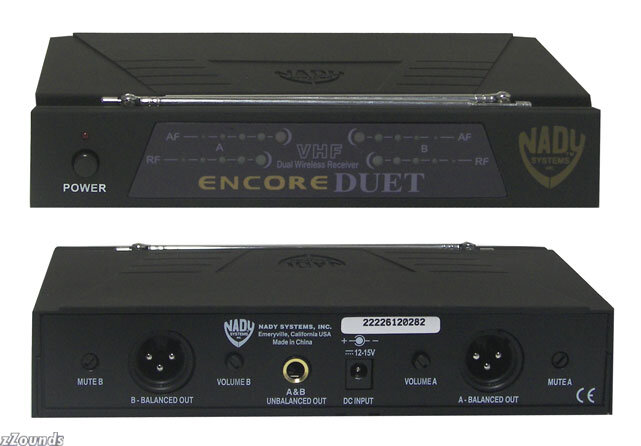

Half-rack dual receiver design (Channel A and Channel B) with retractable front panel dual antennas

Dual RF and AF 5- LED displays for monitoring incoming signal strength and audio level on both channels

Dual balanced XLR and unbalanced adjustable 1/4 in. jack outputs

Dual mute (squelch) adjust controls

Externally powered by AC/DC power adapter

Unique snap-out panel locking tabs for single receiver or double receiver (side-by-side) optional rack mounting

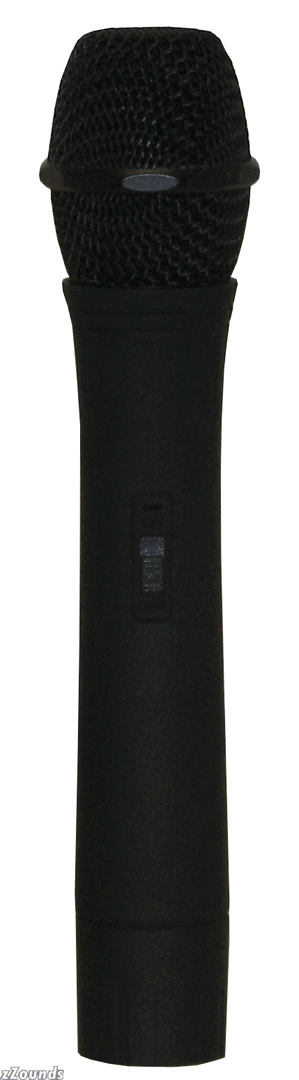

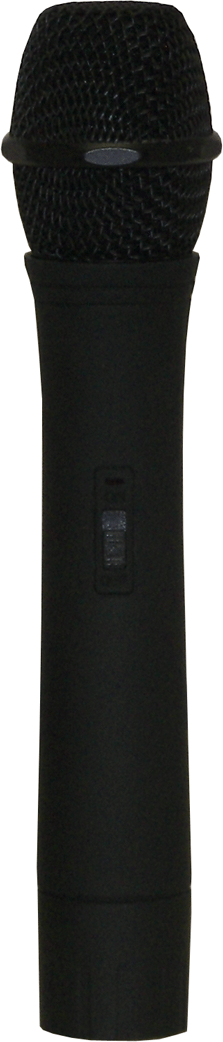

WHT-15 Handheld Mic Transmitter
Features the Nady DM - 10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection, and minimal handling noise

OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"

Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert

Rubber, "easy-mount" mic clip included

Technical Info

System Includes: Encore Duet Receiver, 2 - WHT-15 Handheld Mic Transmitters.

Encore Duet Overall System Performance
Frequency Response: 25-20,000 Hz, +/-3dB

Dynamic Range: 120dB

Total Harmonic Distortion: <0.3%

RF Carrier Frequency Range: 2 channels between 169-216 MHz

Frequency Stability: +/-0.005%,crystal controlled

Modulation: FM (F3E),+/-20KHz max.

Operating Range: Up to 250 ft.typical (depending on site conditions);up to 500+feet optimum line-of-sight

Transmitter
Audio Inputs: Nady DM-10D neodymium dynamic cartridge

Controls: WHT-15 OFF/STANDBY/ON switch

LED Indicator:
Unit "ON"(single flash)
Low Battery Alert (steady)

RF Power Out: 50mW (Max.allowed by FCC)

Harmonic & Spurious Emissions: >40dB

Battery: 9V Alkaline

Battery Life: Up to 15 hours

Dimensions: 9.5 in. x 1.4 in. Diam. (24.1 X 3.5 cm)

Weight (w/o battery): 6.9 oz (193 g)

A Duet for duets! This 2-handheld mic system accommodates 2 voices at once.
