Nady Encore II Lavalier Diversity Wireless System

The Encore II is a single-channel DigiTRU Diversity VHF wireless system.

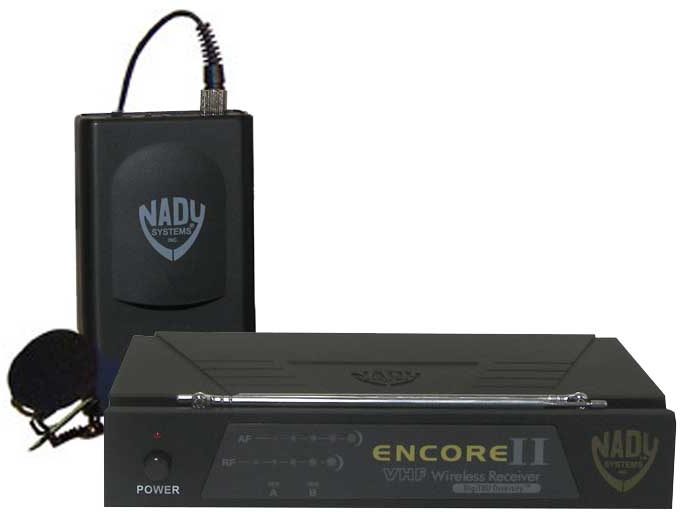

System Includes: Encore II Diversity Receiver, WLT-15 Bodypack Transmitter, Omnidirectional Lavalier Microphone, and 1/4 in. cable.

Features
Loaded with top professional operating features

Available on selected frequencies in the VHF high-band (171-216 MHz) for interference-free, long-range performance

Half-rack receiver design with retractable front panel antenna(s)

RF and AF 5-LED displays for monitoring incoming signal strength and audio level

Balanced XLR and unbalanced adjustable 1/4 in. jack outputs (Encore Duet: Dual XLR and single mixed 1/4 in. outputs)

Unique, snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting

Nady's proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range (Encore II)

Noiseless transmitter ON/OFF switching

Receiver
Half-rack receiver design with retractable front panel dual antennas

Proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range

RF and AF 5-LED displays for monitoring incoming signal strength and audio level

Balanced XLR and unbalanced adjustable 1/4 in. jack outputs

Mute (squelch) adjust control

Externally powered by AC/DC power adapter

Unique, snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting

WLT-15 Bodypack Transmitter
OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"

Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert

Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable

Easily accessible input level adjust control for optimum sound

Dual antennae

Technical Info

System Includes: Encore II Diversity Receiver, WLT-15 Bodypack Transmitter, Lavalier Microphone.

Encore II Overall System Performance
Frequency Response: 25-20,000 Hz, +/-3dB

Dynamic Range: 120dB

Total Harmonic Distortion: <0.3%

RF Carrier Frequency Range: 169-216 MHz

Frequency Stability: +/-0.005%, crystal controlled

Modulation: FM (F3E), +/-20KHz max.

Operating Range: Up to 250 ft. typical (depending on site conditions); up to 500+feet optimum line-of-sight

Transmitter
Audio Inputs: 3.5mm mono locking jack for connecting to omni or unidirectional lavalier mic or unidirectional headworn mic,with phantom power
Controls: OFF/STANDBY/ON switch, input level adjust

LED Indicator:
Unit "ON"(single flash)
Low Battery Alert (steady)

RF Power Out: 50mW (Max. allowed by FCC)

Harmonic & Spurious Emissions: >?40dB

Battery: 9V Alkaline

Battery Life: Up to 15 hours

Dimensions: 4.1 x 2.4 x 0.8 in. (10.4 x 6.1 x 2.0 cm)

Weight: 3.6 oz (101 g), without battery

Encore II Receiver
Reception Mode: DigiTRU Diversity

Controls: Power ON/OFF, volume control, mute control

Connectors:
Balanced XLR and unbalanced adjustable
1/4 in. audio out jacks, 2.1 mm barrel-type
DC input jack

LED Indicators: Power ON, 5-LED RF & AF level displays, A/B Diversity

Dimensions (Max.): 1.75 x 7.5 x 8.1 in. (4.4 x 19 x 20.7 cm)

Weight: 1.6 lbs. (.73 kg)

Power Requirements: 12V @400mA,nominal, AC/DC adapter supplied

Antenna 11.2 in. (28.5 cm), dual telescopic

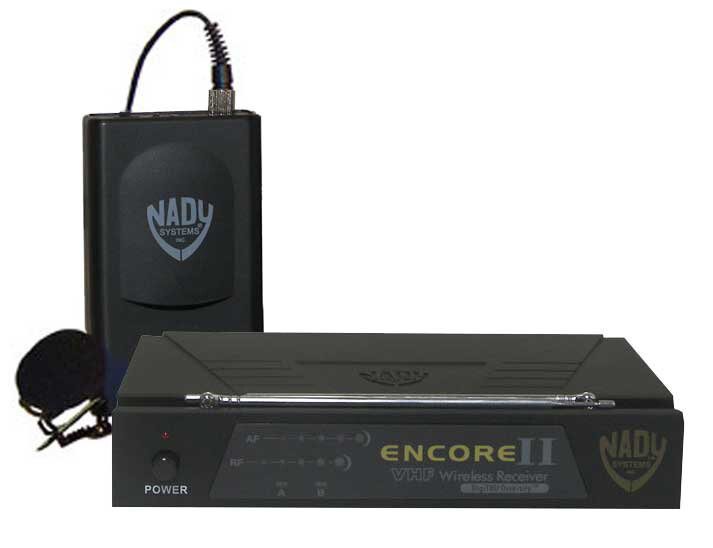

Single-channel DigiTRU Diversity VHF system includes receiver, bodypack transmitter, lavalier mic and 1/4" cable.
