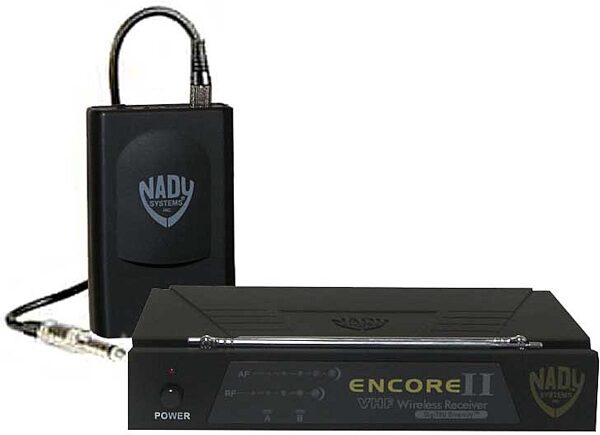

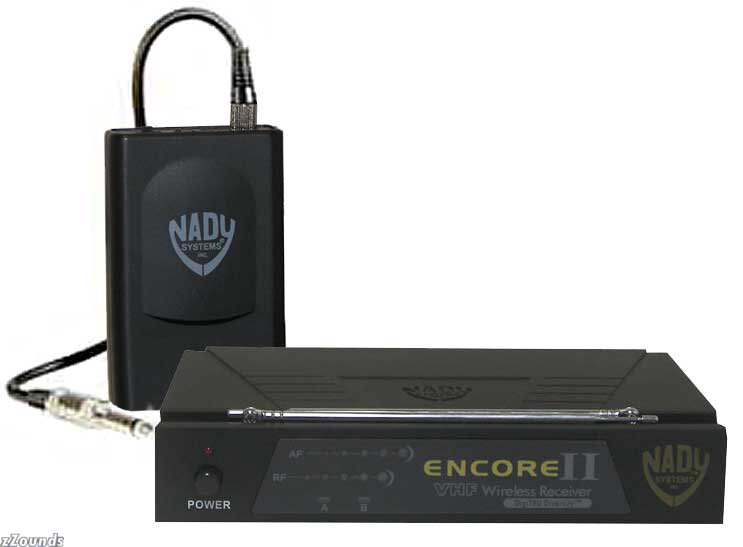

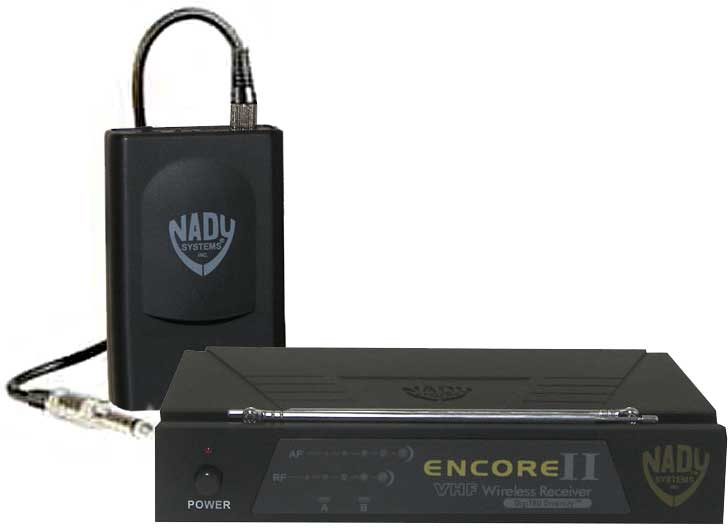

Nady Encore II Guitar and Bass Diversity Wireless System
System Includes: Encore II Diversity Receiver, WGT-15 Bodypack Transmitter, Instrument Cable, and 1/4 in. cable for the receiver.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
From Our Catalog
The Encore II is a single-channel DigiTRU Diversity VHF wireless system.
System Includes: Encore II Diversity Receiver, WGT-15 Bodypack Transmitter, Instrument Cable.
Features
Loaded with top professional operating features
Available on selected frequencies in the VHF high-band (171-216 MHz) for interference-free, long-range performance
Half-rack receiver design with retractable front panel antenna(s)
RF and AF 5-LED displays for monitoring incoming signal strength and audio level
Balanced XLR and unbalanced adjustable 1/4 in. jack outputs (Encore Duet: Dual XLR and single mixed 1/4 in. outputs) Includes 1/4 in. cable
Unique, snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting
Nady's proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range (Encore II)
Noiseless transmitter ON/OFF switching
Receiver
Half-rack receiver design with retractable front panel dual antennas
Proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range
RF and AF 5-LED displays for monitoring incoming signal strength and audio level
Balanced XLR and unbalanced adjustable 1/4 in. jack outputs
Mute (squelch) adjust control
Externally powered by AC/DC power adapter
Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting
WGT-15 Instrument Bodypack Transmitters
OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"
Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
Locking 3.5 mm mini-jack provides secure connection for removable microphone or instrument cable
Easily accessible input level adjust control for optimum sound
Dual antennae
Encore II Overall System Performance
Frequency Response: 25-20,000 Hz, +/-3dB
Dynamic Range: 120dB
Total Harmonic Distortion: <0.3%
RF Carrier Frequency Range: 169-216 MHz
Frequency Stability: +/-0.005%, crystal controlled
Modulation: FM (F3E), +/-20KHz max.
Operating Range: Up to 250 ft. typical (depending on site conditions); up to 500+feet optimum line-of-sight
Transmitter
Audio Inputs: locking jack for connecting to instrument cable
Controls: OFF/STANDBY/ON switch, input level adjust
LED Indicator:
Unit "ON"(single flash)
Low Battery Alert (steady)
RF Power Out: 50mW (Max.allowed by FCC)
Harmonic & Spurious Emissions: >?40dB
Battery: 9V Alkaline
Battery Life: Up to 15 hours
Dimensions: 4.1 in. x 2.4 in. X 0.8 in. (10.4 x 6.1 x 2.0 cm)
Weight (w/o battery): 3.6 oz (101 g)
Encore II Receiver
Reception Mode: DigiTRU Diversity -
Controls: Power ON/OFF, volume control, mute control
Connectors:
Balanced XLR and unbalanced adjustable
System Includes: Encore II Diversity Receiver, WGT-15 Bodypack Transmitter, Instrument Cable.
Features
Loaded with top professional operating features
Available on selected frequencies in the VHF high-band (171-216 MHz) for interference-free, long-range performance
Half-rack receiver design with retractable front panel antenna(s)
RF and AF 5-LED displays for monitoring incoming signal strength and audio level
Balanced XLR and unbalanced adjustable 1/4 in. jack outputs (Encore Duet: Dual XLR and single mixed 1/4 in. outputs) Includes 1/4 in. cable
Unique, snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting
Nady's proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range (Encore II)
Noiseless transmitter ON/OFF switching
Receiver
Half-rack receiver design with retractable front panel dual antennas
Proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range
RF and AF 5-LED displays for monitoring incoming signal strength and audio level
Balanced XLR and unbalanced adjustable 1/4 in. jack outputs
Mute (squelch) adjust control
Externally powered by AC/DC power adapter
Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting
WGT-15 Instrument Bodypack Transmitters
OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"
Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
Locking 3.5 mm mini-jack provides secure connection for removable microphone or instrument cable
Easily accessible input level adjust control for optimum sound
Dual antennae
Technical Info
System Includes: Encore II Diversity Receiver, WGT-15 Bodypack Transmitter, Instrument Cable.Encore II Overall System Performance
Frequency Response: 25-20,000 Hz, +/-3dB
Dynamic Range: 120dB
Total Harmonic Distortion: <0.3%
RF Carrier Frequency Range: 169-216 MHz
Frequency Stability: +/-0.005%, crystal controlled
Modulation: FM (F3E), +/-20KHz max.
Operating Range: Up to 250 ft. typical (depending on site conditions); up to 500+feet optimum line-of-sight
Transmitter
Audio Inputs: locking jack for connecting to instrument cable
Controls: OFF/STANDBY/ON switch, input level adjust
LED Indicator:
Unit "ON"(single flash)
Low Battery Alert (steady)
RF Power Out: 50mW (Max.allowed by FCC)
Harmonic & Spurious Emissions: >?40dB
Battery: 9V Alkaline
Battery Life: Up to 15 hours
Dimensions: 4.1 in. x 2.4 in. X 0.8 in. (10.4 x 6.1 x 2.0 cm)
Weight (w/o battery): 3.6 oz (101 g)
Encore II Receiver
Reception Mode: DigiTRU Diversity -
Controls: Power ON/OFF, volume control, mute control
Connectors:
Balanced XLR and unbalanced adjustable
Single-channel DigiTRU Diversity VHF system includes receiver, bodypack transmitter and cable.
What Our Customers Say About zZounds
"My guitar pedal arrived quickly in good condition. Thanks for the tip!" - customer on November 5, 2009
Call
866.ZZOUNDS (996.8637)
and mention priority code: 79N5CCM
Item: NDYE2GT
Choose a model below and select "Add to Cart"
Seen a lower price? We'll beat it! details
Be a zZounds Spy!
related accessories
from $9.95
Nady Encore II Guitar and Bass Diversity Wireless System Reviews
10 out of 10
"Nady Encore II for Bass Guitar"
Feature:
This is a pretty much plug and play product. There are adjustments for input/output gain/sesitivity on both the transmitter and reciever. It took me just a few minutes to get my settings where I wanted them to be.
Quality:
No complaints so far. I will know better as time passes, but everything seems made well. The cord from the transmitter to the 1/4" instrument plug is replaceable, the only people that I found that make one are audio technica, I believe. Compatability?
Value:
There were many units out there at two and three times the price, but this one had the best specs for my use with bass guitar. It's nice being able to roam around and get a feel for our sound without relying on the sound guy.
Desirability:
I look at this type of stuff as I would computer equipment. It either does what you want or it doesn't. I don't evaluate technical equipment on the basis of "sex appeal".
Sound:
I play 6 and 4 string bass through a rig that pushes a lot of power. I researched wireless systems for bass useage with a particular eye on the frequency response needed to properly carry low bass tones. The Nady Encore II, despite its lower price, had better specs than any other wireless instrument system that I looked at. After putting this unit into use, I am very satisfied. There would seem to be some very slight compression of the tone, but nothing objectionable. I cannot percieve any reduction in the lower registers and that was my main concern with the 6 string bass and its low B string. I like the unit and am very satisfied with its performance.
Support:
No need to use support (hope there won't be one).
Overall:
If it keeps working as it does now, I would see no reason to replace it with another brand or type. It works great.
This is a pretty much plug and play product. There are adjustments for input/output gain/sesitivity on both the transmitter and reciever. It took me just a few minutes to get my settings where I wanted them to be.
Quality:
No complaints so far. I will know better as time passes, but everything seems made well. The cord from the transmitter to the 1/4" instrument plug is replaceable, the only people that I found that make one are audio technica, I believe. Compatability?
Value:
There were many units out there at two and three times the price, but this one had the best specs for my use with bass guitar. It's nice being able to roam around and get a feel for our sound without relying on the sound guy.
Desirability:
I look at this type of stuff as I would computer equipment. It either does what you want or it doesn't. I don't evaluate technical equipment on the basis of "sex appeal".
Sound:
I play 6 and 4 string bass through a rig that pushes a lot of power. I researched wireless systems for bass useage with a particular eye on the frequency response needed to properly carry low bass tones. The Nady Encore II, despite its lower price, had better specs than any other wireless instrument system that I looked at. After putting this unit into use, I am very satisfied. There would seem to be some very slight compression of the tone, but nothing objectionable. I cannot percieve any reduction in the lower registers and that was my main concern with the 6 string bass and its low B string. I like the unit and am very satisfied with its performance.
Support:
No need to use support (hope there won't be one).
Overall:
If it keeps working as it does now, I would see no reason to replace it with another brand or type. It works great.
Submitted: 08/31/2004
Style of Music: Rock, Southern Rock, Blues, Country, some Punk
8 out of 10
"Inexpensive, compact, easy to use."
Feature:
Transmitter to guitar cord too long. Plug from wall to transmitter too short.
Quality:
For the price who can complain?
Sound:
Sound transfers just fine. Minor distortions easily compensated by adjusting guitar tone and/or amp effects.
Ease of Use:
3 minute set up (including reading the directions). Transmitter volume control is not easy to use and so the "mute" feature get used more often.
Support:
Delvered before their own estimation. BUT... they need to clearly show that the microphone IS NOT included... picture implies that it is.
Overall:
Honestly, if it lasts a year, that would be fine.
Transmitter to guitar cord too long. Plug from wall to transmitter too short.
Quality:
For the price who can complain?
Sound:
Sound transfers just fine. Minor distortions easily compensated by adjusting guitar tone and/or amp effects.
Ease of Use:
3 minute set up (including reading the directions). Transmitter volume control is not easy to use and so the "mute" feature get used more often.
Support:
Delvered before their own estimation. BUT... they need to clearly show that the microphone IS NOT included... picture implies that it is.
Overall:
Honestly, if it lasts a year, that would be fine.
Submitted: 12/04/2006
Style of Music: Any
