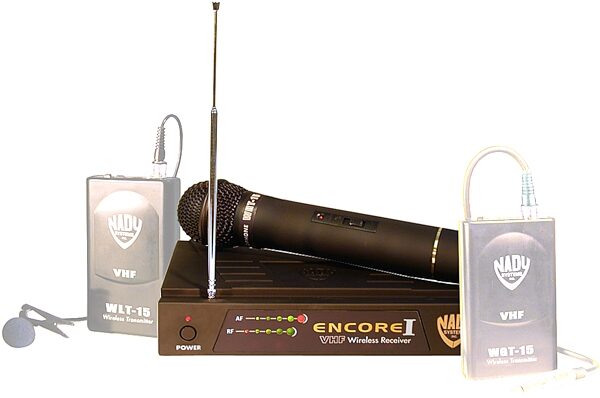

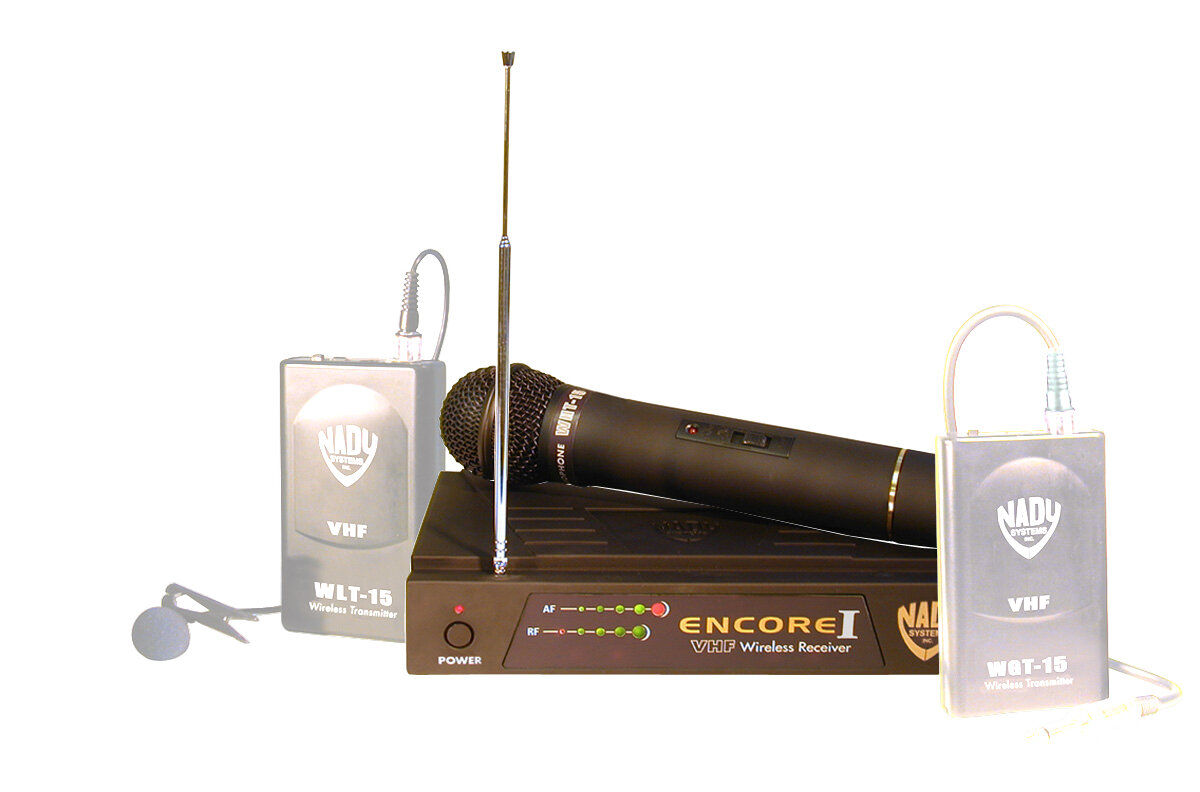

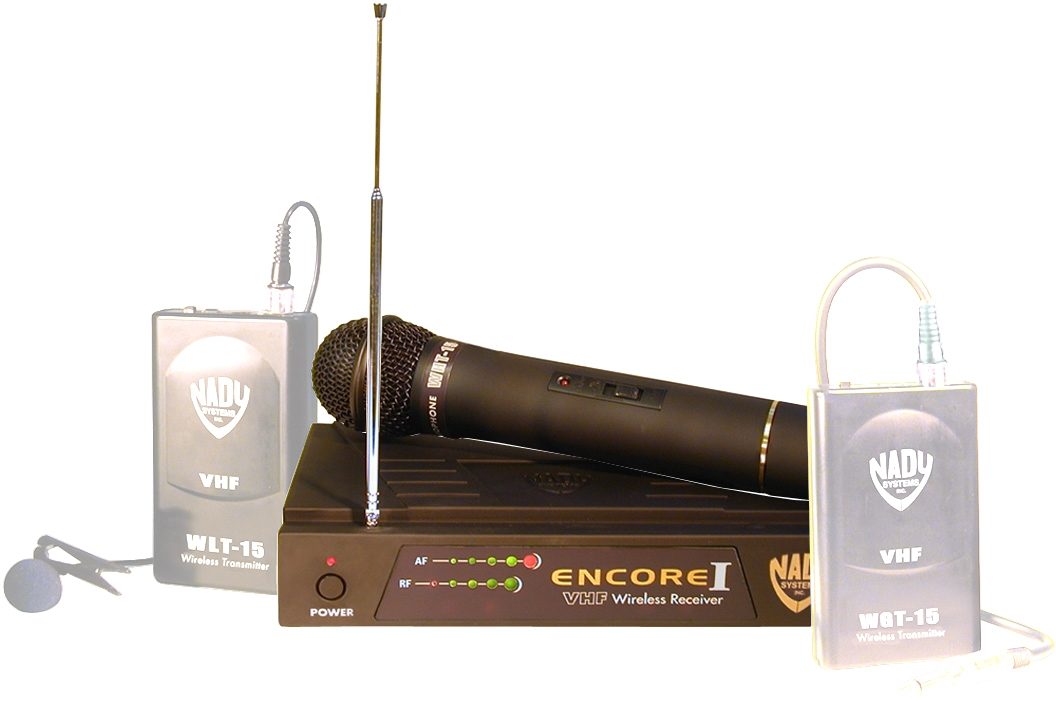

Nady Encore I Handheld Wireless System

The Encore I is a single-channel VHF wireless system.

System Includes: Encore I Receiver, WHT-15 Handheld Mic Transmitter, and 1/4 in. cable

Features
Loaded with top professional operating features

Available on selected frequencies in the VHF high-band (171-216 MHz) for interference-free, long-range performance

Half-rack receiver design with retractable front panel antenna(s)

RF and AF 5-LED displays for monitoring incoming signal strength and audio level

Balanced XLR and unbalanced adjustable 1/4 in. jack outputs (Encore Duet: Dual XLR and single mixed 1/4 in. outputs) Includes 1/4 in. cable

Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting

Nady's proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range (Encore II)

Noiseless transmitter ON/OFF switching

Receiver
Half-rack receiver design with retractable front panel antenna

RF and AF 5- LED displays for monitoring incoming signal strength and audio level

Balanced XLR and unbalanced adjustable 1/4 in. jack outputs

Mute (squelch) adjust control

Externally powered by AC/ DC power adapter

Uniqu, snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting

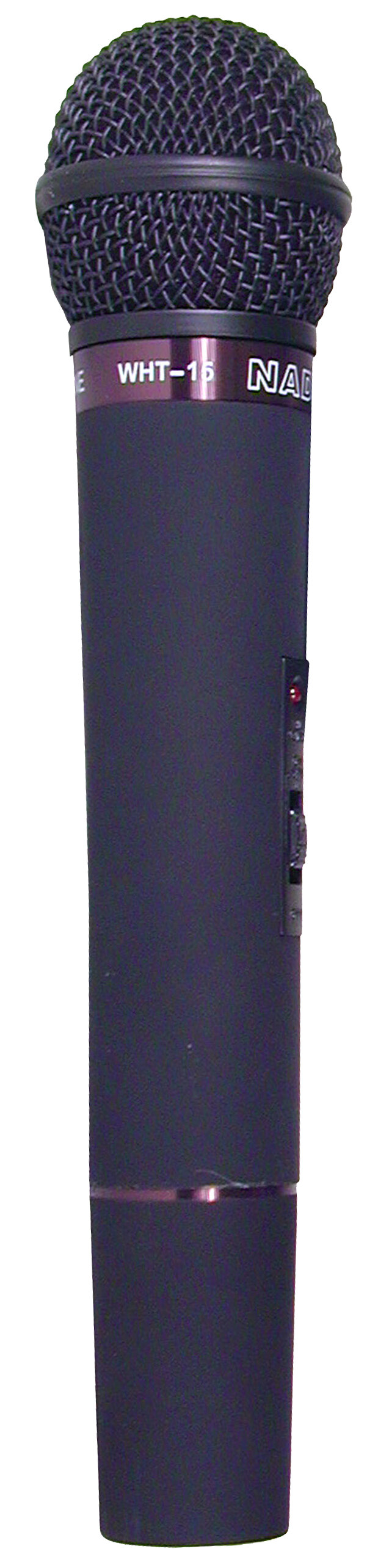

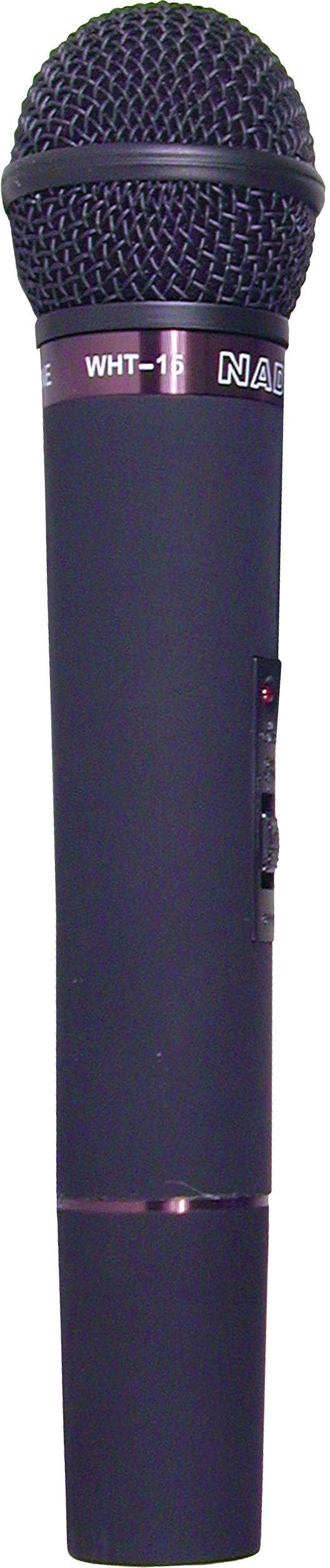

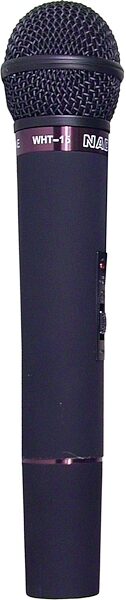

WHT-15 Handheld Mic Transmitter
Features the Nady DM -10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise

OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"

Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert

Rubber, "easy-mount" mic clip included

Technical Info

System Includes: Encore I Receiver, WHT-15 Handheld Mic Transmitter

ENCORE I OVERALL SYSTEM PERFORMANCE
Frequency Response 25-20,000 Hz,+/-3dB

Dynamic Range 120dB

Total Harmonic Distortion <0.3%

RF Carrier Frequency Range 169-216 MHz

Frequency Stability +/-0.005%,crystal controlled

Modulation FM (F3E),+/-20KHz max.

Operating Range Up to 250 ft.typical (depending on site conditions);up to 500+feet optimum line-of-sight

WHT-15 HANDHELD MIC TRANSMITTER
Audio inputs: Nady DM-10D neodymium dynamic cartridge

Controls: OFF/STANDBY/ON switch

LED Indicator: Unit "ON"(single flash), Low Battery Alert (steady)

RF Power Out: 50mW (Max.allowed by FCC)

Harmonic & Spurious Emissions: >40dB

Battery: 9V Alkaline

Battery Life: Up to 15 hours

Dimensions: WHT-15 9.5"X 1.4"Diam.(24.1 X 3.5 cm)

Weight (w/o battery): WHT-15 6.9 oz (193 g)

ENCORE I RECEIVER
Controls: Power ON/OFF,volume control,mute control

Connectors: Balanced XLR and unbalanced adjustable 1/4"audio out jacks,2.1 mm barrel-type DC input jack

LED Indicators: Power ON,5-LED RF &AF level displays

Dimensions (Max.): 1.75"x 7.5"x 8.1"(4.4 x 19 x 20.7 cm)

Weight: 1.6 lbs (.73 kg)

Power Requirements: 12V @400mA,nominal, AC/DC adapter supplied

Antenna: 11.2"(28.5 cm),single telescopic

Single-channel VHF system includes receiver, handheld transmitter and 1/4" cable.
