M-Audio Microtrack II 24/96 Portable Handheld Recorder

The redesigned MicroTrack II brings even more professional features to the original high-fidelity mobile digital recorder that’s been embraced by audio and film professionals worldwide. With an extended input gain range, analog input limiter, 48V phantom power, faster file transfer rate and other enhancements, MicroTrack II delivers the highest quality mobile recording experience available today. Simply record WAV (BWF) and MP3 files to CompactFlash or Microdrives through balanced line inputs or built-in microphone preamps—then drag and drop recordings to your computer via high-speed USB 2.0 for immediate editing or Web posting. MicroTrack II is perfect for a wide variety of applications including field recording, capturing live shows, songwriting, education and more.

Features

2-channel WAV (BWF) and MP3 recording and playback: perfect for field recording,
songwriting, training, education and worship

New features include extended input gain range, analog input limiter and and multi-part recording of files beyond 2GB in size

Battery operated; storage via CompactFlash or Microdrives

Drag-and-drop file transfer to PC and Mac

Balanced 1/4 in. TRS inputs with line inputs and 48V phantom-powered mic preamps

Technical Info

2-channel WAV (BWF) and MP3 recording and playback for pro recording, capturing live shows, songwriting, training, education, worship and more

Immediate drag-and-drop file transfer to PC and Mac via high-speed USB 2.0
mini-connector

Multi-part recording of files greater than 2GB

Easily add markers to BWF files

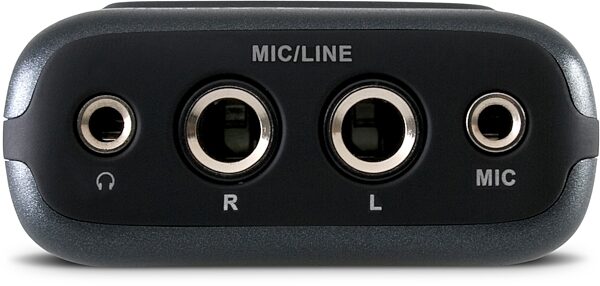

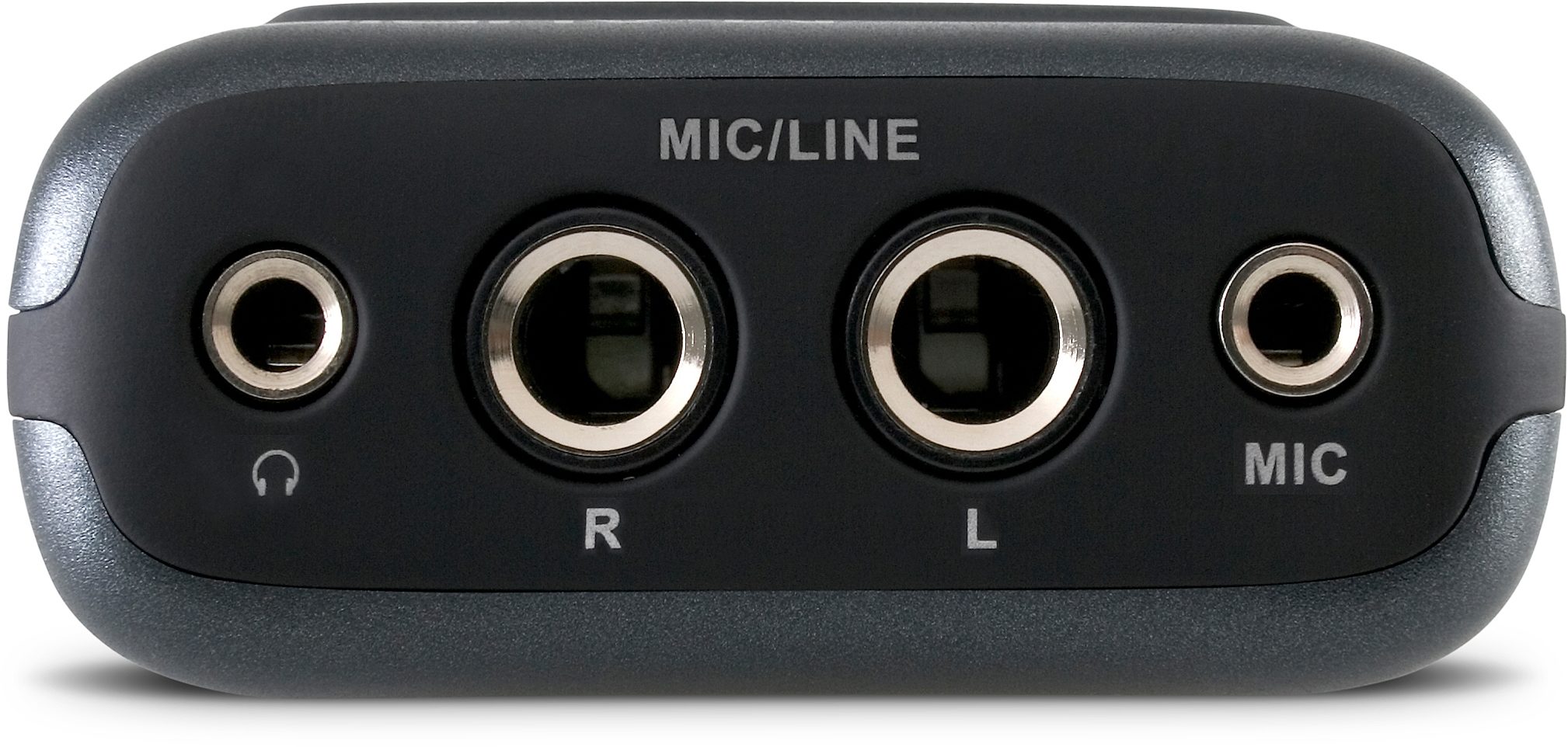

Professional balanced 1/4 in. TRS inputs capable of mic or line-level signals

Extended input gain range

Analog input limiter with bypass

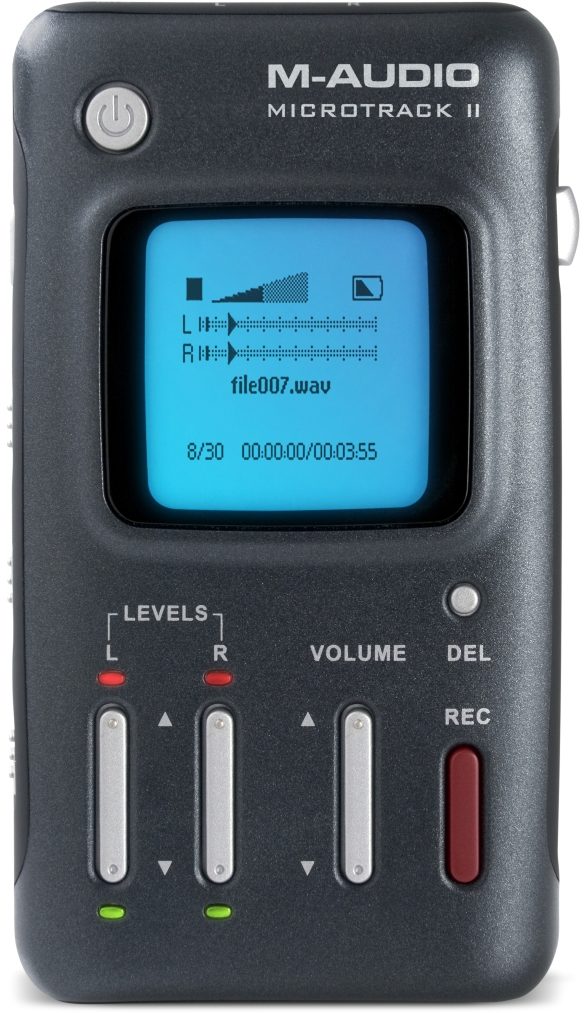

Separate left and right input level controls with signal and peak indicators

Dual microphone preamps with 48V phantom power for studio microphones

1/8 in. TRS input with 5V power for use with stereo electret microphone (microphone included)

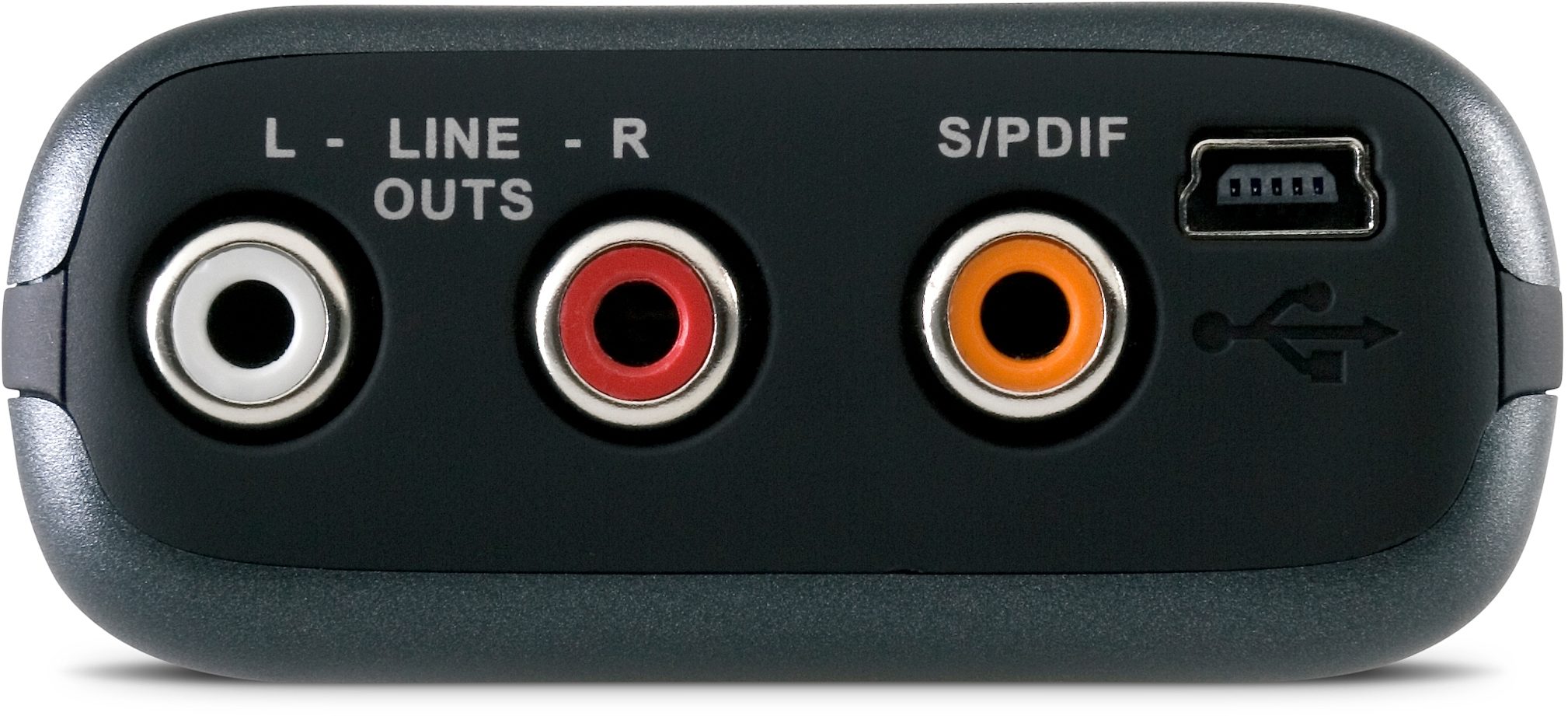

S/PDIF coaxial input for digital transfers

Monitoring via RCA line outputs or 1/8” stereo headphone output

Monitor S/PDIF input via headphones while recording

Customizable folders for organizing files

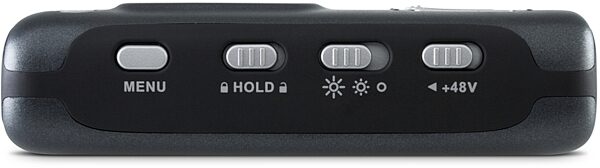

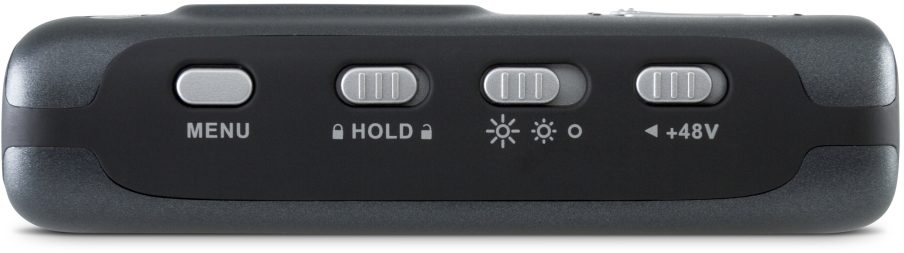

Dedicated buttons for navigation, record, hold, delete, menu, and power

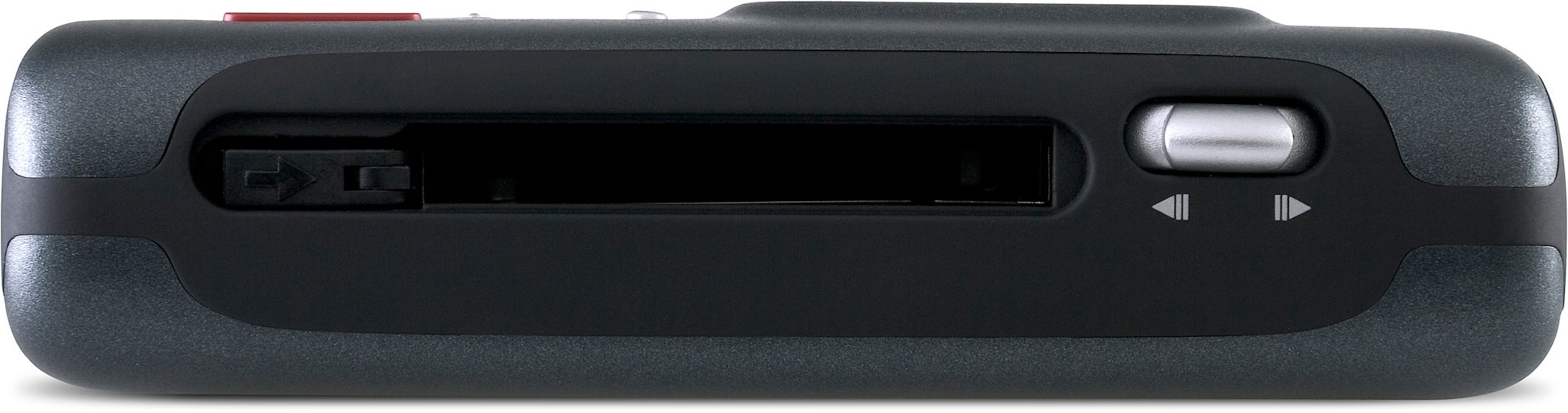

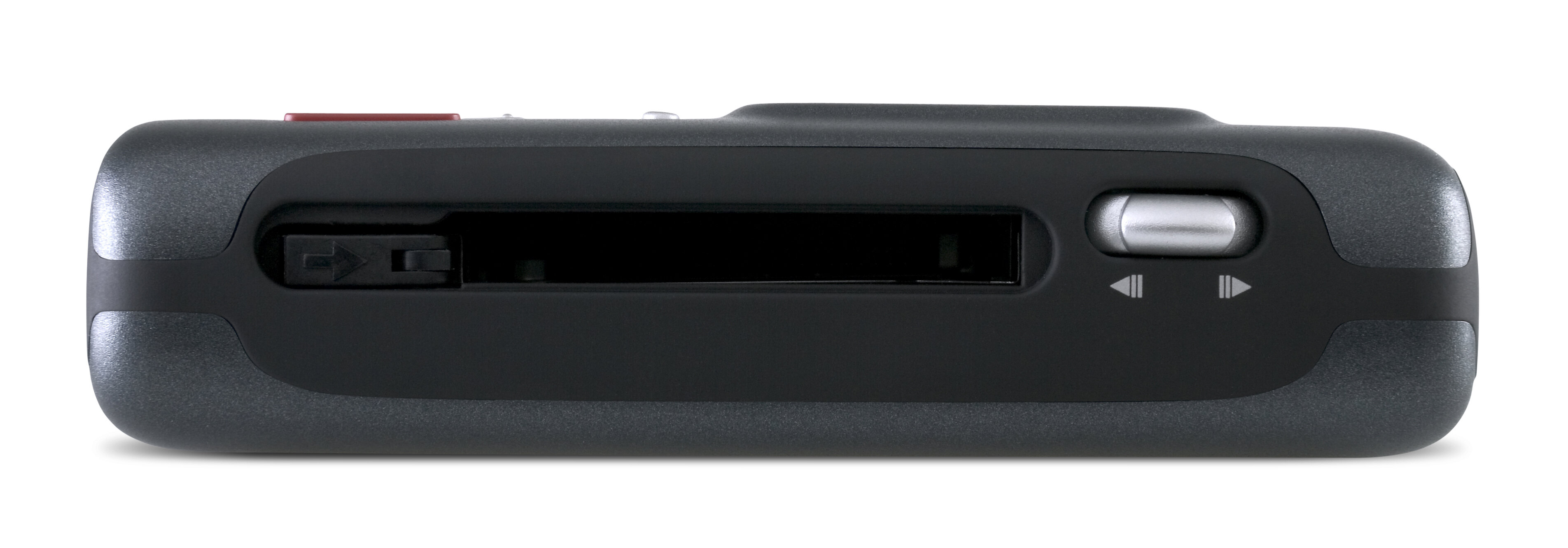

Storage via convenient CompactFlash or Microdrives (sold separately)

Built-in CompactFlash speed test ensures optimal card performance

Large LCD with backlight dimmer

Output level control

Hibernation mode

Powered via USB, built-in rechargeable lithium-ion battery or included power supply

Includes electret t-shaped microphone, software for editing and file format conversion, carrying pouch, 1/8 in. stereo extension cable with lapel clip, power supply, and USB cable

MP3 recording: 96 to 320kbps at 44.1 or 48kHz

PCM recording: 16 or 24-bit at 44.1, 48, 88.2 or 96kHz

Storage capacity: Variable based on data rate and storage medium

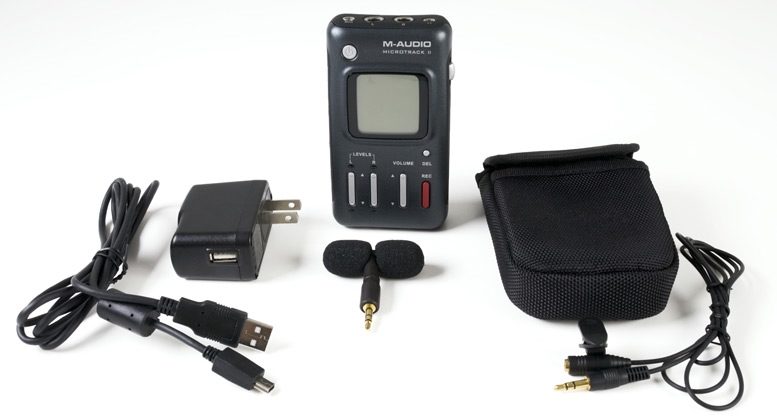

Includes

MicroTrack II mobile digital recorder

Printed Quick Start Guide

CD-ROM with documentation and editing software

1m USB cable (USB A to Mini B)

1m 1/8 in. headphone extension cable with lapel clip

T-shaped stereo electret microphone

Earbuds

Protective carrying case with mic pouch

Power supply unit with USB connector

Top-quality 2-track recording redesigned with improved features! Record WAV and MP3 files to CompactFlash (64 MB included) or microdrives. True 48v phantom-powered TRS mic/line inputs. Increased input gain; analog limiter. Headphone and RCA line outputs. USB 2.0 connection for Mac/PC file transfer, bus-powering, and recharging; faster file transfers. Up to 8 hours on a charge. Includes AC adapter.
