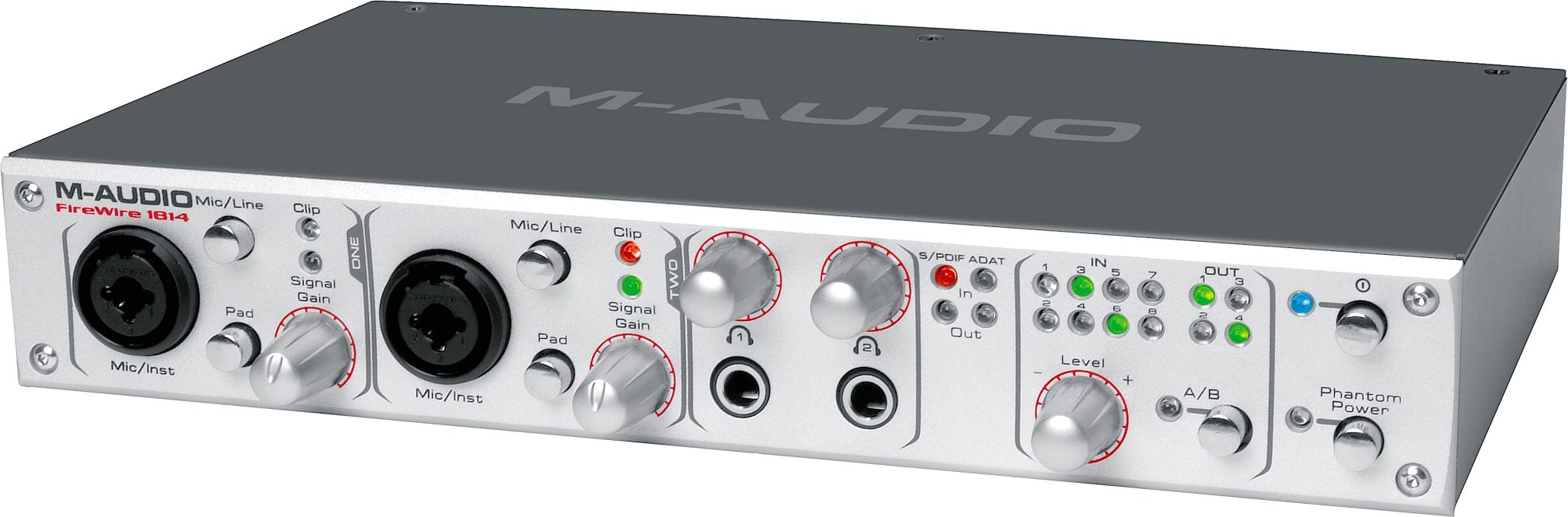

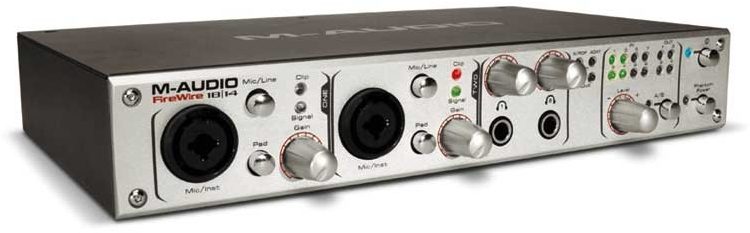

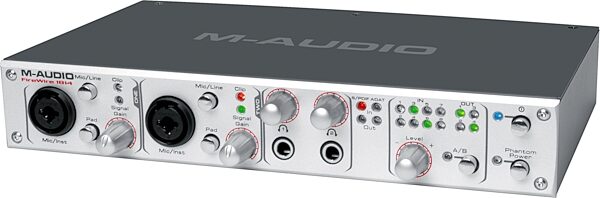

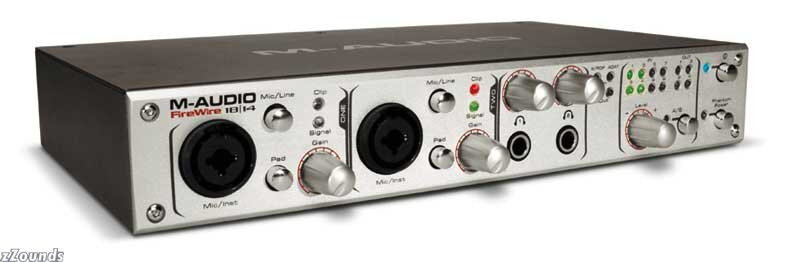

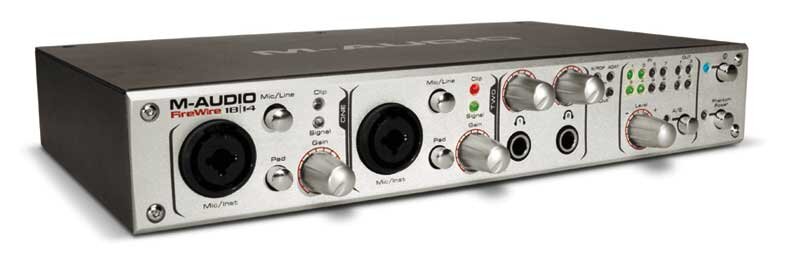

The new FireWire 18/14 is an 18-in/14-out FireWire audio/MIDI interface including 8 channels of ADAT Lightpipe I/O and 8 x 4 analog I/O. Complete with two channels of mic/instrument preamps, this exciting new piece is perfect for project studios that want to go all digital. The ADAT Lightpipe I/O allows you to bring ADAT tracks into your software studio, and connect directly with other digital gear such as digital mixers and M Audio's new Octane preamp. Other features include 192kHz fidelity on 2 inputs and all 4 analog outputs, S/PDIF digital I/O with support for PCM, AC-3 and DTS, flexible internal mixing with assignable rotary encoder and a front-panel momentary switch for DJ-style headphone auditioning between 2 assignable sources.
Features:
8 In/Out ADAT Lightpipe
8 In / 4 Out 1/4 in. jacks
2 XLR / 1/4 in. combo jacks
S/PDIF In / Out
Headphone Out

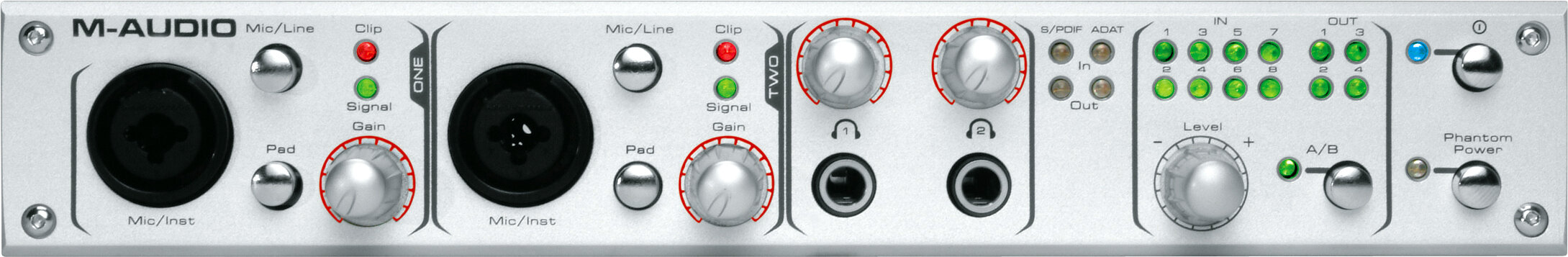

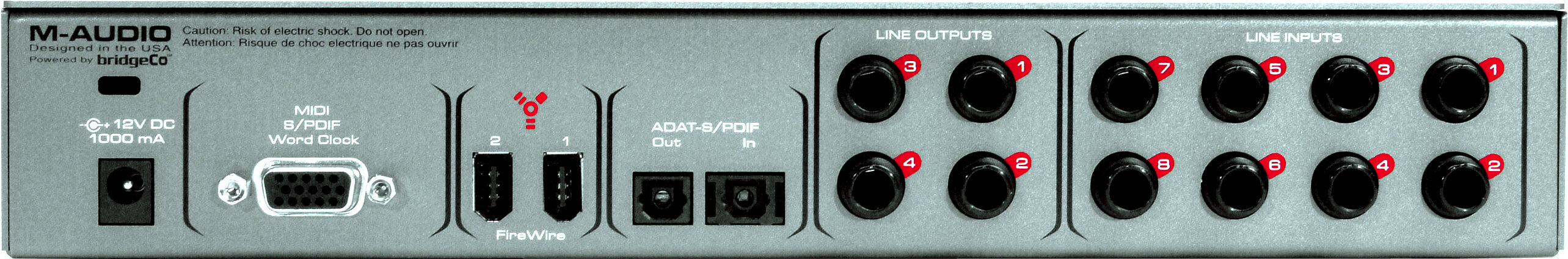

Lots of I/O in a tiny package! Eight 1/4" inputs, 4 1/4" outputs. Two front-panel XLR/instrument combo inputs with preamps. Digital I/O includes 8 channels via optical ADAT and 2 more via S/PDIF. Up to 192 kHz resolution on 2 analog ins and 4 analog outs; 96 kHz resolution on all others. MIDI, coaxial S/PDIF, and word clock I/O on breakout cable. Includes special versions of Ableton Live and Propellerheads Reason for Mac/PC. Compatible with Pro Tools M-Powered.
