M-Audio Audio Delta 1010 and Ableton Delta-Live Bundle (8in/8out PC Card)
All data paths support all bit widths and sampling rates up to 24-bit/96kHz. High dynamic range. Now bundled with Abelton Deta-Live 2!
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
From Our Catalog

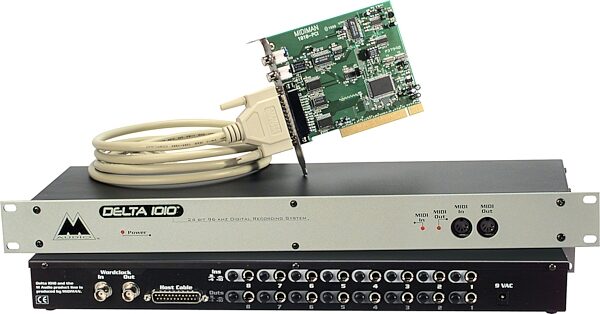

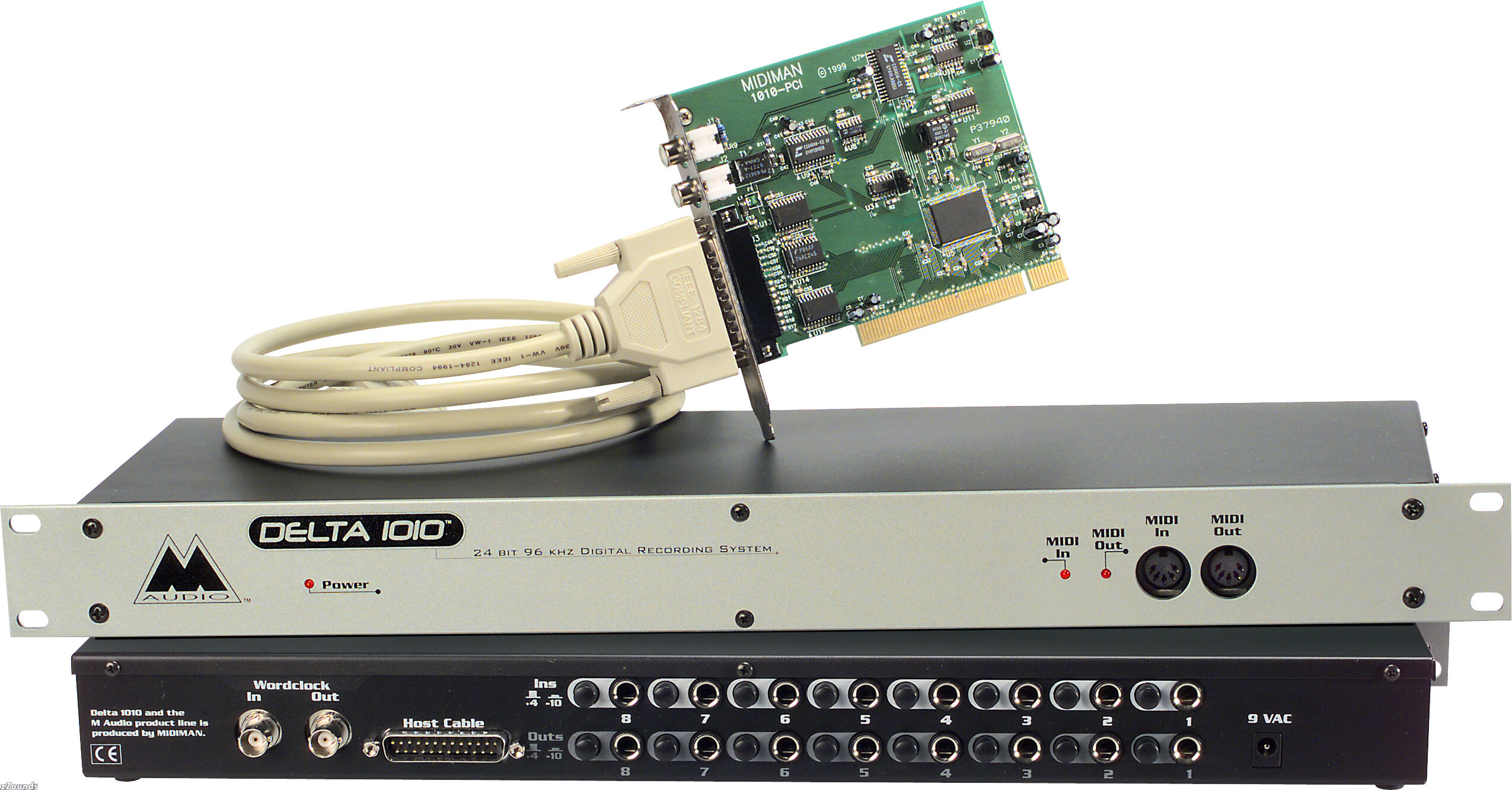

The Delta 1010 stands at the forefront of digital audio's evolution, making available a level of performance previously unattainable. Unrivaled in its integrity, the Delta 1010 shores up what used to be the Achilles' heel of any computer-based system: the transfer and conversion of audio between the outside world and the computer. With 24-bit 96kHz bandwidth and expansive flexibility, the Delta 1010 boasts 8 balanced or unbalanced analog I/Os, S/PDIF I/O, Word Clock I/O, and MIDI I/O to guarantee connectivity in any installation. To ensure that your audio is not compromised by your computer's internal noise, the Delta 1010's converters reside in a rock-solid, external, rack-mountable chassis. The power transformer is even located outside of the chassis to further secure the absolute transparency of your audio.
Performance
All data paths support all bit widths and sampling rates up to 24-bit/96kHz
High dynamic range (A-weighted measured): D/A 108db, A/D 109db
Low distortion (measured THD @0dBFS): D/A less than 0.0015%, A/D less than 0.001%
Hardware
Configured as PCI host card with external rackmount unit, which houses all converters
8x8 analog I/O is balanced or unbalanced on 1/4 in. TRS connectors.
+4/-10 operation, individually switchable on the external rackmount unit
S/PDIF I/O on PCI host card.
Full duplex operation
Word Clock I/O
MIDI I/O
Windows 95/98/NT
Pentium 120 MHz, 16 MB RAM
Windows-compatible MIDI interface required for MIDI recording
Metro System Requirements
MIDI Only:
Power PC/iMac with 8MB of RAM or more
Mac-compatible MIDI interface
OMS and Quicktime musical instruments for internal playback
Mac OS system 7.0 or later
MIDI and Audio:
Power PC/iMac capable of 16 bit audio input
32 MB or greater (realtime effects require more)
Sound Manager 3.2 or later
System 7.0 or later
Performance
All data paths support all bit widths and sampling rates up to 24-bit/96kHz
High dynamic range (A-weighted measured): D/A 108db, A/D 109db
Low distortion (measured THD @0dBFS): D/A less than 0.0015%, A/D less than 0.001%
Hardware
Configured as PCI host card with external rackmount unit, which houses all converters
8x8 analog I/O is balanced or unbalanced on 1/4 in. TRS connectors.
+4/-10 operation, individually switchable on the external rackmount unit
S/PDIF I/O on PCI host card.
Full duplex operation
Word Clock I/O
MIDI I/O
Technical Info
Express System RequirementsWindows 95/98/NT
Pentium 120 MHz, 16 MB RAM
Windows-compatible MIDI interface required for MIDI recording
Metro System Requirements
MIDI Only:
Power PC/iMac with 8MB of RAM or more
Mac-compatible MIDI interface
OMS and Quicktime musical instruments for internal playback
Mac OS system 7.0 or later
MIDI and Audio:
Power PC/iMac capable of 16 bit audio input
32 MB or greater (realtime effects require more)
Sound Manager 3.2 or later
System 7.0 or later
Eight-channel analog I/O with a 1-rack space breakout box! Up to 24/96 resolution, plus 2 channels via S/PDIF, word clock, MIDI I/O, and more. Includes version of Ableton Live. Compatible with Pro Tools M-Powered.
What Our Customers Say About zZounds
"zZounds has been a great supplier for years!" - customer on November 6, 2009
Call
866.ZZOUNDS (996.8637)
and mention priority code: 79N5CCM
Item: MDOD1010E
related accessories
$249.00
from $129.00
4 payments of
$99.75
$299.99
from $4.95
from $9.95
$269.00
$199.95
from $9.95
from $14.95
M-Audio Audio Delta 1010 and Ableton Delta-Live Bundle (8in/8out PC Card) Reviews
9 out of 10
zZounds has verified that this customer bought this product from us.
"Great Addition to the Home Studio"
Feature:
Its lack of control features is great since they are not needed. Plug your amplified signals right in. I use a small, cheap Yamaha mixer for all monitoring and Cakewalk Home Studio playback (Delta 1010 1/2 outs to Yamaha and all other mixing boards or inputs go there as well, send it all to a headphone amp, no latetency problems at all).
Quality:
Rock solid. No excessive heat. Accidentally dropped it and I guess I got lucky cause nothing happened to it.
Value:
Very good. I only gave it a 9 because I'm waiting for their next generation products that will no doubt be even better!
Desirability:
Must have for my setup, recording four piece band.
Sound:
Without question the Delta 1010 provides a clean and true A/D conversion. Upgraded my setup with an Allen and Heath mixer for its good preamps and this was worth the cost, but then again this adds quite a bit to the total cost to upgrade to the 1010. The Allen and Heath is perfect for the 1010 becuase its preamp direct outs go right to the 1010. Like others I'm probably going to add another 1010 to take advantage of all 16 preamps on the mixer. For vocals using a Focusrite preamp, works excellent as well.
Ease of Use:
Nothing to it. The included M-Audio program allows you to control the volume of your studio monitors.
Support:
Not used.
Overall:
If it broke I would go buy another one right away!
Its lack of control features is great since they are not needed. Plug your amplified signals right in. I use a small, cheap Yamaha mixer for all monitoring and Cakewalk Home Studio playback (Delta 1010 1/2 outs to Yamaha and all other mixing boards or inputs go there as well, send it all to a headphone amp, no latetency problems at all).
Quality:
Rock solid. No excessive heat. Accidentally dropped it and I guess I got lucky cause nothing happened to it.
Value:
Very good. I only gave it a 9 because I'm waiting for their next generation products that will no doubt be even better!
Desirability:
Must have for my setup, recording four piece band.
Sound:
Without question the Delta 1010 provides a clean and true A/D conversion. Upgraded my setup with an Allen and Heath mixer for its good preamps and this was worth the cost, but then again this adds quite a bit to the total cost to upgrade to the 1010. The Allen and Heath is perfect for the 1010 becuase its preamp direct outs go right to the 1010. Like others I'm probably going to add another 1010 to take advantage of all 16 preamps on the mixer. For vocals using a Focusrite preamp, works excellent as well.
Ease of Use:
Nothing to it. The included M-Audio program allows you to control the volume of your studio monitors.
Support:
Not used.
Overall:
If it broke I would go buy another one right away!
Submitted: 01/06/2007
Style of Music: Trash Pop
9 out of 10
zZounds has verified that this customer bought this product from us.
"This is an excellent product!"
Feature:
All the features I need. Optical digital I/O would be great, but the coaxial digital has worked flawlessly for me.
Quality:
My Delta 1010 was one of the early models and I've twice had issues with burned-out capacitors that result in a nasty buzz. They've since fixed these issues. It's otherwise totally rock-solid. If you get a newer one, you shouldn't have any issues.
Value:
The Delta 1010's only competitor in this price range is the Layla 24 which I'm told is also excellent. You get all of the same features in the Delta 1010 (Minus optical digital I/O) for about $100 less.
Desirability:
I don't buy electronics for "sex appeal" That sounds way kinky. Since it would be kind of difficult to strap one of these on and play a gig with it, I couldn't care less what it looks like. The Delta 1010 is the heart and the backbone of my DAW rig.
Sound:
Excellent. Transparent sound quality. Outstanding A/D converters. My studio rig consists of: 1.5 Ghz Pentium 4, 768 MB RAM, Windows 2000, Sonar 2.2, Cool Edit, Sound Forge, CD Architect, Wavelab. Mackie SR24-4 console, Yamaha NS-10M monitors. AKG C100S, C300B. Shure SM-57, SM-58.
Support:
Outstanding support. When I spoke with the tech at M-Audio, he knew what the problem was immediately and gave me an RMA with no hassles. I got it back within two weeks and it was as good as new. Worked great for about three years. During this time, I've moved to the LA area. The second time I had the problem, I was able to drive it up to M-Audio and they had it fixed within an hour and I was on my way home. Works great now.
Overall:
I'll keep on using my Delta 1010 as long as possible. I can't conceive of it becoming obsolete anytime in the near future. The only way I could think of supplementing my setup would be to buy another one so I could have 16 analog I/O's, but that's really more than I need.
All the features I need. Optical digital I/O would be great, but the coaxial digital has worked flawlessly for me.
Quality:
My Delta 1010 was one of the early models and I've twice had issues with burned-out capacitors that result in a nasty buzz. They've since fixed these issues. It's otherwise totally rock-solid. If you get a newer one, you shouldn't have any issues.
Value:
The Delta 1010's only competitor in this price range is the Layla 24 which I'm told is also excellent. You get all of the same features in the Delta 1010 (Minus optical digital I/O) for about $100 less.
Desirability:
I don't buy electronics for "sex appeal" That sounds way kinky
Sound:
Excellent. Transparent sound quality. Outstanding A/D converters. My studio rig consists of: 1.5 Ghz Pentium 4, 768 MB RAM, Windows 2000, Sonar 2.2, Cool Edit, Sound Forge, CD Architect, Wavelab. Mackie SR24-4 console, Yamaha NS-10M monitors. AKG C100S, C300B. Shure SM-57, SM-58.
Support:
Outstanding support. When I spoke with the tech at M-Audio, he knew what the problem was immediately and gave me an RMA with no hassles. I got it back within two weeks and it was as good as new. Worked great for about three years. During this time, I've moved to the LA area. The second time I had the problem, I was able to drive it up to M-Audio and they had it fixed within an hour and I was on my way home. Works great now.
Overall:
I'll keep on using my Delta 1010 as long as possible. I can't conceive of it becoming obsolete anytime in the near future. The only way I could think of supplementing my setup would be to buy another one so I could have 16 analog I/O's, but that's really more than I need.
Submitted: 07/07/2003
Style of Music: Rock and Roll in my band, although I do country, blues and experimental projects as well.
