This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

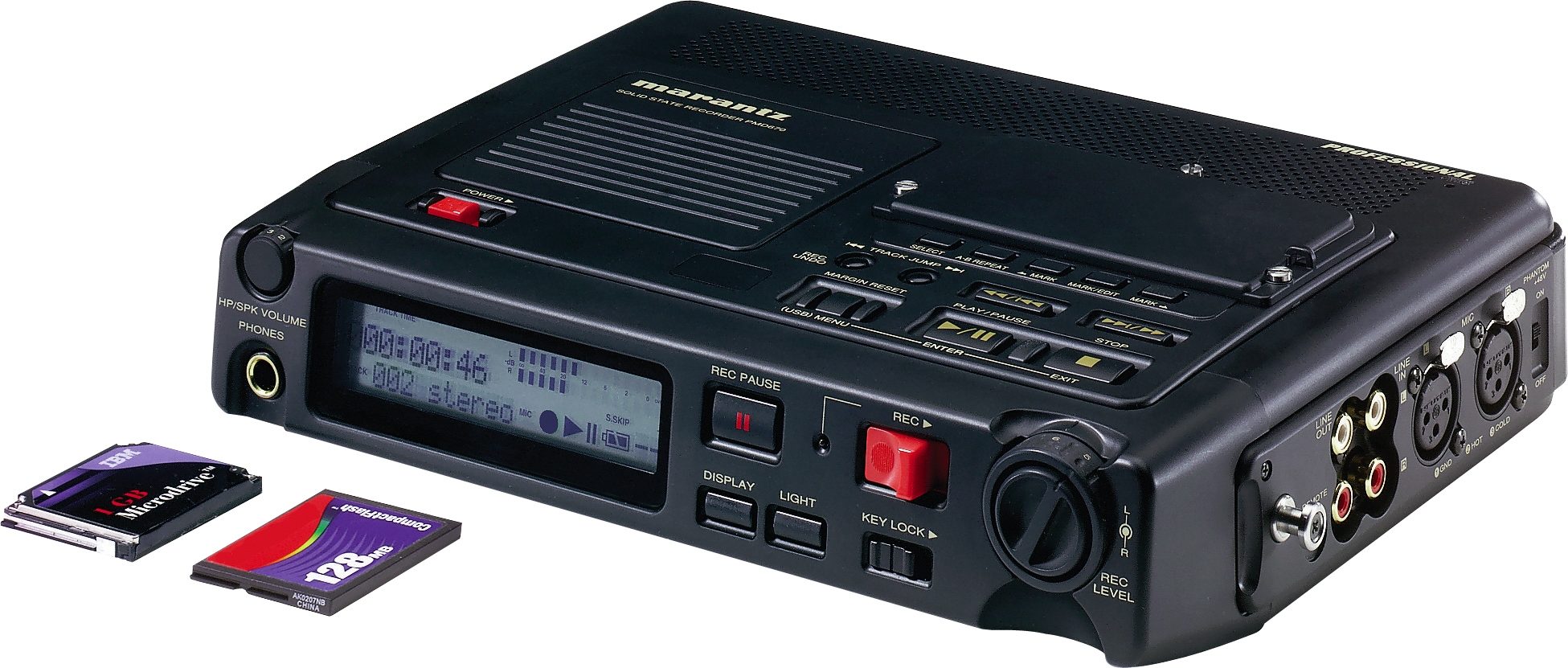

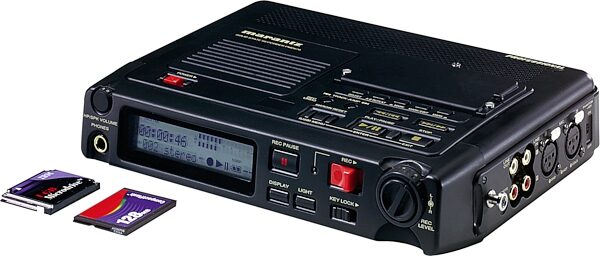

Marantz PMD670 Professional Solid-State Recorder
Uses IBM Microdrive or Compact Flash cards. Can record MP3's.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
From Our Catalog
Marantz PMD670 Professional Solid-State Recorder
The easiest way to get sound into a computer! This professional, solid-state, stereo digital recorder provides the ultimate in convenience for just about any remote recording application. The PMD670 records your choice of uncompressed WAV or MP2, and now - MP3 files (selectable compression rates) that you can immediately drag-n-drop onto your computer hard drive via USB. The PMD670's Type II PC Card slot is compatible with type II compact flash cards, which are widely available at computer/electronics retailers. The slot is also designed to accept cost-effective IBM MicroDrives, miniature removable hard disks with capacities as high as 10 gigabytes for over 12 hours of continuous WAV file recording. To ensure that everybody's comments are captured, the PMD670 provides Automatic Level Control, and noise filters to filter out such things as the hum from an air conditioning system. Inputs include XLR (w/+48V phantom power) and 1/4 in. mic/line inputs for use with quality PZM or condenser mics. A built-in mic is also provided. Outputs include coax digital and RCA analog. Other features include a 2-second Pre-Record Buffer (continuously records audio before record button is pressed), a built-in speaker, a time/date generator and a Silent Skip feature (defeatable) that pauses recording during silences. Includes carrying strap, AC adaptor & battery holder.
Like its predecessors, the PMD670 is a rugged and reliable portable recorder specifically designed for applications like meeting recording, voice dictation, high quality sound gathering and everything in between. The PMD670 includes a built-in microphone, built-in speaker, and professional mic/line inputs and outputs. You can record many hours of quality stereo or mono audio on a single CF (compact flash) memory card or Microdrive. Transfer audio files into a computer for editing or distribution by simply placing a recorded card into your computer PC card drive or use the built in computer I/O port for a no hassle approach to file transfer. The PMD670 is also fully compatible with Marantz Professional's PMDEdit editing and file management software.
Features
Records onto inexpensive and reliable solid state CF cards (compact flash) or Microdrives (64 MB Flash Card formatted and ships with unit)
Records up to 5 1/2 hours (stereo, 48kHz)(when media becomes available)
Records in .mp2, .mp3, .wav, and .bwf digital audio formats
Over 40 assignable bitrates and sampling frequency combinations for many quality and media space saving settings
FAT 32 File Allocation Table allows for larger future media and files
One touch record
Simultaneously close and start new recordings
Improved menu-driven remote operation (contact closure)
Computer I/O port for direct to computer file transfer
Security screw for media door
Security panel to lock out sensitive recording parameters from being altered
Noise filters
Automatic level control
2 second pre-record audio cache
Built in mic and speaker
Digital in and out (s/pdif format)
XLR mic inputs
+48V phantom power
Extensive capability
Designed with compatibility for MP3, MP2, BWF, WAV formats the PMD670 boasts an impressive 40 assignable quality settings as well as a FAT32 File Allocation Table for future multi-gig file capability.
Simple Operation
With the flip of a switch record audio files to affordable and widely available Microdrives or compact flash cards.
Transfer audio files to PC
A table-top portable model, the PMD670 features a computer I/O connection that allows it to be easily linked for easy file transfer. Drag and drop recorded audio files to your computer's hard drive in minutes without the real-time delay disadvantages of cassette, MiniDisc, and DAT recording! The optional "PMDEdit" software enables easy file management and editing with its combined use.
General
System: Solid State Recorder
Number of channels: 2 (stereo),1 (mono)
Usable media: CF memory cards, Microdrives
Recording and media methods
.mp2: MPEG1 Layer II compression
.mp3: MPEG1 Layer III compression
.mp3: MPEG2 Layer III compression* *for all half sample rates
PCM: 16 bit linear PCM
Power Consumption
Recording/Playback: 5.2 W
Charging: 12 W
Standby (battery driven): 2.2mW
Headphone Output power: 20 mW/32 ohms
Speaker Output power: 100 mW
Phantom power: +48V, 10mA
Dimensions (Maximum)
Width: 10.4 in. (264 mm)
Height: 2 in. (55 mm)
Depth: 7.3 in. (185 mm)
Weight: 2 lbs. 14 oz.(1.3 Kg)
Audio
Recording bit rate (selectable)
MP2 stereo: 384, 256, 192, 128, 96, 64 kbps
MP2 mono: 192, 128, 96, 64, 48, 32 kbps
MP3 stereo: 320, 256, 160, 128, 80, 64 kbps
MP3 mono: 160, 128, 80, 64, 40, 32 kbps
Sampling Frequency
Analog: 48, 44.1, 32, 24*, 22.050*, 16* kHz
*except MP2
Digital: 48, 44.1kHz
Frequency response (PCM 44.1kHz): 20,000 Hz (-0.5dB)
Signal-to-Noise Ratio IEC-A Weighted:
LINE: 86dB
MIC: 65dB
Total Harmonic Distortion at 0 VU (PCM)
LINE: 0.03%
MIC: 0.08%
Dynamic Range: 86 dB
Inputs / Outputs
MIC IN L/R
Type: XLR (1:GND, 2:HOT, 3:COLD)
Input Sensitivity: 1.2mVrms/6.5 kohms
LINE IN L/R
Type: RCA jack
Input Sensitivity: 300mVrms/20 kohms
LINE OUT L/R
Type: RCA jack
Standard Level: 2 Vrms max./2 kohms
DIGITAL IN/OUT
Type: RCA jack
Impedance: 75 ohms
Standard level: 0.5 Vp-p
Sampling frequency: 44.1/48 kHz
Format: SPDIF (IEC-958 Type II)
Specifications are based on measurement conditions and proper care for the machine, and are subject to change without notice.
The easiest way to get sound into a computer! This professional, solid-state, stereo digital recorder provides the ultimate in convenience for just about any remote recording application. The PMD670 records your choice of uncompressed WAV or MP2, and now - MP3 files (selectable compression rates) that you can immediately drag-n-drop onto your computer hard drive via USB. The PMD670's Type II PC Card slot is compatible with type II compact flash cards, which are widely available at computer/electronics retailers. The slot is also designed to accept cost-effective IBM MicroDrives, miniature removable hard disks with capacities as high as 10 gigabytes for over 12 hours of continuous WAV file recording. To ensure that everybody's comments are captured, the PMD670 provides Automatic Level Control, and noise filters to filter out such things as the hum from an air conditioning system. Inputs include XLR (w/+48V phantom power) and 1/4 in. mic/line inputs for use with quality PZM or condenser mics. A built-in mic is also provided. Outputs include coax digital and RCA analog. Other features include a 2-second Pre-Record Buffer (continuously records audio before record button is pressed), a built-in speaker, a time/date generator and a Silent Skip feature (defeatable) that pauses recording during silences. Includes carrying strap, AC adaptor & battery holder.
Like its predecessors, the PMD670 is a rugged and reliable portable recorder specifically designed for applications like meeting recording, voice dictation, high quality sound gathering and everything in between. The PMD670 includes a built-in microphone, built-in speaker, and professional mic/line inputs and outputs. You can record many hours of quality stereo or mono audio on a single CF (compact flash) memory card or Microdrive. Transfer audio files into a computer for editing or distribution by simply placing a recorded card into your computer PC card drive or use the built in computer I/O port for a no hassle approach to file transfer. The PMD670 is also fully compatible with Marantz Professional's PMDEdit editing and file management software.
Features
Records onto inexpensive and reliable solid state CF cards (compact flash) or Microdrives (64 MB Flash Card formatted and ships with unit)
Records up to 5 1/2 hours (stereo, 48kHz)(when media becomes available)
Records in .mp2, .mp3, .wav, and .bwf digital audio formats
Over 40 assignable bitrates and sampling frequency combinations for many quality and media space saving settings
FAT 32 File Allocation Table allows for larger future media and files
One touch record
Simultaneously close and start new recordings
Improved menu-driven remote operation (contact closure)
Computer I/O port for direct to computer file transfer
Security screw for media door
Security panel to lock out sensitive recording parameters from being altered
Noise filters
Automatic level control
2 second pre-record audio cache
Built in mic and speaker
Digital in and out (s/pdif format)
XLR mic inputs
+48V phantom power
Extensive capability
Designed with compatibility for MP3, MP2, BWF, WAV formats the PMD670 boasts an impressive 40 assignable quality settings as well as a FAT32 File Allocation Table for future multi-gig file capability.
Simple Operation
With the flip of a switch record audio files to affordable and widely available Microdrives or compact flash cards.
Transfer audio files to PC
A table-top portable model, the PMD670 features a computer I/O connection that allows it to be easily linked for easy file transfer. Drag and drop recorded audio files to your computer's hard drive in minutes without the real-time delay disadvantages of cassette, MiniDisc, and DAT recording! The optional "PMDEdit" software enables easy file management and editing with its combined use.
Technical Info
SpecificationsGeneral
System: Solid State Recorder
Number of channels: 2 (stereo),1 (mono)
Usable media: CF memory cards, Microdrives
Recording and media methods
.mp2: MPEG1 Layer II compression
.mp3: MPEG1 Layer III compression
.mp3: MPEG2 Layer III compression* *for all half sample rates
PCM: 16 bit linear PCM
Power Consumption
Recording/Playback: 5.2 W
Charging: 12 W
Standby (battery driven): 2.2mW
Headphone Output power: 20 mW/32 ohms
Speaker Output power: 100 mW
Phantom power: +48V, 10mA
Dimensions (Maximum)
Width: 10.4 in. (264 mm)
Height: 2 in. (55 mm)
Depth: 7.3 in. (185 mm)
Weight: 2 lbs. 14 oz.(1.3 Kg)
Audio
Recording bit rate (selectable)
MP2 stereo: 384, 256, 192, 128, 96, 64 kbps
MP2 mono: 192, 128, 96, 64, 48, 32 kbps
MP3 stereo: 320, 256, 160, 128, 80, 64 kbps
MP3 mono: 160, 128, 80, 64, 40, 32 kbps
Sampling Frequency
Analog: 48, 44.1, 32, 24*, 22.050*, 16* kHz
*except MP2
Digital: 48, 44.1kHz
Frequency response (PCM 44.1kHz): 20,000 Hz (-0.5dB)
Signal-to-Noise Ratio IEC-A Weighted:
LINE: 86dB
MIC: 65dB
Total Harmonic Distortion at 0 VU (PCM)
LINE: 0.03%
MIC: 0.08%
Dynamic Range: 86 dB
Inputs / Outputs
MIC IN L/R
Type: XLR (1:GND, 2:HOT, 3:COLD)
Input Sensitivity: 1.2mVrms/6.5 kohms
LINE IN L/R
Type: RCA jack
Input Sensitivity: 300mVrms/20 kohms
LINE OUT L/R
Type: RCA jack
Standard Level: 2 Vrms max./2 kohms
DIGITAL IN/OUT
Type: RCA jack
Impedance: 75 ohms
Standard level: 0.5 Vp-p
Sampling frequency: 44.1/48 kHz
Format: SPDIF (IEC-958 Type II)
Specifications are based on measurement conditions and proper care for the machine, and are subject to change without notice.
Rugged, portable recording of MP2, MP3, and 16-bit PCM audio to CompactFlash cards. Two XLR mic inputs. Seven-hour battery life. On-the-fly file marker system.
What Our Customers Say About zZounds
"You guys had an otherwise hard to find item, with great price, shipping, and service. Thank you!" - customer on October 28, 2009
Marantz PMD670 Professional Solid-State Recorder Reviews
9 out of 10
zZounds has verified that this customer bought this product from us.
"A quantum leap for portable stereo recording!"
Feature:
It included wall plug and battery box. It burns through alkaline batteries pretty fase and it takes 8 AAs so I use NiMH rechargables. You can set the battery type in the menu list. There is a rechargable battery pack you can buy that gets charged by the recorder. I don't have that one.
Quality:
I would give it a 10 but I don't want to curse myself. I have had no problem si far.
Value:
If it continues to perform as it does it is worth it.
Desirability:
It is not flashy but well thought out and functional. Sometimes the screen is hard to read on the front, but there is a nice backlight. But hey it's all about the sound.
Sound:
The device reproduces sounds accurately with no noticable background noise if you record in PCM or MP2 mode. I can hear some noise artifact with MP3 compression. But with PCM it's awesome.
Ease of Use:
It's quite simple right out of the box. Use the internal microphone, hit RECORD, then hit PLAY. But there are plenty of options beyond that. I use it to record from my mixers LINE-OUT and it sounds awesome. It is possible to configure it to sound bad, but if you take the time to set it up and read the manual you will be happy. Using the line inputs you will have S/N of 86dB as compared to 65dB with the MIC input. So have a brain and use the line input. Use a quiet preamp and enjoy the dynamic range you get.
Support:
No need for support yet. But I believe the best support is to buy quality in the first place. This has it.
Overall:
I'll use it untill it (or I) turn to dust. What a phenomenal way to record live music. I have a 2GB flash drive that will record 36 hours with MP2 compression. Files transfer quickly to your MAC or PC with a USB cable. All the files can be imported into iTunes. You can burn the MP3 and PCM files to a CD. (I don't know how to get the MP2 files to burn). Imagine burning a CD of your rehearsal session and giving it to the guys while they get their coats on. Pretty cool.
It included wall plug and battery box. It burns through alkaline batteries pretty fase and it takes 8 AAs so I use NiMH rechargables. You can set the battery type in the menu list. There is a rechargable battery pack you can buy that gets charged by the recorder. I don't have that one.
Quality:
I would give it a 10 but I don't want to curse myself. I have had no problem si far.
Value:
If it continues to perform as it does it is worth it.
Desirability:
It is not flashy but well thought out and functional. Sometimes the screen is hard to read on the front, but there is a nice backlight. But hey it's all about the sound.
Sound:
The device reproduces sounds accurately with no noticable background noise if you record in PCM or MP2 mode. I can hear some noise artifact with MP3 compression. But with PCM it's awesome.
Ease of Use:
It's quite simple right out of the box. Use the internal microphone, hit RECORD, then hit PLAY. But there are plenty of options beyond that. I use it to record from my mixers LINE-OUT and it sounds awesome. It is possible to configure it to sound bad, but if you take the time to set it up and read the manual you will be happy. Using the line inputs you will have S/N of 86dB as compared to 65dB with the MIC input. So have a brain and use the line input. Use a quiet preamp and enjoy the dynamic range you get.
Support:
No need for support yet. But I believe the best support is to buy quality in the first place. This has it.
Overall:
I'll use it untill it (or I) turn to dust. What a phenomenal way to record live music. I have a 2GB flash drive that will record 36 hours with MP2 compression. Files transfer quickly to your MAC or PC with a USB cable. All the files can be imported into iTunes. You can burn the MP3 and PCM files to a CD. (I don't know how to get the MP2 files to burn). Imagine burning a CD of your rehearsal session and giving it to the guys while they get their coats on. Pretty cool.
Submitted: 01/25/2008
Style of Music: Jazz
10 out of 10
zZounds has verified that this customer bought this product from us.
"MY REPAIR EXPERIENCE"
Support:
I wanted to update my comments having had this product for over a year and a half now. One day it just stopped working, wouldn't turn on with fresh batteries or power. It was out of warranty so I opened it up to look around. I have a masters in engineering and have been paid good money to troubleshoot equipment far more mission critical and expensive than this. I was looking for obvious signs of excessive heat (not likely) or corrosion. In my experience, problems often arise with corroded connectors or cold solder joints or perhaps a broken wire, rather than the board or integrated circuits. I didn't see anything obvious so I called Marantz and was quickly referred to their repair center. I got a real person right away, no muzak, phone button menu maze, hour wait on hold. None of that. I returned the recorder to the repair facility and received it back in good working order in about 3 weeks. The cost was 230. Thats a lot of money but I think the device is worth it. They indicated that it was a problem with one of the connectors which as I recall required cleaning. Really, I blame myself for the recorders failure. Although it is billed as a field recorder, I don't think it is prudent to expose it to the environmental extremes that I did. I never used a case; that would have helped. I left it in the cold car for extended periods (northern US January cold) alternating with frequent trips into warm humid indoor spaces. I dropped it, I banged it, I used it constantly. I left it sitting in the hot sun in the car in July. My advise - don't do that. Be nice. Pretend it's your puppy. Then it will last for years.
Overall:
After using this recorder for 18 months, I have found nothing not to like. Sound - great. PCM 16 bit is all I would ever need. 2 Channels - plenty. Condenser mike-- to XLR input - Phantom power on - Pad on for loud live recording (thats me) - record to 2GB compact flash - trans file to Computer - burn to CD - (or to iPod) - get in car (plane, bus, bike, trail) Listen. AWESOME. Give copies to bandmates after practice or gig, so that they can pick up their game. I would buy one again today if I had to. You should too.
I wanted to update my comments having had this product for over a year and a half now. One day it just stopped working, wouldn't turn on with fresh batteries or power. It was out of warranty so I opened it up to look around. I have a masters in engineering and have been paid good money to troubleshoot equipment far more mission critical and expensive than this. I was looking for obvious signs of excessive heat (not likely) or corrosion. In my experience, problems often arise with corroded connectors or cold solder joints or perhaps a broken wire, rather than the board or integrated circuits. I didn't see anything obvious so I called Marantz and was quickly referred to their repair center. I got a real person right away, no muzak, phone button menu maze, hour wait on hold. None of that. I returned the recorder to the repair facility and received it back in good working order in about 3 weeks. The cost was 230. Thats a lot of money but I think the device is worth it. They indicated that it was a problem with one of the connectors which as I recall required cleaning. Really, I blame myself for the recorders failure. Although it is billed as a field recorder, I don't think it is prudent to expose it to the environmental extremes that I did. I never used a case; that would have helped. I left it in the cold car for extended periods (northern US January cold) alternating with frequent trips into warm humid indoor spaces. I dropped it, I banged it, I used it constantly. I left it sitting in the hot sun in the car in July. My advise - don't do that. Be nice. Pretend it's your puppy. Then it will last for years.
Overall:
After using this recorder for 18 months, I have found nothing not to like. Sound - great. PCM 16 bit is all I would ever need. 2 Channels - plenty. Condenser mike-- to XLR input - Phantom power on - Pad on for loud live recording (thats me) - record to 2GB compact flash - trans file to Computer - burn to CD - (or to iPod) - get in car (plane, bus, bike, trail) Listen. AWESOME. Give copies to bandmates after practice or gig, so that they can pick up their game. I would buy one again today if I had to. You should too.
Submitted: 04/22/2009
