Marantz PMD661 Professional Portable Field Recorder

Manufacturer's Description for Marantz PMD661 Professional Portable Field Recorder

Based on the innovative design of our hugely popular PMD660, the rugged and robust Marantz PMD661 incorporates a wide range of technical advances and convenience features that help it excel in virtually any application. Big enough to accommodate dual XLR microphones and light enough for handheld use, the PMD661 offers exceptional recording quality in literally any location.

Features
# Digital recording at 44.1/48/96 kHz sample rate at 16 or 24-bit quantization

# Uses stable, reliable SD or SDHC memory cards

# WAV (Broadcast WAV File) or MP3 recording format

# Large, easy-to-read OLED display

# Ergonomic, one-touch transport controls

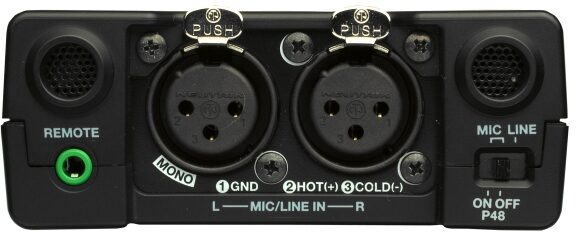

# Two XLR inputs, mic/line switchable with +48V phantom power

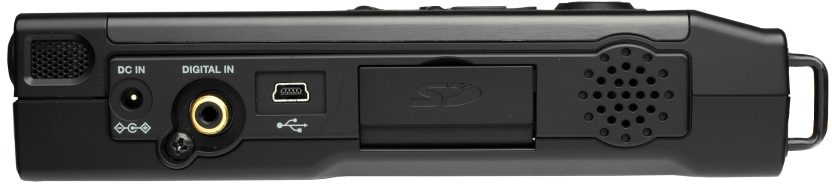

# S/PDIF digital input, plus a spare 1/8-inch stereo line in

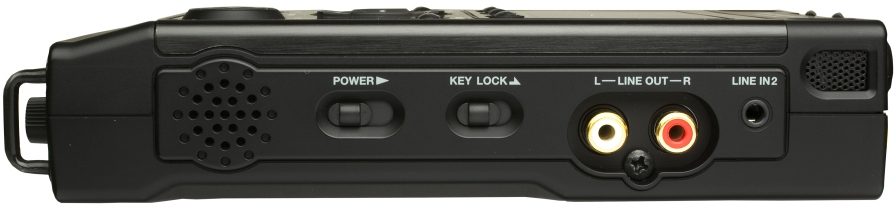

# RCA stereo line level outputs

# USB 2.0 port for easy file transfer

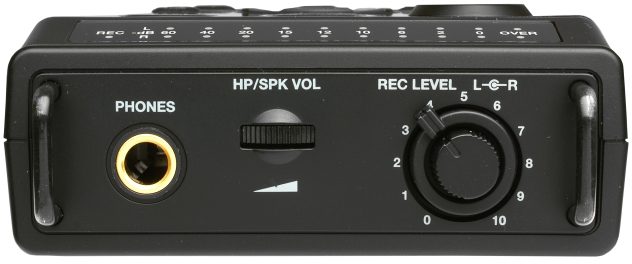

# Quarter-inch headphone jack with volume control

For critical field applications like electronic news gathering, sound capture on location and music recording, the PMD661 provides the audio precision of 24-bit, 96 kHz digital recording. Its exceptional resolution and file-based architecture makes it perfect for critical stereo recording of music and sound effects in the field, while true mono recording and lower bit rates make it equally appropriate for meetings, conferences, legal proceedings and podcasts. The ergonomic control panel, one-touch transport system and large, bright OLED display make it easy for both seasoned pros and first-tine users to record with confidence. This portable solid-state recorder uses readily available SD or SDHC media cards, and gets over five hours of operation from four AA alkalines.

From inputs to output, for recording, editing and playback, the Marantz PMD661 packs a wealth of functionality in a compact, ergonomic package. With full support for professional microphones, comprehensive record, playback and editing capabilities at a very reasonable price, the PMD661 puts the future of field recording in the palm of your hand.

High-resolution Digital Recording
The PMD661 records directly onto SD or SDHC solid-state media, providing hours of reliable digital capture with no moving parts. Choose from 44.1, 48 or 96 kHz sample rates at 16- or 24-bit quantization, creating either .WAV (BWF) file or MP3 files at a choice of multiple bit rates. Upgraded mic preamps and input level control assure full performance from outboard mics, and both stereo and true mono recording are supported.

Professional Hardware
From input to output, the PMD661 offers full-featured, professional hardware. Two mic/line switchable XLR inputs accept outboard microphones, while the S/PDIF input handles digital transfers. The XLR inputs can provide full 48V phantom microphone power, and exceptional onboard preamps assure exceptional performance. In addition, two high quality condenser mics and stereo speakers are fully integrated into the body, while a rugged 1/4-inch headphone jack with volume control accepts professional headphones. Finally, a USB 2.0 port makes file makes file transfers a breeze – just connect the PMD661 to any computer and drag and drop to your desktop.

Ergonomic Design

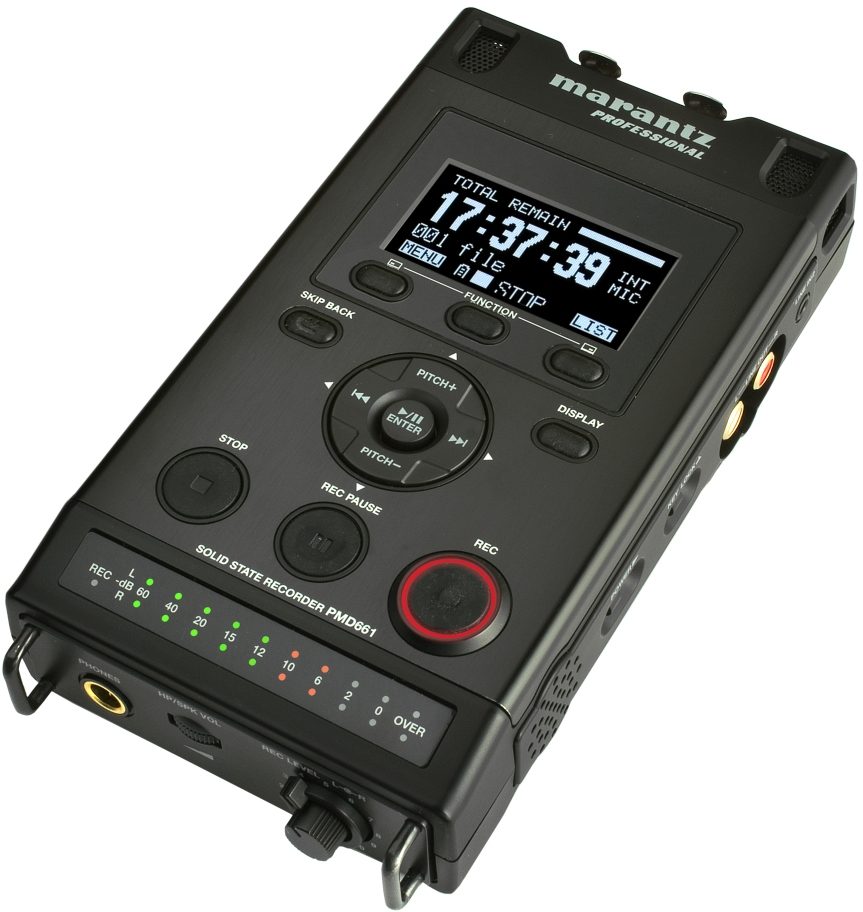

The large, easy-view OLED display on the PMD661 front panel provides at-a-glance system status, with multifunction buttons under the display screen that prompt the user through recording, editing and file marking with ease. The one-touch transport system makes recording, playback, and transcription operations intuitive and straightforward. Tracking audio levels is easy with the 10-segment LED meter, cleverly angled for easy viewing from the front or the top.

Editing and Playback Features
Whether monitoring audio, editing digital files or transcribing, the PMD661 offers a full range of tools to assist you. Copy Segment and File Divide functions allow instant field editing. In addition, the included PMD Mark Editor software provides extensive editing functions on PC for immediate distribution. A lithium battery tracks real time, allowing Timer Record and Timer Playback. Transcription functions include playback pitch control and user-definable skipback.

Rugged Portability
The size, weight and construction of the PMD661 are carefully designed to provide lightweight portability, tabletop stability and field-worthy ruggedness. Four AA alkalines provide over five hours of record time, and NiMH rechargeables are also accommodated. The case is made from high-impact ABS plastic with metal faceplate, and the XLR and headphone jacks are ruggedized for field use. The PMD661 also features an integral tripod adapter, allowing it to be mounted on camera tripods or mics stands. zZounds is an authorized dealer of Marantz products.

Specifications

Digital Audio System
System: Solid State Recorder

Usable Media: SD / SDHC Cards Recording Format

MP3: MPEG1 Layer III Compression

WAV: 16 / 24-bit linear PCM

Recording MP3 bitrate: 320 / 256 / 192 / 128 / 64 kbps

Sample Rate: 44.1 / 48 / 96 kHz

Number of channels: 2 (stereo) / 1 (mono

Audio Performance
Frequency Response: 2 channel stereo

S/N Ratio (IEC-A Weighted):
- MIC: 65 dB
- LINE: 85 dB

Total Harmonic Distortion (at 0 VU):
- MIC: 0.08%
- LINE: 0.02%

Dynamic Range: 85 d

Inputs
External Mic
Type: XLR stereo jack

Input Sensitivity: 1.2 mVrms / 4.2 kohms

LINE 1:
- Type: XLR stereo jack
- Input Sensitivity: 0dBu / 4.2 kohms

LINE 2:
- Type: 1/8-inch stereo jack
- Input Sensitivity: 500 mVrms / 20 kohm

Outputs
LINE 1:
- Type: RCA stereo jack
- Input Sensitivity: 2.0 V / 10 kohms

HEADPHONE:
- Type: 1/4 in. stereo jack
- Input Sensitivity: 16mW / 32 ohms

SPEAKER:
- Standard Level: 450 mW / 8 ohms

General

Power Consumption
Recording / Playback: 4.2 W (DC)

Battery Life (Alkaline): 5 hours (typical)

Phantom Power: 48V, 10mA (max) Power

AC Adapter: DA620PMD (included)

Batteries: 4xAA alkaline dry cell batteries or 4xAA NiMH rechargeable batteries

Backup Battery: Lithium battery for real-time clock

Environmental Conditions
Operational Temperature: 0 - 40 degrees C (32 - 104*F)

Operational Humidity: 25 - 85% (no condensation)

Storage Temperature: -20 - 60 degreesC (-4 - 140 degrees F)

Dimensions
Width: 93mm (3.7 in.)

Height: 165mm (6.5 in.)

Depth: 36mm (1.4 in.)

Weight (excluding batteries): 410g (14 oz.)
