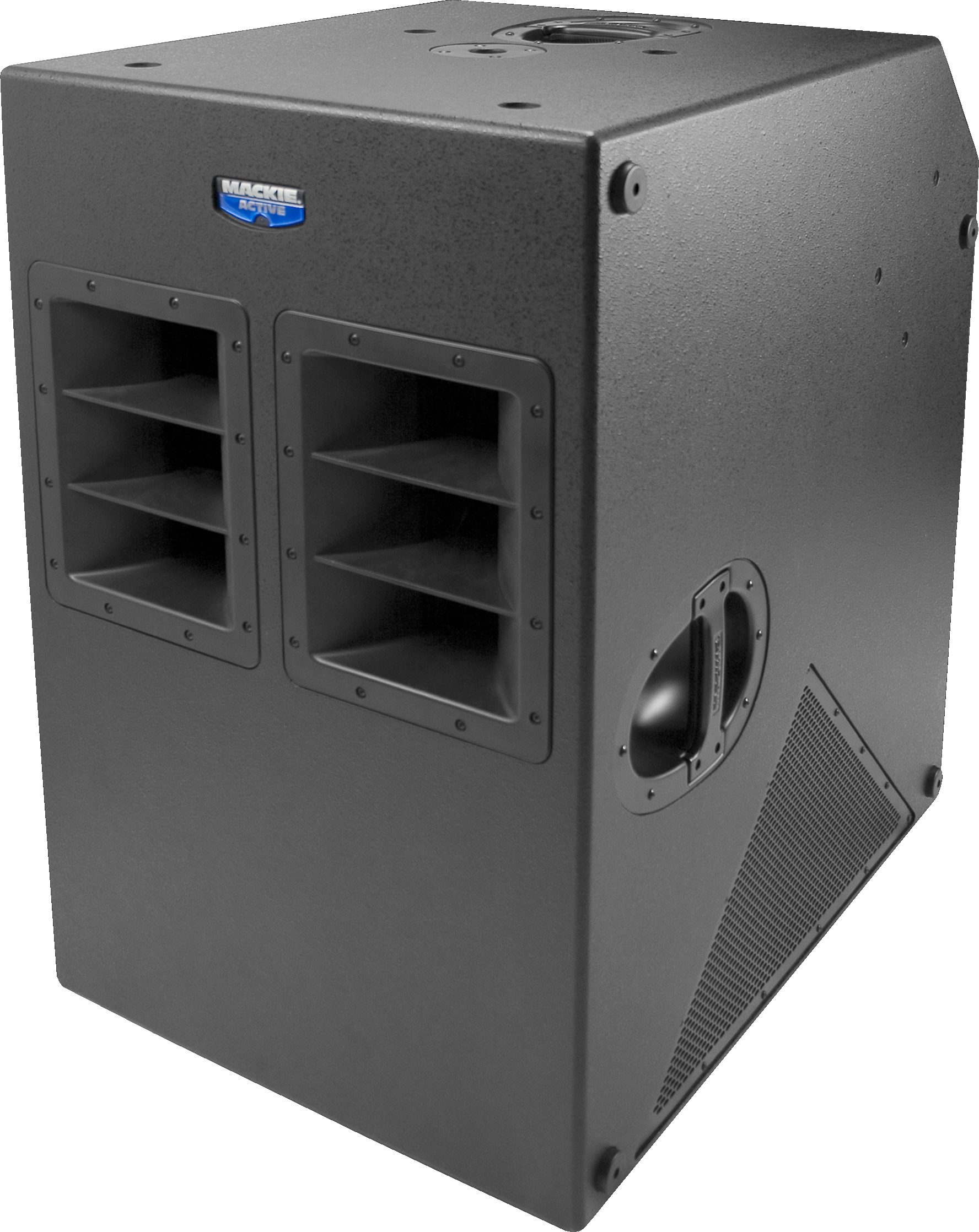

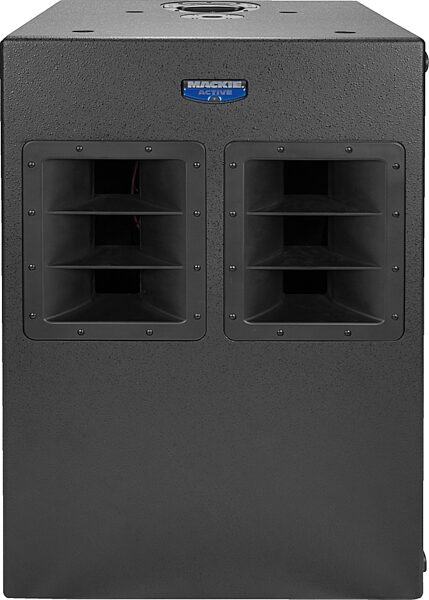

Mackie SWA2801z Powered Subwoofer (800 Watts, 2x18 in.)

Building on the technology that spawned the highly acclaimed SWA1801, the Mackie SWA2801z features an 800-Watt FR (Fast Recovery) Series amplifier and dual high-precision 18 in. transducers mounted in a custom designed enclosure. The SWA2801z was intentionally over-engineered for both durability and performance by the world-renowned loudspeaker gurus at EAW (Eastern Acoustic Works). Onboard Mackie Active electronics ensure seamless integration of the amplifier and transducer at all times, creating a system that is highly efficient and versatile. This all adds up to a high-output system that'll shake the dust from the rafters!

Features:
800-watt dual 18 in. Active subwoofer system

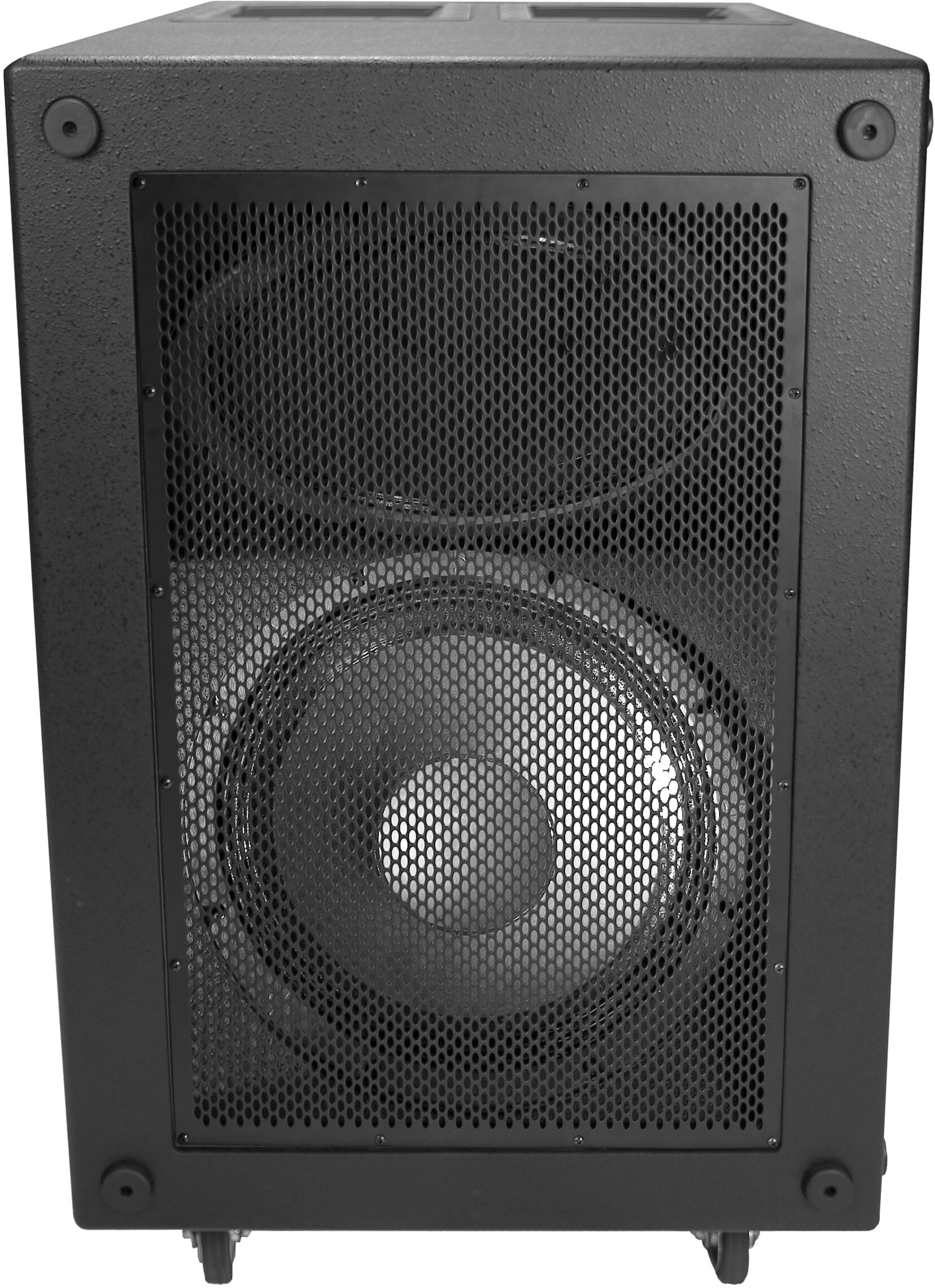

2 precision 18 in. woofers with high temperature voice coils

Internal 800-Watt continuous power FR Series high-current amplifier

Onboard Active electronics provide equalization and high-pass filter for use with full-range loudspeakers

Peak SPL: 136dB @ 1 meter

Frequency Response: 33Hz200Hz

Signal present and limit LEDs

13-ply Baltic Birch enclosure finished in black splatter paint

Top and side mounted pole receptacles

Cast aluminum top & side handles

Attached casters for easy transport

True Mackie Active Design
Active doesn't just mean the SWA2801z has an amplifier bolted on its back -- it means optimized electronics that provide complete control and maximum performance over all components. The onboard Active system controls the crossover filters, equalization, protection for the transducer and electronics, and provides real time vigilance over the entire system. There is simply no way that you can get this kind of full system functionality by strapping an amp on the back of a passive speaker box.

Crossover Built Right In

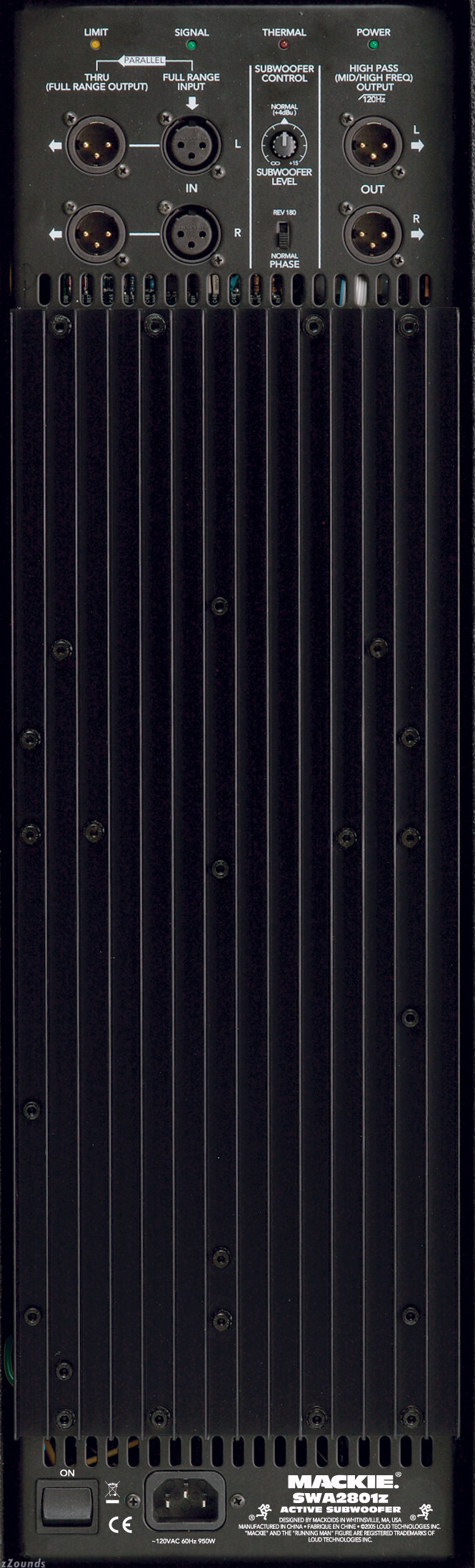

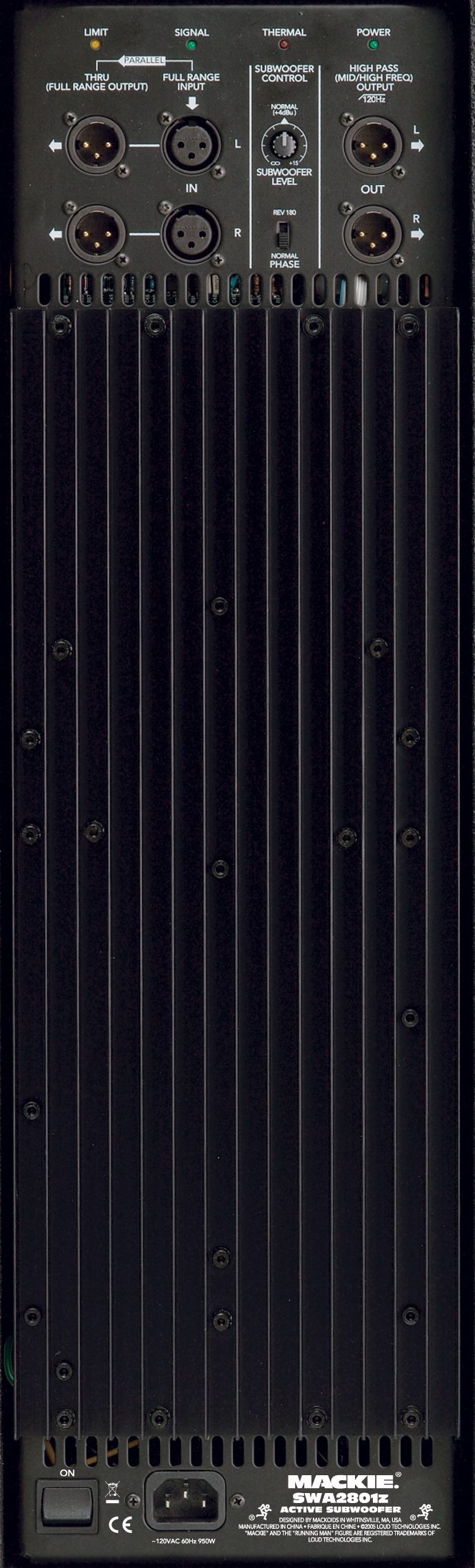

Connecting and setting up the SWA2801z couldn't be easier. It accepts a stereo or mono line-level signal via female XLR input jacks. Male XLR Thru jacks are provided for daisy-chaining the signal to additional SWA2801z cabinets. The built-in crossover routes the high frequency content to the high-pass output jacks, which can be used to feed the inputs of full-range Active speakers, such as those in the Mackie SAz Series, or an amplifier powering a pair of passive speakers. A Subwoofer Level control lets you adjust the balance between the subwoofer and the full-range speakers.

800 Watts of Chest Pounding Power

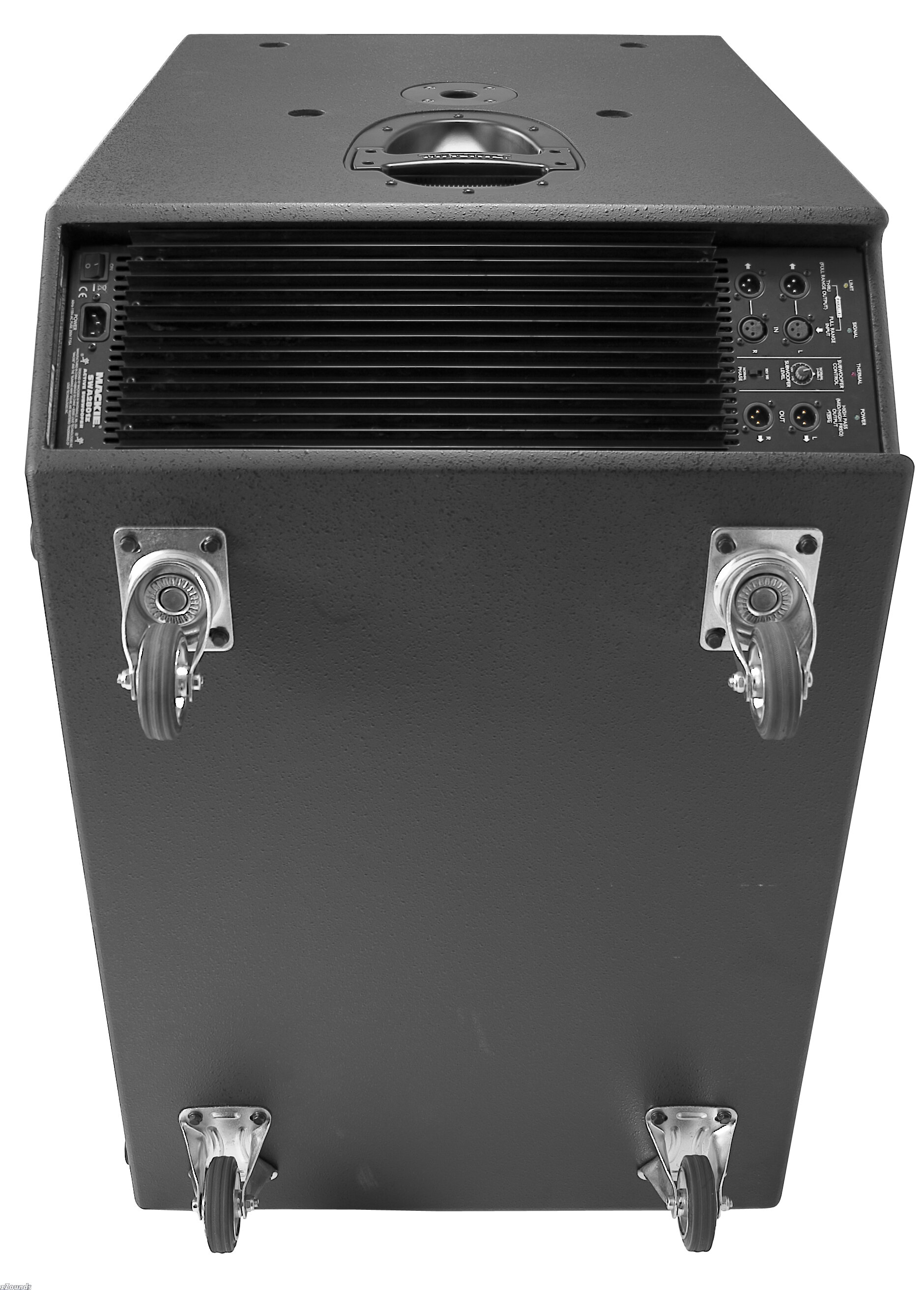

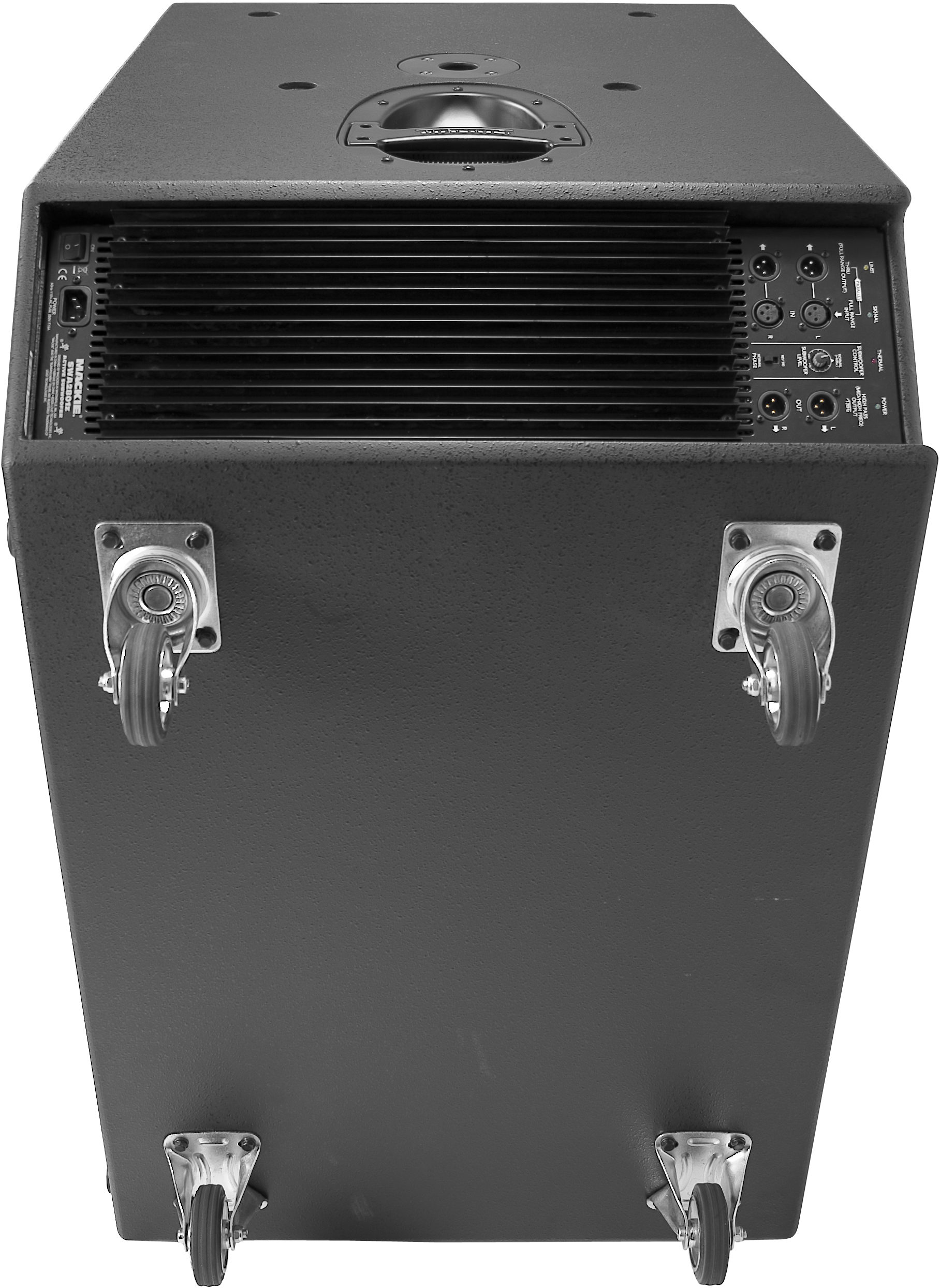

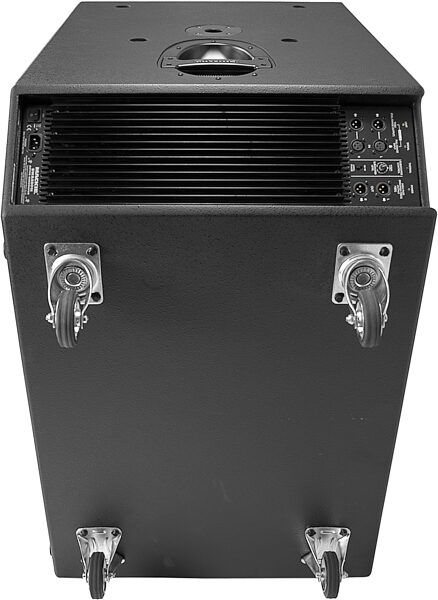

The onboard amplifier, which produces 800-Watts continuous power, sits on a massive heatsink, eliminating the need for fans and dramatically extending life expectancy. A tremendous benefit of having the amplifier inside the subwoofer enclosure is that the SWA2801z functions as a complete system, optimizing acoustic, electronic, and mechanical designs to achieve the highest level of performance and value.

Versatile Placement

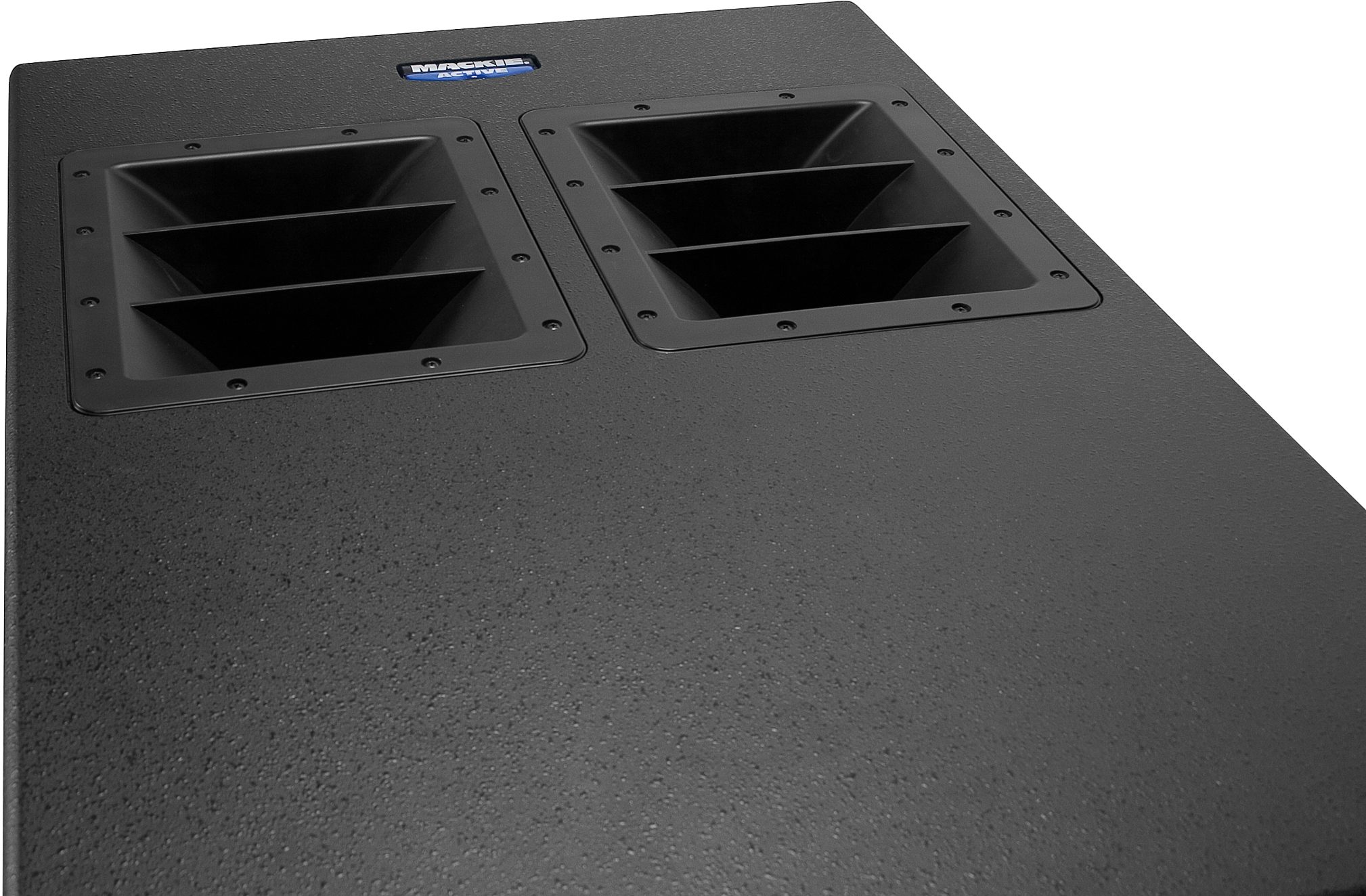

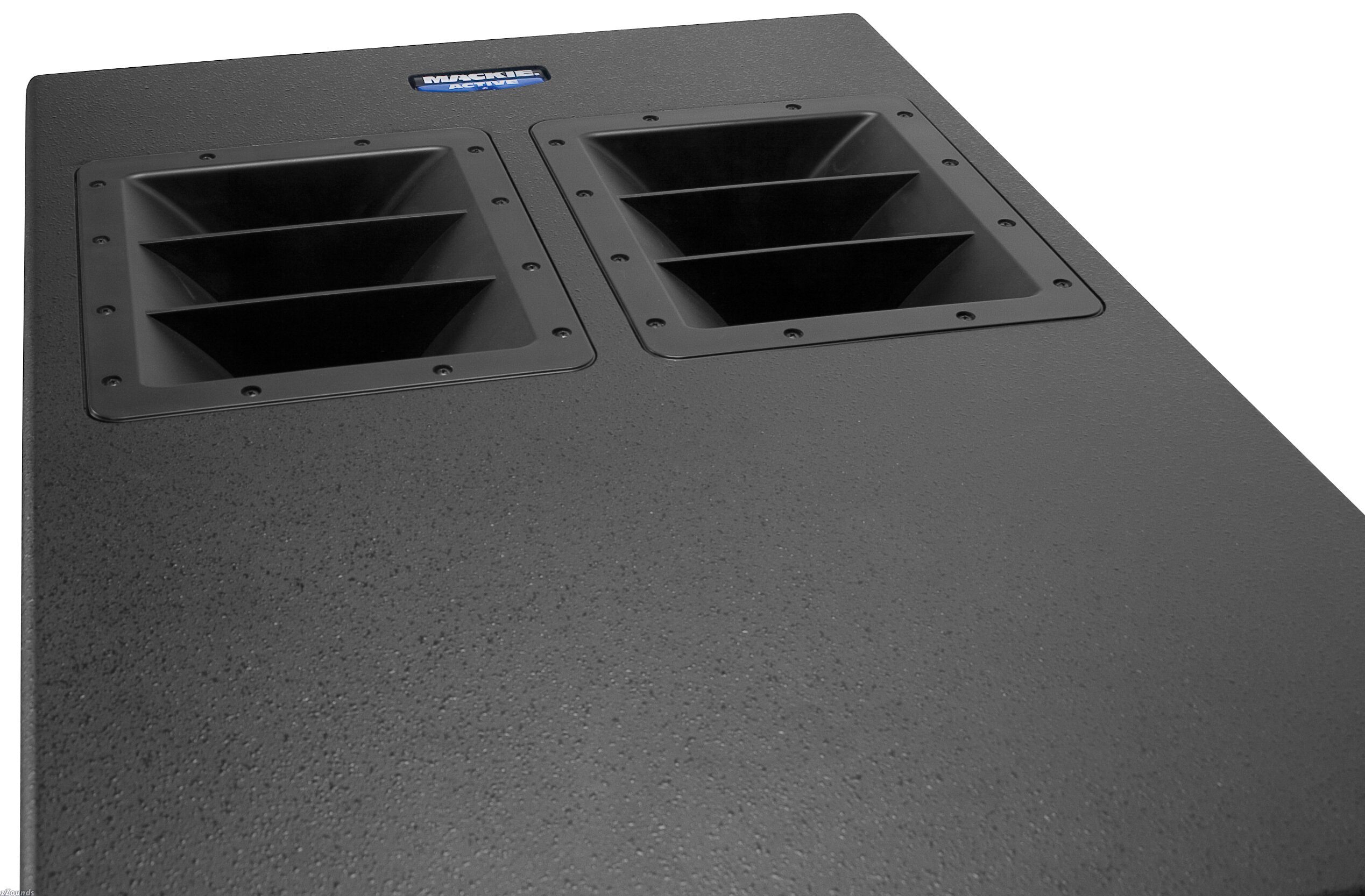

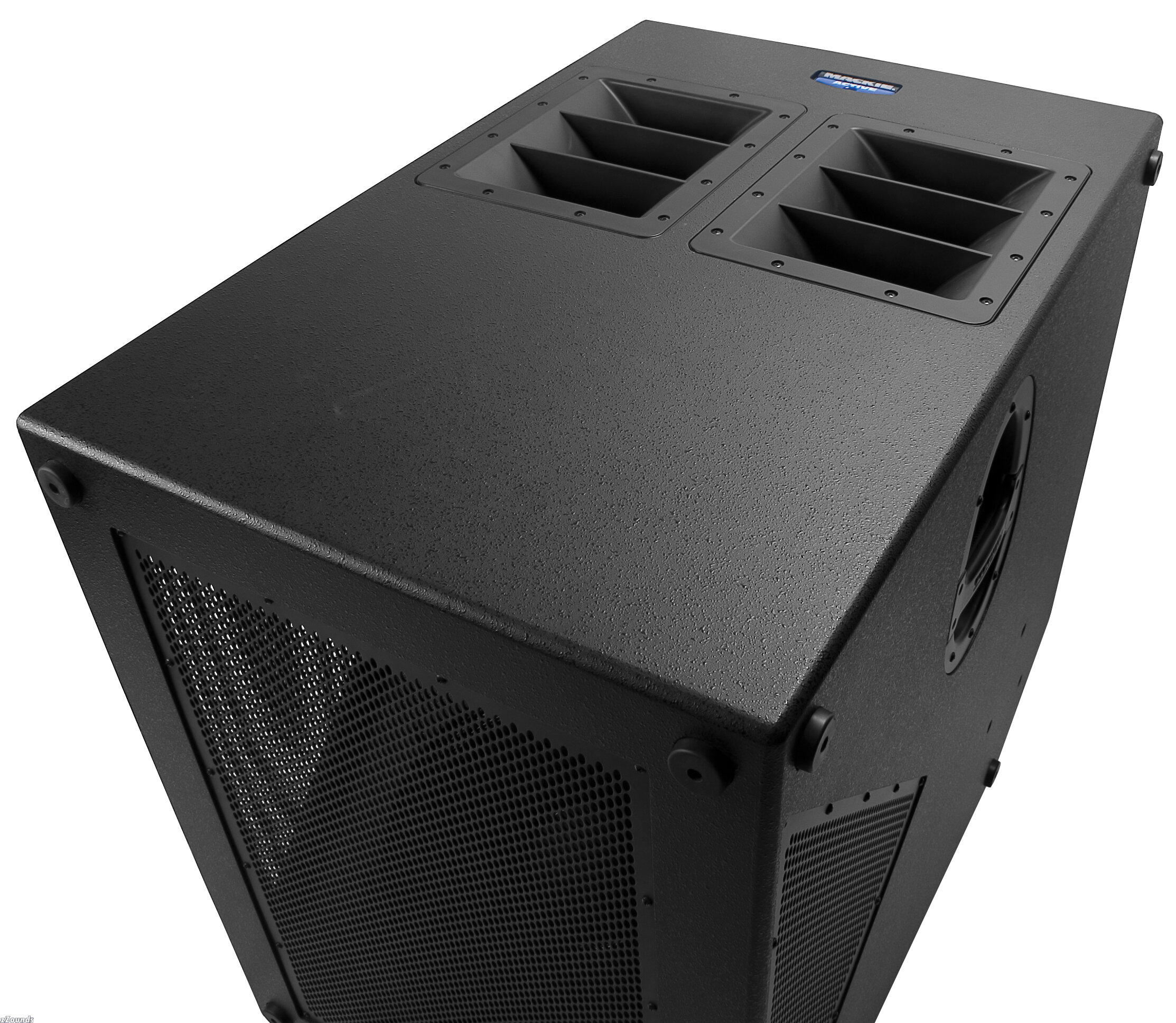

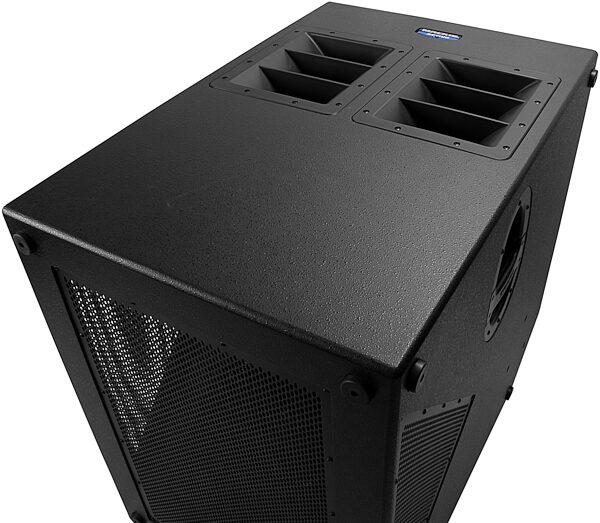

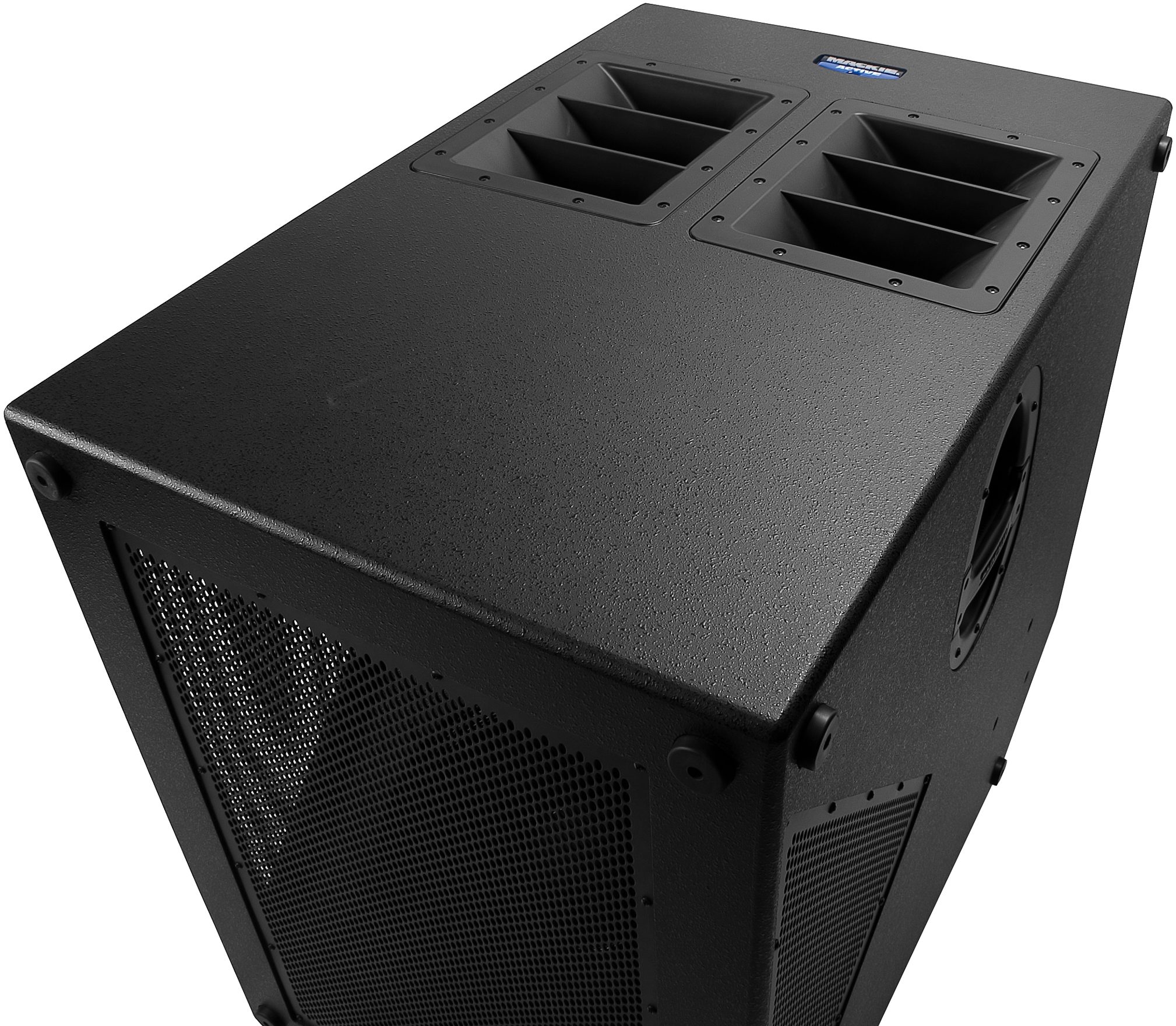

The SWA2801z subwoofer is designed to sit on the floor, either upright or on its side. (Feet are provided on the bottom and on one side.) A pole mount cup (socket) is provided on the top and on one side of the SWA2801z for mounting Active loudspeakers such as the Mackie SA1521z, SR1521z, SRM450 or SRM350. Amplified passive systems such as S200, C300z or S408 can also be deployed in this manner. (When pole-mounting loudspeakers on the SWA2801z, please use the Mackie SPM100 and only with recommended models.) Additionally, footholds are embedded in the cabinets top and side that allow for stacking of Mackie's larger Active speakers such as the SA1532z.

Solid Real Wood Construction

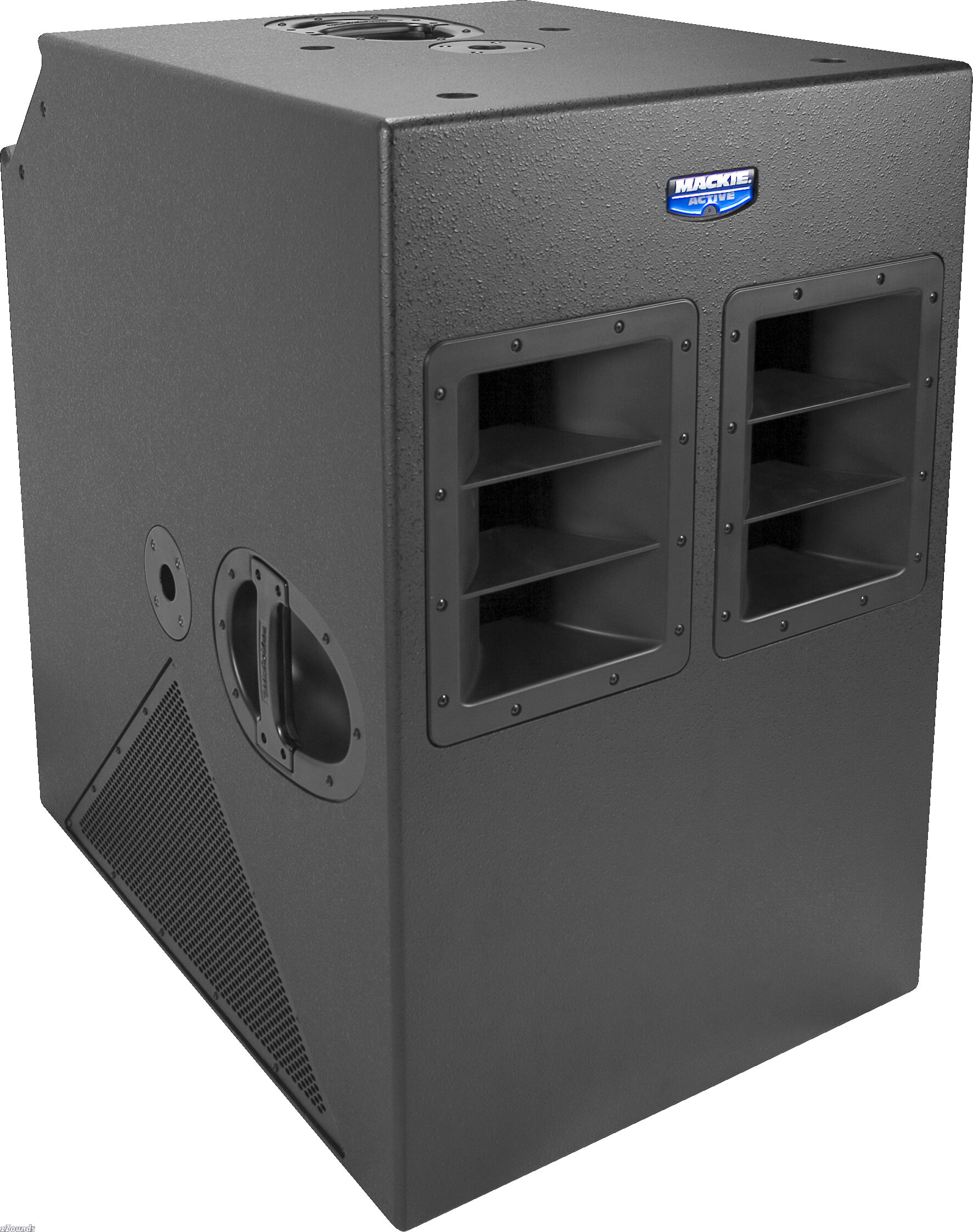

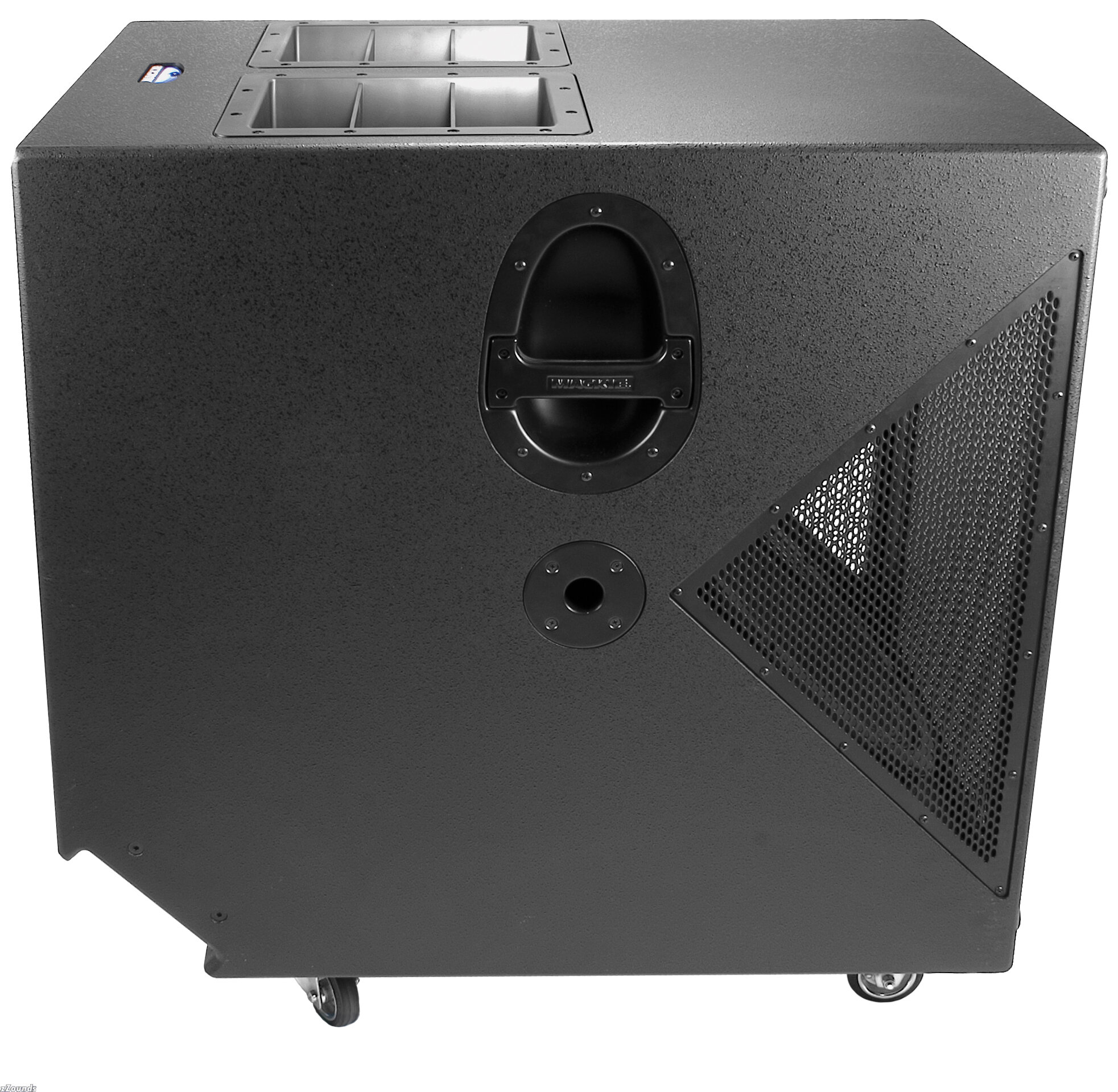

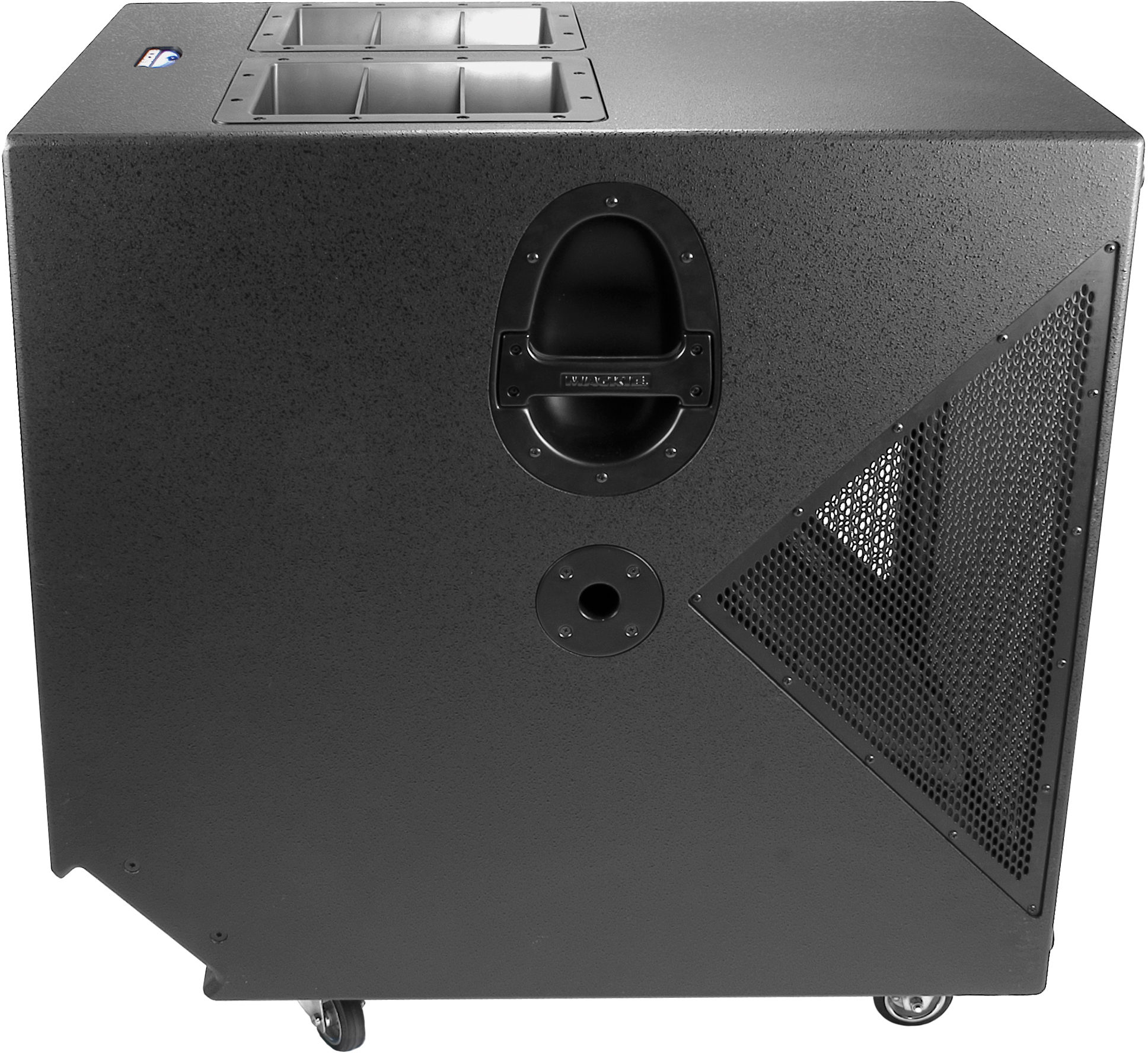

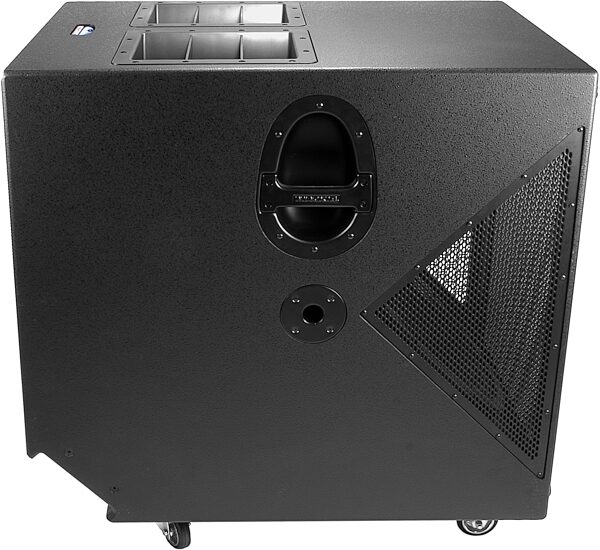

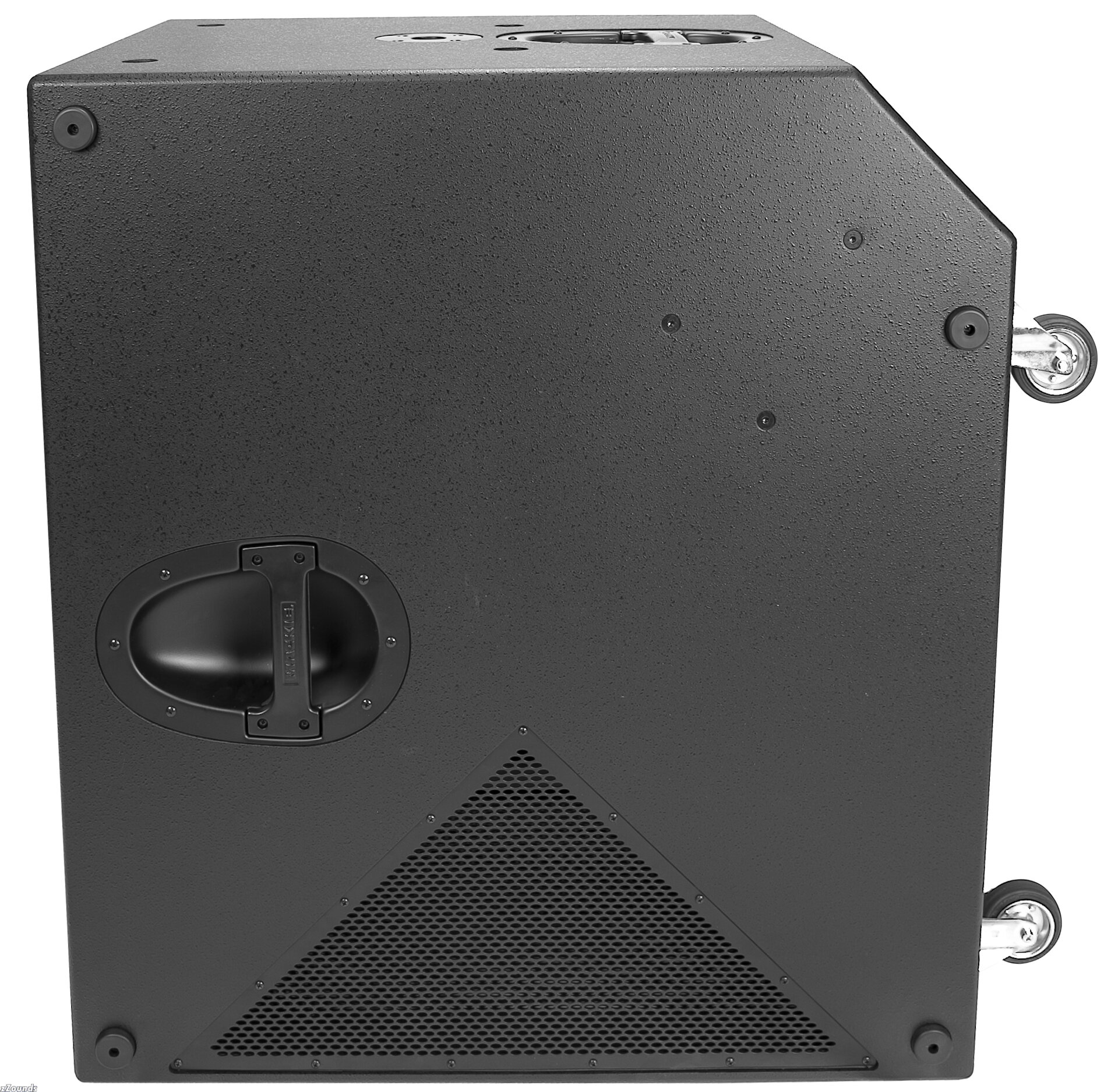

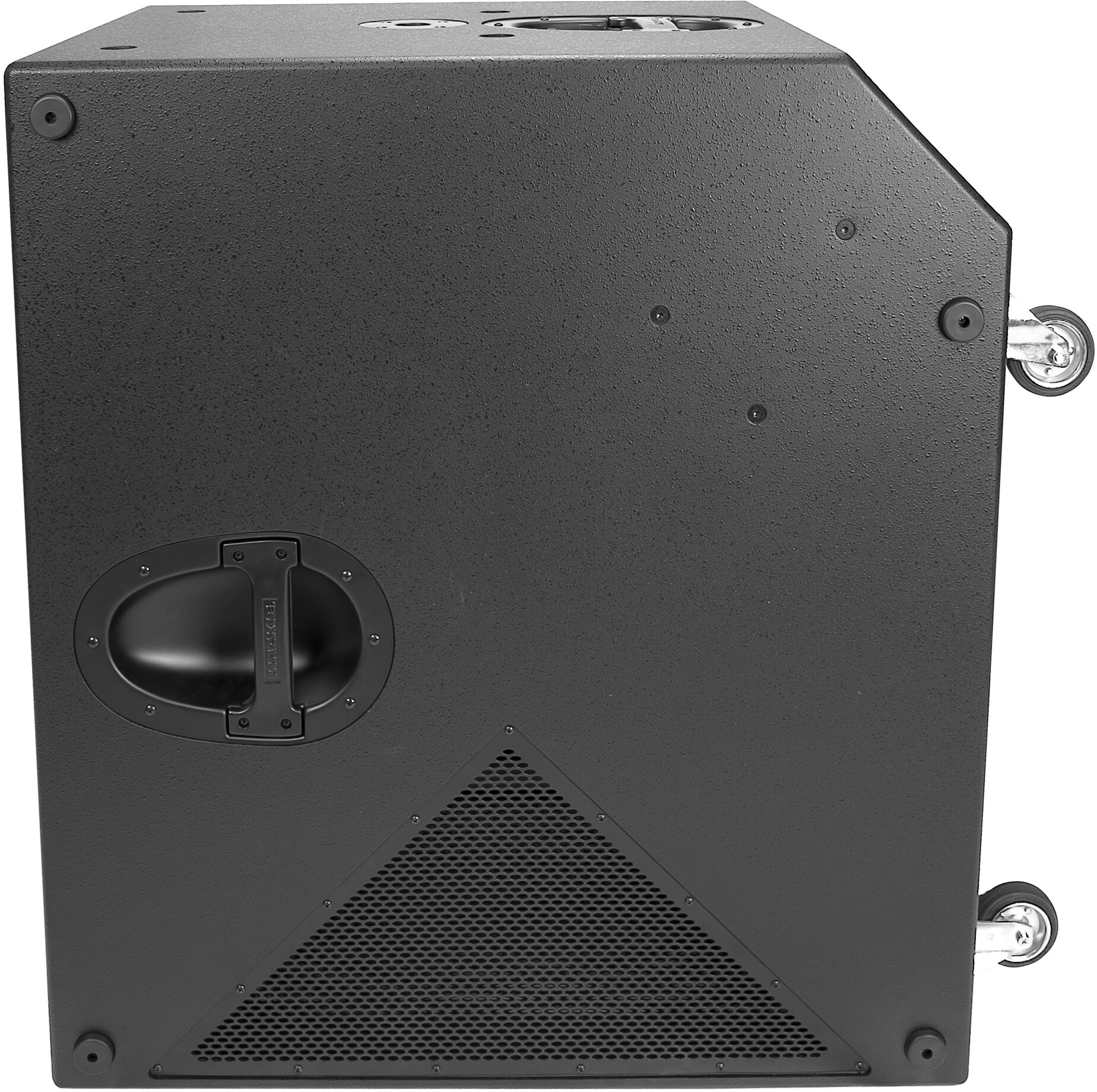

For high-output loudspeakers, real wood just sounds better -- and it looks better, too! The SWA2801z enclosure is made of select 15mm Baltic birch plywood and finished in black splatter paint. Carrying handles are integrated into each side for easy loading, and casters are attached to the rear for smooth transport.

Technical Info

General
Freq Range (3 dB): 43 Hz - 120 Hz

Freq Range (10 dB): 33 Hz - 200 Hz

Maximum SPL @ 1m: 130 dB

Peak Output SPL @ 1m: 136 dB

Crossover Frequency: 120 Hz

Input Type: Balanced differential

Input Protection: Level protected

Thermal Protection: Input stage muting, auto-reset

Input/Output
Input: Stereo bal/unbal. female XLR

Input Impedance: 50k ohms

Loop Through: Stereo bal/unbal. male XLR

High-Pass Output: Stereo bal/unbal. male XLR

Level Control: Rotating knob, center detent, off to +15 dB)

Phase Control: (0- 180 degrees) Recessed Sliding Switch

Transducer Specifications
Diameter: 18 in. (457 mm)

Voice coil diameter: 4 in. (102 mm)

Power Amplifier
Rated Power: 800 watts continuous, 1000 watts peak

Rated THD: < 0.03%

Cooling: Passive

Line Input Power
US Model: 120 VAC, 60 Hz

Recommended Amperage Service: 15A

European Model: 230 VAC, 50 Hz

Recommended Amperage Service: 8A

Physical Properties
Height: 37.00 in./939.8 mm

Width: 24.62 in./625.3 mm

Depth: 34.00 in./863.8 mm

Weight: 154 lbs./70 kg

Enclosure: 15 mm thick multilayer Baltic Birch wood

Mounting Methods: Floor mount only

Warning: The cabinet has no rigging points and is not suitable for rigging. NEVER attempt to suspend the SWA2801z by its handles.

With casters, dual 18" woofers, 1000 watt peaks, and 33Hz-200Hz frequency response.
