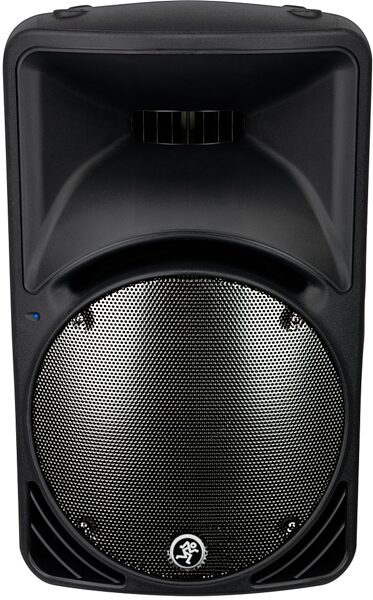

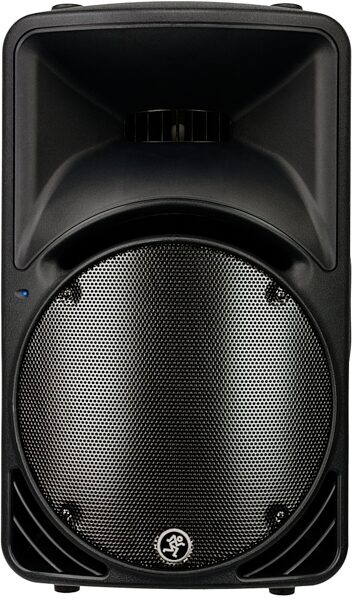

Product Description

The Mackie SRM450v2 delivers live sound that sounds like it should. The SRM450v2 Active loudspeaker combines superior quality with innovative technology to bring ultimate performance - and reliability - to Mackie's legendary Sound Reinforcement Monitor (SRM) series. The Mackie SRM450v2 retains the best of the original SRM design, including Mackie signature Active architecture and its renowned rugged durability. But with ultra-efficient switching power supplies, a lightweight neodymium woofer, a redesigned compression driver and Class-D Fast Recovery amplification (300W LF/100W HF), the SRM450v2 packs way more power, clarity and punch. And its wide dispersion, outstanding bass extension and ultra-low distortion mean the SRM450 v2 delivers pure studio monitor fidelity at full-on loudspeaker levels. Thanks to the Mackie SRM450v2, live has never sounded so good.

SRM v2 Speakers

It started with the SRM Series. The first and only portable loudspeakers with Mackie Active electronics, the SRM Series delivered superior sound, performance, and affordability-and were a true breakthrough in live sound technology. They fast became the most popular and relied upon Active loudspeakers in the world, launching a full-on movement in live sound.

Now, thanks to the SRMv2 Series Portable Active Loudspeakers, live sound is being rocked by an energetic movement. Featuring powerful Class-D Fast Recovery amplifiers, with an ultra-efficient, heat-minimizing switching power supply, the SRMv2 loudspeakers are made to be loud and stay cool-even when driven at top volume, all night long. Plus, the neodymium woofer with 3-inch voice coil and heat-treated titanium compression driver, the SRMv2s deliver even more punch and clarity than the original SRM loudspeakers. The SRMv2's portable loudspeakers are more lightweight than their predecessors-- the SRM450v2 weighs 11 pounds less, and the SRM350v2 weighs 6 pounds less.

Features:

- 2-way bi-amplified, optimized Active loudspeaker system
- High-output precision titanium compression driver
- Neodymium long-throw low frequency transducer with 3-inch voice coil
- Servo Feedback controlled woofer for tight low-end punch
- 300W class-D, Fast Recovery LF amp / 100W HF amp
- Ultra-wide, smooth dispersion via multi-cell horn aperture and HF waveguide
- Built-in phase-accurate 24dB Linkwitz-Riley electronic crossover
- Mackie Active Electronic time alignment, phase correction and EQ for studio quality sound
- Mic/line input and pass-thru connector
- Lightweight for ultimate portability (40 lbs)
- Flyable, Pole Mountable, Floor Wedge-able

"SRM" Stands for Sound Reinforcement Monitor

Over a decade ago, Greg Mackie and a dedicated team of engineers set out to create a portable loudspeaker that could deliver studio monitor sound quality. Unlike a relatively small, acoustically controlled studio where the "sweet spot" is well defined, live venues vary greatly, and most are far from acoustically balanced. Despite the challenges, after two years of extensive research and development, the first Sound Reinforcement Monitor was born-a loudspeaker that truly lived up to its name. The SRM450v2 continues the SRM450's tradition of studio monitor sound quality-and trumps it-to deliver sound that makes any venue seem like a well-tuned studio.

Ultra-Wide Dispersion Pattern

Undoubtedly you've been to a show where the sound is all over the map-stand in front of the band, it sounds okay, but move a little to your left or right and all of a sudden you've got mud in your ears. When the SRM450v2 loudspeakers are on stage, no matter where you stand, you hear sound with impeccable stereo imaging, depth of field and definition-at full-on loudspeaker levels. This is due to the Mackie SRM450v2's wide dispersion pattern, which is achieved through its multi-cell horn throat aperture. To those of you whose eyes just glazed over, let's just tell you what it does-the multi-cell horn throat aperture allows for much wider and more even dispersion of high and mid frequencies, so whether you're listening intently front and center, or playing it cool on the perimeter, you'll hear the same great mix.

Stunning Bass
Many portable loudspeakers produce lows that lack substance-they just don't have it in 'em to give you that chest-pounding punch. But the SRM450v2 delivers astonishingly deep and defined bass frequencies. In fact, it outperforms the original SRM450, which was renowned for its ability to deliver real low-down sound. That's thanks to Mackie SRM450v2's servo feedback technology combined with its neodymium woofer and 3-inch voice coil.

Based on Mackie's award-winning HR824mk2 studio monitor technology, the servo feedback damping electronic circuit within the Mackie SRM450v2 locks the woofer in place with the positive and negative outputs of the amplifier. This creates a solid direct-coupling that allows the Mackie SRM450v2 to deliver extremely deep bass from a small cabinet. And the neodymium woofer's magnet is lighter in mass, therefore faster than ceramics, giving the Mackie SRM450v2's bass more punch. The longer 3-inch voice coil allows the woofer to handle heat more efficiently, so it produces a consistently full dynamic range-even at maximum output. So you get full, thumping, detailed lows, even after long hours of use at near-peak volumes.

Super-Low Distortion

With its combination of Class D topology and Fast Recovery circuitry, the SRM450v2 operates with incredible efficiency, and delivers much more power and clarity. With this Class D Fast Recovery amplification, as Mackie has lovingly (and creatively) dubbed the technology, the Makie SRM450v2 handles maximum volume-and associated heat-with ease, so there's no unwanted noise, and no thermal problems. Even after hours of sustained use at near-peak levels, your sound remains clean and your SRM450v2 keeps cool.

Legendary Mackie Active Electronics
In a passive loudspeaker setup, an external amplifier is connected to a passive crossover inside the speaker, which distributes frequencies to the transducers. Because power amps and transducers vary widely in sound and quality, trying to match the right power amp with the right speaker can be challenging, especially if you're not a professional acoustic technician-or rolling in cash so you can hire one. Mackie's proven Active design does all the work for you. With the SRM450v2, you get a complete loudspeaker system, with complex electronics and carefully chosen components, all precisely tuned and tweaked to work together. The result is a loudspeaker with phenomenal sound quality and power, that's completely plug-and-play-no EQ needed.

Built-in Protection Circuitry

Mackie knows that their Active loudspeakers are pushed hard-often to, or beyond, the limit. That's why they have reliable protection circuitry built in to every one. The Mackie SRM450v2 employs a built-in limiter for less distortion at peak levels, and an automatic sliding high pass filter to give you that little bit extra volume when the crowd demands more. And thanks to the advanced technology of its power supply and Class-D amp topology, the Mackie SRM450v2 is greater than 90 percent efficient-more of the power from your outlet goes straight to the transducer, without the power supply and amp giving off loads of heat. Less heat means better performance, and longer life.

Versatile, Portable, Tough--And They Look Good, Too

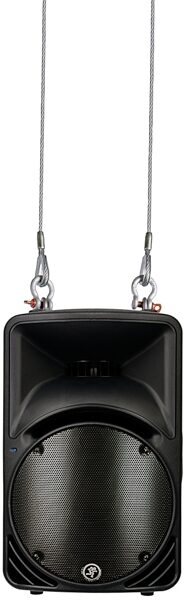

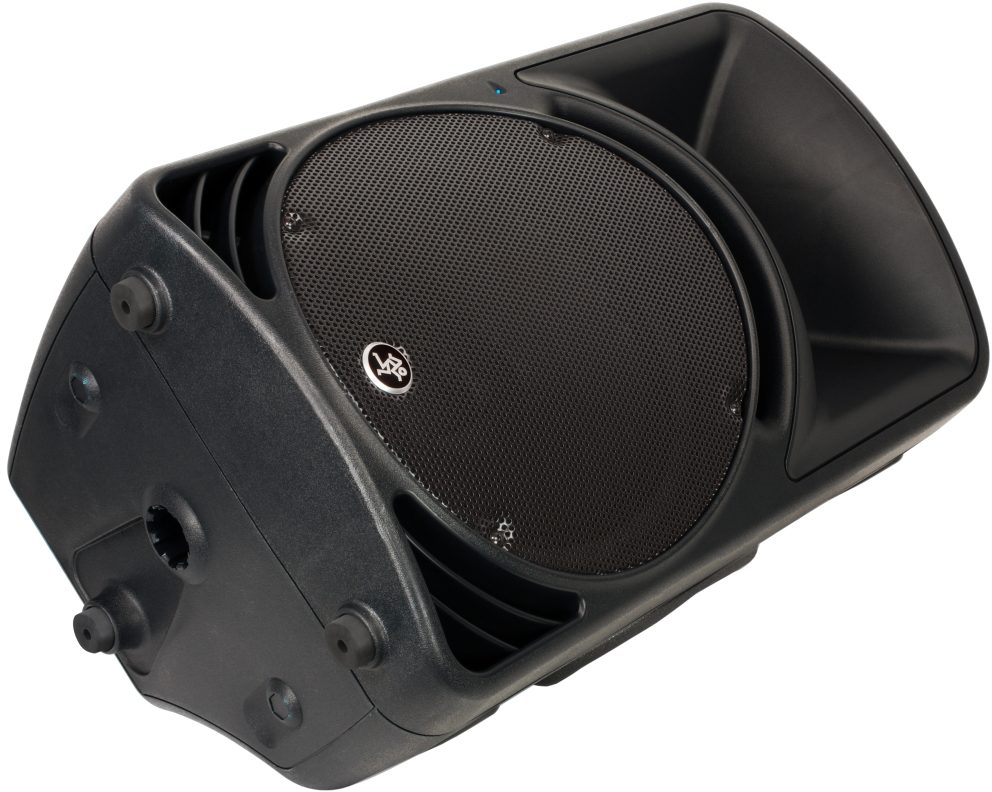

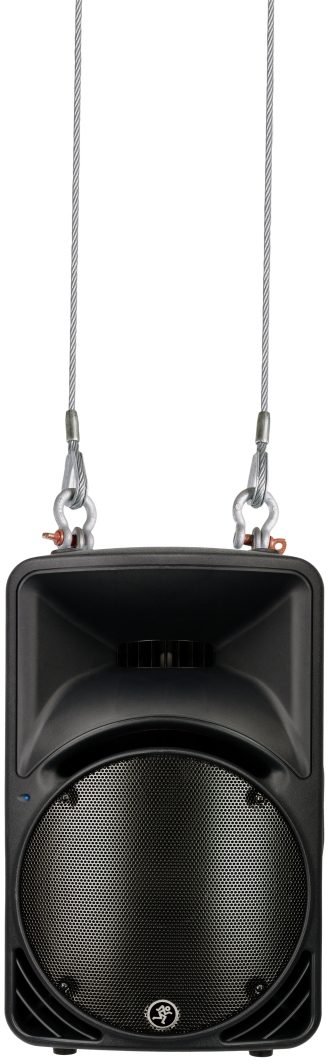

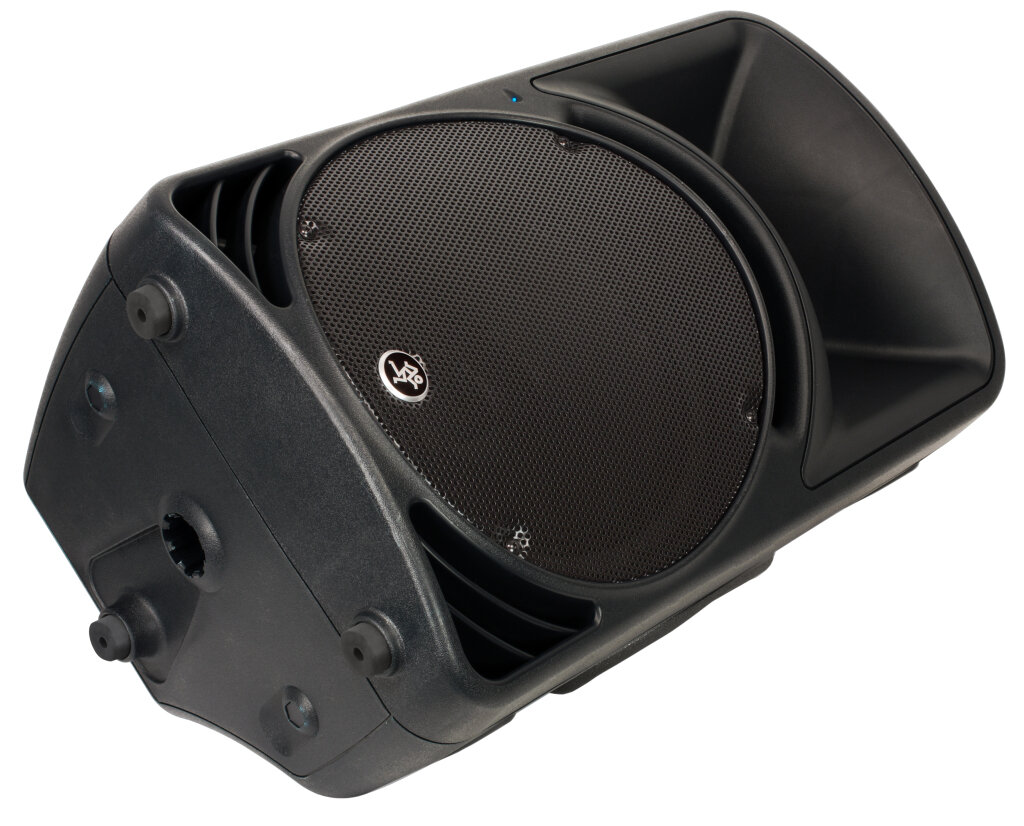

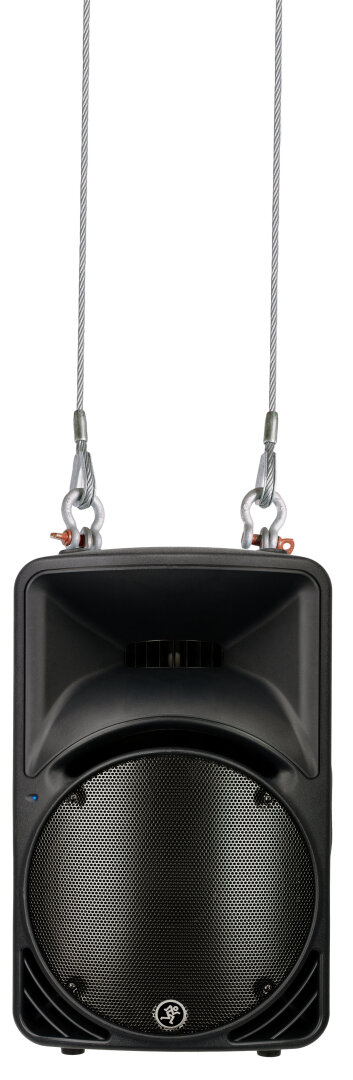

When designing the SRM450v2, Mackie considered every angle. From every angle is just how you can position it, too-pole-mount it from the bottom, fly it vertically or horizontally via its integrated M10 mounting points, or use it as a wedge monitor. With all this flexibility, it's the most versatile portable Active loudspeaker around. And now moving it into place is easier than ever. Weighing in at about 40 pounds-11 pounds lighter than the original SRM450-you'll have plenty of strength left over to play after loading in. Plus, the Mackie SRM450v2 retains its rugged, built-like-a-tank durability, thanks to the polypropylene cabinet-now in a tasty hue of Midnight Blue. So not only do you get a portable loudspeaker that sounds phenomenal, you get one that's tough and portable for the road, and handsome enough for the show. zZounds is an authorized dealer of Mackie products.

- Frequency Response (-3 dB): 55 Hz - 18 kHz
- Frequency Range (-10 dB): 4 5 Hz - 20 kHz
- Directivity Factor; Q (DI): 9 .95 (9.98), averaged 2 kHz to 10 kHz
- Maximum SPL Long-term @ 1m: 124 dB
- Maximum SPL Peak @ 1m: 127 dB
- Crossover: Linkwitz-Riley, 24 dB/octave @ 1600 Hz

Audio
- Input Type: Balanced Differential
- Input Impedance: 20kOhms
- Input Protection: RFI and level protected
- Sensitivity: Line: +4 dBu (center detent) Mic: -36 dBu
- Maximum Input Level: +22 dBu
- Low-Cut Frequency: 75 Hz, Second-order filter
- Acoustic Contour Equalization: Peaking +3 dB @ 100 Hz +3 dB @ 12 kHz
- Operating Temperature Range: -10 degrees C to 45 degrees C (14 degrees F to 113 degrees F)

Power Amplifiers
Low-Frequency Power Amplifier:
- Rated Power: 300 watts*
- Rated THD: < 0.1%
- Cooling: Convection Extrusion
- Design: Class D, Parametric Servo Feedback

High-Frequency Power Amplifier:
- Rated Power: 100 watts*
- Rated THD: < 0.1%
- Cooling: Convection Extrusion
- Design: Conventional Class AB

Rated power is continuous RMS wattage into transducer's rated impedance @ 5 kHz for the HF amplifier and @ 500 Hz for the LF amplifier.

Transducers
Low-Frequency Transducer:
- Diameter: 12 in (300 mm)
- Voice Coil Diameter: 3.0 in (75 mm)
- Sensitivity (1W@1m): 98 dB
- Nominal Impedance: 8 ohms
- Power Handling: 600 Watts, program
- Frequency Range: 45 Hz - 3 kHz

High-Frequency Transducer:
- Diaphragm Diameter: 1.75 in (44.5 mm)
- Diaphragm Material: Heat treated titanium
- Sensitivity (1W@1m): 106 dB
- Nominal Impedance: 8 ohms
- Power Handling: 100 watts, program
- Frequency Range: 1 kHz - 20 kHz

Horn Design:
- Type: Conical and Exponential
- Mouth Size: 12 in (304.8 mm) (W) x 7 in (177.8 mm) (H)
- Throat Diameter: 1 in (25.4 mm)
- Horizontal Coverage: 90 degrees (1 kHz-20 kHz)
- Vertical Coverage: 45 degrees (2.8 kHz-20 kHz)

Line Input Power
- US: 120 VAC, 60Hz
- Recommended Amperage Service: 2.5 amps

Control System Function
- Electronic Crossover
- Phase Alignment
- Equalization
- Parametric Equalization

Safety Features
- Over-Excursion Protection: Second-Order High-Pass Filter
- Thermal Protection: Amplifier shutdown, auto-reset
- Low-Line Voltage Shut Down: 60% Nominal line
- Driver Protection: Independent LF and HF compressors
- Low-Frequency Roll-Off: Dynamic, signal-level dependent

Construction Features
- Basic Design: Asymmetrical Trapezoidal
- Enclosure Alignment: Sixth-Order
- Material: Polypropylene
- Finish: Midnight Blue, textured finish
- Handles: One on each side, one on top

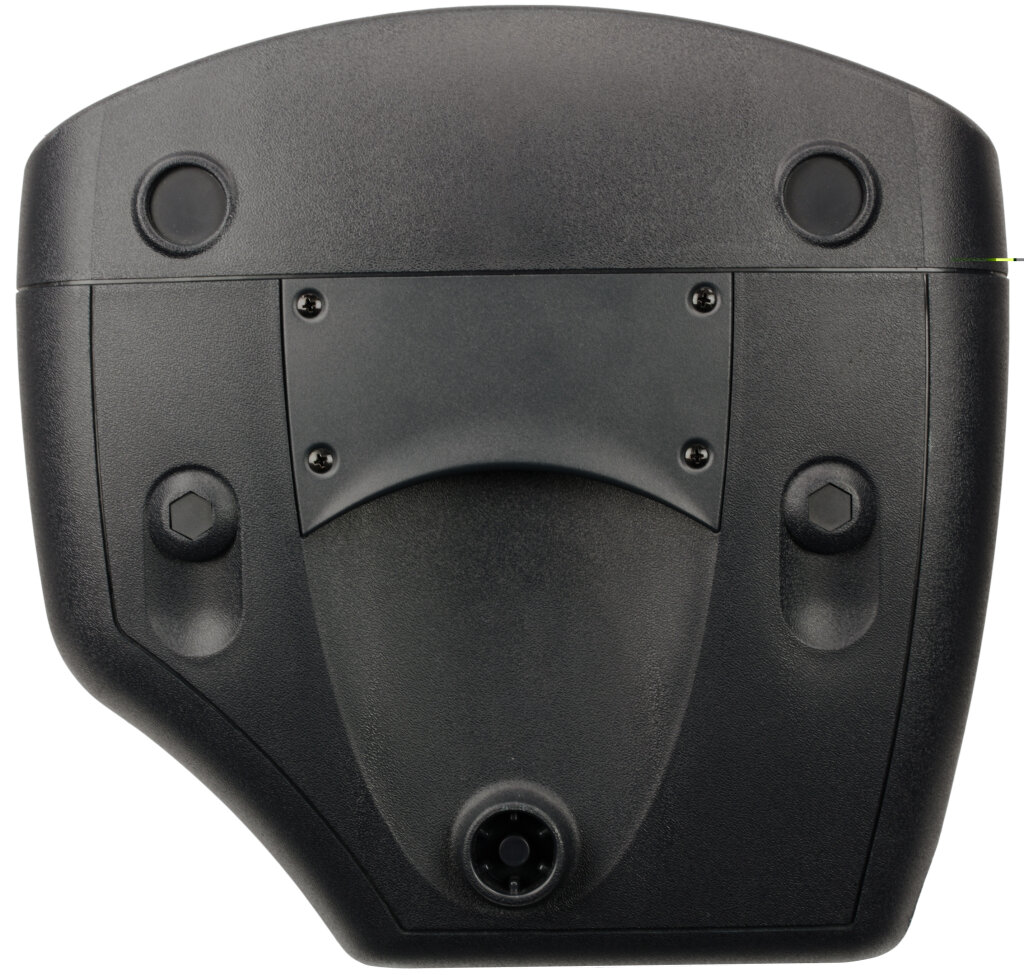

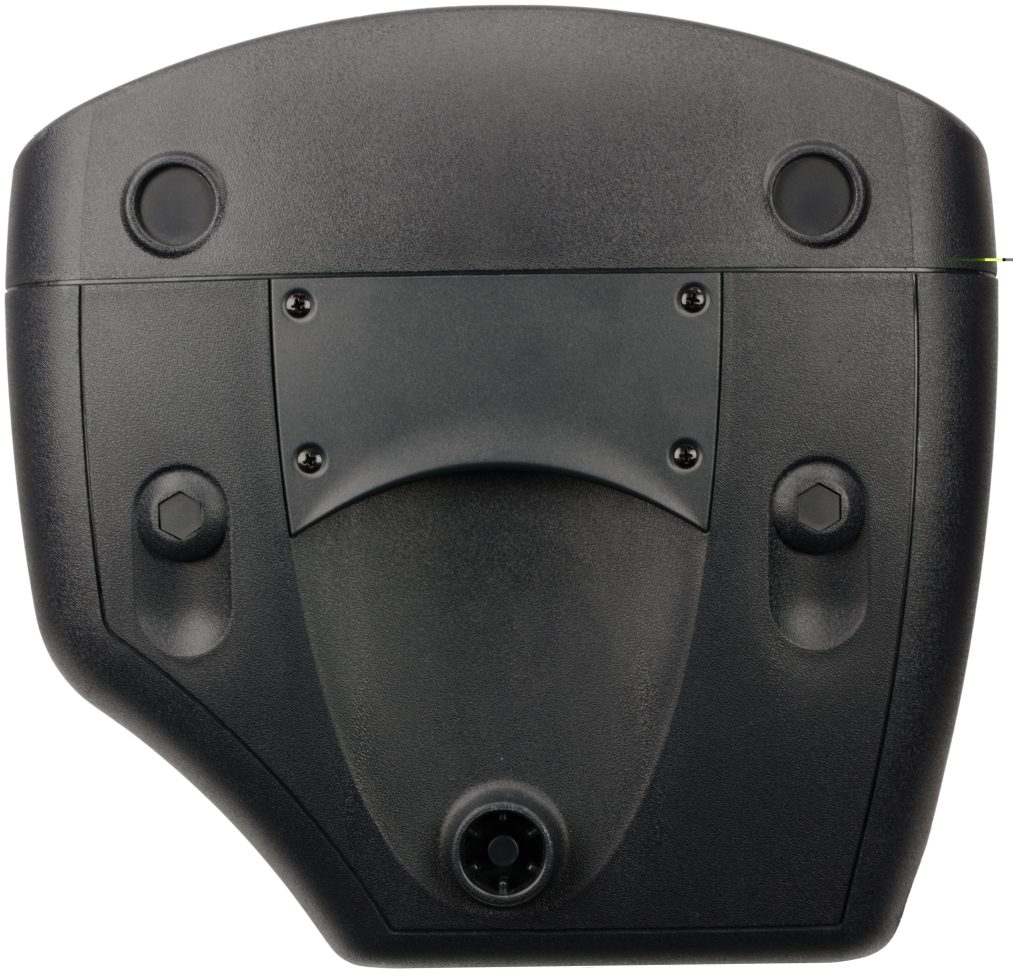

Mounting Methods:
- Integrated mounting points, M10

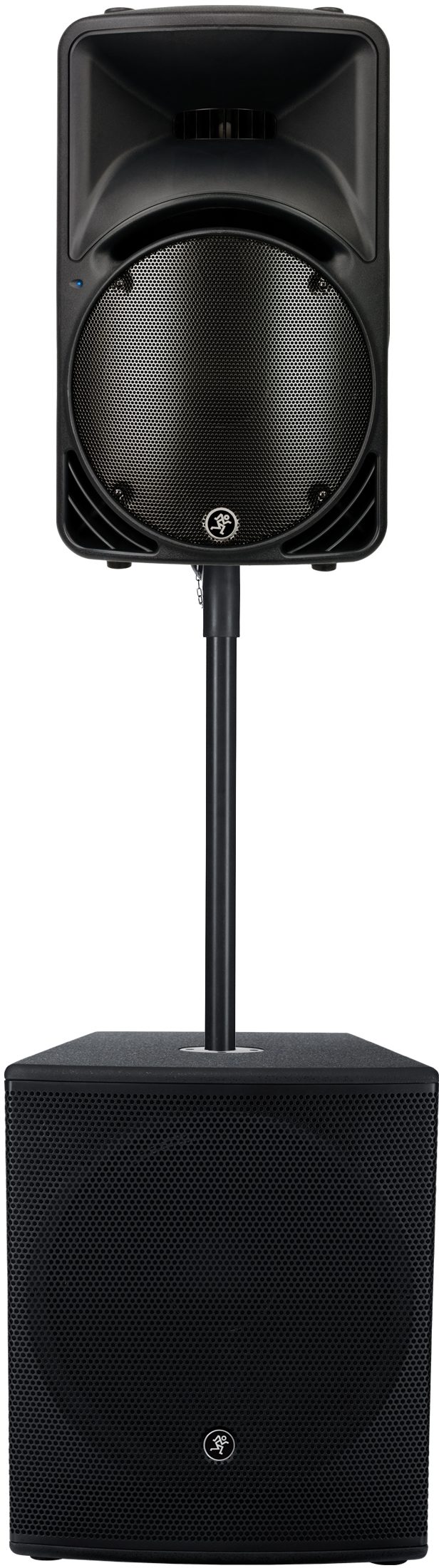

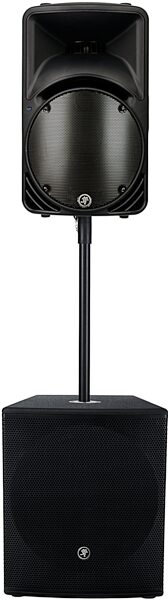

- Compatible with SPM200 Speaker Pole Mount or any 35MM speaker pole adapter.
- Two each located on each side, top, bottom, and rear of enclosure

Grille: Perforated metal with weather-resistant coating

Display: LEDs Signal Present, Peak, Power ON, and Thermal

Physical Properties
- Height: 26.0 in (660 mm)
- Width: 15.4 in (390 mm)
- Depth: 14.8 in (376 mm)
- Weight: 40 lbs. (18 kg)

Dimensions and Weight in Packaging

Black

Shipping Weight: 40 lbs

Shipping Dimensions: 27 x 17 x 16 in

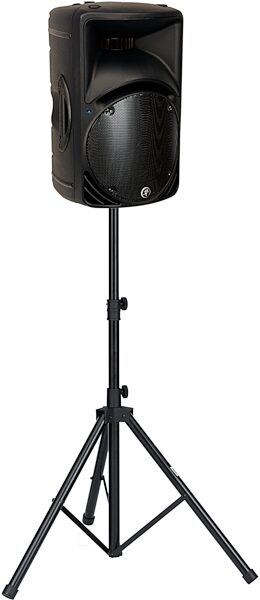

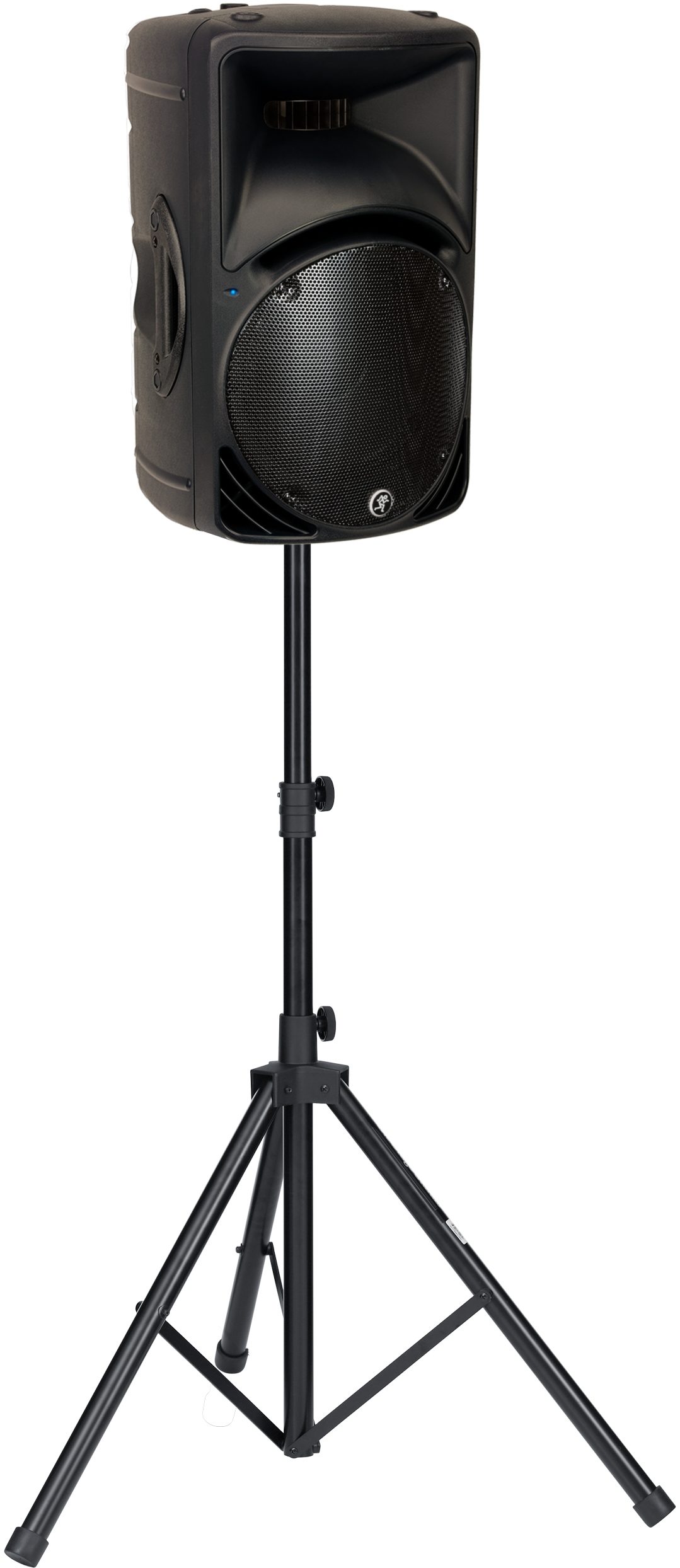

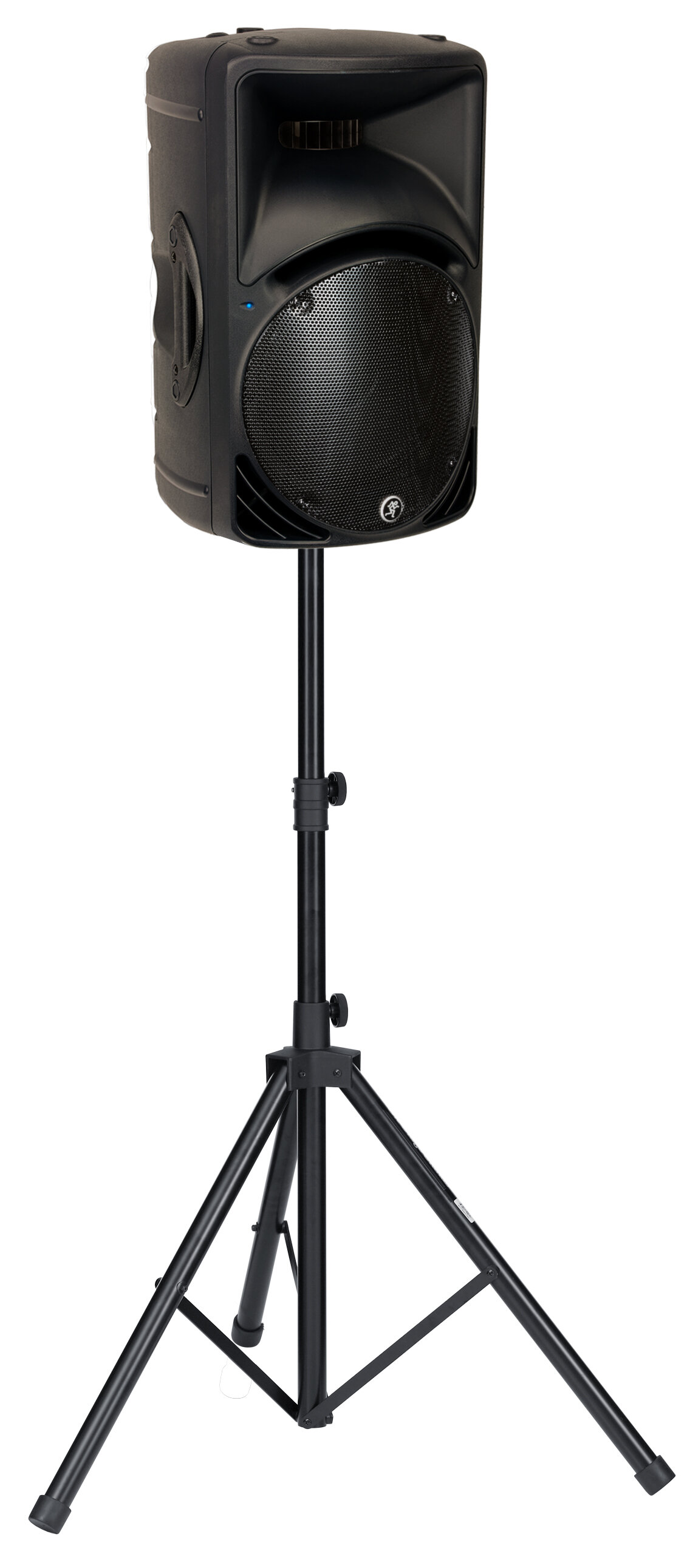

Black, with On-Stage SS7761B Tripod Speaker Stand

Shipping Weight: 48 lbs

Black, Pair with two mic cables and Speaker Stand Pack

Shipping Weight: 98 lbs

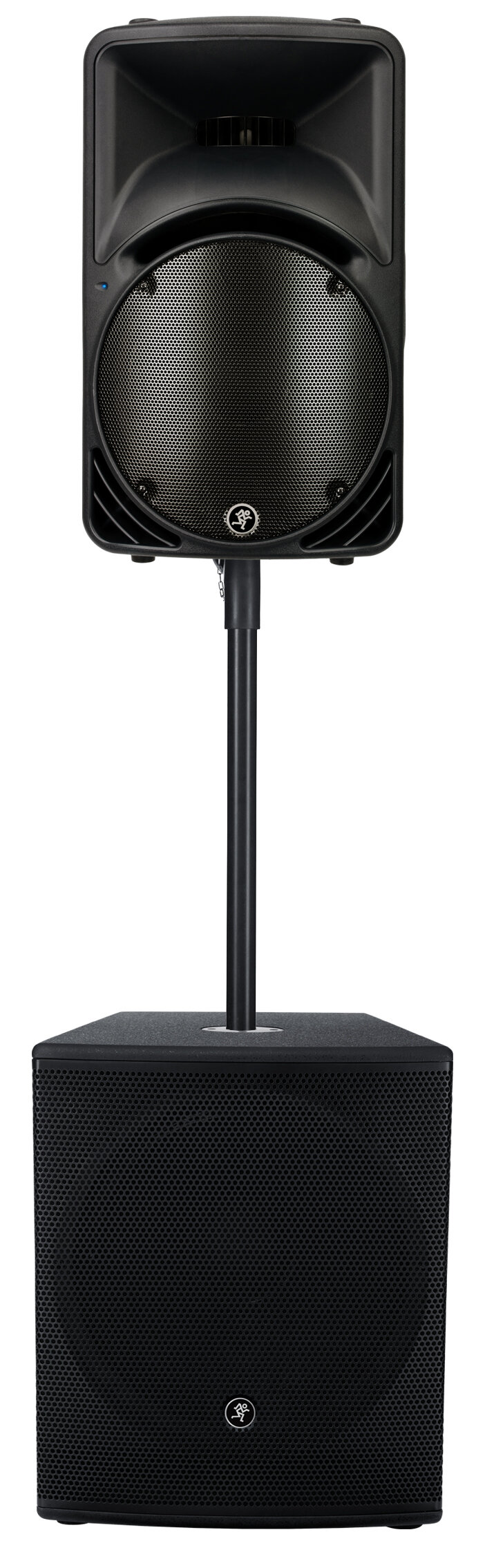

Black, with Mackie SRM1801 Subwoofer and SPM200 Pole

Shipping Weight: 143 lbs
