Mackie HR626 Active Studio Reference Monitor

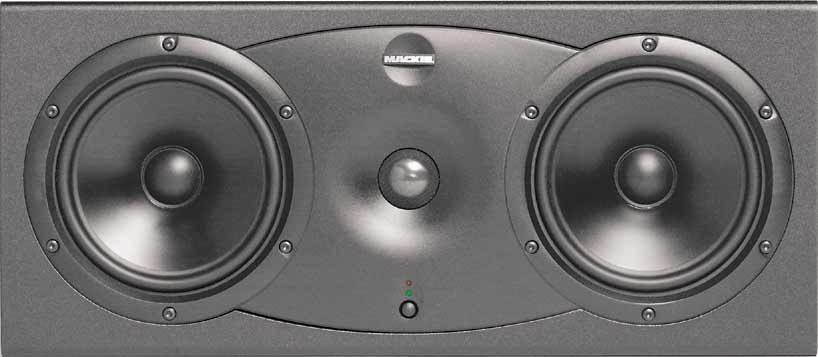

The HR626 is the first active Mackie studio monitor with a D'Appolito woofer-tweeter-woofer design. It has one 6.7-inch woofer on each end of the cabinet with the dome tweeter in the center. The monitor can be setup vertically or horizontally, depending on the application.

The 2-way bi-amplified monitor implements servo-feedback circuitry and an elliptical passive radiator to achieve low distortion and extended low-frequency response similar to the HR824. The waveguide-loaded high frequency aluminum dome tweeter provides the same crisp and evenly dispersed highs as all of Mackie's world-class reference monitors. The 5/8 in. internally braced MDF cabinet is extremely rigid and non-resonant. It shares the same professional design as the other Mackie monitors - the HR824 and the HR624.

The HR626 is the ideal monitor for those who need lots of bottom end, along with the low-level accuracy of the mid range for mixing and vocal placement. Thanks to its D'Appolito driver alignment design, the HR626 can be used in both vertical and horizontal positions. Placing the HR626 in a vertical position provides extremely accurate reference monitoring for mid-to large-sized studios. Because of its symmetrical left-right sound field, it can also be placed horizontally and used as a superior center channel in a 5.1 or 7.1 surround monitoring or home theater system.

Technical Info

Low-Frequency Driver

Number of drivers: 2

Diameter: 6.7 in. (170 mm)

Sensitivity (2.83V, 1m): 89 dB SPL

Nominal Impedance: 8 ohms

Voice Coil Diameter: 1.25 in. (32 mm)

Power Handling (Long Term/Program): 50/150 watts

Frequency Range: 38Hz to 6kHz

Frame: Die Cast Aluminum

Magnet: Ferrite

Bucking Magnet (Shield): Ferrite

High-Frequency Driver

Sensitivity (2.83V, 1m): 91 dB SPL

Nominal Impedance: 6 ohms

Power Handling (Long Term/Program): 20/50 watts

Frequency Range: 1.6kHz to 22kHz

Diaphragm/Suspension: Aluminum/Impregnated Cloth

Voice Coil Diameter: 1.0 inch (25.4 mm)

Magnet: Ferrite

Bucking Magnet: Ferrite

Wave Guide

Frequency Response: 2.5kHz to 20kHz, +/-2dB

Mouth Size: 6.13 in. diameter (156 mm)

Horizontal and Vertical Coverage: 120
