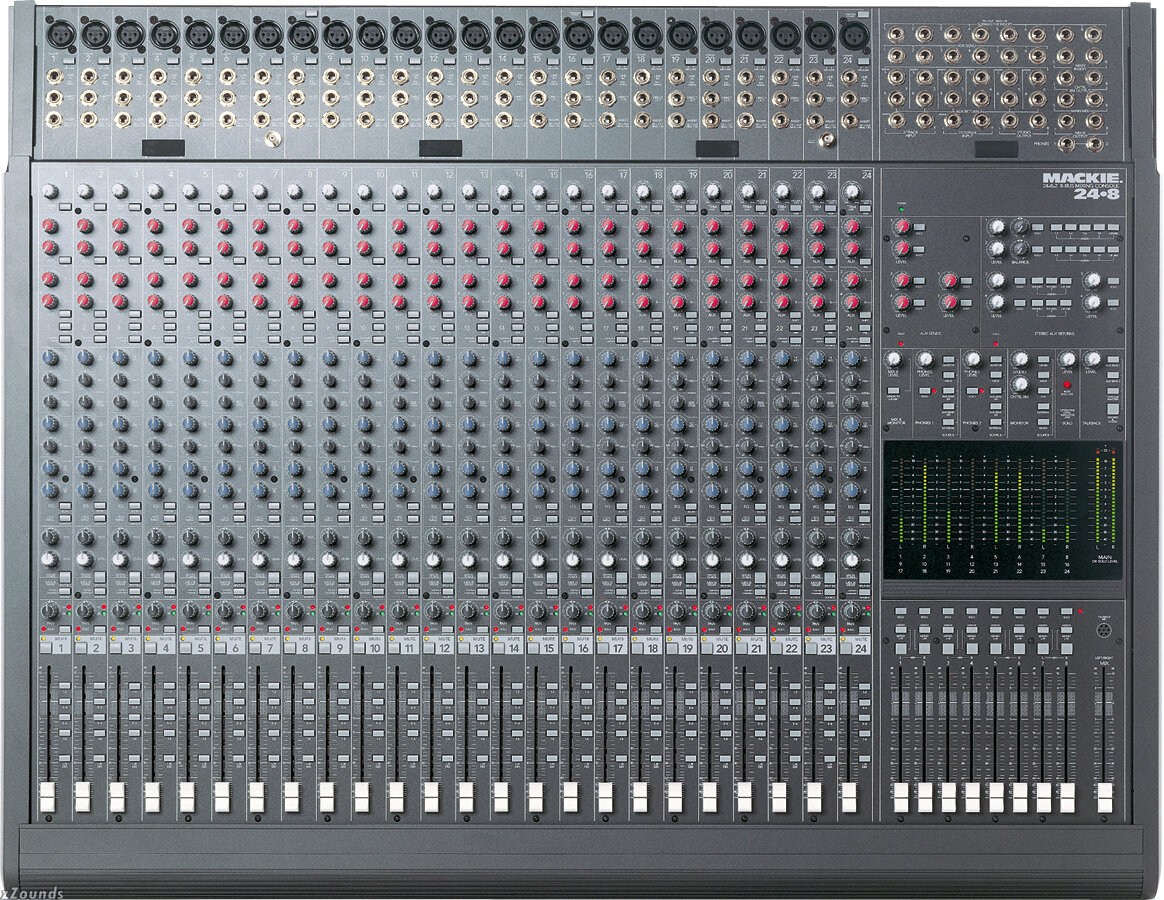

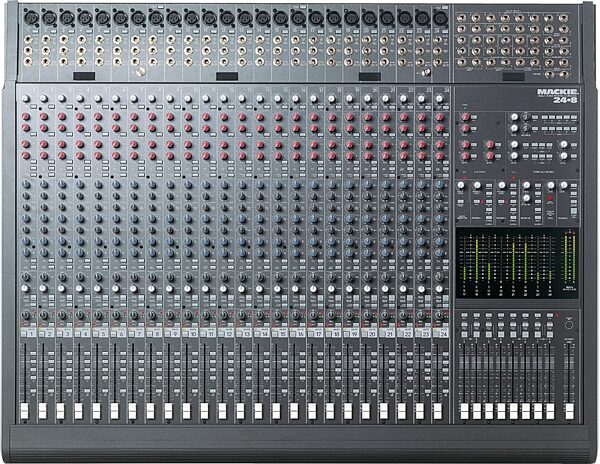

Mackie B248 Recording/PA Console (24x8x2)

The 8-bus Series was designed to eliminate the last barrier between you and audio creativity - the 32x8, 24x8 are capable of sound quality equal to or better than that of $100,000 consoles. Mackie's 8-bus consoles have recorded more platinum albums and major motion picture soundtracks than any other mixer in their class - they set the standard for affordable 8-bus consoles.

Excellent for project studios and digital multi-track recording when combined with digital multi-track or hard disk recording systems. A Mackie 8-bus console not only creates major label CDs, but also major motion picture soundtracks and network quality commercials.

Features include low-noise/high-headroom mic preamps on every channel, as well as channel inserts and direct outs. In the channel strip you'll find Mackie's truly musical EQ - with Hi and Lo shelving EQ, parametric Hi-Mid, and sweepable Low-Mid EQ - as well as our Low Cut Filter, which allows you to eliminate mic thumps and room rumble from your mix, and use your EQ for music and vocals.

With Mix B, "in-line monitoring" is a breeze. Six aux sends and 6 aux returns allow you to use all the effects you want. And the 8-Bus's complete talkback and phones level controls make communicating with the talent a snap. There's much more:

When you get right down to it, the 8ÝBus Series of recording consoles is a value at many times the price. The fact that artists and producers of every shape and size have sworn by them means when you buy an 8ÝBus you'll be in good company.

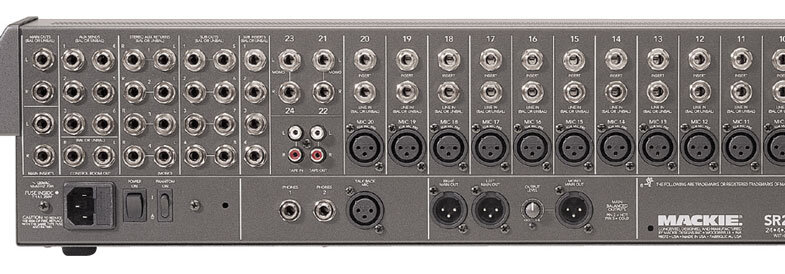

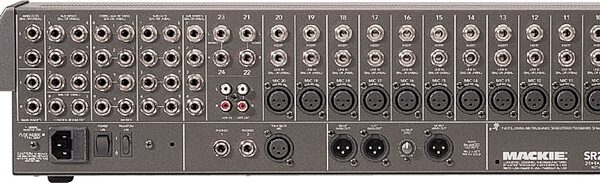

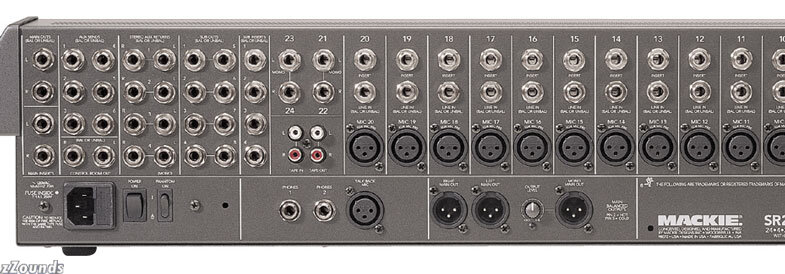

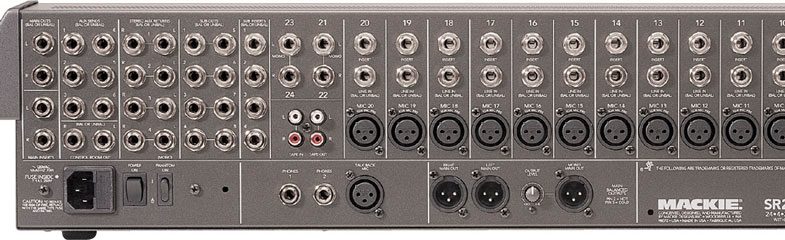

Loads of outputs for easy multi-tracking

Mackie's premium mic preamps on every channel (with phantom power for use with condenser mics)

100mm log-taper faders for consistently smooth fades

EQ: Full parametric Hi-Mid with separate band center and "Q" controls, swept Lo-Mid, and Hi & Lo shelving EQ

Low Cut Filter (18dB/oct @ 75Hz) on every channel

6 stereo (2 assignable) aux returns

Extensive routing capabilities

Noise
Measured 20Hz to 20kHz bandwidth Tape Returns selected, no EQ, Channel Pans alternating L/R, L/R. "Faders up" refers to Unity gain, 0dBu position.

Output Noise: Main L/R or Submaster

Total Harmonic Distortion
1kHz @ + 14dBu measured 20Hz-20kHz, mic input, 1 channel assigned

Direct output: 0.0013% typical

L/R Mix output: 0.0014% typical

Submaster output: 0.0015% typical

Crosstalk
1kHz measured relative to 0dBu, measured 20Hz to 20kHz.

Line In to Adjacent Channel: -91dBu

Channel Fader down: L/R Mix: -95dBu Submaster Output: -96dBu

Channel muted L/R Mix Output: -95dBu Submaster Output: -96dBu

Channel un-assigned L/R Mix Output: -91dBu Submaster Output: -95dBu

Adjacent Channel assigned L/R Mix Output: -92dBu Submaster Output: -94dBu

Panpot attenuation L/R Mix Output: -87dBu Submaster Output: -87dBu

Frequency Response
20Hz to 60kHz, any input to any output: +0/-1dB

10Hz to 120kHz, any input to any output: +0dB/-3dB

E.I.N.
Mic input, 150-ohm termination, 20Hz-20kHz: 129.5dBm

Mic input, shorted, 20Hz-20kHz: -136dBV

C.M.R.R.
Mic input, max gain, 1kHz: 83dB

Maximum Levels
Mic input: +14dBu

All other inputs: +22dBu

L/R Mix balanced output: +28dBu

All other outputs: +22dBu

Impedances
Microphone input: 1.5 kohms

Channel insert return: 2.5 kohms

All other inputs: 10 kohms or greater

All outputs: 120 ohms

Equalization
Hi-Mid (full parametric (Q) variable from 1/12 to 3 oct.): 500Hz-18kHz ±15dB

Lo Mid (swept): 45Hz-3kHz ±15dB

Hi (shelving): 12kHz ±15dB

Lo (shelving): 80Hz ±15dB

Lo Cut (HP filter): 75Hz 18dB/oct. slope (Tchebechev)

Console Dimensions (H x W x D)
4.78 x 37.02 x 28.75 in.

8 Bus Power Supply:
Power Consumption: 400 watts

Output
+18V: 3.5A
-18V: 3.5A
+48V: 250MA
+12V: 1.5A
+5V: 3A

Weight
24 lbs., not including power cable.

Power Supply Dimensions (H x W x D)
3.35 x 19 x 10.08 in. (85 x 483 x 256 mm)
