Lucid GENx192 Low Jitter Studio Master Clock

Designed to fit in a variety of digital audio situations, the GENx192 provides an extremely low jitter master clock reference in a variety of digital audio formats. Capable of handling sampling frequencies up to 192kHz, this unit will be a versatile companion in any digital audio application including recording and broadcast scenarios. It offers an extraordinary package in terms of jitter performance, connectivity and flexibility, all at a reasonable price point.

The GENx192 has two operating modes, accessed through a very straightforward front panel interface. A Sync Source select knob allows the operator to choose between internal reference and distribution functions. In distribution mode an external AES or Word Clock sync source fed into the device appears at each of the GENx192's fourteen sync outputs.

When operating in Internal mode the GENx192 generates an ultra low jitter sync reference at frequencies up to 192kHz. Its fourteen outputs are split into two groups of seven, each capable of generating an independent multiple of the base frequency. Thus, the device is capable of generating two different frequencies, such as 96kHz and 192kHz, simultaneously.

The unit also includes circuitry that examines the word clock connections and indicates, via a rear-panel LED, whether that particular connection is properly terminated. This feature will help users resolve one of the most common digital audio problems -- improper termination. This condition leads to clicks, pops, and other symptoms of incorrect digital sync.

Features:
8 Word clock outputs

4 AES-11 (audio black) clock outputs

2 S/PDIF (audio black) clock outputs

Clock outputs divided between two banks allowing different clock multiples to be output simultaneously

AES-3/11 input

Word clock input

Clock output range selectable from 44.1-192 kHz

Automatic word clock termination sensing and indication

Straightforward setup and operation via front panel - only three switches with clear LED status indication

Applications:
Multitrack recording

Mastering

Broadcast

DAWs or desktop recording interfaces

Technical Info

Controls:

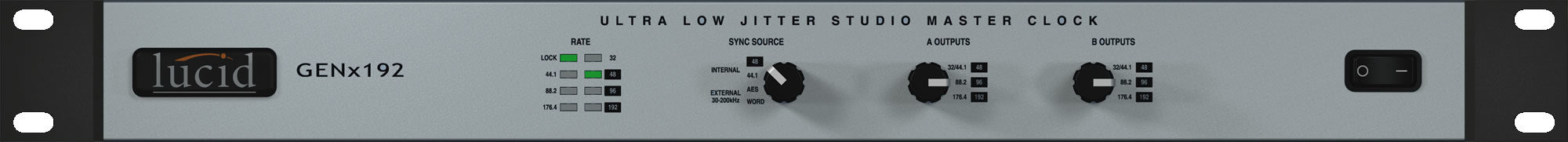

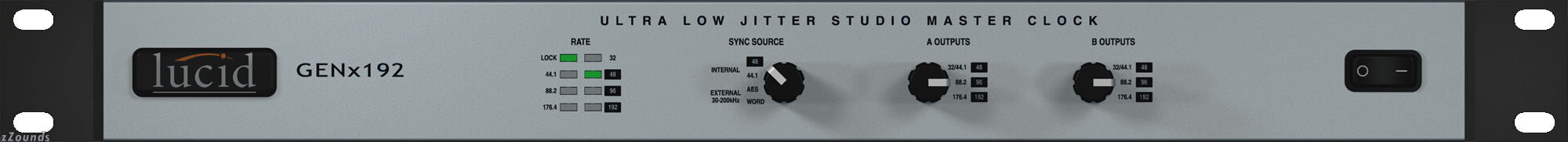

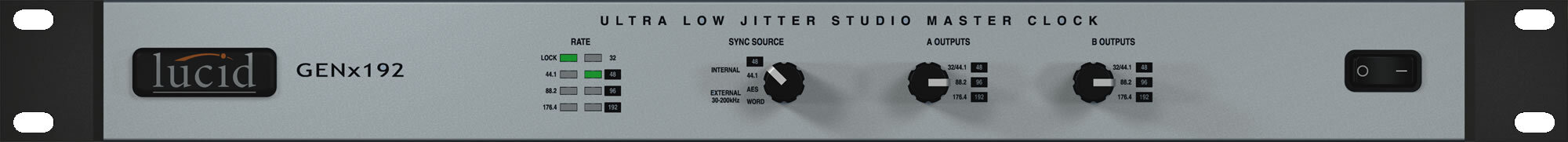

Sync Source switch selects Internal, Word, or AES clock sources
A Outputs switch selects the clock multiplier for the A bank of outputs
B Outputs switch selects the clock multiplier for the B bank of outputs

LEDs:
LED indications for Lock and Sample Rate
Term indicators show under, over and proper termination on each Word clock input

Connectors:

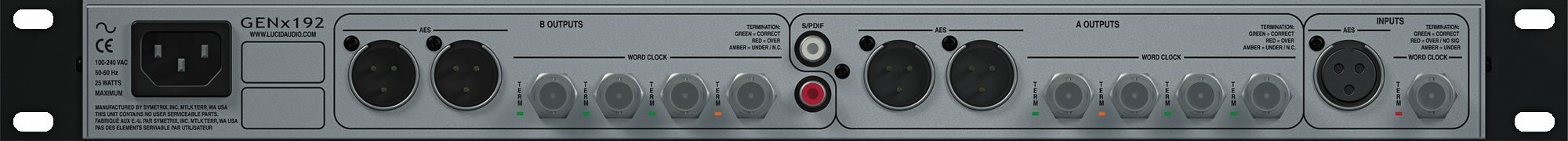

8x (2 banks of 4) Word clock outputs (female BNC)
4x (2 banks of 2) AES clock outputs (male XLR)
2x (2 banks of 1) S/PDIF clock outputs (female RCA)
1x Word clock input (female BNC)
1x AES clock input (female XLR)
1x Power (7-pin female DIN)

Internal clock range: 44.1, 48, 88.2, 96, 176.4 and 192 kHz selectable

External sync range: 30-200 kHz, +/- 100 ppm

Input impedance: 75 Ohms, Word and S/PDIF; 110 Ohms, AES

Output impedance: 20 Ohms

Electrical: 100-240 VAC, 50-60 Hz, 25 Watts maximum

Size: 1U (WDH: 48.26 cm x 20.96 cm x 4.369 cm /19 in x 8.25 in x 1.72 in), depth does not include connector allowance

Shipping Weight: 3.48 kg / 7.68 lbs
