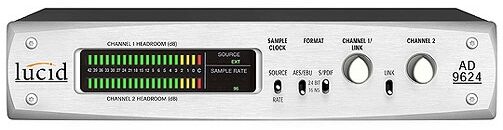

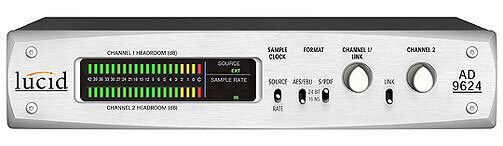

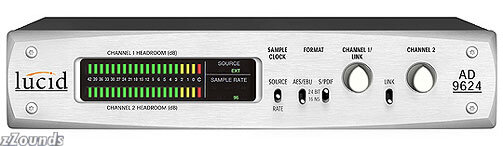

Lucid AD9624 24/96 kHz A/D Converter

A first-class converter for recording, mastering, and post-production: Take your digital recording system to the next level with the addition of the AD9624. This converter bridges the gap between analog and digital equipment with transparent audio conversion. True 24-bit resolution is the best way to record and process all the detail the human ear can hear. The AD9624 supports sample rates of 96kHz, 88.2kHz, 48kHz, 44.1kHz, and 32kHz. What's more, the AD9624's noise shaping function enhances the clarity of low-level material for superior imaging and realism when creating 16-bit masters.

Multiple connections for flexible operation: The AD9624 accepts analog input via XLR connectors and outputs its digital bit stream simultaneously through professional AES/EBU and consumer S/PDIF (coaxial and optical TOSLINK) connectors. A front panel headphone output provides a convenient way to monitor audio levels.

Finishing touches make all the difference: Easy-to-read, 20-segment LED ladders show you exactly where to set I/O controls for optimal A/D conversion. Rack the AD9624 next to the DA9624 using a Lucid RM-4 rack mount tray, or use the AD9624 on its own for your specific interface requirements.

Features
Stereo 24-bit, precision A/D conversion

Internally generated sample rates of 96kHz, 88.2kHz, 48kHz, 44.1kHz, and 32kHz and external sync via Word Clock

User-selectable, 16-bit noise shaping

Simultaneous AES/EBU (XLR) and S/PDIF (coaxial and TOSLINK) digital outputs

20-segment input level LED ladders with peak hold and clip indicator

Technical Info

AD9624 A/D converter performance frequency response:
-- For sample rates of 88.2 kHz and 96 kHz: 20 Hz to 40 kHz (+/ 1 dB)

-- For sample rates of 44.1 kHz and 48 kHz: 20 Hz to 20 kHz (+/ 1dB)

-- For 32 kHz sample rate: 20 Hz to 15 kHz (+/ 1 dB)

Internally generated sample rates: 32, 44.1, 48, 88.2 and 96 kHz and external sync via word clock

Dynamic range: >114 dB, A-weighted

Analog input impedance: 20 k & balanced, 10 k & unbalanced

Maximum analog input level at full CCW: +25 dBu balanced

Maximum analog input level at full CW: 5 dBu balanced

Connectors:
-- Analog inputs: Balanced XLR

-- Digital outputs: AES3 (XLR), S/PDIF (coaxial), and TOS-LINK (optical)

-- Word Clock input: BNC

Power supply: External AC (Lucid PS-3 or PS-3E) using 7 pin DIN connector

Dimensions: 1/2 U Chassis (H x W x D): 1.72 in. x 8.5 in. x 8 in. 4.37 cm x 21.59 cm x 20.32 cm

Weight: 6.7 lb. (shipping)
