LR Baggs Element Active Acoustic Guitar Pickup and Preamp System

Certain items must be exchanged directly through the manufacturer if they are found to be defective. This includes tubes, strings, pickups, raw frame speakers, drum heads, drumsticks, cymbals, cowbells, and harmonicas. These items can only be returned to us if they are unopened. details

About This Product!

Description

Docs

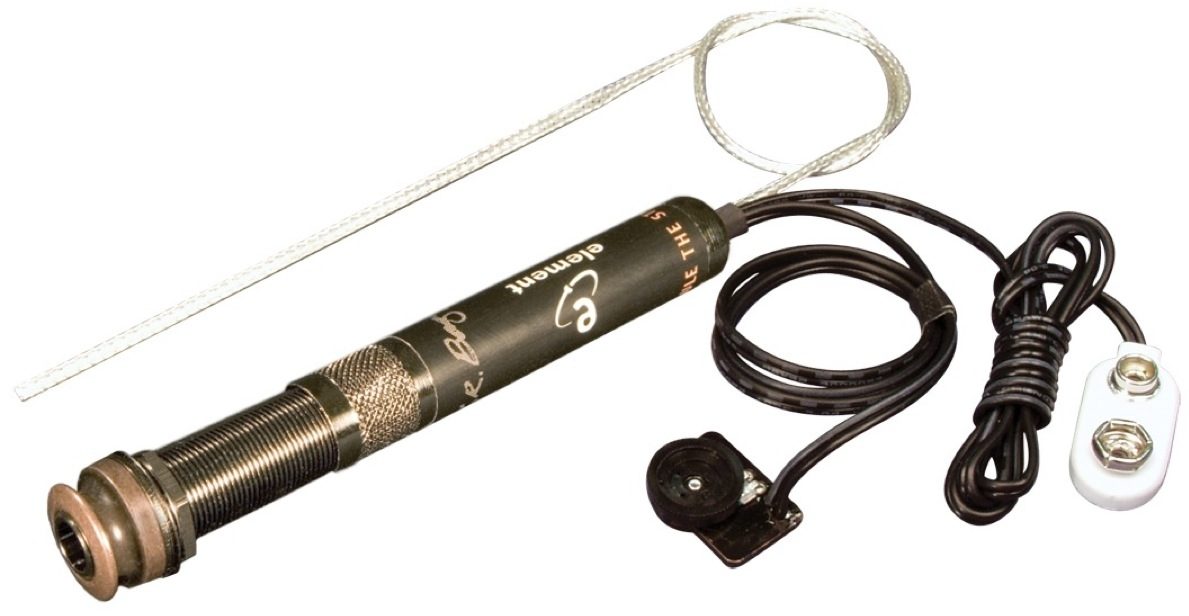

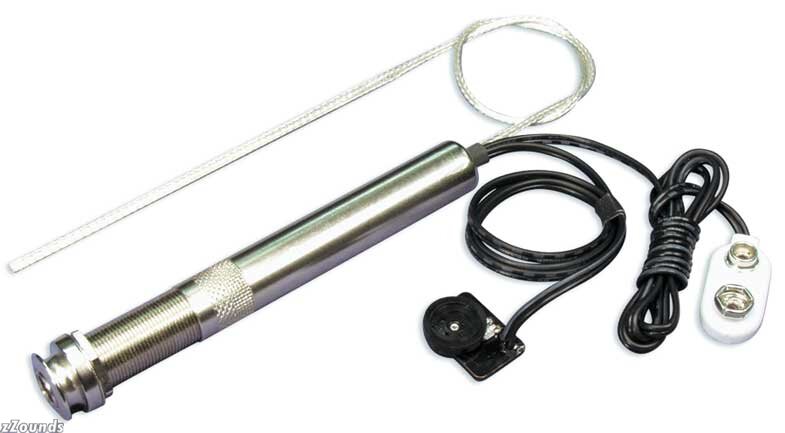

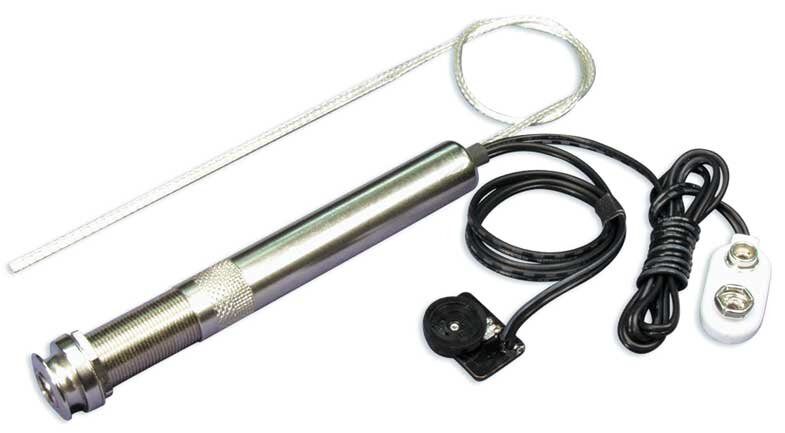

LR Baggs Element Active Acoustic Pickup System
Acoustic players rejoice! LR Baggs has developed a new undersaddle transducer and preamp for steel string acoustic guitars called the Element Active System (EAS). The EAS pairs the Element with a discrete 'Class A' end pin preamp and includes a small removable soundhole-mounted volume control for added versatility. The EAS also includes the new 'Battery Bagg', used to unobtrusively house the battery inside the guitar.

All of LR Baggs' systems are engineered to assure great sound and hassle-free performance right out of the box. They make many different systems from simple to complex. Each is designed for a specific purpose, but they have only one quality level - the very best they know how to build. Choose the right system for your application and budget and you will enjoy its great sound and performance.

Think you know what undersaddle transducers are all about? Think again. The Element delivers performance previously unattainable from an undersaddle pickup...

The streamlined and efficient design removes every unnecessary internal component to improve the coupling between the transducer and the guitar. This substantially improves the sensitivity of the transducer for a robust, lively and open sound with great dynamics and a delicate high end.

Technical Info

Battery Type: Single 9V

Current Consumption: 0.5mA

Battery Life: 1000+ hours (alkaline)

Low Cut Filter: Fixed, 12dB/Oct. @ 45Hz

Signal To Noise: -92dB, unweighted

Output Stage: Pure class A buffer

Output Level: -10dB

Output impedance: 800 ohms
