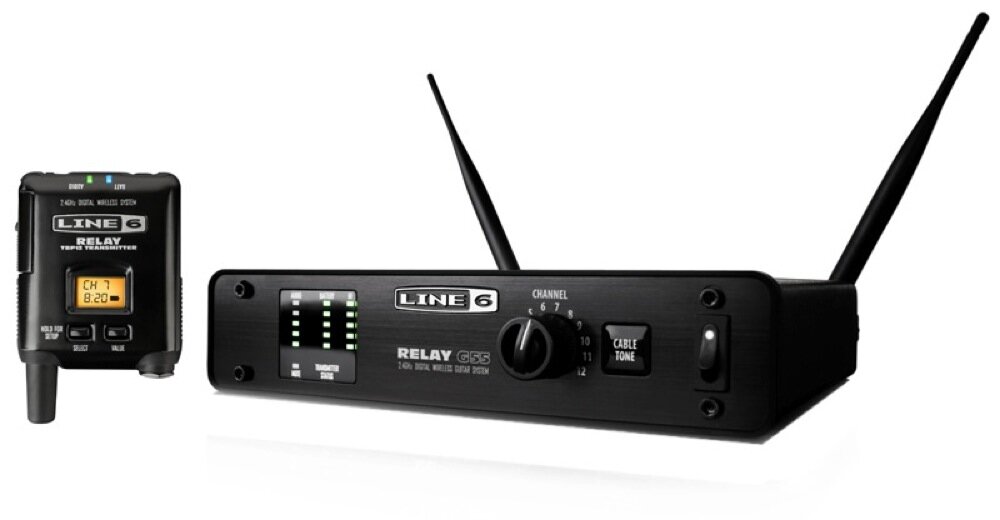

Line 6 Relay G55 Digital Guitar Wireless System

Product Description

Based on patented, fourth-generation technology, the Line 6 Relay is leading the digital wireless revolution for guitarists. The Relay G55 system delivers tour-grade digital wireless in a compact, half-rack format, so you can experience wireless freedom without compromising your tone.

Featuring 12 channels of compander-free 24-bit audio, full 10Hz-20kHz frequency response and a wide dynamic range of 117dB (A weighted), the G55 signal is so pure and strong it sounds just like a wired guitar.

2.4GHz Signal -- Free from Interference

Traditional analog wireless systems are plagued by interference from TV broadcasts, white space devices and countless other sources. Relay G55 operates in the 2.4GHz ISM band, so there's no danger of these external sources wreaking havoc with your audio signal. Enjoy the peace of mind that comes with the most advanced, reliable digital wireless solution available.

Advanced Audio Protection

Line 6 digital wireless systems also use proprietary technologies to prevent audio interference from other 2.4GHz devices. Encoded DCL(TM) (Digital Channel Lock) technology distinguishes your Relay G55 audio from other third-party signals, including Wi-Fi, ensuring the integrity of your signal.

License-Free, Worldwide

If you're confused by the license fees required to operate an analog wireless system, don't worry: Line 6 digital wireless systems eliminate that need. Relay G55 is fully FCC compliant and operates license free worldwide, from Hollywood to Tokyo.

Fourth-Generation Digital Wireless Technology

Since its debut, Line 6 digital wireless technology has racked up awards and proven that it offers superior audio quality and reliability compared to analog wireless technology. Now in its fourth generation, Line 6 digital wireless technology is the most mature in the market and continues to set standards in simplicity and performance.

Cable Tone Simulation

Using conventional guitar cables can be limiting, to be sure -- but they do add an undeniable character to your tone. Selectable Cable Tone technology simulates the subtle frequency roll-off of a standard 25-foot cable, so you can enjoy the sound of a wired guitar -- with the freedom of wireless.

One-step Setup

Like all Line 6 digital wireless systems, Relay G55 is incredibly easy to set up. Simply pick any of the 12 available channels and the transmitter and receiver lock together instantly.

Consistent Signal Integrity up to 300 Feet

Whether you're ten feet or 300 feet away from the receiver, Relay digital wireless systems deliver the same, consistent, dependable signal quality. Unlike using analog wireless systems, there's no increased risk of interference or signal degradation as you move further from the receiver. You can perform with full confidence, right up to the range limits of your Relay G55 system.

Mix and Match to Create the Ultimate Live Sound Rig

Need a flexible and scalable live sound setup for your band, performance group or permanent installation? Relay G30, G50, G55 and XD-V35, XD-V55 and XD-V75 systems share the same technology, making it incredibly easy to mix and match instrument and vocal systems to suit your needs. Use up to 12 Relay G55 systems simultaneously-or combine Relay and XD-V products-to create a rig ready for any live sound scenario.*

*Compatible units must be running same RF mode. See FAQ for more information.

Clear Visual Status

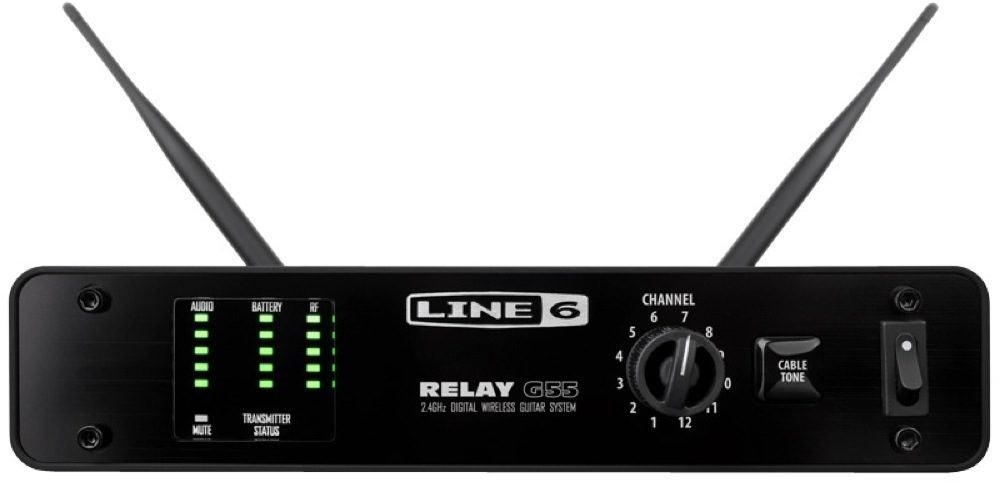

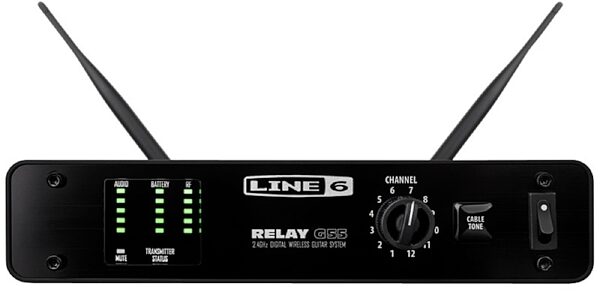

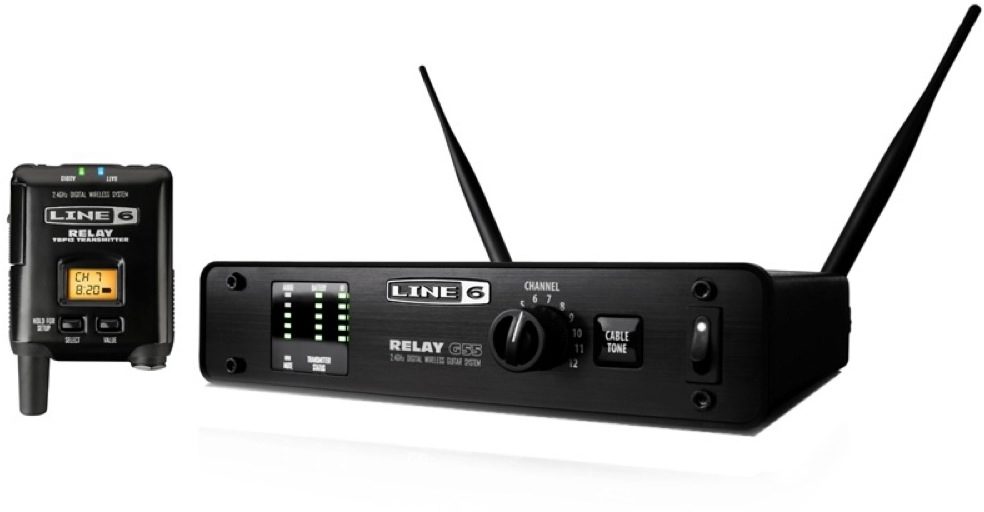

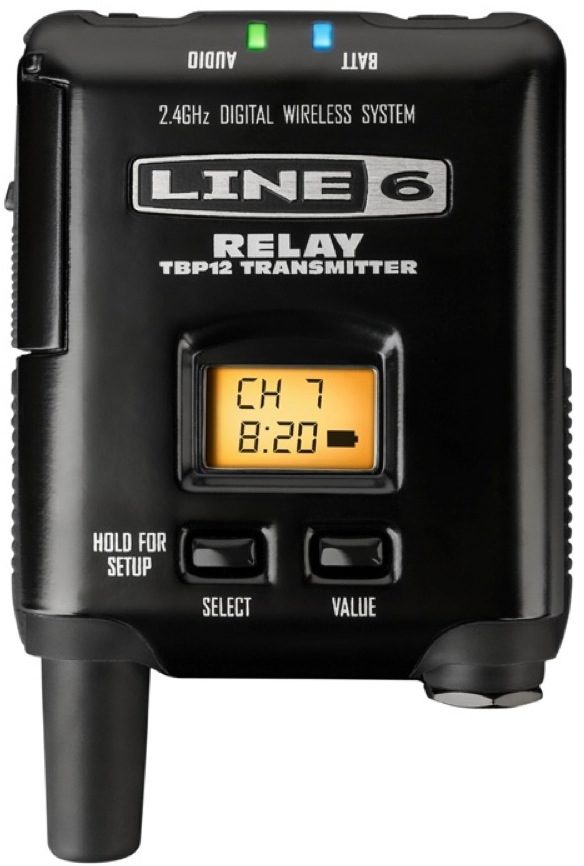

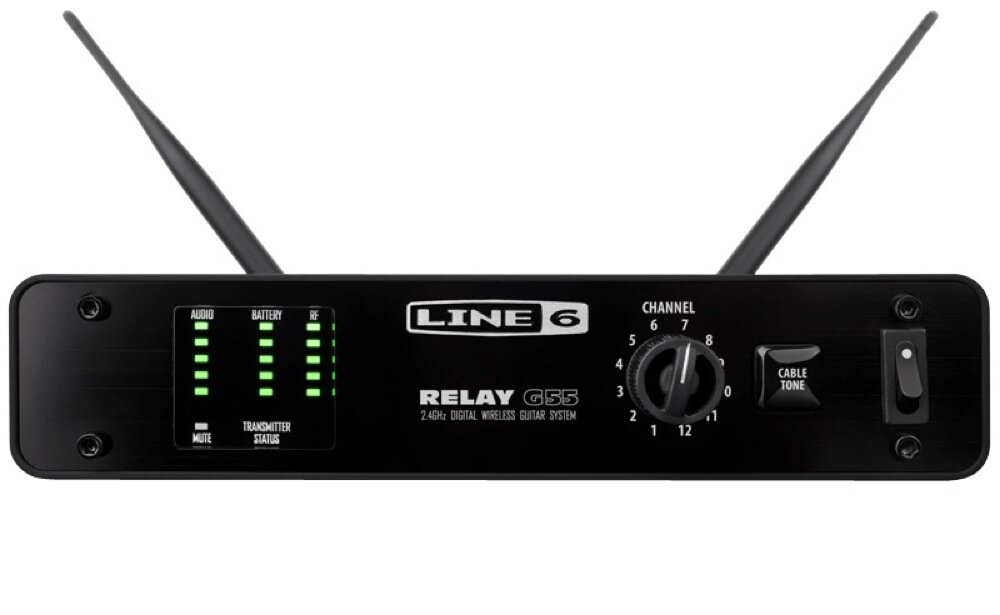

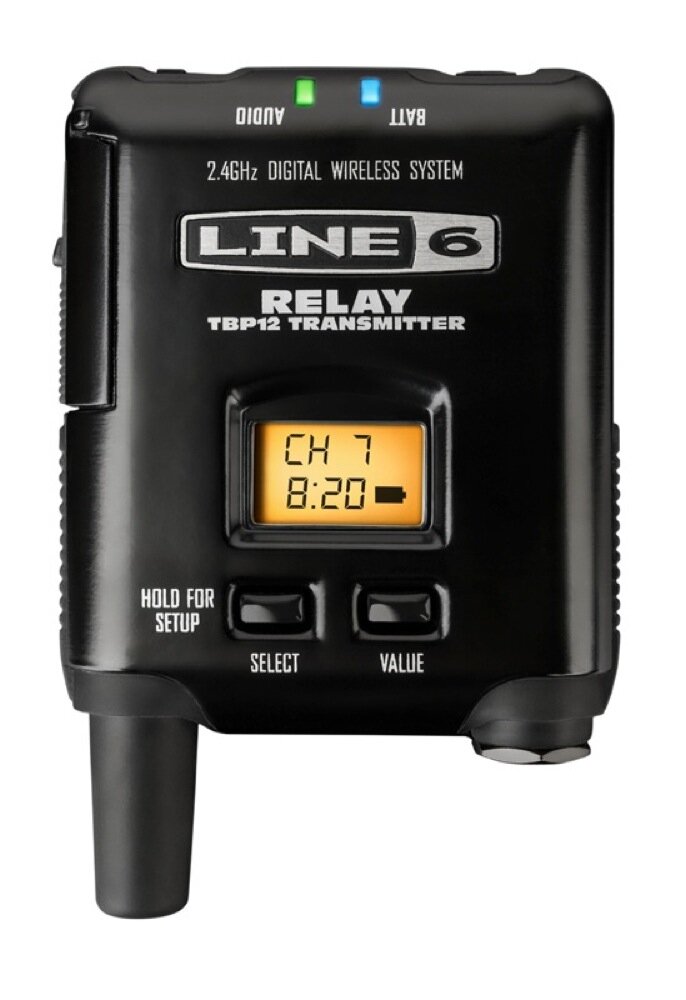

Relay G55 transmitter and receiver units provide clear displays of essential system information. The bodypack transmitter features a clear LCD screen for selecting channels and provides an instant check on your battery level. The receiver offers bright five-segment LEDs that let you monitor RF strength, battery status and audio levels.

Tour-Grade Hardware

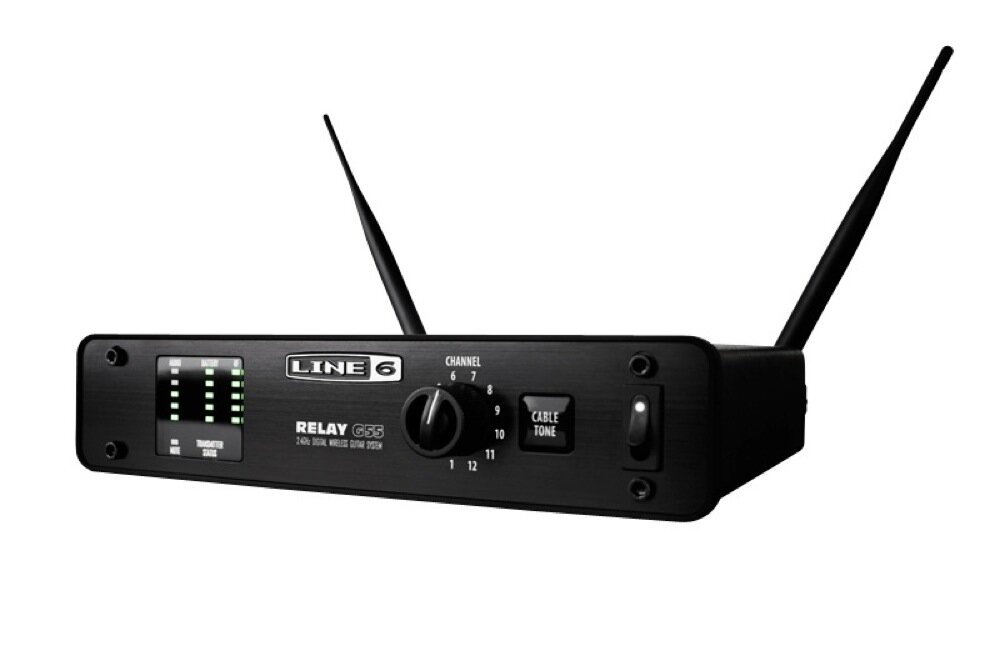

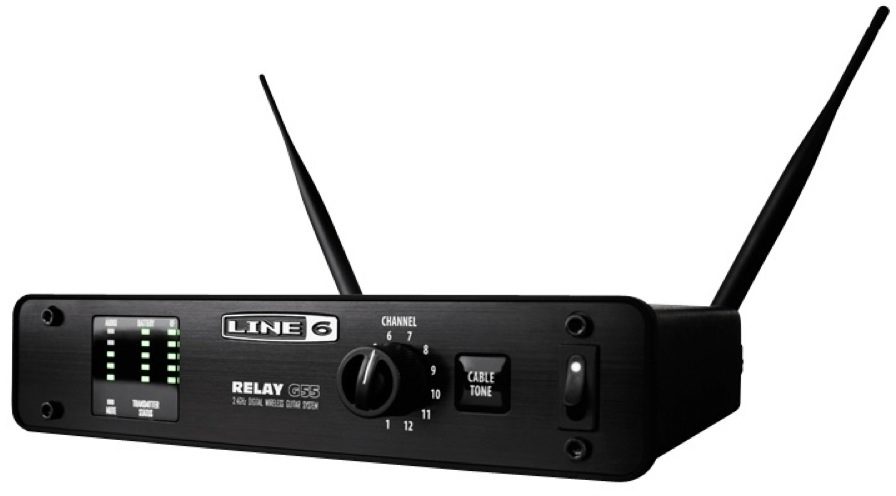

Relay G55 is built for rock-solid performance night after night. Featuring a robust metal body, the bodypack transmitter is rugged, reliable and ready for the road. The receiver is housed in a solid aluminum chassis and fits easily on top of an amplifier, while the optional rack mount kit makes it easy to adapt Relay G55 to any professional installation.
Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Line 6 products.

- System: Frequency Band: 2.4GHz ISM Band
- Compatible Channels: 12
- Spatial Diversity with Digital Buffering: Yes
- Frequency Diversity: Yes (2 Frequencies per channel)
- Compander-Free Design: Yes
- Frequency Response THD %: 10 Hz (-0.5 dB) - 20kHz (-2.5 dB) 0.03% typical
- System Latency: < 2.9 ms (audio input to output)
- Operating Temp Range: 0 - 50-degrees C
- Construction:
- Relay G55 Receiver: Extruded aluminum chassis
- TBP12 Transmitters: Metal enclosure
- Receiver:
- RF Performance Monitoring: Yes (via LCD screen and LED)
- RF Signal Strength Indicators: 5-Segment LED
- Audio Level Meter (on Receiver): 5-Segment LED
- Dynamic Filter: Yes
- Squelch & Pad adjustments: None required
- Number of Receiver Antennas: 2
- Receiver Format: 1/2 RU (with included rack-mount kit)
- Receiver Power Requirements: 9Vdc 500mA

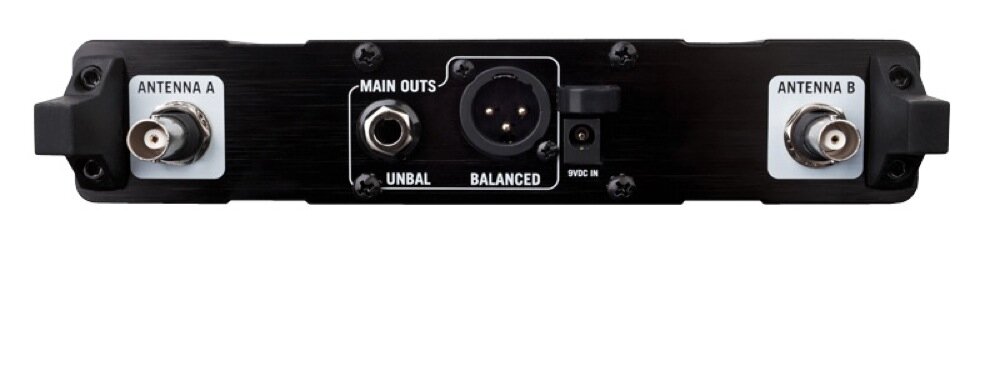

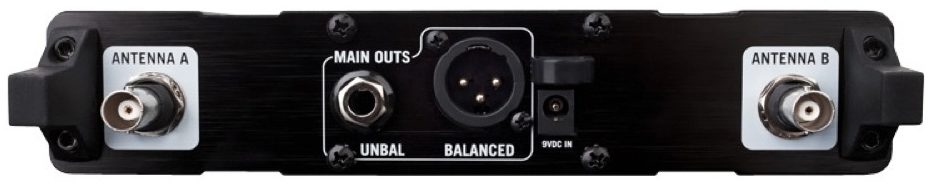

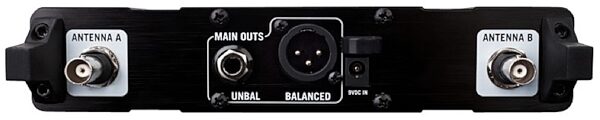

- Output Impedance: XLR: 150 Ohms Balanced 1/4": 1 kOhm Unbalanced
- Sensitivity: -95 dBm
- Image Rejection: 56 dB
- Antenna Distribution: A and B
- Antenna Impedance: 50 Ohms

Dimensions and Weight in Packaging

Shipping Weight: 4 lbs

Shipping Dimensions: 15 x 13 x 4 in
