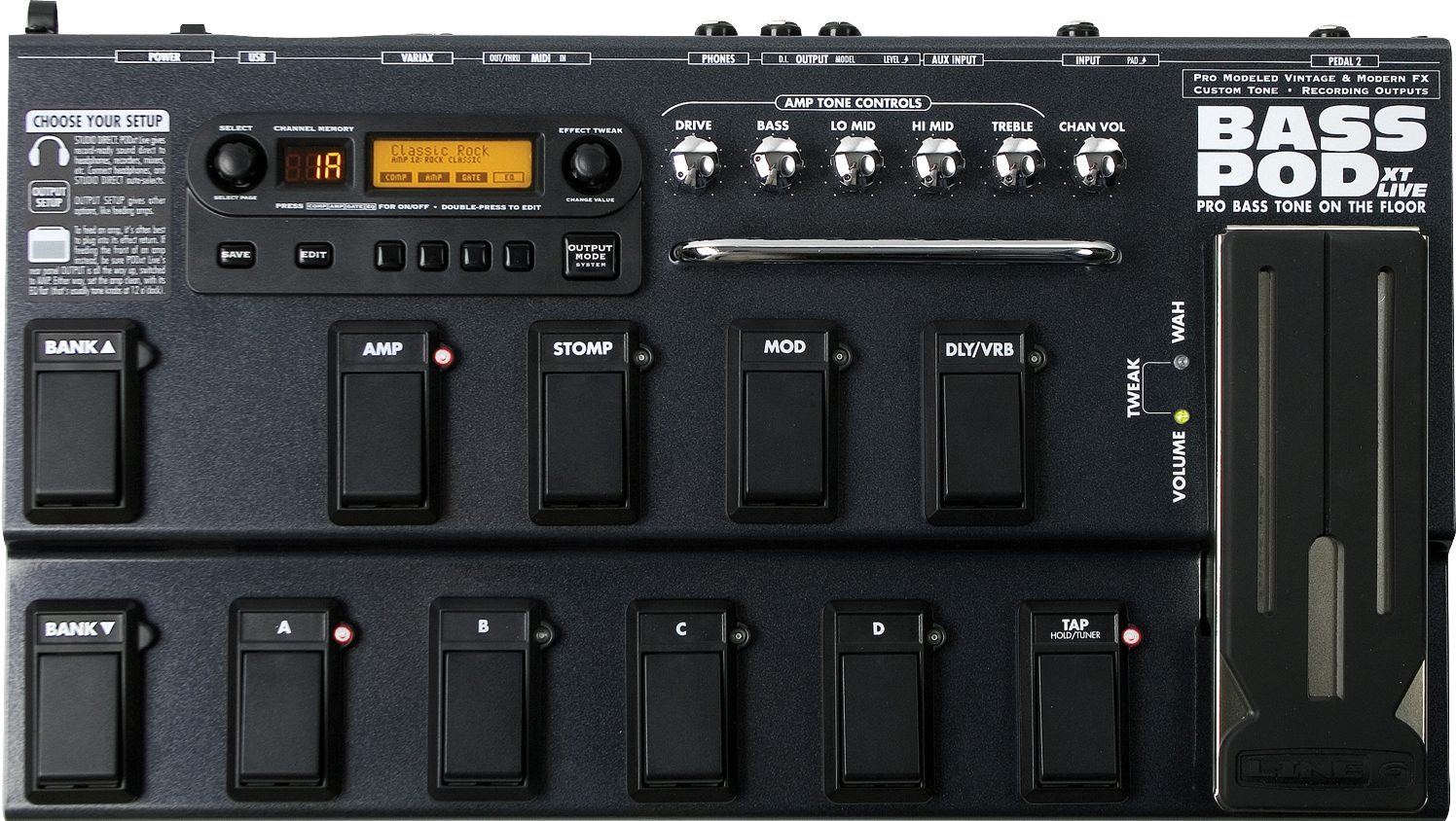

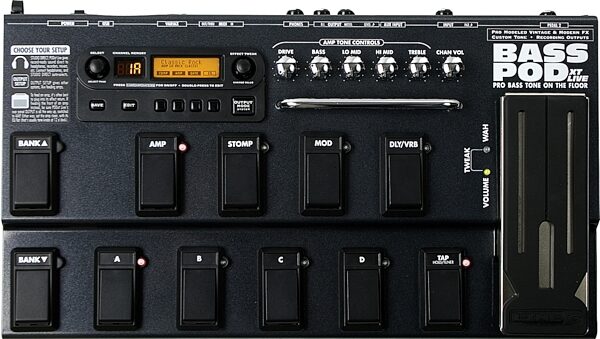

Line 6 Bass PODxt Live Bass Amp Modeler Pedalboard

Manufacturer's Description for Line 6 Bass PODxt Live Bass Amp Modeler Pedalboard

The power of Bass PODXT is now at your feet! Included are over 50 stompbox, synth, and studio effects, 28 bass amp models, plus 22 cab and 4 mic models. With its rugged steel construction, Bass PODXT Live is ready to take years of real world gig abuse.

Whether you use it as the ultimate multi-effect pedal, a direct recording miracle, a powerhouse preamp, a practice partner, or a creative digital signal processing tool, we think you'll agree that Bass PODXT Live is about the most amazing thing to happen to the electric bass since, well, since the bass amplifier itself!

Bass PODXT Live delivers the incredible tones of the acclaimed Line 6 Point-to-Point Interactive modeling technology (as featured in our other PODXT products and Vetta II series guitar amps), fuses it with the wonderfully portable and easy to use POD which has been the bass recording world standard for years, and smacks it all down on the floor for rugged professional use. So you've got the tonal heritage of the past century of stompbox and bass amplifier design, plus no-compromise recording and direct sound excellence - all ready to roll when you are.

Stombox & Studio Effects

What bassist doesn't like effects? Bass PODXT Live's got a bunch of great Stomp, Mod and Delay/Verb effects sounds adapted from Line 6's DM4 Distortion Modeler, MM4 Modulation Modeler, and DL4 Delay Modeler pedals. And, there are some brand spankin' new models that come straight from our flagship combo, Vetta II.

But what fun are a bunch of effects if you can't wire them up in bizarre and unusual ways? Fortunately, with Bass PODXT Live, you can. Its flexible routing lets you mix and match up to 6 marvelous effects simultaneously. When using an amp model, you can even choose to put some PRE, and some POST. Who says you can get too much of a good thing?

Chromatic Tuner and Tap Tempo Effects

Tap (Hold/Tuner) - Bass PODXT Live lets you control the time and speed of your effects by simply tapping on this button. To use the TAP control, just tap the button at the tempo you want and the effects will change to match what you tapped.

But wait, that's not all. Hold the footswitch for about 2 seconds and- bling, bling: instant digital chromatic tuner! Play a note and Bass PODXT Live will show you what it is - and whether it's in tune - on that handy display.

Amp Models

Bass PODXT Live has an incredible collection of amp and cab models that have been used on countless hit recordings. Based on the most prized amplifiers in the history of bass, Bass PODXT Live features 28 amp models and 22 cab models that will take you everywhere from classic and boutique, to modern and beyond.

Bass PODXT Live also has our A.I.R. II cabinet/microphone modeling, which allows you to choose from 4 mic models, along with the ability to adjust the amount of room you hear. Bass PODXT Live's ability to mix and match speaker cabinets and mics will help you find exactly the vibe that you're looking for.

Ins and Outs

Bass PODXT Live has a simple, gig-ready setup that's adaptable to all your different stage and studio needs. Whether you're running it as a multi-effect pedal in front of a bass amp (or into its FX loop), or straight to the house PA, Bass PODXT Live is the best way to take total control of your sound at the gig.

USB - Bass PODXT Live's USB jack lets you connect to most computers and record Bass PODXT Live directly to a wide variety of popular digital recording software packages. We've even included a USB cable to get you started. You can get the required driver software - and easily get it installed along with any other Bass PODXT Live -related computer stuff - by using the free Line 6 Monkey software, which you can download from the Line 6 website.

Variax Digital Input - Connect a Line 6 Variax(R) Bass here, and experience a whole new world of possibility and sound-control power. In addition to a direct digital audio connection between the bass and Bass PODXT Live, you can have the Variax change sounds each time you choose a new Channel Memory from Bass PODXT Live's footswitches or SELECT knob. And, you can even tweak the sound of your Variax Bass tone with Bass PODXT Live's built-in pedal!

MIDI In & Out - Connect Bass PODXT Live to your MIDI equipment to select Channel Memories (via Program Change messages), or automate Bass PODXT Live settings (via controllers and/or SySex).

Phones - When you want to listen with headphones, plug them in here. Bass PODXT Live automatically switches to Studio Mode whenever headphones are connected.

Output To Amp/Line - The unbalanced 1/4-inch connectors here get Bass PODXT Live feeding into the front of a bass amp, otherwise, choose LINE. The rear panel LEVEL knob sets the output level. Changing the OUTPUT level does not change your tone, so you can get the tone you want at any volume level.

The MODEL connector gives you the fully processed Amp+Cab+Effects+Mic signal generated by Bass PODXT Live. The D.I. connector gives you an unprocessed time- and phase-aligned version of your signal.

Aux Input - Connect a CD player, MP3 player, drum machine, virtual accordion, or other device here, and you'll hear it at Bass PODXT Live's headphone and Amp/Line outputs. Very handy for jamming along!

Input - Your bass goes here. Set the switch to norm for use with most passive pickup instruments. If you have to put two 9-volt batteries in your bass to make it rock, flip the switch to pad to prevent overdriving Bass PODXT Live's input in an unpleasant-sounding way.

Pedal 2 - You can add even more real-time control by connecting a standard expression pedal, such as the Line 6 EX-1. You'll be able to control Wah, Volume, and Tweak functions all at the same time!

On Stage

When you're playing on stage with Bass PODXT Live, you've got a choice of setups. Bass PODXT Live can be in between your bass and a bass amplifier so Bass PODXT Live acts as a tone-shaping front end for the amp. You can also plug straight out of Bass PODXT Live's outputs into the house system for awesome amp and effect tone without the hassle of mics and cabinets.

Or you can choose to run Bass PODXT Live into a power amp and speaker cabinets, using it as the ultimate preamp. Whichever setup you choose, all you have to do is dial it up the right setting in Bass PODXT Live.

What are you connecting to?

STUDIO DIRECT - When plugging Bass PODXT Live straight into a P.A., or using in-ear monitoring systems, select STUDIO DIRECT for amazing amp and effect tone, night after night. Line 6's exclusive A.I.R. II processing serves up a virtual speaker-cabinet-air-microphone experience so good you may never use a regular bass amplifier and microphone on stage again. You're as powerful as the entire P.A. - and guaranteed to be in the mix!

LIVE W HORN, LIVE W H EQ, LIVE NO HORN, LIVE NO H EQ - Choose one of these settings when plugging into a combo amp, head and bass cabinets, or power amp and bass cabinets. Choose LIVE NO HORN or LIVE NO H EQ if your system doesn't have a horn or high frequency driver, or you've chosen to turn them off on your speaker cabinet. Choose the LIVE W HORN or LIVE W H EQ option if your system includes a horn or other high frequency driver. The Mic component of A.I.R. is turned off, and the Cabinet Models are revoiced to sound their best coming through the kind of setup you choose. The two with EQ modes also give you Tone Correction controls.

What is Tone Correction

The idea of these Tone Correction controls is to adjust Bass PODXT Live's overall sound to compensate for the tonal response of the preamp section of the amp that you're plugging into. We've found that it is often necessary to reduce the low frequency or high frequency parts of the Bass PODXT Live to get decent results in this sort of a configuration, or shift the focus of the mid frequencies, so that's what these controls are set to do.

Bi-Amp Mode - Bass PODXT Live includes a Bi-Amp Mode. Bi-Amping is the technique of using a crossover to split a signal into its higher frequency and lower frequency portions, and sending each frequency range to a different amplification system. Lows would typically be sent to a power amp setup with lots of wattage and large diameter speakers, while highs would be sent to smaller diameter speakers and/or horns. Bass PODXT Live's Bi-Amp Mode includes selectable slope and frequency. zZounds is an authorized dealer of Line 6 products.

* 28 Legendary and Classic Bass Amp Models

* 22 Bass Cab & 4 Mic models

* Over 50 Stompbox and Studio Effects with Flexible Routing

* 6 Simultaneous Effects

* 64 Channel Memories

* Variax Bass Digital Connection

* Discrete outputs for modeled and direct sound

* Large Backlit Display

* Dedicated Stompbox On/Off Footswitches

* Combination Volume/Expression/Wah Pedal

* Built-in Chromatic Tuner

* Tap Tempo/Tuner Footswitch

* Input for additional Expression Pedal

* Onboard Deep Editing

* USB Digital I/O

* Biamp output mode with selectable crossover

* Headphone Out

* Aux Input for CD/MP3 players, drum machines, etc.

* Full MIDI Support
